Inverter – FoxESS – T17 G3 – G3
Incl. VAT
Falownik FoxESS 17kW, on-grid, trójfazowy, 2 mppt, wyświetlacz, wifi
Product details
T(G3)

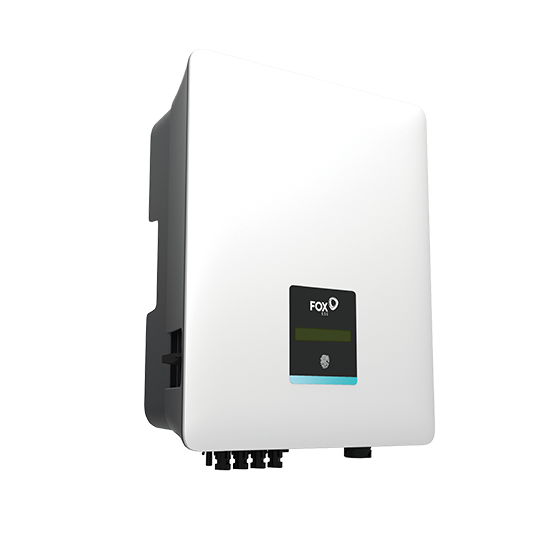

T(G3) is a series of three-phase inverters designed for residential and small commercial installations. It includes units with power ratings of 3–25 kW, depending on the model, and achieves a maximum efficiency of 98.6%. It enables remote monitoring of system performance in real time.
Key benefits of T(G3)
- Maximum efficiency 98.6% – high energy conversion efficiency.
- Low start-up voltage and wide voltage range – features supporting longer periods of energy generation.
- Maximum DC voltage 1100 V – a parameter common to the entire series.
- Protection rating IP65 – suitable for outdoor installation.
- Remote monitoring – real-time system performance monitoring via a smartphone app or web portal.
- Expandable with FoxESS energy storage – requires an additional FoxESS device.
Who is this a good choice for?
T(G3) is an option for homeowners with three-phase installations and businesses using small commercial installations. The 3–25 kW power range allows a model to be matched to the installation, while remote monitoring makes it easier to track its performance. Expandability with FoxESS storage systems meets the needs of users planning to add energy storage later, using the required additional FoxESS device.
| Parameter | Value |
|---|---|
| Model | FoxESS T17-G3 |
| Maximum recommended DC power | 25500 W |
| Maximum DC voltage | 1100 V |
| Nominal DC operating voltage | 600 V |
| Maximum input current A/B | 28/28 A |
| Maximum short-circuit current A/B | 36.4/36.4 A |
| MPPT voltage range | 140–1000 V |
| MPPT range at full load | 315–850 V |
| Start-up voltage | 140 V |
| Number of MPPT points | 2 |
| Number of inputs per MPPT | 2+2 |
| Rated AC output power | 17000 W |
| Maximum AC apparent power | 18700 VA |
| Nominal grid voltage | 3/N/PE, 220/380 V, 230/400 V, 240/415 V |
| Rated grid frequency | 50/60 Hz, ±5 Hz |
| Rated AC current | 24.6 A |
| Maximum AC current | 27.1 A |
| Power factor | 1; adjustable from 0.8 leading to 0.8 lagging |
| THD | <3% |
| MPPT efficiency | 99,8% |
| European efficiency | 97,8% |
| Maximum efficiency | 98,6% |
| Surge protection | Type II DC / Type II AC |
| Anti-islanding protection | Yes |
| DC reverse polarity protection | Yes |
| Insulation resistance monitoring | Yes |
| AC short-circuit protection | Yes |
| AC overcurrent protection | Yes |
| Thermal protection | Yes |
| Built-in DC disconnect switch | Yes |
| AFCI protection | Yes |
| Dimensions according to the manufacturer’s datasheet | 480 × 370 × 183.5 mm |
| Weight | 20 kg |
| Cooling | Forced convection (fans) |
| Degree of protection | IP65 |
| Topology | Transformerless |
| Noise level | <55 dB |
| Operating temperature | −25 to +60°C; power derating at +45°C |
| Storage temperature | −40 to +70°C |
| Maximum working height | 3000 m |
| Humidity | 0–100%, non-condensing |
| Night-time self-consumption | <3 W |
| Display | LCD, touch button, app, website |
