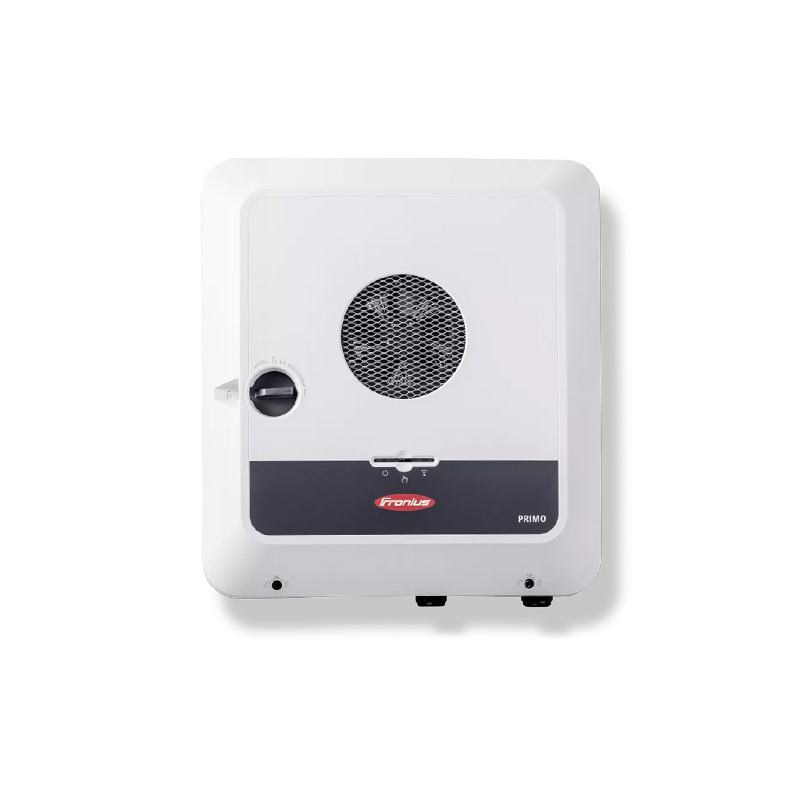

Inverter – FRONIUS – Primo GEN24 5.0 Plus – single-phase – hybrid – HV
Product details
Primo GEN24/GEN24 Plus
Primo GEN24/GEN24 Plus is a series of transformerless Fronius photovoltaic inverters with power ratings of 3.0–6.0 kW, depending on the model. The GEN24 version offers integrated basic PV Point backup power, while the hybrid GEN24 Plus version allows connection of an energy storage system and a choice between PV Point and the Full Backup option. Open communication interfaces enable integration of Fronius components and devices from other manufacturers.
Key benefits of Primo GEN24/GEN24 Plus
- Backup power: PV Point as standard and the Full Backup option in the GEN24 Plus version, providing backup power for the entire home.
- Compatibility with energy storage: the GEN24 Plus version allows you to use stored energy at night as well and increase self-consumption of electricity.
- Two maximum power point tracking (MPP) systems: the DC input voltage range is 65–600 V, and the start-up voltage is 80 V.
- Open interfaces and energy management: integration of Fronius devices and third-party components allows the system to be tailored to individual needs.
- Active cooling: the integrated system extends the service life of the inverter.
- Indoor and outdoor installation: the IP66-rated enclosure measures 530 × 474 × 165 mm, and the inverter weighs 15.4 kg.
Who is this a good choice for?
The series is designed for homeowners who want to combine a photovoltaic system with basic PV Point emergency power. For users planning to store energy and use it at night, the GEN24 Plus version offers battery connectivity and the option of full backup power for the home. Open interfaces also meet the needs of those who want to combine devices from Fronius and other manufacturers in a single system.
| Parameter | Primo GEN24 5.0 Plus |
|---|---|
| Number of MPP trackers | 2 |
| DC input voltage range (V) | 65 - 600 |
| Rated input voltage (V) | 400 |
| Start-up voltage (V) | 80 |
| Usable MPP voltage range (V) | 65 - 530 |
| MPP voltage range at rated power (V) | 230 - 530 |
| Maximum usable input current MPPT 1 (A) | 22 |
| Maximum usable DC power MPPT 1 (W) | 5170 |
| Maximum usable input current MPPT 2 (A) | 12 |
| Maximum usable DC power MPPT 2 (W) | 5170 |
| Apparent power (VA) | 5,000 |
| Backup power functions | PV Point or Full Backup |
| PV Point rated output power (VA) | 3,000 |
| Number of battery DC inputs | 1 |
| Battery DC connection technology | 1x BATT+ and 1x BATT- push-in spring terminals 2.5 - 10 mm² |
| Maximum efficiency (%) | 97,6 |
| European efficiency (%) | 97,2 |
| MPP tracking efficiency (%) | > 99,9 |
| Nighttime power consumption (W) | < 10 |
| Dimensions: height × width × depth (mm) | 530 × 474 × 165 |
| Inverter weight (kg) | 15,4 |
| Degree of protection | IP 66 |
| Safety class | 1 |
| DC / AC overvoltage category | 2/3 |
| Inverter design | Transformerless |
| Cooling | Active cooling technology |
| Installation | Indoor and outdoor installation |
| Ambient temperature range (°C) | -40 to +60 |
| Permissible air humidity (%) | 0 - 100 |
| Noise emission (dB(A)) | < 42 |
| Maximum altitude above sea level (m) | 4,000 |
| DC PV connection technology | 4x DC+ and 4x DC- push-in spring terminals 2.5–10 mm² |
| AC connection technology | 3-pole push-in AC spring terminals, 2.5–10 mm²; 3-pole protective earth (PE) terminals for conductor cross-sections of 2.5–16 mm² and 3x terminals for conductor cross-sections of 2.5–10 mm² |
| DC insulation resistance measurement | Integrated |
| Overload capacity | Operating point shift, power limiter |
| DC disconnector | Integrated |
| Reverse polarity protection | Integrated |
| WSD emergency switch | Integrated |
| WLAN / 2 × Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 digital inputs | Connection to a remote control receiver, energy management |
| 6 digital inputs/outputs | Connection to a remote control receiver, energy management |
| Data logger and web server | Integrated |
| 2 × RS485 | Modbus RTU SunSpec (third-party manufacturer) / Fronius Smart Meter energy meter, battery (GEN24 Plus), Fronius Ohmpilot |
| Certificates and compliance with standards | IEC 62109, IEC 62909, AS/NZS 4777.2, CEI 0-21, ABNT BNR 16149 and 16150, IEC 62116, IEC 61727, G98/G99 |
| Life cycle assessment | In accordance with ÖNORM EN ISO 14040 and 14044 standards (verified by experts from the Fraunhofer IZM institute) |
Full Backup and battery support apply only to GEN24 Plus; Full Backup requires external switching components. Battery power depends on the connected model.
