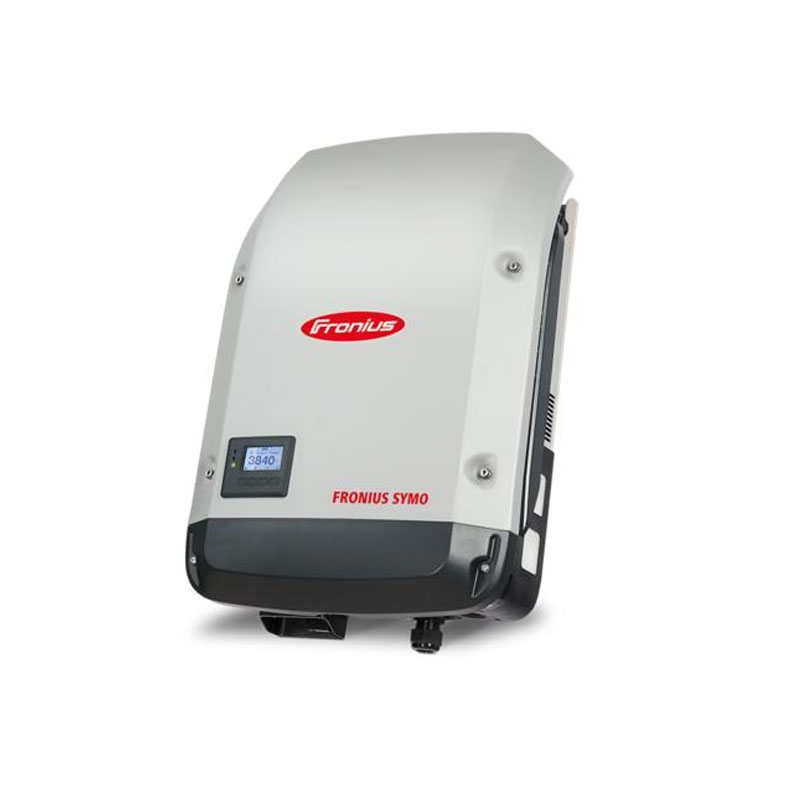

Inverter – FRONIUS – Symo 3.0-3-M
SKU: 4,210,036
EAN: 9007947113450
Price
671,75 €
Incl. VAT
Incl. VAT
Falownik Fronius Symo 3.0-3-M, 3kW, on-grid, trójfazowy, 2 mppt, wyświetlacz, wifi
Datasheet
Datasheet-3.0-3-M-EN.pdf
Product details
SYMO
SYMO by Fronius is a series of transformerless, three-phase grid-connected inverters for photovoltaic systems, available in a power range of 3.0–20.0 kW. The SuperFlex Design solution allows them to be used on irregularly shaped roofs or roofs facing different directions. Wi-Fi and Ethernet connectivity and a smart energy meter interface support communication and energy management.
Key benefits of SYMO
- Power 3.0–20.0 kW depending on the model — the option to match the inverter to the size of the photovoltaic installation.
- SuperFlex Design — a solution for installations on irregularly shaped roofs with slopes facing different directions.
- Wi-Fi and Ethernet communication — access to Fronius Solar.web and support for Modbus TCP SunSpec and Fronius Solar API (JSON).
- Compatibility with a smart energy meter — dynamic management of energy feed-in to the grid and visualization of self-consumption of the energy generated.
- European weighted efficiency 96.2–97.9% depending on the model.
- Electrical protection — DC insulation measurement, DC disconnector, reverse polarity protection and RCMU residual current monitoring module.
Who is this a good choice for?
SYMO is an option for owners of photovoltaic systems on irregularly shaped roofs or roof slopes facing different directions. The series also meets the needs of users who want to monitor their self-consumption of generated energy and dynamically manage its feed-in to the grid in conjunction with a smart energy meter.
Datasheet
Datasheet-3.0-3-M-EN.pdf
| Parameter | SYMO 3.0-3-M |
|---|---|
| Number of MPP trackers | 2 |
| Maximum input current MPP1 / MPP2 (A) | 16.0 / 16.0 |
| Maximum short-circuit current of the module array MPP1 / MPP2 (A) | 24.0 / 24.0 |
| Input voltage range (V) | 150–1000 |
| Start-up voltage (V) | 200 |
| Usable MPP voltage range (V) | 150–800 |
| Number of strings per MPP tracker | 2+2 |
| Maximum PV generator power (kWpeak) | 6.0 |
| Rated AC power (W) | 3000 |
| Maximum output power (VA) | 3000 |
| Maximum output current (A) | 4.3 |
| Grid connection and voltage range (V) | 3-NPE 400 / 230 or 3~NPE 380 / 220 (+20 % / -30 %) |
| Frequency and frequency range (Hz) | 50 / 60 (45–65) |
| Total harmonic distortion THD (%) | < 3 |
| Power factor | 0.85-1 ind. / cap. |
| Maximum efficiency (%) | 98.0 |
| European weighted efficiency (%) | 96.5 |
| MPP tracking efficiency (%) | > 99.9 |
| Dimensions: height × width × depth (mm) | 645 × 431 × 204 |
| Weight (kg) | 19.9 |
| Protection rating | IP65 |
| Protection class | 1 |
| DC / AC overvoltage category | 2 / 3 |
| Nighttime power consumption (W) | < 1 |
| Inverter topology | Transformerless |
| Cooling | Adjustable forced ventilation |
| Installation | Internal and external |
| Ambient temperature range (°C) | from -25 to +60 |
| Permissible air humidity (%) | 0–100 |
| Maximum altitude above sea level (m) | 2,000 / 3,400 (unrestricted / restricted voltage range) |
| DC connection terminals | 4x DC+ and 4x DC-, screw terminals 2.5-16 mm² |
| AC connection terminals | 5-pin screw terminals 2.5–16 mm² |
| DC insulation measurement | Yes |
| Overload behavior | Operating point shift, output power limitation |
| DC disconnector | Yes |
| Reverse polarity protection | Yes |
| Residual current monitoring unit RCMU | Yes |
| WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 inputs and 4 digital inputs/outputs | Connection to the remote control receiver |
| USB (Type A socket) | Data collection and inverter software updates from USB storage devices |
| 2x RS422 (RJ45 socket) | Fronius Solar Net |
| Relay output | Energy management, potential-free relay output |
| Data logger and web server | Integrated |
| Signal input | S0 meter connection / surge protection device status monitoring |
| RS485 | Modbus RTU SunSpec or smart energy meter connection |
| Certificates and compliance with standards | ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
