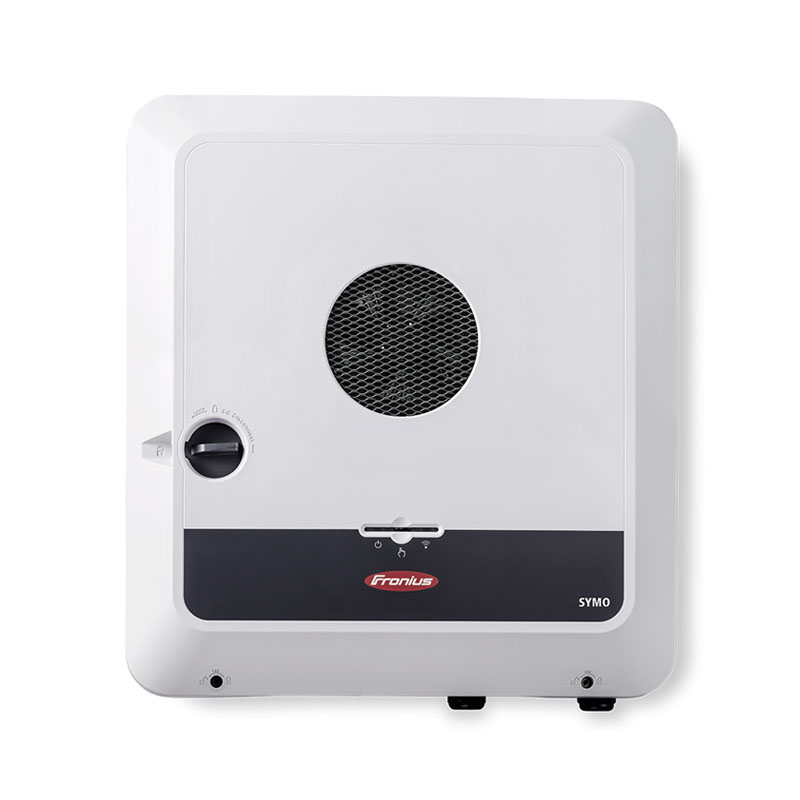

Inverter – FRONIUS – Symo GEN24 3.0 Plus – hybrid – HV
SKU: 4,210,150,002
EAN: 9007947330420
Product details
Symo GEN24 & GEN24 Plus
Symo GEN24 & GEN24 Plus is a series of Fronius photovoltaic inverters with power ratings of 3–10 kW, comprising standard and hybrid versions with an energy storage connection. The integrated PV Point function provides basic backup power, while open communication interfaces enable the integration of components from Fronius and third-party suppliers. The hybrid version with energy storage allows energy from the photovoltaic system to be used at night as well.
Key benefits of Symo GEN24 & GEN24 Plus
- Power 3–10 kW and two MPP trackers — the series offers a usable MPP voltage range of 80–800 V and a startup voltage of 80 V.
- PV Point backup power — the basic function is integrated into the inverter. The Full Backup option is available only in the Plus version rated at 6–10 kW and enables the entire household to be powered.
- Compatibility with energy storage — the Plus version has a battery storage connection. The Fronius UP.storage update enables the standard version to be upgraded to support energy storage; the solution is available in selected countries through the Fronius online store.
- Open interfaces and energy management — allow components from Fronius and third-party suppliers to be integrated and the photovoltaic system to be tailored to the user’s needs.
- Active cooling — the built-in system extends the device’s lifespan.
- Protection rating IP66 — the inverters are designed for indoor and outdoor installation, at ambient temperatures from −25 to +60°C.
Who is this a good choice for?
The series is designed for homeowners who want to use a photovoltaic system with basic backup power. The hybrid version meets the needs of users planning to store energy and use it at night, while the Plus variants rated at 6–10 kW also offer the option of full home backup power. Open interfaces will appeal to those who want to combine components from Fronius and third-party suppliers in a single system.
Datasheet
Datasheet-Symo-GEN24-EN-50.pdf
| Parameter | Symo GEN24 3.0 Plus |
|---|---|
| Number of MPP trackers | 2 |
| DC input voltage range (V) | 80 - 1000 |
| Nominal input voltage (V) | 610 |
| Start-up voltage (V) | 80 |
| Usable MPP voltage range (V) | 80 - 800 |
| MPP voltage range at rated power (V) | 125 - 800 |
| Maximum total usable DC power (W) | 3150 |
| Maximum total PV generator power (Wp) | 4500 |
| PV DC connection technology | 3 push-in spring terminals 2.5–10 mm² DC+ and DC- |
| Maximum usable input current MPPT 1 (A) | 12,5 |
| Maximum PV generator short-circuit current for MPPT 1 (A) | 20 |
| Number of DC connections MPPT 1 | 2 |
| Maximum usable DC power MPPT 1 (W) | 3150 |
| Maximum PV generator power MPPT 1 (Wp) | 4500 |
| Maximum usable input current MPPT 2 (A) | 12,5 |
| Maximum PV generator short-circuit current for MPPT 2 (A) | 20 |
| Number of DC MPPT connections 2 | 1 |
| Maximum usable DC power MPPT 2 (W) | 3150 |
| Maximum PV generator power MPPT 2 (Wp) | 4500 |
| Rated AC power (W) | 3000 |
| Apparent power (VA) | 3000 |
| Maximum output power (VA) | 3000 |
| Rated AC output current at 380 V (A) | 4,5 |
| Rated AC output current at 400 V (A) | 4,3 |
| Grid connection (V) | 3~ NPE 400/230 or 3~ NPE 380/220 (+20%/-30%) |
| Rated frequency and frequency range (Hz) | 50/60 (45 - 65) |
| Total harmonic distortion (%) | < 3,0 |
| Power factor | 0.7 - 1 inductive/capacitive |
| AC connection technology | 5-pole push-in spring terminals for AC, 1.5–10 mm²; 3-pole push-in spring terminals for backup power, 1.5–10 mm²; 5 PE screw terminals, 2.5–16 mm² |
| PV Point rated output power (VA) | 3000 |
| PV Point connection (V) | 1~ NPE 220/230 |
| PV Point switching time (s) | < 15 |
| Full Backup power availability | Unavailable |
| Number of battery DC inputs | 1 |
| Maximum battery input current (A) | 12,5 |
| Battery DC input voltage range (V) | 160 - 700 |
| DC battery connection technology | 1 push-in spring terminal each, 2.5–10 mm², BATT+ and BATT- |
| Maximum battery DC input/output power (W) | 3150 |
| Maximum charging power via AC connector (W) | 3000 |
| Compatible batteries | Fronius Reserva, Reserva Pro and BYD Battery-Box Premium HVS/HVM |
| Maximum efficiency (%) | 98.1 |
| European efficiency (%) | 96.7 |
| MPP efficiency (%) | >99.9 |
| Dimensions, height × width × depth (mm) | 530 × 474 × 165 |
| Inverter weight (kg) | 15,6 |
| IP protection rating | IP 66 |
| Protection class | 1 |
| Nighttime power consumption (W) | <10 |
| DC/AC overvoltage category | 2/3 |
| Cooling | Active cooling technology |
| Installation | Inside and outside buildings |
| Ambient temperature range (°C) | -25 to +60 |
| Permissible air humidity (%) | 0 - 100 |
| Noise emission (dB(A)) | < 36 |
| Maximum altitude above sea level (m) | 3000 / 4000 (unrestricted / restricted voltage range) |
| DC insulation measurement | Integrated |
| DC disconnector | Integrated |
| Reverse polarity protection | Integrated |
| WSD emergency shutdown | Integrated |
| WLAN / 2 × Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 digital inputs | Connection to remote control receiver, power management |
| 6 digital inputs/outputs | Connection to remote control receiver, power management |
| Data logger and web server | Integrated |
| 2 × RS485 | Modbus RTU SunSpec (third-party supplier) / Fronius Smart Meter, battery (GEN24 Plus), Fronius Ohmpilot |
| Certificates and compliance with standards | IEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE 0126, VDE AR-N4105, AS/NZS 4777,2, EN 50549, CEI 0-21, G98/G99, R25 |
| Country of manufacture | Austria |
| Life cycle analysis | In accordance with ÖNORM EN ISO 14040 and 14044 (verified by Fraunhofer IZM staff) |
The battery connection applies to GEN24 Plus; charging and discharging power depends on the battery. Full Backup is available only for GEN24 6.0–10.0 Plus and requires additional switching components.
