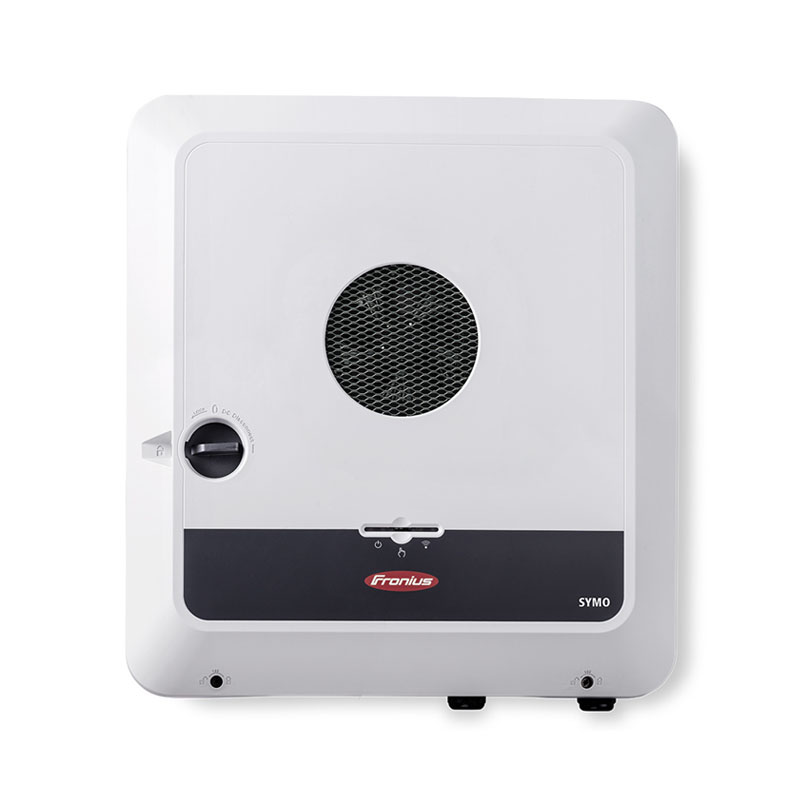

Inverter – FRONIUS – Symo GEN24 4.0 Plus – hybrid – HV
SKU: 4,210,151,002
EAN: 9007947330635
Price
1 996,46 €
Incl. VAT
Incl. VAT
Falownik Fronius Symo GEN24 4.0 plus, 4kW, hybrydowy, trójfazowy, 2 mppt, bez wyświetlacza, wifi
Datasheet
Datasheet-Symo-GEN24-EN.pdf
Product details
Symo GEN24
Symo GEN24 is a series of Fronius photovoltaic inverters rated from 3–10 kW, featuring an integrated PV Point basic backup power function. Open communication interfaces enable the integration of components from Fronius and third-party suppliers, while energy management functions help save time and costs. Active cooling extends the service life of the device.
Key benefits of Symo GEN24
- Integrated PV Point – basic backup power available as standard.
- Two maximum power point tracking (MPP) systems – the usable MPP voltage range is 80–800 V.
- Open communication interfaces – allow components from the manufacturer and third-party suppliers to be integrated into the system.
- Active cooling and energy management – solutions that extend inverter lifespan and save time and costs.
- Protection rating IP66 – suitable for indoor and outdoor installation and an ambient temperature range of -25 to +60 °C.
- Option to connect an energy storage system later – thanks to the Fronius UP.storage software update, available in selected countries through the Fronius online store.
Who is this a good choice for?
Symo GEN24 is an option for homeowners with a photovoltaic system who want basic PV Point backup power and energy management. It is also suitable for users planning to integrate additional components or postponing the decision on battery storage, subject to the availability of the Fronius UP.storage upgrade in their country.
Datasheet
Datasheet-Symo-GEN24-EN.pdf
| Parameter | Symo GEN24 4.0 Plus |
|---|---|
| Number of MPP trackers | 2 |
| DC input voltage range (V) | 80 - 1000 |
| Nominal input voltage (V) | 610 |
| Start-up voltage (V) | 80 |
| Usable MPP voltage range (V) | 80 - 800 |
| MPP voltage range at rated power (V) | 170 - 800 |
| Maximum total usable DC power (W) | 4180 |
| Maximum total PV generator power (Wp) | 6000 |
| PV DC connection technology | 3 push-in spring terminals 2.5–10 mm² DC+ and DC- |
| Maximum usable input current MPPT 1 (A) | 12,5 |
| Maximum PV generator short-circuit current for MPPT 1 (A) | 20 |
| Number of DC connections MPPT 1 | 2 |
| Maximum usable DC power MPPT 1 (W) | 4180 |
| Maximum PV generator power MPPT 1 (Wp) | 6000 |
| Maximum usable input current MPPT 2 (A) | 12,5 |
| Maximum PV generator short-circuit current for MPPT 2 (A) | 20 |
| Number of DC MPPT connections 2 | 1 |
| Maximum usable DC power MPPT 2 (W) | 4180 |
| Maximum PV generator power MPPT 2 (Wp) | 6000 |
| Rated AC power (W) | 4000 |
| Apparent power (VA) | 4000 |
| Maximum output power (VA) | 4000 |
| Rated AC output current at 380 V (A) | 6,1 |
| Rated AC output current at 400 V (A) | 5,8 |
| Grid connection (V) | 3~ NPE 400/230 or 3~ NPE 380/220 (+20%/-30%) |
| Rated frequency and frequency range (Hz) | 50/60 (45 - 65) |
| Total harmonic distortion (%) | < 3,0 |
| Power factor | 0.7 - 1 inductive/capacitive |
| AC connection technology | 5-pole push-in spring terminals for AC, 1.5–10 mm²; 3-pole push-in spring terminals for backup power, 1.5–10 mm²; 5 PE screw terminals, 2.5–16 mm² |
| PV Point rated output power (VA) | 3000 |
| PV Point connection (V) | 1~ NPE 220/230 |
| PV Point switching time (s) | < 15 |
| Full Backup power availability | Unavailable |
| Number of battery DC inputs | 1 |
| Maximum battery input current (A) | 12,5 |
| Battery DC input voltage range (V) | 160 - 700 |
| DC battery connection technology | 1 push-in spring terminal each, 2.5–10 mm², BATT+ and BATT- |
| Maximum battery DC input/output power (W) | 4180 |
| Maximum charging power via AC connector (W) | 4000 |
| Compatible batteries | Fronius Reserva, Reserva Pro and BYD Battery-Box Premium HVS/HVM |
| Maximum efficiency (%) | 98.2 |
| European efficiency (%) | 97.2 |
| MPP efficiency (%) | >99.9 |
| Dimensions, height × width × depth (mm) | 530 × 474 × 165 |
| Inverter weight (kg) | 15,6 |
| IP protection rating | IP 66 |
| Protection class | 1 |
| Nighttime power consumption (W) | <10 |
| DC/AC overvoltage category | 2/3 |
| Cooling | Active cooling technology |
| Installation | Inside and outside buildings |
| Ambient temperature range (°C) | -25 to +60 |
| Permissible air humidity (%) | 0 - 100 |
| Noise emission (dB(A)) | < 36 |
| Maximum altitude above sea level (m) | 3000 / 4000 (unrestricted / restricted voltage range) |
| DC insulation measurement | Integrated |
| DC disconnector | Integrated |
| Reverse polarity protection | Integrated |
| WSD emergency shutdown | Integrated |
| WLAN / 2 × Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 digital inputs | Connection to remote control receiver, power management |
| 6 digital inputs/outputs | Connection to remote control receiver, power management |
| Data logger and web server | Integrated |
| 2 × RS485 | Modbus RTU SunSpec (third-party supplier) / Fronius Smart Meter, battery (GEN24 Plus), Fronius Ohmpilot |
| Certificates and compliance with standards | IEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE 0126, VDE AR-N4105, AS/NZS 4777,2, EN 50549, CEI 0-21, G98/G99, R25 |
| Country of manufacture | Austria |
| Life cycle analysis | In accordance with ÖNORM EN ISO 14040 and 14044 (verified by Fraunhofer IZM staff) |
The battery connection applies to GEN24 Plus; charging and discharging power depends on the battery. Full Backup is available only for GEN24 6.0–10.0 Plus and requires additional switching components.
