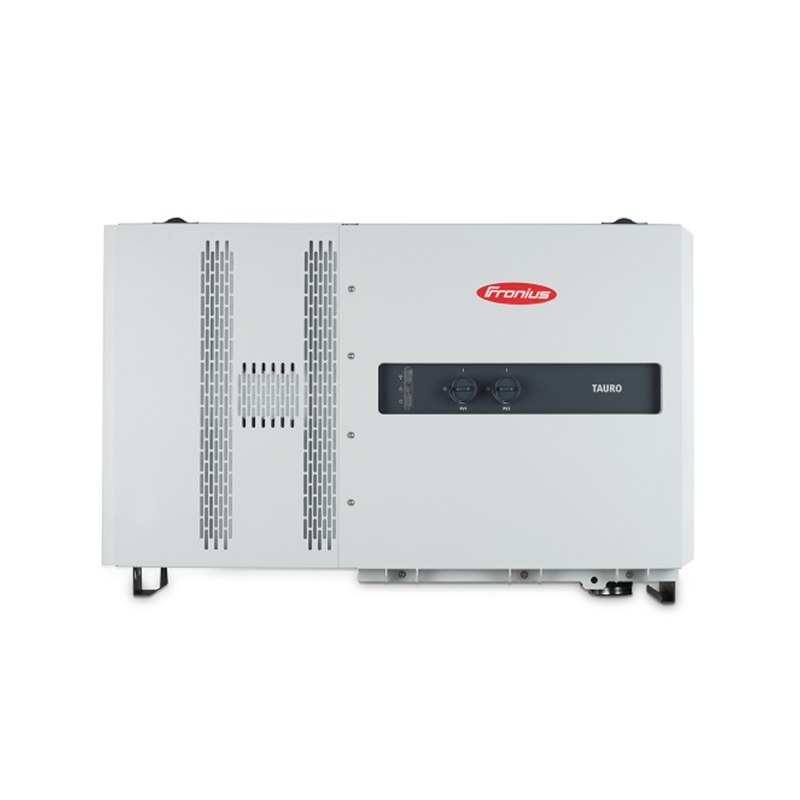

Inverter – FRONIUS – Tauro 50-3-D
SKU: 4,210,300
EAN: 9007947351807
Product details
TAURO
TAURO by Fronius is a series of three-phase photovoltaic inverters with a rated AC power of 50–100 kW, depending on the model. The version with direct string connection provides flexibility in system design and optimizes the cost of its additional components. Active cooling with a double-wall system enables maximum performance even at a temperature of 50°C.
Key advantages of TAURO
- Maximum efficiency 98.5–98.6% and European weighted efficiency of 98.1–98.2%, depending on the model.
- Direct connection of PV strings via Stäubli Multi-Contact MC4 connectors and 1–3 maximum power point trackers, depending on the model.
- Indoor and outdoor installation: IP65 protection rating and suitability for exposure to direct sunlight.
- Replaceable power modules and active cooling with a double-wall system.
- Integrated protection: DC disconnect switch, reverse polarity protection, DC insulation measurement and type 1+2 DC/AC surge protection.
- Communication and energy management: Wi-Fi, two Ethernet ports, an integrated data logger and web server, and digital inputs and outputs for energy management and load control.
Who is this a good choice for?
TAURO is an option for photovoltaic system owners who need a three-phase inverter with a power output of 50–100 kW and direct string connection. Users planning outdoor installation can benefit from the IP65 enclosure and approval for sun exposure, while those managing energy in the system can use the communication interfaces and inputs and outputs to control loads.
| Parameter | TAURO 50-3-D | TAURO ECO 50-3-D | TAURO ECO 100-3-D |
|---|---|---|---|
| DC input data | |||
| Number of MPP trackers | 3 | 1 | |
| Maximum input current (A) | 134 | 87,5 | 175 |
| Maximum input current of PV1 / PV2 / PV3 module array (A) | 36 / 36 / 72 | 75 / 75 / - | 75 / 75 / 75 |
| Maximum short-circuit current PV1 / PV2 / PV3 (A) | 72 / 72 / 125 | 125 / 125 / - | 125 / 125 / 125 |
| Maximum inverter short-circuit current (A) | 240 | 178 | 355 |
| Input voltage range (V) | 200 - 1000 V | 580 - 1000 V | |
| Start-up voltage (V) | 200 V | 650 V | |
| Usable MPP voltage range (V) | 400 - 870 V | 580 - 930 V | |
| Number of DC connections PV1 / PV2 / PV3 | 4 / 3 / 7 | 7 / 7 / - | 7 / 7 / 8 |
| Maximum PV generator power (kWpeak) | 75 kWpeak | 150 kWpeak | |
| AC output data | |||
| Rated AC power (W) | 50.000 W | 100.000 W | |
| Maximum output power (VA) | 50.000 VA | 100.000 VA | |
| Rated AC output current (A) | 76 | 152 | |
| Grid connection | 3~ NPE 400/230 V ; 3~ NPE 380/220 V | ||
| Rated frequency (Hz) | 50 / 60 | ||
| Frequency range (Hz) | 45 - 65 Hz | ||
| Power factor cos φ | 0 - 1 ind. / cap. | ||
| Dimensions and weight | |||
| Dimensions without wall-mounting frame, height × width × depth (mm) | 755 x 1109 x 346 | ||
| Weight (kg) | 92 kg | 74 kg | 103 kg |
| Operating conditions | |||
| IP protection rating | IP 65 | ||
| Protection class | 1 | ||
| Nighttime power consumption (W) | < 16 W | ||
| Cooling | Active cooling technology and double-wall system | ||
| Installation | Indoor and outdoor installation | ||
| Ambient temperature range (°C) | -40 to +65 °C | ||
| Temperature range with optional internal AC disconnect switch (°C) | -30 to +65 °C | ||
| AC connection terminals | |||
| Cable cross-section (mm²) | 35 - 240 mm² | 70 - 240 mm² | |
| AC cable material | Cu | ||
| Connection terminals | Direct DC connection; Stäubli Multi-Contact MC4 | ||
| Single-core option | Cable gland: 5 x M40 | ||
| Multicore option | Cable gland: 1 x multicore connection Ø 16 - 61.4 mm + 1 x M32 | ||
| AC daisy-chaining option, single-core cable | Cable gland: 10 x M32 | ||
| DC connection terminals | |||
| Cable cross-section (mm²) | 35 - 240 mm² | 70 - 240 mm² | |
| Cable material | Cu | ||
| Connection terminals | Direct DC connection; Stäubli Multi-Contact MC4 | ||
| Efficiency | |||
| Maximum efficiency (%) | 98,6 | 98,5 | |
| European weighted efficiency (%) | 98,1 % | 98,2 % | |
| MPP tracking efficiency (%) | > 99,9 | ||
| Protection | |||
| DC disconnector | Integrated | ||
| Behavior under overload | Operating point shift, output power limitation | ||
| Reverse polarity protection | Integrated | ||
| Residual current monitoring unit RCMU | Integrated | ||
| DC insulation measurement | Integrated | ||
| DC/AC surge protection | Type 1+2 integrated, Type 2 optional | ||
| String protection with fuses | Integrated, 15A or 20A | ||
| Interfaces | |||
| Wi-Fi | Fronius Solar.web, Modbus TCP Sunspec, Fronius Solar API (JSON) | ||
| 2 × Ethernet LAN RJ45 | 10/100Mbit; max. 100m | ||
| USB, Type A socket | Fronius Solar.web, Modbus TCP Sunspec, Fronius Solar API (JSON) | ||
| Wired shutdown WSD | Max. 1 A at 5 V, for power supply only | ||
| 2 × RS485 | Emergency shutdown; Modbus RTU SunSpec | Emergency shutdown; Modbus RTU Sunspec | Emergency shutdown; Modbus RTU SunSpec |
| 6 digital inputs and 6 digital inputs/outputs | Programmable remote control receiver interface, energy management, load control | ||
| Data logger and web server | Integrated | ||
| Certificates | |||
| Planned certifications and compliance with standards | AS/NZS 4777.2:2020, IEC62109-1/-2, VDE-AR-N 4105:2018, IEC62116, EN50549-1:2019 & EN50549-2:2019, VDE-AR-N 4110:2018, CEI 0-16:2019, CEI 0-21:2019 | ||
Direct sunlight permitted. Certifications are marked as planned in the source. Inverter communication via Ethernet in a star configuration; each inverter communicates independently via an integrated data logger.
