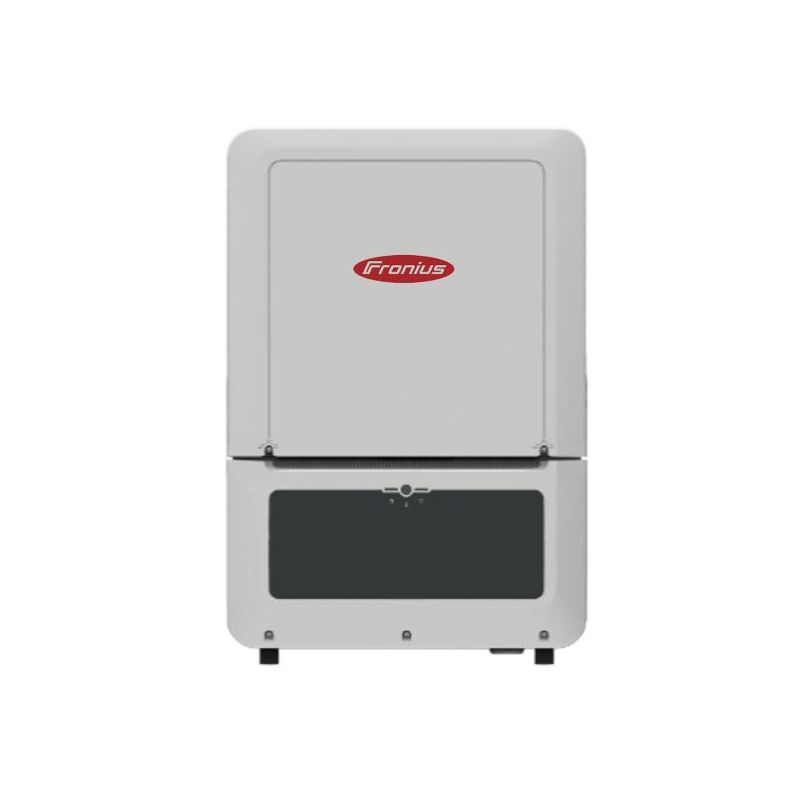

Inverter – FRONIUS – Verto 25.0
SKU: 4,210,400
EAN: 9007947628312
Product details
Verto
Verto is a three-phase photovoltaic inverter with a rated AC output of 25–33.3 kW, depending on the model, designed for new and expanding PV installations. Four maximum power point (MPP) trackers simplify the configuration of complex installations, while the Dynamic Peak Manager algorithm optimizes yields under shading. Open interfaces enable integration with devices that use surplus energy for electric vehicle charging and heating.
Key advantages of Verto
- Four MPP trackers: two DC connections per system, a maximum usable current of 28 A at the MPPT input and a DC input voltage range of 150–1000 V.
- Optimization under shading: the integrated Dynamic Peak Manager algorithm supports the use of energy from the PV installation.
- Integrated protection: Arc Guard arc detection and interruption, DC/AC surge protection and leakage current monitoring.
- Efficiency: maximum efficiency is 97.47–98.03%, depending on the model, and MPP efficiency exceeds 99.9%.
- Energy management integration: open interfaces facilitate integration with Fronius Wattpilot, Fronius Ohmpilot, heat pumps and smart home systems.
- Indoor and outdoor installation: IP66 protection rating and an ambient temperature range from −40 to +60 °C.
Who is this a good choice for?
Verto is designed for small businesses, farm owners, and owners and managers of multi-family homes building or expanding a PV system. Four MPP trackers meet the needs of complex systems, while open interfaces make it easier to use surplus energy for heating or charging electric vehicles.
Datasheet
Datasheet-Fronius-Verto-EN.pdf
| Parameter | Verto 25.0 | Verto 27.0 | Verto 30.0 | Verto 33.3 |
|---|---|---|---|---|
| DC input data | ||||
| Number of MPP trackers | 4 | |||
| Number of DC connections per MPPT | 2 | |||
| Maximum usable input current per MPPT (A) | 28 | |||
| Maximum usable input current per string (A) | 28 | |||
| Maximum PV generator short-circuit current per MPPT (A) | 50 | |||
| Maximum PV generator short-circuit current per string (A) | 50 | |||
| Maximum PV generator short-circuit current per inverter (A) | 150 | |||
| Rated input voltage (V) | 600 | |||
| DC input voltage range (V) | 150–1000 | |||
| Start-up voltage (V) | 150 | |||
| Usable MPP voltage range (V) | 150–870 | |||
| MPP voltage range at rated power (V) | 300–870 | 330–870 | 360–870 | 400–870 |
| Maximum usable DC power per MPPT (Wpeak) | 13,000 | |||
| Maximum PV array power per MPPT (Wpeak) | 20,000 | |||
| Maximum PV generator power per inverter (Wpeak) | 37,500 | 40,500 | 45,000 | 50,000 |
| AC output data | ||||
| Rated AC power (W) | 25,000 | 27,000 | 29,990 | 33,300 |
| Maximum output power (VA) | 25,000 | 27,000 | 29,990 | 33,300 |
| AC output current at 380 V (A) | 37,9 | 40,9 | 45,5 | 50,5 |
| AC output current at 400 V (A) | 36,2 | 39,1 | 43,5 | 48,3 |
| AC output current at 440 V (A) | 32,8 | 35,4 | 39,4 | 43,7 |
| AC output current at 480 V (A) | 30,1 | 32,5 | 36,1 | 40,1 |
| Grid connection (V) | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/274 | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/275 | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/276 | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/277 |
| Rated frequency and frequency range (Hz) | 50/60 (45–65) | |||
| Total harmonic distortion (%) | < 3 | < 1 | ||
| Power factor cos φ | 0–1 ind./cap. | |||
| Efficiency | ||||
| Maximum efficiency (%) | 97,47 | 98,03 | 98,02 | 97,98 |
| European efficiency (%) | 97,36 | 97,79 | 97,80 | 97,76 |
| MPP efficiency (%) | > 99,9 | |||
| Dimensions and weight | ||||
| Dimensions (height × width × depth) (mm) | 865 x 574 x 279 | |||
| Inverter weight (kg) | 41,75 | |||
| Operating conditions | ||||
| Degree of protection | IP 66 | |||
| Protection class | 1 | |||
| DC/AC overvoltage category | 2/3 | |||
| Nighttime power consumption (W) | < 16 | |||
| Cooling | Active air cooling | |||
| Installation | Inside and outside buildings | |||
| Ambient temperature range (°C) | from -40 to +60 | |||
| Permissible air humidity (%) | 0–100 | |||
| Noise emission (dB(A)) | < 54,6 | |||
| Maximum altitude above sea level (m) | 3000 / 4000 (unrestricted / restricted voltage range) | |||
| Connection technology | ||||
| AC connection | ||||
| AC conductor cross-section (mm²) | 4–35 | |||
| AC conductor material | Al and Cu | |||
| Cable glands and connection preparation | AC: M32 (Ø12–24.5 mm); provision for option 1: M50 cable gland (Ø10–35 mm); option 2: 1.5" conduit connection; PE and data transmission: 2 × M32 (3×Ø4.9–5.5 mm + 3×Ø6.7–8.5 mm) | |||
| DC connection | ||||
| DC connection terminals | Direct DC connection Stäubli Multi Contact MC4 | |||
| DC conductor material | Al and Cu | |||
| Protection | ||||
| DC insulation | Integrated | |||
| DC disconnector | Integrated | |||
| Residual current monitoring unit (RCMU) | Integrated | |||
| Electric arc detection and interruption – Arc Guard | Integrated | |||
| Reverse polarity protection | Integrated | |||
| DC/AC surge protection | Type 1+2 or type 2 | |||
| Interfaces | ||||
| WiFi | Fronius Solar.web, Modbus TCP, JSON, 802.11b/g | |||
| Ethernet LAN RJ45 | 10/100 Mbit; max. 100 m Fronius Solar.web, Modbus TCP, JSON | |||
| Wired shutdown (WSD) | Integrated | |||
| 2 × RS485 | Modbus RTU SunSpec (third-party) / Fronius Smart Meter | |||
| 6 digital inputs | Programmable remote control receiver interface, energy management, load management | |||
| 6 digital inputs/outputs | ||||
| Communication card and web server | Integrated | |||
| Certificates | ||||
| Certifications held and standards met | IEC62109-1/-2; VDE-AR-N 4105:2018; R25; UNE 217002:2020; IEC 62116; EN 50549-1/-2; AS/NZS 4777.2:2020+A1; IEC 63027:2023; CEI 0-21; CEI 0-16 | |||
A single string can handle the full usable MPPT current; the maximum current per MPPT is limited to 28 A. Isc pv = Isc max ≥ Isc (STC) × 1.25 in accordance with IEC 60364-7-712, NEC 2020 and AS/NZS 5033:2021.
