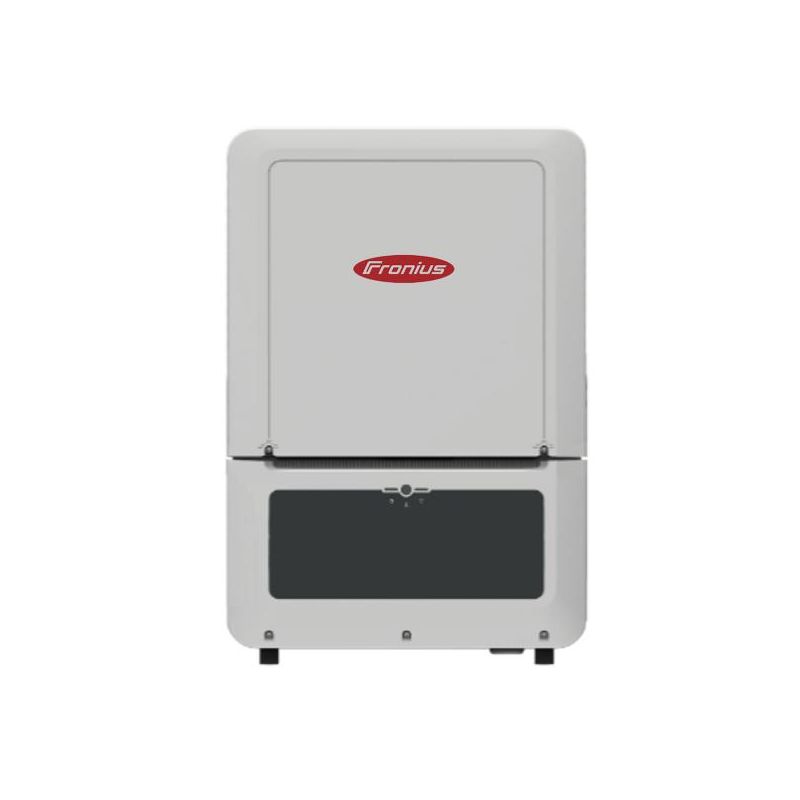

Inverter – FRONIUS – Verto 30.0 SPD 1+2
SKU: 4,210,404
EAN: 9007947628343
Product details
Verto
Verto is a series of three-phase photovoltaic inverters with a rated AC output of 25–33.3 kW, designed for new and expanded PV installations. Four maximum power point (MPP) trackers facilitate the management of complex installations, while the Dynamic Peak Manager algorithm optimizes energy yields even under shading. Integrated protection features and open interfaces support safe operation and the use of surplus energy for charging electric vehicles or heating.
Key advantages of Verto
- Four MPP trackers: two DC connections per system, a maximum usable current of 28 A per MPPT and a DC input voltage range of 150–1000 V.
- Optimization under shading: the integrated Dynamic Peak Manager algorithm supports optimal use of the PV system.
- Built-in protection: Arc Guard arc detection and interruption, DC/AC surge protection and leakage current monitoring.
- Energy conversion efficiency: the maximum efficiency is 97.47–98.03%, depending on the model.
- Energy management integration: open interfaces facilitate integration with Fronius Wattpilot, Fronius Ohmpilot, heat pumps and smart home systems.
- Indoor and outdoor installation: IP66 protection rating and an ambient temperature range from −40 to +60°C.
Who is this a good choice for?
Verto is designed for small businesses, farms and users of PV installations in multi-family homes who are planning to build or expand their system. Four MPP trackers meet the needs of complex installations, while integration with vehicle charging and heating equipment allows surplus energy to be used on site.
Datasheet
Datasheet-Fronius-Verto-EN-50.pdf
| Parameter | Verto 25.0 | Verto 27.0 | Verto 30.0 | Verto 33.3 |
|---|---|---|---|---|
| DC input data | ||||
| Number of MPP trackers | 4 | |||
| Number of DC connections per MPPT | 2 | |||
| Maximum usable input current per MPPT (A) | 28 | |||
| Maximum usable input current per string (A) | 28 | |||
| Maximum short-circuit current of the photovoltaic generator per MPPT (A) | 50 | |||
| Maximum short-circuit current of the photovoltaic generator per string (A) | 50 | |||
| Maximum short-circuit current of the photovoltaic generator per inverter (A) | 150 | |||
| Rated input voltage (V) | 600 | |||
| DC input voltage range (V) | 150–1000 | |||
| Start-up voltage (V) | 150 | |||
| Usable MPP voltage range (V) | 150–870 | |||
| MPP voltage range at rated power (V) | 300–870 | 330–870 | 360–870 | 400–870 |
| Maximum usable DC power per MPPT (Wpeak) | 13,000 | |||
| Maximum photovoltaic generator power per MPPT (Wpeak) | 20,000 | |||
| Maximum photovoltaic generator power per inverter (Wpeak) | 37,500 | 40,500 | 45,000 | 50,000 |
| AC output data | ||||
| Rated AC power (W) | 25,000 | 27,000 | 29,990 | 33,300 |
| Maximum output power (VA) | 25,000 | 27,000 | 29,990 | 33,300 |
| AC voltage (V) | 380, 400, 440, 480 | |||
| AC output current (A) | 37,9, 36,2, 32,8, 30,1 | 40,9, 39,1, 35,4, 32,5 | 45,5, 43,5, 39,4, 36,1 | 50,5, 48,3, 43,7, 40,1 |
| Grid connection (V) | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/274 | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/275 | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/276 | 3~ (N)PE 380/220; 3~ (N)PE 400/230; 3~ (N)PE 440/254; 3~ (N)PE 480/277 |
| Rated frequency and frequency range (Hz) | 50/60 (45–65) | |||
| Total harmonic distortion (%) | < 3 | < 1 | ||
| Power factor | 0–1 ind./cap. | |||
| Efficiency | ||||
| Maximum efficiency (%) | 97,47 | 98,03 | 98,02 | 97,98 |
| European efficiency (%) | 97,36 | 97,79 | 97,80 | 97,76 |
| MPP efficiency (%) | > 99,9 | |||
| Dimensions and weight | ||||
| Dimensions (height × width × depth) (mm) | 865 x 574 x 279 | |||
| Inverter weight (kg) | 41,75 | |||
| Operating conditions | ||||
| Degree of protection | IP 66 | |||
| Protection class | 1 | |||
| DC/AC overvoltage category | 2/3 | |||
| Nighttime power consumption (W) | < 16 | |||
| Cooling | Active air cooling | |||
| Installation | Indoor and outdoor installation | |||
| Ambient temperature range (°C) | from -40 to +60 | |||
| Permissible air humidity (%) | 0–100 | |||
| Noise emission (dB(A)) | < 54,6 | |||
| Maximum altitude above sea level (m) | 3000 / 4000 (unrestricted / restricted voltage range) | |||
| Connections | ||||
| AC | ||||
| Conductor cross-section (mm²) | 4–35 | |||
| Conductor material | Al and Cu | |||
| Cable gland | AC: M32 (Ø12–24.5 mm) Prepared for Option 1: M50 cable gland (Ø10–35 mm) Option 2: 1.5" conduit connection PE and data transmission: 2 × M32 (3×Ø4.9–5.5 mm + 3×Ø6.7–8.5 mm) | |||
| DC | ||||
| DC connection terminals | Direct DC connection Stäubli Multi Contact MC4 | |||
| DC conductor material | Al and Cu | |||
| Protection | ||||
| DC insulation | Integrated | |||
| DC disconnector | Integrated | |||
| Residual current monitoring unit (RCMU) | Integrated | |||
| Electric arc detection and interruption – Arc Guard | Integrated | |||
| Reverse polarity protection | Integrated | |||
| DC/AC surge protection | Type 1+2 or type 2 | |||
| Interfaces | ||||
| WiFi | Fronius Solar.web, Modbus TCP, JSON, 802.11b/g | |||
| Ethernet LAN RJ45 | 10/100 Mbit; max. 100 m Fronius Solar.web, Modbus TCP, JSON | |||
| Wired shutdown (WSD) | Integrated | |||
| 2 × RS485 | Modbus RTU SunSpec (third-party) / Fronius Smart Meter | |||
| 6 digital inputs | Programmable remote control receiver interface, energy management, load management | |||
| 6 digital inputs/outputs | Programmable remote control receiver interface, energy management, load management | |||
| Communication card and web server | Integrated | |||
| Certificates | ||||
| Certifications held and standards met | IEC62109-1/-2; VDE-AR-N 4105:2018; R25; UNE 217002:2020; IEC 62116; EN 50549-1/-2; AS/NZS 4777.2:2020+A1; IEC 63027:2023; CEI 0-21; CEI 0-16 | |||
A single string can handle the full usable MPPT current; the maximum current per MPPT is limited to 28 A. Isc pv = Isc max ≥ Isc (STC) × 1.25 in accordance with IEC 60364-7-712, NEC 2020 and AS/NZS 5033:2021.
