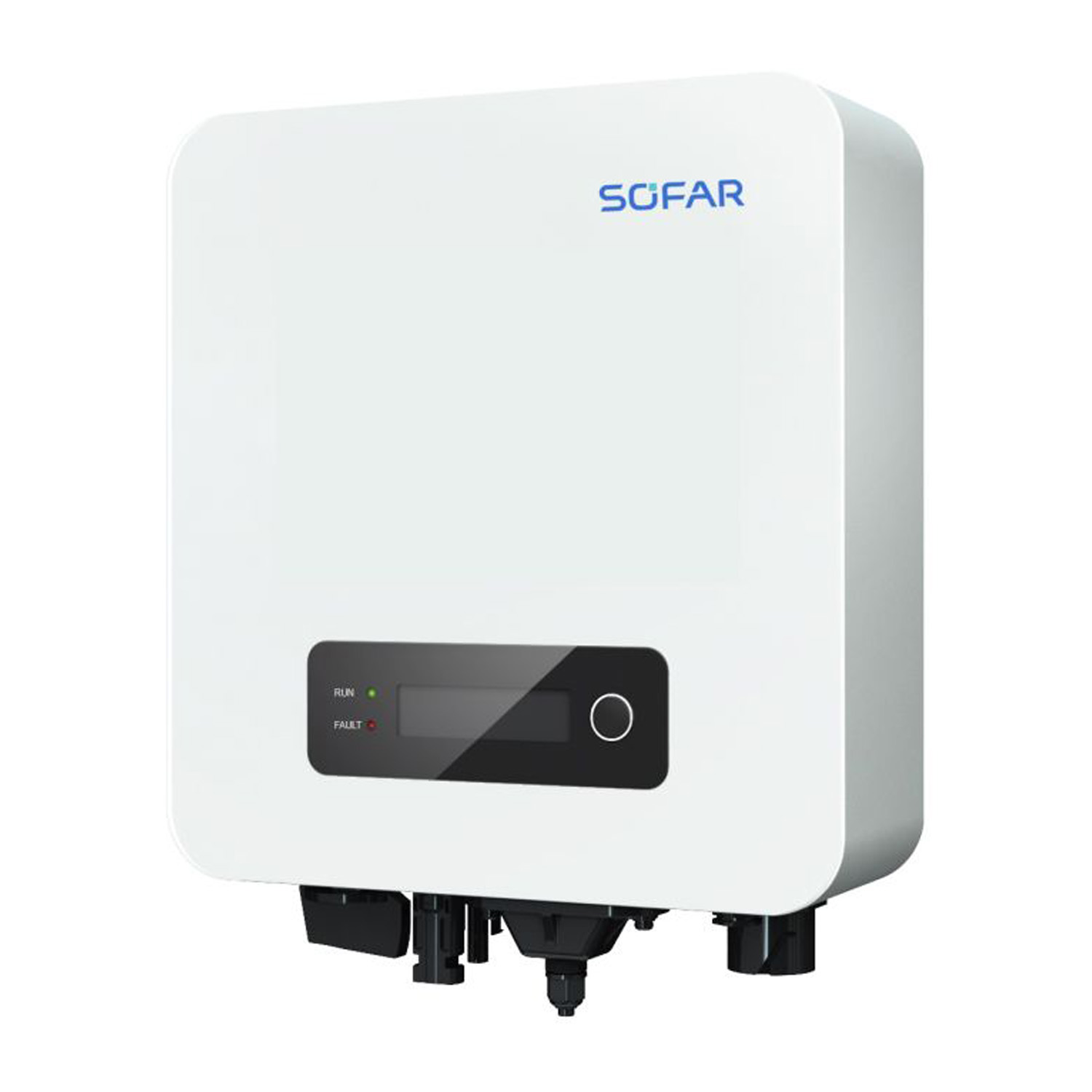

Inverter Sofar 3300 TL – G3 / Single-phase

SKU: F2308 EAN: 5905951580494
Inverter Sofar 3300 TL - G3 / Single-phase
Manufacturer

Rated power

Power supply

Hybrid device

MPPT

1

Warranty

Net width

Net depth

Net height

Ethernet

Optional

GPRS

Yes

RS485

Yes

USB

Yes

Wi-Fi

Yes

SPD Type II

Weight8 kg
CN85044085

Login to place an order

396,38 €
Gross

Login to place an order

Warranty Sofar 3300 TL - G3 / 1-phase warranty-sofar-3300-tl-g3-1-phase.pdf

Product details

Manufacturer

Rated power

Power supply

Hybrid device

MPPT

1

Warranty

Net width

Net depth

Net height

Ethernet

Optional

GPRS

Yes

RS485

Yes

USB

Yes

Wi-Fi

Yes

SPD Type II

Weight8 kg
CN85044085

Sofar 1.1k~3.3kTL-G3 – Single-Phase Inverter with a Single MPPT

The Sofar 1.1k~3.3kTL-G3 is a modern single-phase inverter designed for small photovoltaic installations. With advanced features and a compact design, it is perfectly suited for household applications, delivering efficiency and reliability.

Key Features:

  • DC Overload 1.4: Enables more efficient use of photovoltaic panels.
  • IP65 Protection: Dust and water resistance, allowing for installation both indoors and outdoors.
  • Maximum Efficiency: High efficiency reaching up to 97.7%.
  • Easy Installation: Lightweight design facilitates quick setup.
  • Smart Monitoring: Supports RS485, WiFi, and optional GPRS for easy system management.

Why Choose the Sofar 1.1k~3.3kTL-G3?

The Sofar inverter from the 1.1k~3.3kTL-G3 series combines functionality with simplicity. The built-in zero export feature allows for full utilization of generated energy without sending it back to the grid, leading to cost savings and better energy management. With intuitive monitoring, users have complete control over the system’s performance, while the compact and lightweight housing makes the device easy to handle and install. IP65 protection ensures reliability even in challenging weather conditions.

Warranty Sofar 3300 TL - G3 / 1-phase warranty-sofar-3300-tl-g3-1-phase.pdf

Data SheetSOFAR 3.3KTLX-G3SOFAR 4.4KTLX-G3SOFAR 5.5KTLX-G3SOFAR 6.6KTLX-G3SOFAR 8.8KTLX-G3SOFAR 11KTLX-G3SOFAR 12KTLX-G3
Input (DC)
Recommended Max PV Input Power (Wp)4500600075009000120001500018000
Number of MPPTs2222222
Number of DC Inputs1/11/11/11/11/11/12/1
Max Input Voltage (V)1100110011001100110011001100
Starting Voltage (V)160160160160160160160
Nominal Input Voltage (V)650650650650650650650
MPPT Operating Voltage Range (V)140-1000140-1000140-1000140-1000140-1000140-1000140-1000
MPPT Voltage Range at Full Power (V)160-850190-850240-850290-850380-850420-850460-850
Max MPPT Input Current (A)15/1515/1515/1515/1515/1515/1530/15
Max Short-Circuit Current on MPPT (A)22.5/22.522.5/22.522.5/22.522.5/22.522.5/22.522.5/22.545/22.5
Output (AC)
Rated Power (W)300040005000600080001000012000
Max AC Power (VA)330044005500660088001100013200
Max Output Current (A)4.86.48.09.612.815.919.1
Nominal Grid Voltage (Vac)3/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 400
Grid Voltage Range (Vac)310 – 480 Vac (according to local standards)310 – 480 Vac (according to local standards)310 – 480 Vac (according to local standards)310 – 480 Vac (according to local standards)310 – 480 Vac (according to local standards)310 – 480 Vac (according to local standards)310 – 480 Vac (according to local standards)
Nominal Grid Frequency (Hz)50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz
Grid Frequency Range (Hz)45 – 55 Hz / 55 – 65 Hz (according to local standards)45 – 55 Hz / 55 – 65 Hz (according to local standards)45 – 55 Hz / 55 – 65 Hz (according to local standards)45 – 55 Hz / 55 – 65 Hz (according to local standards)45 – 55 Hz / 55 – 65 Hz (according to local standards)45 – 55 Hz / 55 – 65 Hz (according to local standards)45 – 55 Hz / 55 – 65 Hz (according to local standards)
Active Power Regulation Range0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%
THDi<3%<3%<3%<3%<3%<3%<3%
Power Factor1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)
Efficiency
Max Efficiency (%)98.40%98.40%98.40%98.40%98.50%98.50%98.50%
European Efficiency (%)97.50%97.50%97.50%97.50%98.00%98.00%98.00%
Protection
DC Reverse Polarity ProtectionYesYesYesYesYesYesYes
Island Mode ProtectionYesYesYesYesYesYesYes
Residual Current ProtectionYesYesYesYesYesYesYes
Ground Fault DetectionYesYesYesYesYesYesYes
PV String Fault MonitoringYesYesYesYesYesYesYes
Energy Outflow BlockingYesYesYesYesYesYesYes
DC SwitchOptionalOptionalOptionalOptionalOptionalOptionalOptional
SPD Input/OutputPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standard
Communication
Standard Communication ModeRS485 / WiFi / Bluetooth, optionally: EthernetRS485 / WiFi / Bluetooth, optionally: EthernetRS485 / WiFi / Bluetooth, optionally: EthernetRS485 / WiFi / Bluetooth, optionally: EthernetRS485 / WiFi / Bluetooth, optionally: EthernetRS485 / WiFi / Bluetooth, optionally: EthernetRS485 / WiFi / Bluetooth, optionally: Ethernet
General Data
Ambient Temperature Range-30°C … +60°C-30°C … +60°C-30°C … +60°C-30°C … +60°C-30°C … +60°C-30°C … +60°C-30°C … +60°C
Night Power Consumption (W)<1<1<1<1<1<1<1
TopologyTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerless
Protection RatingIP65IP65IP65IP65IP65IP65IP65
Permissible Relative Humidity Range0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%
Max Operating Height4000 m4000 m4000 m4000 m4000 m4000 m4000 m
Noise<40 dB<40 dB<40 dB<40 dB<40 dB<40 dB<40 dB
Weight (kg)15151515171717
CoolingNaturalNaturalNaturalNaturalNaturalNatural
Dimensions (mm)430*375*179430*375*179430*375*179430*375*179430*375*179430*375*179430*375*179
DisplayLCD, application via BluetoothLCD, application via BluetoothLCD, application via BluetoothLCD, application via BluetoothLCD, application via BluetoothLCD, application via BluetoothLCD, application via Bluetooth
Standards
EMCEN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12
Safety StandardsIEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)
Grid StandardsVDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530
