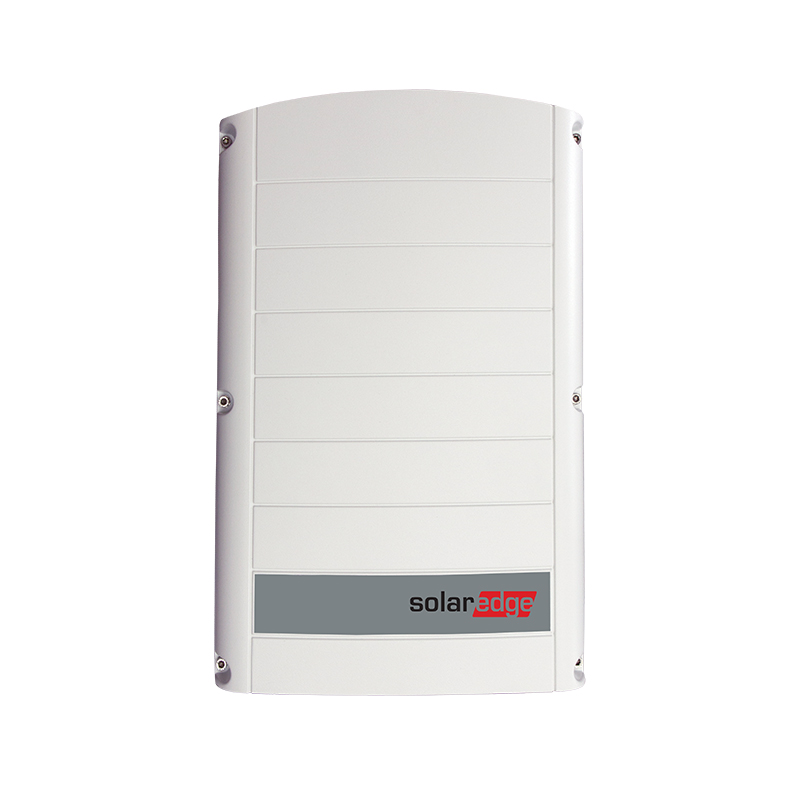

Inverter – SOLAREDGE – SE33.3K-RW00IBNM4
Incl. VAT
Falownik SolarEdge 33.3kW, on-grid, trójfazowy, 1 mppt, bez wyświetlacza, wifi
Product details
SE25K / SE30K / SE33.3K
SolarEdge three-phase inverters are specifically designed to work with power optimizers in photovoltaic systems. Constant voltage technology ensures a maximum efficiency of 98.3% and allows longer strings. Built-in module-level monitoring enables system performance tracking, while the SolarEdge SetApp application allows the inverter to be commissioned directly from a smartphone.
Key advantages of SE25K / SE30K / SE33.3K
- Rated AC output power 25–33.3 kW depending on the model; European weighted efficiency is 98%.
- Module-level monitoring with Ethernet communication, 2 RS485 interfaces and optional cellular connectivity. Wi-Fi connectivity requires an additional component ordered separately.
- Integrated protection: protection against the effects of arc faults and replaceable Type II DC surge protection. Rapid shutdown and Type II AC surge protection are optional.
- Protection rating IP65 allows installation indoors and outdoors; a mounting bracket is included.
- Energy export limitation and grid monitoring and anti-islanding protection support the management of the installation’s operation.
- 12–20-year warranty indicated in the product data sheet.
Who is this a good choice for?
This is an option for owners of photovoltaic systems with power optimizers who need a three-phase inverter with a rated AC power of 25–33.3 kW. Users wishing to track the performance of individual modules will benefit from built-in monitoring, while those needing control over the energy fed into the grid can use the export limitation function.
| Parameter | SE25K | SE30K | SE33.3K |
|---|---|---|---|
| DC input data | |||
| Maximum DC input power (modules under STC) (W) | 43 750 | 52 500 | 58 275 |
| Transformerless, ungrounded design | Yes | ||
| Maximum input voltage DC+ to DC- (V DC) | 1000 | ||
| Rated input voltage DC+ to DC- (V DC) | 750 | ||
| Maximum input current (A DC) | 36,25 | 43,5 | 48,25 |
| Reverse polarity protection | Yes | ||
| Ground fault detection sensitivity (kΩ) | 150 | ||
| AC output data | |||
| Rated AC output power (W) | 25 000 | 29 990 | 33 300 |
| Maximum apparent AC output power (VA) | 25 000 | 29 990 | 33 300 |
| Rated line-to-line / phase output voltage (V AC) | 380/220; 400/230 | ||
| Line-to-line / phase output voltage range (V AC) | 304 - 437 / 176 - 253; 320 - 460 / 184 - 264,5 | ||
| AC frequency (Hz) | 50/60 ± 5% | ||
| Maximum continuous output current per phase (A AC) | 36,25 | 43,5 | 48,25 |
| AC output line connections | 3W + PE, 4W + PE | ||
| Grid monitoring, anti-islanding protection, configurable power factor and country-specific thresholds | Yes | ||
| Total harmonic distortion (%) | ≤ 3 | ||
| Power factor range | +/- from 0.8 to 1 | ||
| Maximum residual current (mA) | 100 | ||
| Efficiency and energy consumption | |||
| Maximum inverter efficiency (%) | 98,3 | ||
| European weighted efficiency (%) | 98 | ||
| Nighttime power consumption (W) | < 4 | ||
| Communication and additional features | |||
| Supported communication interfaces | 2 x RS485, Ethernet, Wi-Fi (requires antenna)(3), Cellular (optional) | ||
| Smart energy management | Export limitation | ||
| Inverter commissioning | SetApp mobile application using the built-in Wi-Fi access point to establish a local connection | ||
| Protection | |||
| Protection against the effects of an electric arc | Integrated, user-configurable, UL1699B-compliant | ||
| Rapid shutdown | Optional(4) (Automatic after disconnection from the AC grid) | ||
| RS485 surge protection | Optionally | ||
| DC surge protection | Type II, field-replaceable, integrated | ||
| AC surge protection | Type II, field-replaceable, optional | ||
| DC protection device (optional) | |||
| 2-pole disconnection voltage (V) | 1000 | ||
| 2-pole breaking current (A) | 48,25 | ||
| DC fuses (A) | Optionally 25 / 30 | ||
| Compliance | UTE-C15-712-1 | ||
| Certificates and compliance with standards | |||
| Safety standards | IEC-62109, AS3100 | ||
| Grid connection standards | VDE-AR-N-4105, AS-4777, EN50438, CEI-021, VDE 0126-1-1, CEI-016, EN50549-1, EN50549-2, VDE-AR-N-4110, TOR Generator Type A, G99, G99 (NI), VFR 2019 | ||
| Emission standards | IEC61000-6-2, IEC61000-6-3 class A, IEC61000-3-11, IEC61000-3-12 | ||
| Compliance with the RoHS Directive | Yes | ||
| Installation data | |||
| AC output cable diameter (mm) | 19 - 28 | ||
| AC line conductor cross-section (mm²) | 4 - 16 | ||
| PE conductor cross-section (mm²) | 4 - 16 | ||
| DC input | 4 pairs of MC4 | ||
| DC input with protective device | 4 strings: Cable gland: Cable outer diameter 5–10 mm / conductor cross-section 2.5–16 mm² | ||
| Outer diameter of DC cable with protective device (mm) | 5 - 10 | ||
| DC cable cross-section with protective device (mm²) | 2,5 - 16 | ||
| Mounting | Included bracket | ||
| Dimensions and weight | |||
| Dimensions (H × W × D) (mm) | 550 x 317 x 273 | ||
| Dimensions with safety device (H × W × D) (mm) | 836 x 317 x 300 (DC MC4); 819 x 317 x 300 (DC inlet) | ||
| Weight (kg) | 32 | ||
| Weight with safety device (kg) | 36,5 | ||
| Operating conditions | |||
| Operating temperature range (°C) | From -40 to +60(8) | ||
| Cooling | Fan (user-replaceable) | ||
| Noise level (dBA) | < 62 | ||
| Protection rating | IP65 | ||
| Installation location | outdoors and indoors | ||
An external RCD, if required, must have a trip threshold ≥ 100 mA. Ground fault detection sensitivity applies where permitted by local regulations. Wi-Fi requires an additional component ordered separately. Only MC4 connectors from Stäubli are permitted. Information on power derating with temperature is provided in the manufacturer's documentation.
