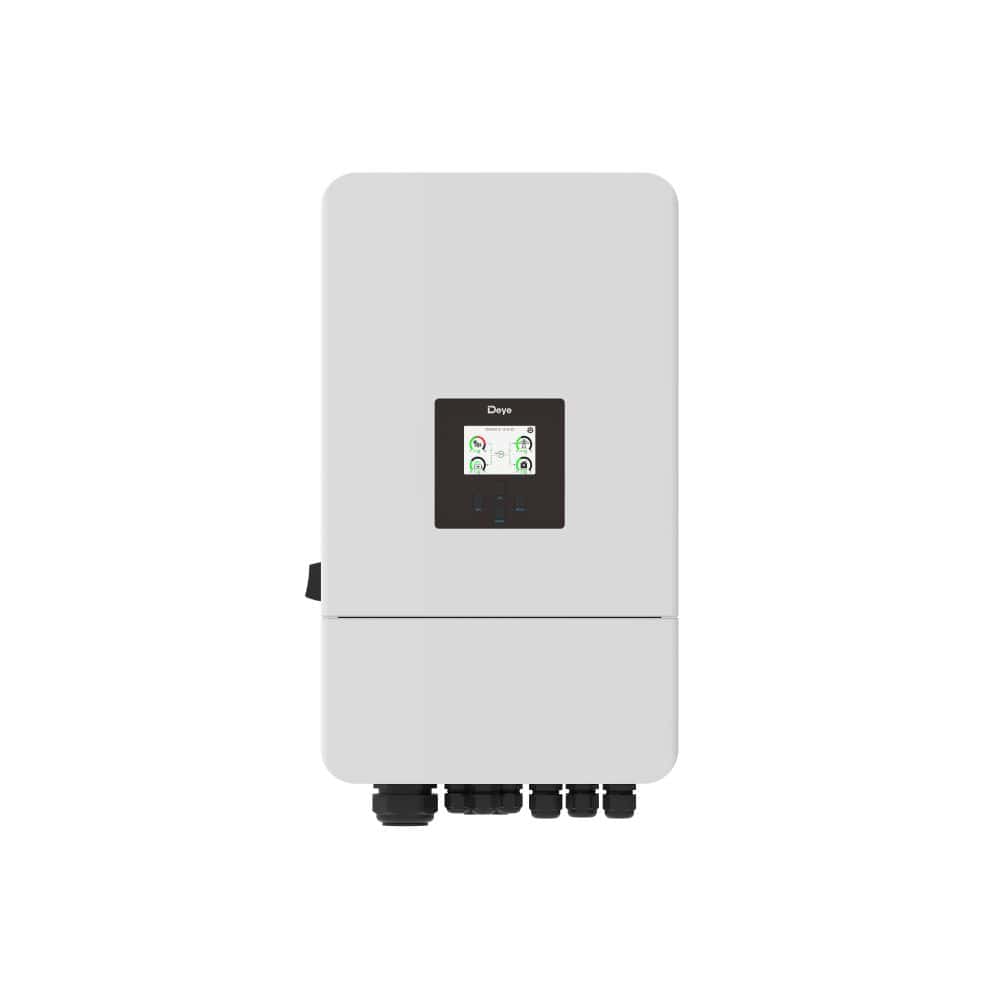

Inverter DEYE SUN-10K-SG05LP3-EU-SM2

Three-phase Hybrid Inverters Deye SUN-8/10/12K-SG05LP3-EU-SM2

The Deye three-phase hybrid inverters from the SUN-K-SG05LP3-EU-SM2 series are advanced devices that offer comprehensive energy management for photovoltaic systems. Available in 8 kW, 10 kW and 12 kW versions, they provide 100% unbalanced output capability on each phase, support parallel operation of up to 10 units and are compatible with low-voltage 48V batteries. With AC-coupling functionality, the ability to store energy from a diesel generator and advanced management options, these inverters deliver flexibility and high performance.

Key features of the Deye SUN-K-SG05LP3-EU-SM2 Hybrid Inverters:

• 100% unbalanced output: Allows delivery of up to 50% of the rated power on a single phase, which is critical for uneven loads.
• High scalability and parallel operation: Can connect up to 10 units in parallel, both in on-grid and off-grid modes, and supports multiple batteries connected in parallel.
• Compatibility with 48V batteries: Transformer-isolated design, dedicated to use with low-voltage 48V batteries (lead-acid or lithium-ion), with a maximum charge/discharge current up to 240A.
• Advanced energy management: Ability to set 6 charging/discharging periods, AC-coupling for upgrading existing solar systems, and support for storing energy from a diesel generator.
• High efficiency and reliability: Maximum efficiency up to 97.6%, MPPT efficiency >99%, and numerous integrated protections, including DC reverse-polarity protection and AC/DC surge protection (Type II).
• Emergency power: In off-grid mode the inverter can supply twice the rated power for 10 seconds, enabling the startup of demanding appliances.

Who is this a good choice for?

The Deye hybrid inverters from this series are an excellent choice for single-family homeowners, farms and small businesses seeking a flexible and reliable energy management solution. Their ability to handle unbalanced loads, system expandability and compatibility with common low-voltage 48V batteries make them ideal for maximizing self-consumption, providing emergency power and upgrading existing photovoltaic installations.
