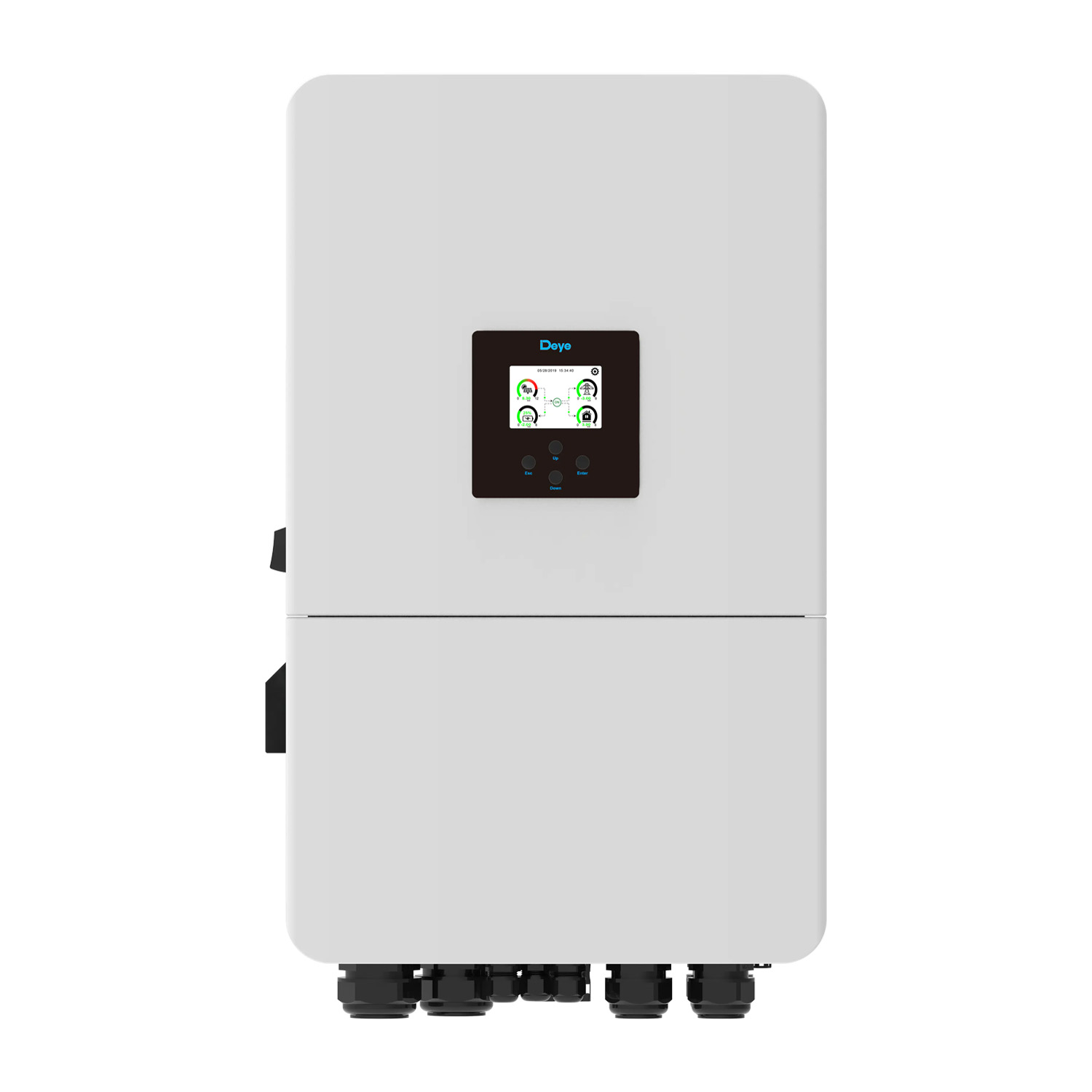

Inverter DEYE SUN-20K-SG05LP3-EU
SKU: F20GZ33
EAN: 2010000030370
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| RS232 | Yes |
| CAN | Yes |
| SPD Type II | |
| Weight | 65 kg |
| CN | 85044086 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| RS232 | Yes |
| CAN | Yes |
| SPD Type II | |
| Weight | 65 kg |
| CN | 85044086 |
Deye SUN-14/15/16/18/20K-SG05LP3-EU-SM2 Hybrid Three-Phase Inverter
The Deye hybrid three-phase inverters from the SUN-K-SG05LP3-EU-SM2 series are advanced and versatile devices designed for large photovoltaic installations in homes and small businesses. They offer a high output power (from 14 to 20 kW) and are compatible with low-voltage (48V) energy storage systems. With the ability to operate in parallel, support for diesel generators, and AC coupling functionality, these inverters provide flexibility, reliability, and optimal energy management.
Key features of the Deye SUN-K-SG05LP3-EU-SM2 inverters:
- Hybrid Versatility: Efficient collaboration with the power grid, photovoltaic installation, and low-voltage (48V) lead-acid or lithium-ion batteries.
- High Power and Efficiency: Models with rated power from 14 kW to 20 kW, featuring a maximum efficiency of up to 97.6%.
- Unbalanced Load Handling: Capability to deliver up to 100% of rated power on a single phase, with a maximum output power per phase of up to 50% of the inverter’s rated power.
- Flexibility and Scalability: AC coupling function for upgrading existing PV systems, support for diesel generator connection, and the ability to operate multiple units in parallel (depending on configuration).
- Advanced Energy Management: 6 programmable charging and discharging periods for optimizing energy consumption and costs.
- High Charging/Discharging Current: Maximum charging/discharging current reaching up to 350A (depending on the model), allowing for rapid energy management in the battery.
Who is this a good choice for?
The Deye SUN-K-SG05LP3-EU-SM2 inverters are an excellent choice for owners of larger homes, farms, or small businesses with a three-phase power connection, who are looking for an efficient and flexible hybrid solution. They are ideal for users needing high output power, the ability to supply unbalanced loads, emergency power options (including from a generator), and those preferring to work with safe, low-voltage battery systems.
| Model | SUN-14K-SG05LP3-EU-SM2 | SUN-15K-SG05LP3-EU-SM2 | SUN-16K-SG05LP3-EU-SM2 | SUN-18K-SG05LP3-EU-SM2 | SUN-20K-SG05LP3-EU-SM2 |
|---|---|---|---|---|---|
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Max. Charging Current (A) | 260 | 280 | 300 | 330 | 350 |
| Max. Discharging Current (A) | 260 | 280 | 300 | 330 | 350 |
| Charging Strategy for Li-ion Battery | Self-adaptation to BMS | Self-adaptation to BMS | Self-adaptation to BMS | Self-adaptation to BMS | Self-adaptation to BMS |
| Number of Battery Ports | 1 | 1 | 1 | 1 | 1 |
| PV Input Data | |||||
| Max. PV Access Power (W) | 28000 | 30000 | 32000 | 36000 | 40000 |
| Max. PV Input Power (W) | 22400 | 24000 | 25600 | 28800 | 32000 |
| Max. PV Input Voltage (V) | 800 | 800 | 800 | 800 | 800 |
| Startup Voltage (V) | 160 | 160 | 160 | 160 | 160 |
| MPPT Voltage Range (V) | 160-650 | 160-650 | 160-650 | 160-650 | 160-650 |
| Rated DC Input Voltage (V) | 550 | 550 | 550 | 550 | 550 |
| Max. PV Input Current (A) | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 |
| Max. Short-Circuit Current (A) | 54+54 | 54+54 | 54+54 | 54+54 | 54+54 |
| Number of MPP / Number of MPPT Strings | 2 / 2+2 | 2 / 2+2 | 2 / 2+2 | 2 / 2+2 | 2 / 2+2 |
| AC Input/Output Data | |||||
| Rated Active Power AC (W) | 14000 | 15000 | 16000 | 18000 | 20000 |
| Max. Apparent Power AC (W) | 14000 | 15000 | 16000 | 18000 | 20000 |
| Rated AC Input/Output Current (A) | 21.3/20.3 | 22.8/21.8 | 24.3/23.2 | 27.3/26.1 | 30.4/29 |
| Max. AC Input/Output Current (A) | 23.4/22.4 | 25/24 | 26.7/25.6 | 30/28.7 | 33.4/31.9 |
| Max. Bypass Current from Grid to Load (A) | 70 | 70 | 70 | 70 | 70 |
| Peak Power (off-grid) (W) | 2 times the rated power, 10s | 2 times the rated power, 10s | 2 times the rated power, 10s | 2 times the rated power, 10s | 2 times the rated power, 10s |
| Power Factor | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | 220/380V, 230/400V 0.85Un-1.1Un | 220/380V, 230/400V 0.85Un-1.1Un | 220/380V, 230/400V 0.85Un-1.1Un | 220/380V, 230/400V 0.85Un-1.1Un |
| Rated Grid Frequency (Hz) | 50/45-55, 60/55-65 | 50/45-55, 60/55-65 | 50/45-55, 60/55-65 | 50/45-55, 60/55-65 | 50/45-55, 60/55-65 |
| Grid Connection Method | 3L+N+PE | 3L+N+PE | 3L+N+PE | 3L+N+PE | 3L+N+PE |
| Total Harmonic Current Distortion (THDi) | <3% (of rated power) | <3% (of rated power) | <3% (of rated power) | <3% (of rated power) | <3% (of rated power) |
| DC Input Current | <0.5% In | <0.5% In | <0.5% In | <0.5% In | <0.5% In |
| Efficiency | |||||
| Max. Efficiency | 97.6% | 97.6% | 97.6% | 97.6% | 97.6% |
| Euro Efficiency | 97.0% | 97.0% | 97.0% | 97.0% | 97.0% |
| MPPT Efficiency | >99% | >99% | >99% | >99% | >99% |
| Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Current Protection, Thermal Protection, AC Output Overvoltage Protection, AC Short-circuit Protection, DC Component Monitoring, Surge Load Drop Protection, Earth Fault Current Monitoring, Arc Failure Circuit Breaker (optional), Power Grid Monitoring, Island Protection Monitoring, Ground Fault Detection, DC Input Switch, DC Terminal Insulation Resistance Monitoring, Residual Current Detection (RCD), Surge Protection Level | DC Polarity Reverse Connection Protection, AC Output Current Protection, Thermal Protection, AC Output Overvoltage Protection, AC Short-circuit Protection, DC Component Monitoring, Surge Load Drop Protection, Earth Fault Current Monitoring, Arc Failure Circuit Breaker (optional), Power Grid Monitoring, Island Protection Monitoring, Ground Fault Detection, DC Input Switch, DC Terminal Insulation Resistance Monitoring, Residual Current Detection (RCD), Surge Protection Level | DC Polarity Reverse Connection Protection, AC Output Current Protection, Thermal Protection, AC Output Overvoltage Protection, AC Short-circuit Protection, DC Component Monitoring, Surge Load Drop Protection, Earth Fault Current Monitoring, Arc Failure Circuit Breaker (optional), Power Grid Monitoring, Island Protection Monitoring, Ground Fault Detection, DC Input Switch, DC Terminal Insulation Resistance Monitoring, Residual Current Detection (RCD), Surge Protection Level | DC Polarity Reverse Connection Protection, AC Output Current Protection, Thermal Protection, AC Output Overvoltage Protection, AC Short-circuit Protection, DC Component Monitoring, Surge Load Drop Protection, Earth Fault Current Monitoring, Arc Failure Circuit Breaker (optional), Power Grid Monitoring, Island Protection Monitoring, Ground Fault Detection, DC Input Switch, DC Terminal Insulation Resistance Monitoring, Residual Current Detection (RCD), Surge Protection Level | DC Polarity Reverse Connection Protection, AC Output Current Protection, Thermal Protection, AC Output Overvoltage Protection, AC Short-circuit Protection, DC Component Monitoring, Surge Load Drop Protection, Earth Fault Current Monitoring, Arc Failure Circuit Breaker (optional), Power Grid Monitoring, Island Protection Monitoring, Ground Fault Detection, DC Input Switch, DC Terminal Insulation Resistance Monitoring, Residual Current Detection (RCD), Surge Protection Level |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) |
| Communication | |||||
| Communication Interface | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN |
| Monitoring Mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) |
| General Data | |||||
| Operating Temperature (°C) | -40 to +60°C, >45°C derating | -40 to +60°C, >45°C derating | -40 to +60°C, >45°C derating | -40 to +60°C, >45°C derating | -40 to +60°C, >45°C derating |
| Allowed Ambient Humidity | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% |
| Max. Installation Height | 3000m | 3000m | 3000m | 3000m | 3000m |
| Noise Level (dB) | ≤55 dB(A) | ≤55 dB(A) | ≤55 dB(A) | ≤55 dB(A) | ≤55 dB(A) |
| IP Protection Level | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Inverter Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Overvoltage Category | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) |
| Cabinet Size (w × h × d mm) | 456×750×268.5 (Without connectors and mounting brackets) | 456×750×268.5 (Without connectors and mounting brackets) | 456×750×268.5 (Without connectors and mounting brackets) | 456×750×268.5 (Without connectors and mounting brackets) | 456×750×268.5 (Without connectors and mounting brackets) |
| Weight (kg) | 50.6 | 50.6 | 50.6 | 50.6 | 50.6 |
| Cooling Type | Smart Air Cooling | Smart Air Cooling | Smart Air Cooling | Smart Air Cooling | Smart Air Cooling |
| Warranty | 5-year/10-year warranty period depending on the installation conditions of the inverter. Details are available in the general warranty terms. | 5-year/10-year warranty period depending on the installation conditions of the inverter. Details are available in the general warranty terms. | 5-year/10-year warranty period depending on the installation conditions of the inverter. Details are available in the general warranty terms. | 5-year/10-year warranty period depending on the installation conditions of the inverter. Details are available in the general warranty terms. | 5-year/10-year warranty period depending on the installation conditions of the inverter. Details are available in the general warranty terms. |
| Grid Connection Standard | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| EMC Safety/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
