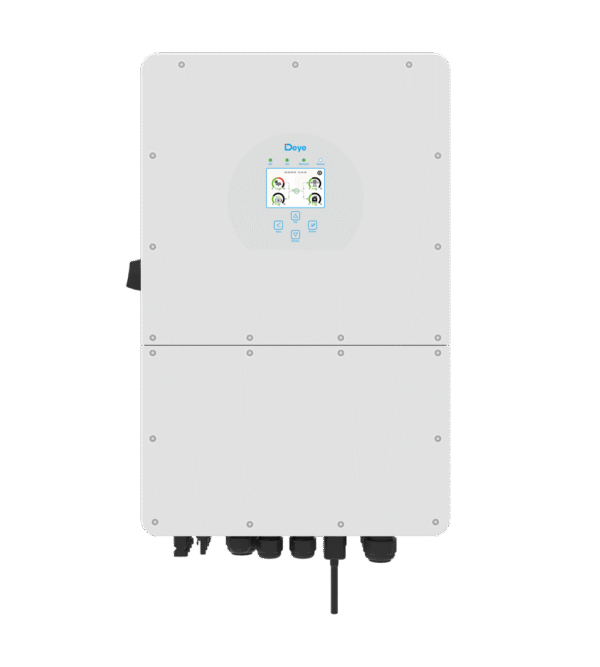

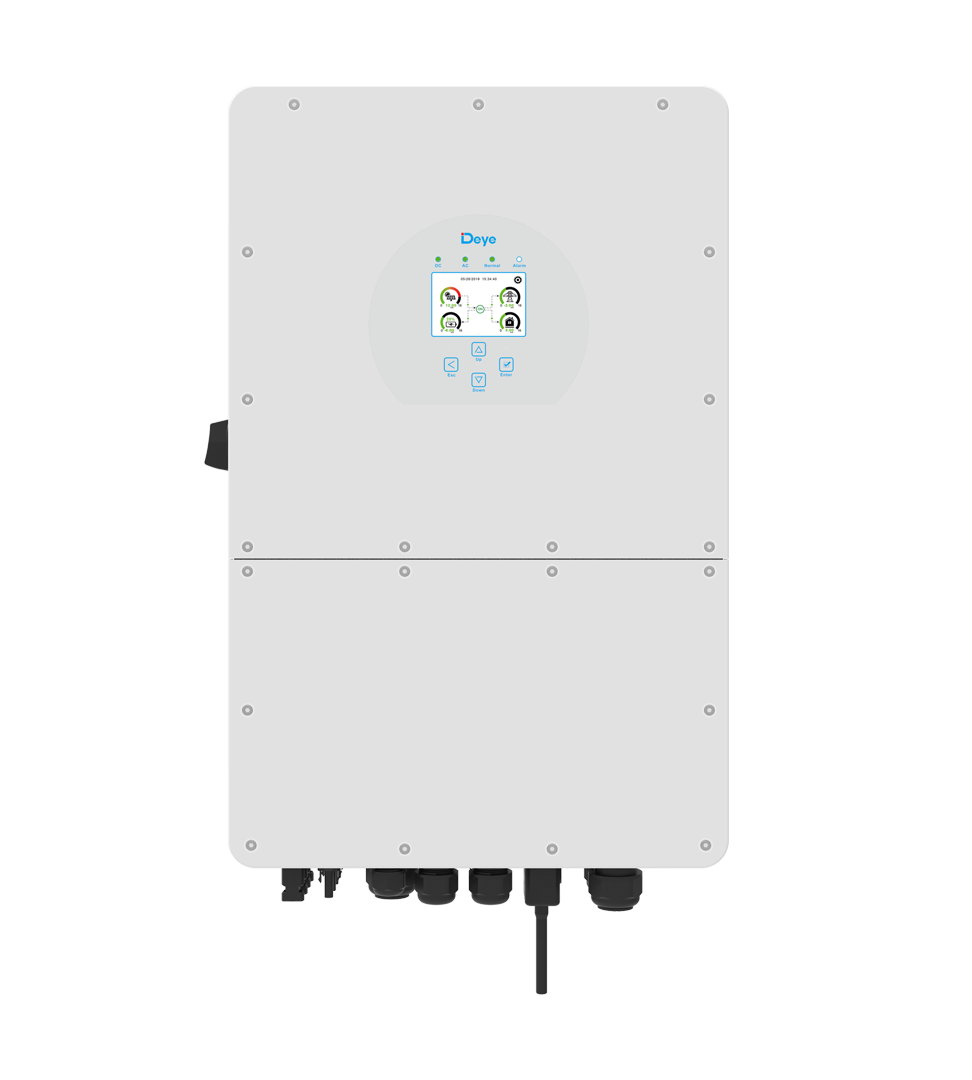

Inverter DEYE SUN-25K-SG01HP3-EU-AM2
SKU: F20GZB1
EAN: 2010000031148
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| SPD Type II | |
| SPD Typ III | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 39,9 kg |
| CN | 85044086 |
Price
2 291,65 €
Gross
Gross
Datasheet SUN-25K-SG01HP3-EU-AM2
datasheet_sun-5-25k-sg01hp3-eu_en_kk.pdf
Declaration SUN-25K-SG01HP3-EU-AM2
hybridinverter_eudeclaration-sun-5-25k-sg01hp3-eu-am2231011005_dz-7.pdf
Certificate SUN-25K-SG01HP3-EU-AM2
certificate_lvden62109_TUV_cz-13.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| SPD Type II | |
| SPD Typ III | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 39,9 kg |
| CN | 85044086 |
Three-phase Hybrid Inverters Deye SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2
The Deye three-phase hybrid inverters from the SUN-K-SG01HP3-EU-AM2 series are advanced devices designed for smart energy management in photovoltaic systems with energy storage. They offer a wide power range from 5 kW to 25 kW, provide 100% unbalanced output on each phase, and are compatible with high-voltage batteries. With the ability to operate in parallel up to 16 units and support for energy storage from diesel generators, these inverters deliver flexibility and reliability for a variety of applications.
Key features of the Deye SUN-K-SG01HP3-EU-AM2 Hybrid Inverters:
- Wide power range and flexibility: Available in models from 5 kW to 25 kW, with parallel operation of up to 16 units, suitable for both on-grid and off-grid modes.
- 100% unbalanced output: Ensures optimal use of energy on each of the three phases, which is essential for uneven loads.
- Compatible with high-voltage batteries: Supports lead-acid or lithium-ion batteries with a voltage range of 160–700 V, and a maximum charge/discharge current up to 50 A (depending on model).
- Advanced energy management: Ability to set 6 charging/discharging periods for the battery and support for energy storage from a diesel generator.
- High efficiency and reliability: Maximum efficiency up to 97.60%, MPPT efficiency 99.90%, and numerous integrated protections including DC reverse polarity protection and AC/DC surge protection.
- Intelligent cooling and communication: Intelligent air cooling, IP65 protection rating, and extensive communication options (RS485/RS232/CAN, optional GPRS/WiFi/Bluetooth/4G/LAN).
Who is this a good choice for?
These Deye hybrid inverters are an excellent option for owners of single-family homes, farms, and small to medium-sized businesses who are looking for an advanced, reliable solution to manage energy from a PV installation and energy storage. Their flexibility, parallel operation capability, and support for different battery types and diesel generators make them ideal for systems that aim for high self-consumption, energy independence, and backup power—even in large or complex installations.
Datasheet SUN-25K-SG01HP3-EU-AM2
datasheet_sun-5-25k-sg01hp3-eu_en_kk.pdf
Declaration SUN-25K-SG01HP3-EU-AM2
hybridinverter_eudeclaration-sun-5-25k-sg01hp3-eu-am2231011005_dz-7.pdf
Certificate SUN-25K-SG01HP3-EU-AM2
certificate_lvden62109_TUV_cz-13.pdf
| Parameter | SUN-5K-SG01HP3-EU-AM2 | SUN-6K-SG01HP3-EU-AM2 | SUN-8K-SG01HP3-EU-AM2 | SUN-10K-SG01HP3-EU-AM2 | SUN-12K-SG01HP3-EU-AM2 | SUN-15K-SG01HP3-EU-AM2 | SUN-20K-SG01HP3-EU-AM2 | SUN-25K-SG01HP3-EU-AM2 |
|---|---|---|---|---|---|---|---|---|
| Battery input data | ||||||||
| Battery type | Lead-acid or lithium-ion | Lead-acid or lithium-ion | Lead-acid or lithium-ion | Lead-acid or lithium-ion | Lead-acid or lithium-ion | Lead-acid or lithium-ion | Lead-acid or lithium-ion | Lead-acid or lithium-ion |
| Battery voltage range (V) | 160-700 | 160-700 | 160-700 | 160-700 | 160-700 | 160-700 | 160-700 | 160-700 |
| Max. charging current (A) | 30 | 30 | 30 | 37 | 37 | 37 | 50 | 50 |
| Max. discharging current (A) | 30 | 30 | 30 | 37 | 37 | 37 | 50 | 50 |
| Charging strategy for Li‑ion battery | Self-adapting to BMS | Self-adapting to BMS | Self-adapting to BMS | Self-adapting to BMS | Self-adapting to BMS | Self-adapting to BMS | Self-adapting to BMS | Self-adapting to BMS |
| Number of battery ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| PV input data | ||||||||
| Maximum PV access power (W) | 10000 | 12000 | 16000 | 20000 | 24000 | 30000 | 40000 | 50000 |
| Max. PV input power (W) | 8000 | 9600 | 12800 | 16000 | 19200 | 24000 | 32000 | 40000 |
| Max. PV input voltage (V) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Start voltage (V) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| MPPT voltage range (V) | 150-850 | 150-850 | 150-850 | 150-850 | 150-850 | 150-850 | 150-850 | 150-850 |
| Rated DC input voltage (V) | 600 | 600 | 600 | 600 | 600 | 700 | 700 | 700 |
| Max. PV input current (A) | 20+20 | 20+20 | 20+20 | 26+20 | 26+20 | 26+26 | 26+26 | 26+26 |
| Max. short-circuit current (A) | 30+30 | 30+30 | 30+30 | 39+30 | 39+30 | 39+39 | 39+39 | 39+39 |
| Number of MPP / Number of MPPT strings | 2/1+1 | 2/1+1 | 2/1+1 | 2/1+1 | 2/2+1 | 2/2+1 | 2/2+2 | 2/2+2 |
| AC input/output data | ||||||||
| Rated AC active power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 |
| Max. AC apparent power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | 16500 | 22000 | 26000 |
| Rated AC input/output current (A) | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 | 30.4/29 | 37.9/36.3 |
| Max. AC input/output current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 | 33.4/31.9 | 41.7/37.7 |
| Max. bypass current Grid->Load (A) | 40 | 40 | 40 | 40 | 80 | 80 | 80 | 80 |
| Peak power (off-grid) (W) | 2× rated power, 10s | 2× rated power, 10s | 2× rated power, 10s | 2× rated power, 10s | 2× rated power, 10s | 2× rated power, 10s | 2× rated power, 10s | 2× rated power, 10s |
| Power factor | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| Rated input/output voltage / range (V) | 220/230 0.85Un-1.1Un | 220/230 0.85Un-1.1Un | 220/230 0.85Un-1.1Un | 220/230 0.85Un-1.1Un | 220/230 0.85Un-1.1Un | 220/230 0.85Un-1.1Un | 220/230 0.85Un-1.1Un | 220/230 0.85Un-1.1Un |
| Rated grid frequency (Hz) | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz |
| Grid connection | 3L+N+PE | 3L+N+PE | 3L+N+PE | 3L+N+PE | 3L+N+PE | 3L+N+PE | 3L+N+PE | 3L+N+PE |
| Total harmonic current distortion (THDi) | <3% (at rated power) | <3% (at rated power) | <3% (at rated power) | <3% (at rated power) | <3% (at rated power) | <3% (at rated power) | <3% (at rated power) | <3% (at rated power) |
| DC injection current | <0.5% In | <0.5% In | <0.5% In | <0.5% In | <0.5% In | <0.5% In | <0.5% In | <0.5% In |
| Efficiency | ||||||||
| Max. efficiency (%) | 97.60% | 97.60% | 97.60% | 97.60% | 97.60% | 97.60% | 97.60% | 97.60% |
| Euro efficiency (%) | 96.50% | 96.50% | 96.50% | 96.50% | 96.50% | 96.50% | 96.50% | 96.50% |
| MPPT efficiency (%) | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% |
| Protections | ||||||||
| Integrated | DC reverse polarity protection, AC output anti-backfeed protection, thermal protection, AC output over/under-voltage protection, AC output short-circuit protection, DC component monitoring, protection against surge from load drop, earth fault current monitoring, arc-fault circuit interrupter (optional), grid monitoring, anti-islanding monitoring, earth fault detection, DC input switch, DC terminal insulation impedance monitoring, residual current detection (RCD), surge protection level | |||||||
| Surge protection level | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) | TYPE II(DC), TYPE II(AC) |
| Communication | ||||||||
| Communication interface | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN |
| Monitoring mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) |
| General information | ||||||||
| Operating temperature (°C) | -40 to +60°C, derating above 45°C | -40 to +60°C, derating above 45°C | -40 to +60°C, derating above 45°C | -40 to +60°C, derating above 45°C | -40 to +60°C, derating above 45°C | -40 to +60°C, derating above 45°C | -40 to +60°C, derating above 45°C | -40 to +60°C, derating above 45°C |
| Permissible ambient humidity (%) | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% |
| Max. installation altitude (m) | 2000m | 2000m | 2000m | 2000m | 2000m | 2000m | 2000m | 2000m |
| Noise level (dB) | ≤55 dB | ≤55 dB | ≤55 dB | ≤55 dB | ≤55 dB | ≤55 dB | ≤55 dB | ≤55 dB |
| Inverter topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Overvoltage category | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) | OVC II(DC), OVC III(AC) |
| Weight (kg) | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 |
| Cabinet size (W x H x D mm) | 408×638×237 (Without connectors and mounting brackets) | 408×638×237 (Without connectors and mounting brackets) | 408×638×237 (Without connectors and mounting brackets) | 408×638×237 (Without connectors and mounting brackets) | 408×638×237 (Without connectors and mounting brackets) | 408×638×237 (Without connectors and mounting brackets) | 408×638×237 (Without connectors and mounting brackets) | 408×638×237 (Without connectors and mounting brackets) |
| IP protection rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cooling type | Passive | Passive | Passive | Passive | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling |
| Warranty | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. | 5-year / 10-year warranty period, depending on inverter installation conditions. Details available in the general warranty terms. |
| Grid connection standards | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| EMC/Safety standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
