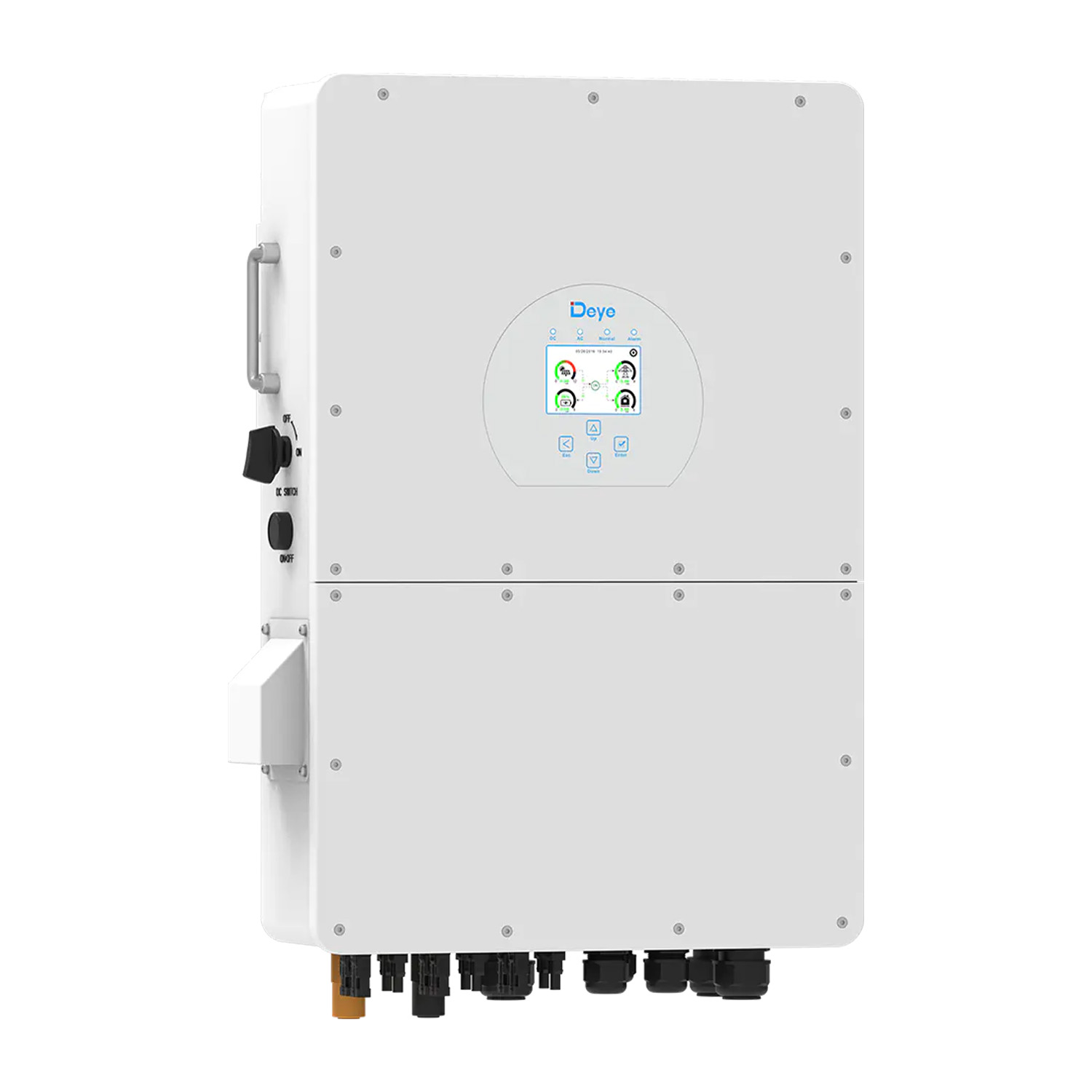

Inverter DEYE SUN-30K-SG02HP3-EU-AM3

SKU: F20GZC1 EAN: 2010000034835
Inverter DEYE SUN-30K-SG02HP3-EU-AM3
Manufacturer

Rated power

Power supply

Hybrid device

Off-grid mode

MPPT

3
Warranty

Net width

Net depth

Net height

CAN

Yes
RS485

Yes
SPD Type II

AFCI

Yes
MPPT voltage range

Weight 55,64 kg
CN 85044086
Price 3 189,87 €
Gross

3 189,87 €
Gross

3 189,87 €
Gross

Datasheet Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Datasheet.pdf Manual Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Manual.pdf Certificate of compliance 1 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-1.pdf Certificate of compliance 2 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-2.pdf Certificate of compliance 3 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-3.pdf Certificate of compliance 4 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-4.pdf Certificate of compliance 5 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-5.pdf Certificate of compliance 6 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-6.pdf Certificate of compliance 7 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-7.pdf Certificate of compliance 8 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-8.pdf

Product details

Manufacturer

Rated power

Power supply

Hybrid device

Off-grid mode

MPPT

3
Warranty

Net width

Net depth

Net height

CAN

Yes
RS485

Yes
SPD Type II

AFCI

Yes
MPPT voltage range

Weight 55,64 kg
CN 85044086

Trójfazowy falownik hybrydowy SUN-25/29.9/30K-SG02HP3-EU-AM3

The Deye hybrid inverter from the SUN-25/29.9/30K-SG02HP3-EU-AM3 series is an advanced energy management solution for photovoltaic systems, offering both off‑grid (island) and grid‑tied operation. It provides 100% unbalanced output on each phase and can be integrated with existing AC installations, making it a versatile choice for modern homes and businesses.

Key features of the SUN-25/29.9/30K-SG02HP3-EU-AM3:

  • 100% unbalanced output on each phase for maximum flexibility.
  • Expandable to up to 16 inverters operating in parallel, for both grid‑tied and off‑grid systems.
  • Support for multiple batteries operating in parallel, with a maximum charging/discharging current of 75 A.
  • High‑voltage battery support for improved performance and 6 charging/discharging periods.
  • Support for energy storage with a diesel generator to increase reliability.
  • High maximum efficiency up to 98.5% and European efficiency up to 98.0%.

Who is this a good choice for?

This inverter is an ideal solution for users seeking a reliable, flexible energy management system that can be scaled to meet changing needs. It performs well in residential and commercial installations where high efficiency, off‑grid capability, and integration with existing systems are required. Features like parallel operation of multiple units and support for diesel generators make it suitable for applications that demand maximum autonomy and energy security.

Datasheet Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Datasheet.pdf Manual Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Manual.pdf Certificate of compliance 1 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-1.pdf Certificate of compliance 2 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-2.pdf Certificate of compliance 3 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-3.pdf Certificate of compliance 4 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-4.pdf Certificate of compliance 5 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-5.pdf Certificate of compliance 6 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-6.pdf Certificate of compliance 7 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-7.pdf Certificate of compliance 8 Deye SUN-25K-SG02HP3-EU-AM3 - SUN-30K-SG02HP3-EU-AM3 Deye-SUN-25K-SG02HP3-EU-AM3-SUN-30K-SG02HP3-EU-AM3-Certificate-of-compliance-8.pdf

Parameter SUN-25K-SG02HP3-EU-AM3 SUN-29.9K-SG02HP3-EU-AM3 SUN-30K-SG02HP3-EU-AM3
Battery input data
Battery type Lead-acid or lithium-ion Lead-acid or lithium-ion Lead-acid or lithium-ion
Battery voltage range (V) 160-700 160-700 160-700
Max. charging current (A) 75 75 75
Max. discharging current (A) 75 75 75
Charging strategy for Li-ion battery Self-adapts to BMS Self-adapts to BMS Self-adapts to BMS
Number of battery ports 1 1 1
PV input data
Maximum PV access power (W) 50000 59800 60000
Max. PV input power (W) 40000 47840 48000
Max. PV input voltage (V) 1000 1000 1000
Start-up voltage (V) 180 180 180
MPPT voltage range (V) 150-850 150-850 150-850
Rated DC input voltage (V) 600 600 600
Max. PV input current (A) 36+36+36 36+36+36 36+36+36
Max. short-circuit current (A) 54+54+54 54+54+54 54+54+54
Number of MPP / Number of MPPT strings 3/2+2+2 3/2+2+2 3/2+2+2
AC input/output data
Rated AC active power (W) 25000 29900 30000
Max. AC apparent power (W) 27500 29900 33000
Rated AC input/output current (A) 37.9/36.3 45.4/43.4 45.5/43.5
Max. AC input/output current (A) 41.7/39.9 45.4/43.4 50/47.9
Max. bypass port Grid->Load current (A) 80 80 80
Peak power (off-grid) (W) 2 times rated power, 10s 2 times rated power, 10s 2 times rated power, 10s
Power factor 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
Rated input/output voltage / range (V) 220/230 0.85Un-1.1Un 220/230 0.85Un-1.1Un 220/230 0.85Un-1.1Un
Rated grid frequency (Hz) 50 Hz (45–55 Hz) / 60 Hz (55–65 Hz) 50 Hz (45–55 Hz) / 60 Hz (55–65 Hz) 50 Hz (45–55 Hz) / 60 Hz (55–65 Hz)
Grid connection type 3L+N+PE 3L+N+PE 3L+N+PE
Total harmonic current distortion (THDI) <3% (at nominal power) <3% (at nominal power) <3% (at nominal power)
DC injection current <0.5% In <0.5% In <0.5% In
Efficiency
Max. efficiency 98.5% 98.5% 98.5%
Euro efficiency 98.0% 98.0% 98.0%
MPPT efficiency >99% >99% >99%
Protections
Integrated Integrated Integrated Integrated
Surge protection level TYPE II(DC), TYPE II(AC) TYPE II(DC), TYPE II(AC) TYPE II(DC), TYPE II(AC)
Communication
Display LCD/LED LCD+LED LCD+LED LCD+LED
Communication interface RS485/RS232/CAN RS485/RS232/CAN RS485/RS232/CAN
Monitoring mode GPRS/WiFi/Bluetooth/4G/LAN (optional) GPRS/WiFi/Bluetooth/4G/LAN (optional) GPRS/WiFi/Bluetooth/4G/LAN (optional)
General data
Operating temperature (°C) -40 to +60°C; above 45°C derating applies -40 to +60°C; above 45°C derating applies -40 to +60°C; above 45°C derating applies
Permissible ambient humidity 0-100% 0-100% 0-100%
Max. installation altitude 3000 m 3000 m 3000 m
Noise level (dB) ≤55 dB ≤55 dB ≤55 dB
Inverter topology Transformerless Transformerless Transformerless
Overvoltage category OVC II(DC), OVC III(AC) OVC II(DC), OVC III(AC) OVC II(DC), OVC III(AC)
Weight (kg) 46 46 46
Cabinet dimensions (W x H x D mm) 448x688x270 (Without connectors and mounting brackets) 448x688x270 (Without connectors and mounting brackets) 448x688x270 (Without connectors and mounting brackets)
IP protection rating IP65 IP65 IP65
Cooling type Intelligent air cooling Intelligent air cooling Intelligent air cooling
Warranty 5-year / 10-year warranty period depends on inverter installation conditions. Details are available in the general warranty terms. 5-year / 10-year warranty period depends on inverter installation conditions. Details are available in the general warranty terms. 5-year / 10-year warranty period depends on inverter installation conditions. Details are available in the general warranty terms.
Grid connection standards IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
EMC / Safety standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
