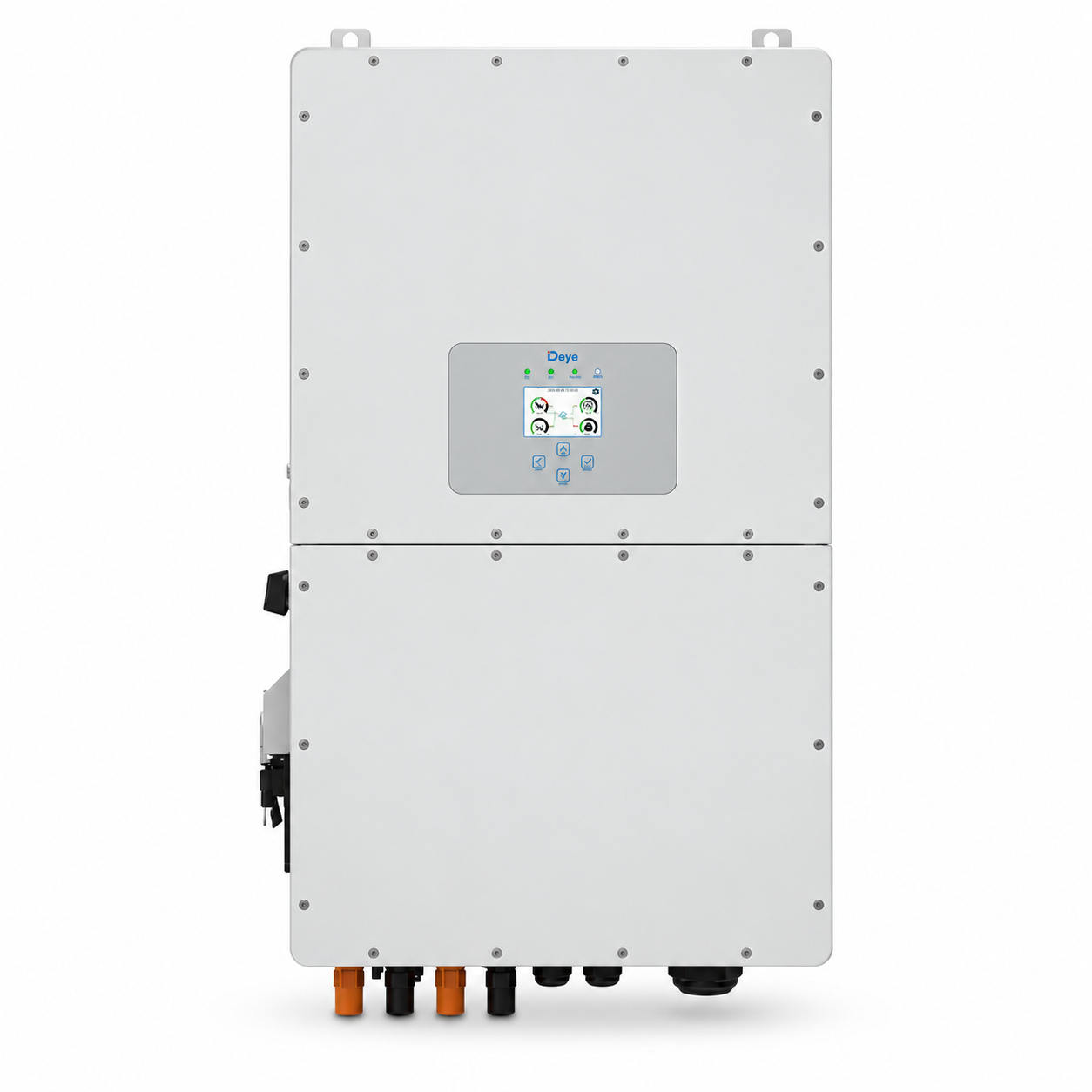

Inverter – DEYE – SUN-50K-SG01HP3-EU-BM4 – hybrid – HV
SKU: F20GZD1
EAN: 2010000043066
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| Weight | 103,5 kg |
| CN | 85044086 |
Price
4 665,77 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| Weight | 103,5 kg |
| CN | 85044086 |
Deye SUN-29.9/30/35K-SG01HP3-EU-BM3 / SUN-40/50K-SG01HP3-EU-BM4
The Deye range of three-phase hybrid inverters offers a rated AC active power of 29.9–50 kW, depending on the model. The devices work with high-voltage batteries and support DC- and AC-side connections to upgrade an existing photovoltaic system. Maximum efficiency is 97.60%, and MPPT efficiency is 99.90%.
Key benefits of SUN-29.9/30/35K-SG01HP3-EU-BM3 / SUN-40/50K-SG01HP3-EU-BM4
- Support for batteries with a voltage of 160–700 V: compatibility with lead-acid or lithium-ion batteries, two battery ports and a maximum charging and discharging current of 50+50 A.
- Parallel operation of up to 16 devices: on-grid and off-grid, with support for multiple batteries connected in parallel.
- Support for 100% unbalanced output on each phase: ability to operate with unbalanced phase loads.
- Six charging and discharging periods: the ability to schedule battery operation.
- Energy storage from a diesel generator: support for this energy source in the storage system.
- IP65 protection rating: intelligent air cooling and type II surge protection on the DC and AC sides.
Who is this a good choice for?
The series is designed for owners of existing photovoltaic installations who want to upgrade them using the option to connect on the DC or AC side. It is also suitable for users planning to store energy in batteries and control their operation across six charging and discharging periods. Those requiring off-grid operation or system expansion can take advantage of support for connecting up to 16 inverters in parallel.
| Parameter | SUN-29.9K-SG01HP3-EU-BM3 | SUN-30K-SG01HP3-EU-BM3 | SUN-35K-SG01HP3-EU-BM3 | SUN-40K-SG01HP3-EU-BM4 | SUN-50K-SG01HP3-EU-BM4 |
|---|---|---|---|---|---|
| Battery input data | |||||
| Battery type | Lead-acid or lithium-ion | ||||
| Battery voltage range (V) | 160-700 | ||||
| Maximum charging current (A) | 50+50 | ||||
| Maximum discharge current (A) | 50+50 | ||||
| Lithium-ion battery charging strategy | Self-adaptation to BMS | ||||
| Number of battery ports | 2 | ||||
| DC input data (PV) | |||||
| Maximum PV input power (W) | 38870 | 39000 | 45500 | 52000 | 65000 |
| Maximum PV input voltage (V) | 1000 | ||||
| Start-up voltage (V) | 180 | ||||
| MPPT voltage range (V) | 150-850 | ||||
| Rated DC input voltage (V) | 600 | ||||
| Maximum PV input current (A) | 36+36+36 | 36+36+36+36 | |||
| Maximum PV short-circuit current (A) | 55+55+55 | 55+55+55+55 | |||
| Number of MPPTs / number of strings per MPPT | 3/2+2+2 | 4/2+2+2+2 | |||
| AC input and output data | |||||
| Rated AC active power (W) | 29900 | 30000 | 35000 | 40000 | 50000 |
| Maximum AC apparent power (W) | 29900 | 33000 | 38500 | 44000 | 55000 |
| Rated AC input/output current (A) | 45,4/43,4 | 45,5/43,5 | 53,1/50,8 | 60,7/58 | 75,8/72,5 |
| Maximum AC input/output current (A) | 45,4/43,4 | 50/47,8 | 58,4/55,8 | 66,7/63,8 | 83,4/79,7 |
| Maximum bypass current from the grid to the loads (A) | 200 | ||||
| Off-grid peak power | 2 times the rated power for 10 s | ||||
| Power factor | 0.8 leading to 0.8 lagging | ||||
| Rated input/output voltage and range (V) | 220/230; 0.85Un-1.1Un | ||||
| Rated grid frequency and range (Hz) | 50 / 45-55; 60 / 55-65 | ||||
| Grid connection method | 3L+N+PE | ||||
| Total harmonic distortion of current THDi (%) | <3 at nominal power | ||||
| DC input current (% In) | <0,5 | ||||
| Efficiency | |||||
| Maximum efficiency (%) | 97,60 | ||||
| European efficiency (%) | 96,50 | ||||
| MPPT efficiency (%) | 99,90 | ||||
| Protections | |||||
| Integrated protection | DC overcurrent protection; DC reverse polarity protection; AC output overcurrent protection; thermal protection; AC output overvoltage protection; AC output short-circuit protection; DC component monitoring; load dump overvoltage protection; ground fault current monitoring; arc fault circuit interrupter (optional); power grid monitoring; anti-islanding protection monitoring; ground fault detection; DC input switch; DC terminal insulation impedance monitoring; residual current detection (RCD); surge protection | ||||
| Surge protection level | TYPE II(DC), TYPE II(AC) | ||||
| Overvoltage category | OVC II(DC), OVC III(AC) | ||||
| Communication | |||||
| Communication interface | RS485/RS232/CAN | ||||
| Monitoring mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) | ||||
| Operating conditions | |||||
| Operating temperature (°C) | -40 to +60°C, >45°C derating | ||||
| Permissible ambient humidity (%) | 0-100% | ||||
| Maximum installation height (m) | 2000 | ||||
| Noise level (dB) | ≤65 dB | ||||
| IP protection rating | IP65 | ||||
| Cooling type | Intelligent air cooling | ||||
| Inverter topology | Transformerless | ||||
| Dimensions and weight | |||||
| Weight (kg) | 80 | ||||
| Enclosure dimensions, W × H × D (mm) | 527×894×294 (excluding connectors and mounting brackets) | ||||
| Certificates | |||||
| Grid connection standards | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE Directive R25, G99, VDE-AR-N 4105 | ||||
| Safety and electromagnetic compatibility standards | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
| Warranty | |||||
| Product warranty (years) | 5/10 | ||||
depends on the inverter installation conditions. Details are available in the general warranty terms and conditions.
