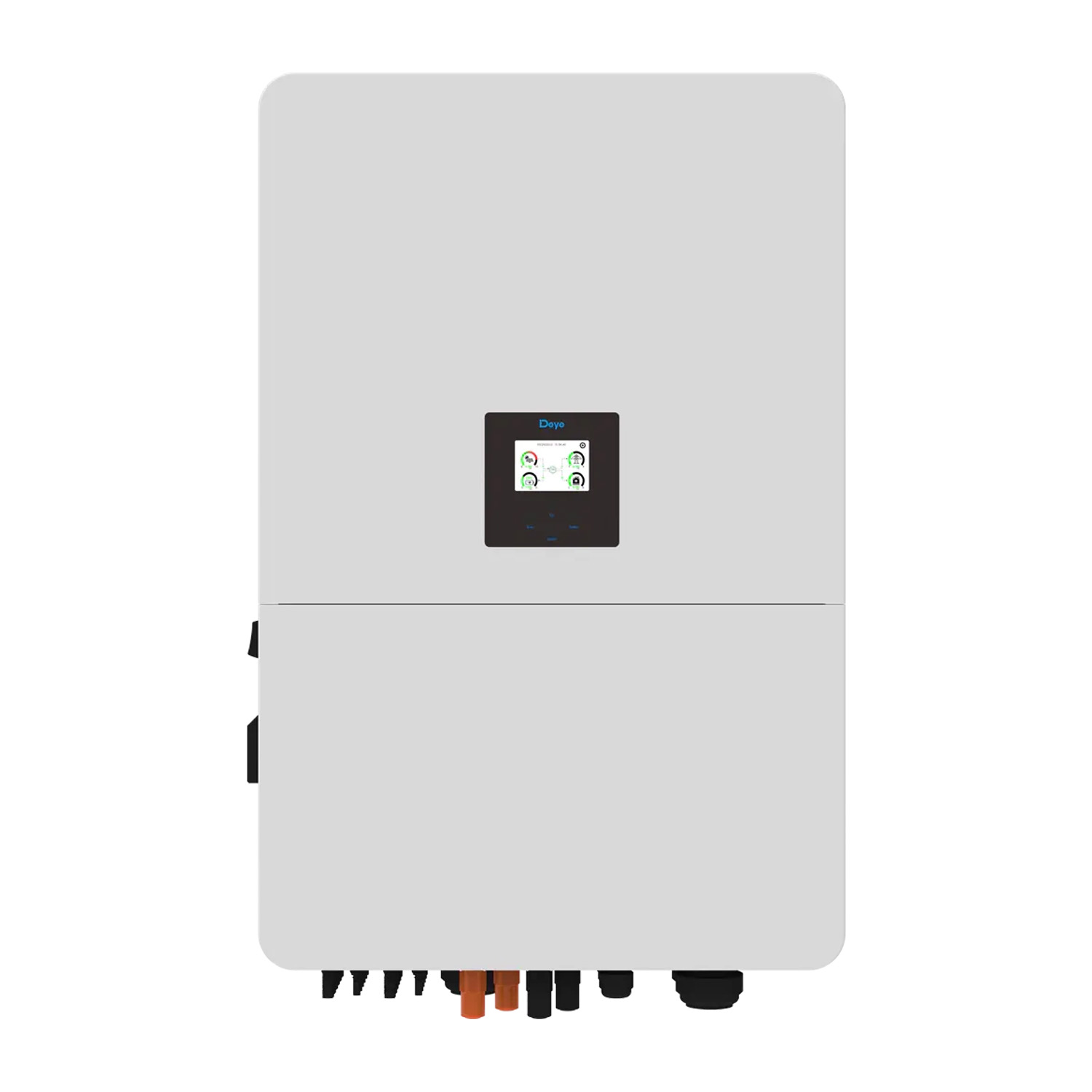

Inverter DEYE SUN-80K-SG02HP3-EU-EM6
SKU: F20GZF
EAN: 2010000031049
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 126 kg |
| CN | 85044086 |
Price
7 146,03 €
Gross
Gross
Datasheet Deye SUN-60K-SG02HP3-EU-EM6 - SUN-80K-SG02HP3-EU-EM6
Deye-SUN-60K-SG02HP3-EU-EM6-SUN80K-SG02HP3-EU-EM6-Datasheet.pdf
Manual Deye SUN-60K-SG02HP3-EU-EM6 - SUN-80K-SG02HP3-EU-EM6
Deye-SUN-60K-SG02HP3-EU-EM6-SUN80K-SG02HP3-EU-EM6-Manual.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 126 kg |
| CN | 85044086 |

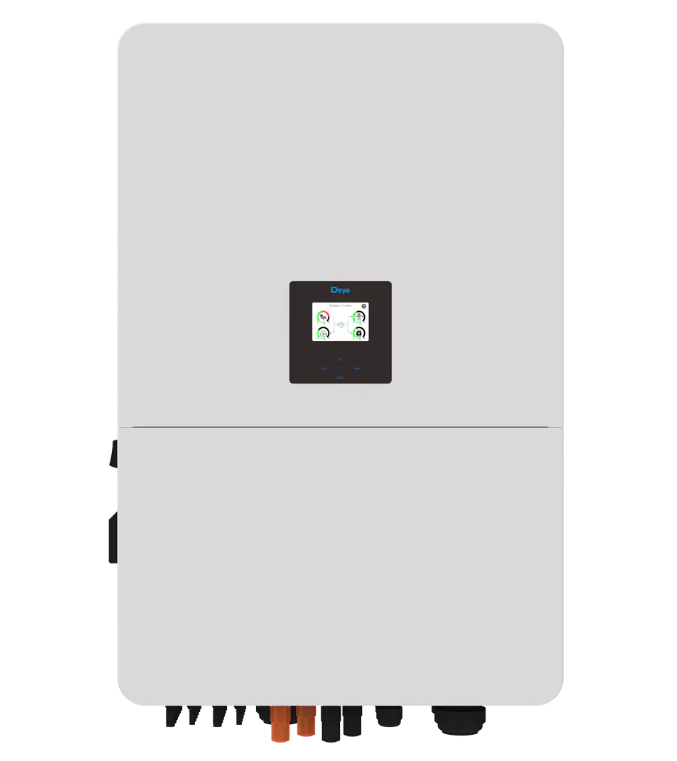

Three-phase Hybrid Inverters Deye SUN-60/75/80K-SG02HP3-EU-EM6
The Deye three-phase hybrid inverters from the SUN-K-SG02HP3-EU-EM6 series are high-power, technologically advanced devices designed for commercial and industrial applications. They offer power ratings from 60 kW to 80 kW, 100% unbalanced output capability on each phase, and can operate in parallel with up to 10 units, both on-grid and off-grid. Compatible with high-voltage lithium-ion batteries, supporting a maximum charge/discharge current of 160 A and energy storage from diesel generators, these inverters deliver top performance and flexibility.
Key features of the Deye SUN-K-SG02HP3-EU-EM6 Hybrid Inverters:
- High power and scalability: Models available in 60 kW, 75 kW, and 80 kW ratings, with parallel operation of up to 10 units, enabling very large-scale systems.
- 100% unbalanced output capability: Ensures optimal energy use on each of the three phases, which is crucial for uneven loads in commercial installations.
- Compatibility with high-voltage batteries: Works with lithium-ion batteries in the 160–1000 V range, with a maximum charge/discharge current of 160 A (80+80 A across two battery inputs).
- Advanced energy management: Supports configuration of 6 charge/discharge periods for batteries, energy storage from diesel generators, and AC-coupling for retrofitting existing solar systems.
- High efficiency and reliability: Peak efficiency up to 97.60%, MPPT efficiency >99%, plus multiple integrated protections including DC reverse polarity protection and AC/DC surge protection (Type II).
- Intelligent cooling and extensive communications: Intelligent air cooling, IP65 protection rating, and rich communication options (RS485/RS232/CAN, optional GPRS/Wi‑Fi/Bluetooth/4G/LAN).
Who is this a good choice for?
These Deye hybrid inverters are an excellent choice for large commercial and industrial installations that require a reliable, high-performance energy management system. Their high power, parallel operation capability, support for high-voltage batteries, and advanced energy management features (including generator integration) make them ideal for optimizing energy costs, ensuring power continuity, and maximizing the use of renewable energy in demanding applications.
Datasheet Deye SUN-60K-SG02HP3-EU-EM6 - SUN-80K-SG02HP3-EU-EM6
Deye-SUN-60K-SG02HP3-EU-EM6-SUN80K-SG02HP3-EU-EM6-Datasheet.pdf
Manual Deye SUN-60K-SG02HP3-EU-EM6 - SUN-80K-SG02HP3-EU-EM6
Deye-SUN-60K-SG02HP3-EU-EM6-SUN80K-SG02HP3-EU-EM6-Manual.pdf
| Parameter | SUN-60K-SG02HP3-EU-EM6 | SUN-75K-SG02HP3-EU-EM6 | SUN-80K-SG02HP3-EU-EM6 |
|---|---|---|---|
| Battery Input Data | |||
| Battery Type | Lithium-ion | Lithium-ion | Lithium-ion |
| Battery Voltage Range (V) | 160-1000 | 160-1000 | 160-1000 |
| Max. Charging Current (A) | 80+80 | 80+80 | 80+80 |
| Max. Discharging Current (A) | 80+80 | 80+80 | 80+80 |
| Charging Strategy for Li-ion Battery | Self-adapts to BMS | Self-adapts to BMS | Self-adapts to BMS |
| Number of Battery Inputs | 2 | 2 | 2 |
| PV String Input Data | |||
| Max. Available PV Power (W) | 120000 | 150000 | 160000 |
| Max. PV Input Power (W) | 96000 | 120000 | 128000 |
| Max. PV Input Voltage (V) | 1000 | 1000 | 1000 |
| Start Voltage (V) | 180 | 180 | 180 |
| MPPT Voltage Range (V) | 150-850 | 150-850 | 150-850 |
| Nominal PV Input Voltage (V) | 650 | 650 | 650 |
| Max. Operating PV Input Current (A) | 36+36+36+36+36+36 | 36+36+36+36+36+36 | 36+36+36+36+36+36 |
| Max. Input Short-circuit Current (A) | 54+54+54+54+54+54 | 54+54+54+54+54+54 | 54+54+54+54+54+54 |
| Number of MPP Trackers/Strings per MPP Tracker | 6/2+2+2+2+2+2 | 6/2+2+2+2+2+2 | 6/2+2+2+2+2+2 |
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power (W) | 60000 | 75000 | 80000 |
| Max. AC Input/Output Apparent Power (VA) | 66000 | 82500 | 88000 |
| Rated AC Input/Output Current (A) | 91/87 | 113.7/108.7 | 121.3/115.9 |
| Max. AC Input/Output Current (A) | 100/95.7 | 125/119.6 | 133.4/127.6 |
| Max. Continuous AC Transfer Current (grid to load) (A) | 200 | 200 | 200 |
| Peak Power (off-grid) (W) | 1.5 times rated power, 10 s | 1.5 times rated power, 10 s | 1.5 times rated power, 10 s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| Rated Voltage/Input/Output Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | 220/380V, 230/400V 0.85Un-1.1Un | 220/380V, 230/400V 0.85Un-1.1Un |
| Rated Frequency/Input/Output Grid Range (Hz) | 50/45-55, 60/55-65 | 50/45-55, 60/55-65 | 50/45-55, 60/55-65 |
| Grid Connection Type | 3L+N+PE | 3L+N+PE | 3L+N+PE |
| Total Harmonic Distortion (THDI) | <3% (at rated power) | <3% (at rated power) | <3% (at rated power) |
| Injected DC Current | <0.5% In | <0.5% In | <0.5% In |
| Efficiency | |||
| Max. Efficiency (%) | 97.60% | 97.60% | 97.60% |
| Euro Efficiency (%) | 97.0% | 97.0% | 97.0% |
| MPPT Efficiency (%) | >99% | >99% | >99% |
| Protections | |||
| Integrated | DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, protection against surge-induced load drop, ground-fault current monitoring, arc-fault circuit interrupter (optional), grid monitoring, anti-islanding monitoring, earth fault detection, DC input switch, DC terminal insulation impedance monitoring, residual current detection (RCD), surge protection level | ||
| Surge Protection Level | TYPE II (DC), TYPE II (AC) | TYPE II (DC), TYPE II (AC) | TYPE II (DC), TYPE II (AC) |
| Interface | |||
| Communication Interface | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN |
| Monitoring Mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) |
| General Data | |||
| Operating Temperature Range (°C) | -40 to +60°C, power derating above 45°C | -40 to +60°C, power derating above 45°C | -40 to +60°C, power derating above 45°C |
| Permitted Ambient Humidity (%) | 0-100% | 0-100% | 0-100% |
| Maximum Altitude (m) | 3000 m | 3000 m | 3000 m |
| Noise (dB) | ≤65 | ≤65 | ≤65 |
| Protection Rating (IP) | IP 65 | IP 65 | IP 65 |
| Inverter Topology | Non-isolated | Non-isolated | Non-isolated |
| Overvoltage Category | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) |
| Cabinet Size (W x H x D mm) | 606×927×314 (Without connectors and handles) | 606×927×314 (Without connectors and handles) | 606×927×314 (Without connectors and handles) |
| Weight (kg) | 97.5 | 97.5 | 97.5 |
| Cooling Type | Intelligent Air Cooling | Intelligent Air Cooling | Intelligent Air Cooling |
| Warranty (Years) | 5 years/10 years (Warranty period depends on the inverter’s final installation location; for more information, please refer to the warranty policy) | 5 years/10 years (Warranty period depends on the inverter’s final installation location; for more information, please refer to the warranty policy) | 5 years/10 years (Warranty period depends on the inverter’s final installation location; for more information, please refer to the warranty policy) |
| Grid Regulations | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety/EMC Standards | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
