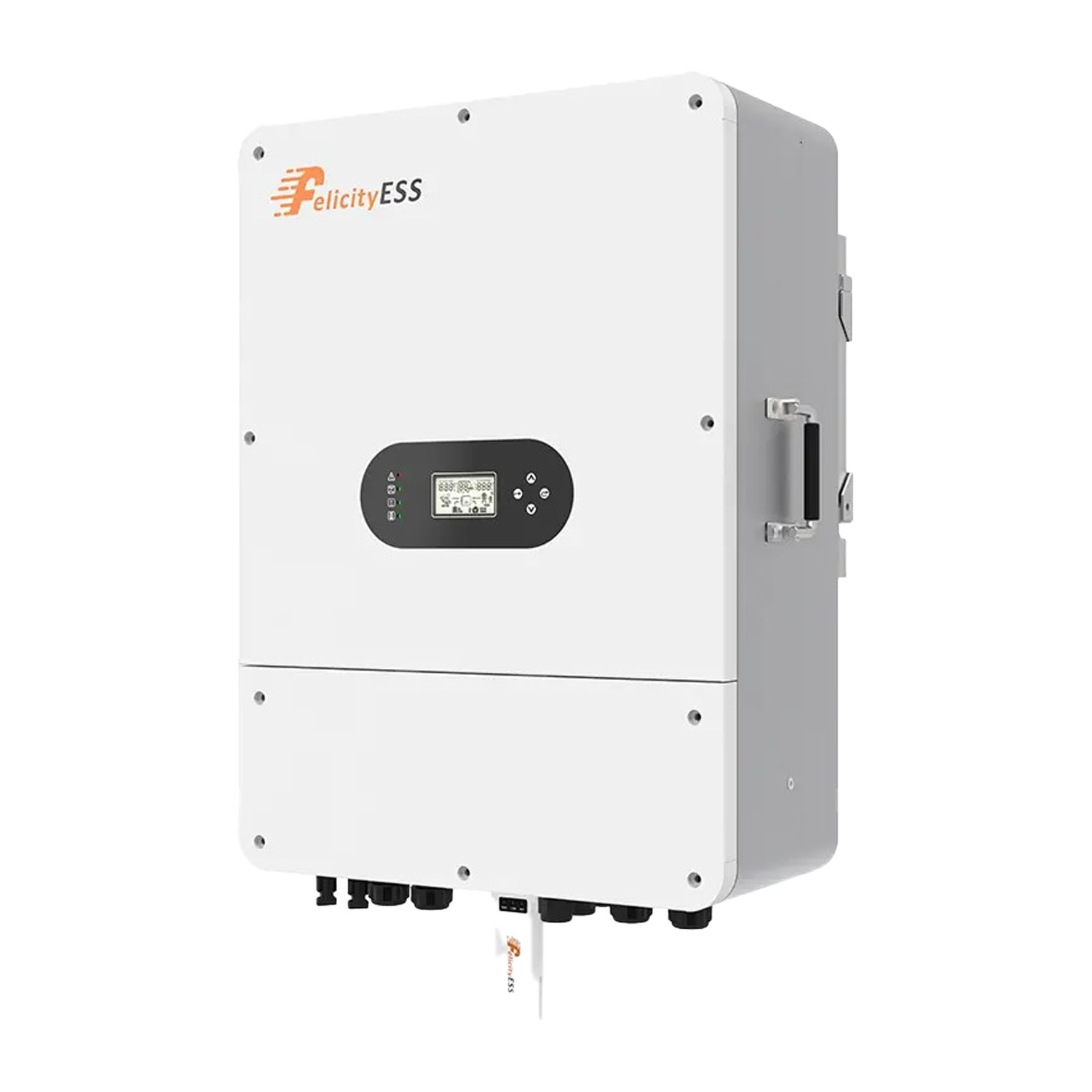

Inverter FELICITY ESS T-REX-10KLP3G01
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 47,1 kg |
| CN | 85044086 |
Gross
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 47,1 kg |
| CN | 85044086 |

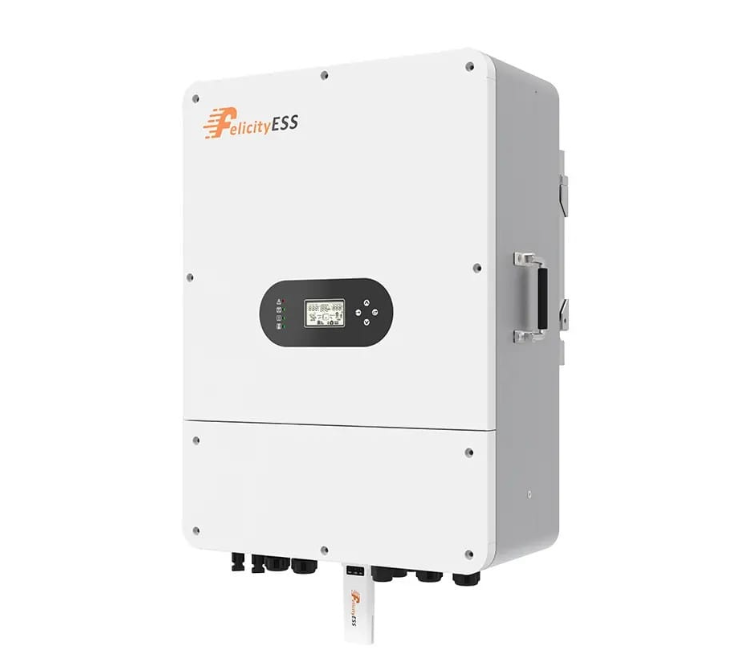

Hybrid Inverter FelicityESS T-REX T-REX-10KLP3G01
The FelicityESS T-REX T-REX-10KLP3G01 hybrid inverter is an eco-friendly, intelligent, and sustainable energy management solution for modern photovoltaic systems. Equipped with a multi-MPPT design, a lithium battery activation feature, and the ability to operate in UPS mode, it delivers high performance and reliability. This inverter supports half-phase and unbalanced loads and offers real-time remote monitoring, making it a versatile and user-friendly device.
Key features of the FelicityESS T-REX T-REX-10KLP3G01 Hybrid Inverter:
- Multi-MPPT design: Two MPP trackers with the option to connect one string to each, optimizing energy yield from PV panels (maximum recommended PV power 13,000 W).
- Advanced battery features: Supports lithium-ion and lead-acid batteries (40–60 V), lithium battery activation function, and maximum charging/discharging power of 10,000 W.
- Reliable power and UPS mode: UPS-level grid switching, support for half-phase and unbalanced loads, ensuring uninterrupted power supply.
- Remote monitoring and high efficiency: Equipped with a remote monitoring platform (WiFi/GPRS), LCD + LED display, and a high maximum efficiency of 97.6% (Euro 97.0%, MPPT 99.9%).
- Durability and safety: IP65 rating, intelligent cooling, integrated protections (overcurrent, overpower, short-circuit, anti-islanding, GFCI, insulation resistance detection) and a 10-year warranty.
Who is this a good choice for?
The FelicityESS T-REX T-REX-10KLP3G01 hybrid inverter is an excellent choice for owners of single-family homes and small businesses looking for an intelligent, efficient, and reliable solution to manage energy from a PV installation and an energy storage system. With advanced features like multi-MPPT, support for different battery types, UPS mode, and remote monitoring, this inverter helps maximize self-consumption, increase energy independence, and ensure power security. Its eco-friendly design and long warranty make it a smart investment in a sustainable energy future.
| Parameter | T-REX-10KLP3G01 |
|---|---|
| Battery input | |
| Battery voltage range (V) | 40 V – 60 V |
| Max. charge and discharge current (A) | 200 A/200 A |
| Max. charge and discharge power (W) | 10,000 W |
| Battery type | lithium-ion / lead-acid |
| DC input data (PV side) | |
| Recommended max. PV power (W) | 13,000 W |
| Max. PV voltage (V) | 900 V |
| Start-up voltage (V) | 180 V |
| PV voltage range (V) | 160 V – 900 V |
| MPPT voltage range (V) | 200 V – 850 V |
| MPPT voltage range for full load (V) | 450 V – 850 V |
| Nominal voltage (V) | 720 V |
| Max. input current (A) | 15 A/15 A |
| Max. short-circuit input current (A) | 18 A/18 A |
| Number of MPP trackers/strings per MPP tracker | 2/1 |
| Grid data | |
| Nominal input voltage (Vac) | L1/L2/L3/N/PE, 230/400 Vac |
| Input voltage range (Vac) | 184-264.5 Vac* |
| Nominal grid frequency (Hz) | 50/60 Hz |
| Max. input current (A) | 30 A |
| Max. charging current (A) | 200 A |
| Max. AC output power (W) | 10,000 W |
| Rated AC output current (A) | 14.5 A |
| Max. AC output current (A) | 18 A |
| Passage at max. continuous AC current (A) | 30 A |
| Power factor | > 0.99 |
| Displacement power factor | 0.8 leading…0.8 lagging |
| THDI (%) | < 3% |
| AC output data (backup) | |
| Rated output power (VA/W) | 10,000 VA/10,000 W |
| Max. output current (A) | 30 A |
| Rated AC output voltage (Vac) | L1/L2/L3/N/PE, 230/400 Vac |
| Rated AC output frequency (Hz) | 50/60 Hz |
| Efficiency | |
| Max. efficiency (%) | 97.6% |
| European efficiency (%) | 97.0% |
| MPPT efficiency (%) | 99.9% |
| Protections | |
| Output overcurrent protection | Integrated |
| Output overpower protection | Integrated |
| Output short-circuit protection | Integrated |
| Anti-islanding protection | Integrated |
| GFCI protection | Integrated |
| Insulation resistor detection | Integrated |
| General information | |
| Operating temperature range (°C) | -25°C to 60°C, derating above 45°C |
| Ingress protection (IP) | IP65 |
| Relative humidity (%) | 100% |
| Cooling concept | Intelligent cooling |
| Altitude (m) | 2000 m |
| Communication | RS232/RS485 |
| BMS communication | CAN/RS485 |
| Monitoring module | WiFi/GPRS |
| Display | LCD+LED |
| Mounting | Wall-mounted |
| Warranty [1] (years) | 10 years |
| Grid codes | VDE-AR-N 4105; G99/1; EN50549-1; CEI -21; AS 4777.2; NRS 097-2-1; |
| Safety standards | IEC 62109-1/2 IEC 62040-1 |
| EMC | EN61000-6-1. EN61000-6-3 |
| Net weight (kg) | 38.9 kg |
| Gross weight (kg) | 47.1 kg |
| Product dimensions (mm) | 655*475*266 mm |
| Packaging dimensions (mm) | 792*597*351 mm |
[1] Applicable conditions, see the FelicityESS warranty statement.
* According to local grid connection standards.
* All specifications are subject to change without notice.
