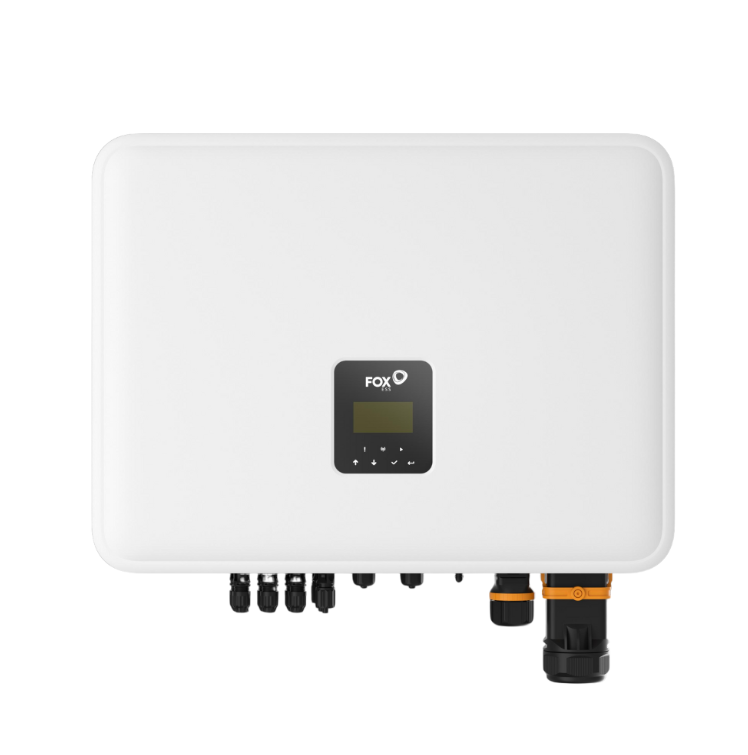

FoxESS P3-6.0-SH Hybrid Inverter
SKU: F290B51
EAN: 2010000034583
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 37,9 kg |
| CN | 85044085 |
Price
1 468,53 €
Gross
Gross
Datasheet FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Datasheet.pdf
Declaration of confirmity FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Declaration-of-confirmity.pdf
Certificate of compliance 1 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certificate-of-compliance-1.pdf
Certificate of compliance 2 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certificate-of-compliance-2.pdf
Statement FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Statement.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 37,9 kg |
| CN | 85044085 |
Fox ESS P3-5 Three-Phase Hybrid Inverter (P3-SH Series)
The innovative Fox ESS P3-SH three-phase hybrid inverters are designed to maximize solar energy use during the day and store excess energy for nighttime. Equipped with advanced technology and compatibility with Fox ESS high-voltage batteries, they offer flexible and efficient energy management.
Key features of the Fox ESS P3-5:
- High Compatibility with HV Batteries: Seamless integration with Fox ESS high-voltage lithium‑ion batteries from 100–800 V for optimal energy storage.
- Exceptional Efficiency: Peak efficiency up to 97.90% and an impressive MPPT efficiency of 99.90%, ensuring effective energy conversion.
- Wide Power Range: AC rated powers available from 5 kW to 15 kW and maximum PV input power up to 30 kW, providing flexibility to suit various installation needs.
- Smart Monitoring and Ease of Use: Remote system monitoring via a mobile app or web portal (FoxCloud V2.0), plus quick, intuitive plug-and-play installation.
- Durability and Comprehensive Protection: An IP65-rated enclosure allows installation in a variety of environments, complemented by comprehensive protections including reverse polarity, islanding, and overload protection.
- Long Warranty: A standard 10-year manufacturer’s warranty, confirming the device’s reliability and durability.
Who is this a good choice for?
The Fox ESS P3-SH series inverters are an excellent choice for homeowners and small to medium-sized businesses looking to optimize self-consumption of solar energy and increase energy independence. With their three-phase design, high efficiency, flexible energy storage options, and remote monitoring, they are ideal for PV systems that require reliable, advanced energy management.
Datasheet FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Datasheet.pdf
Declaration of confirmity FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Declaration-of-confirmity.pdf
Certificate of compliance 1 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certificate-of-compliance-1.pdf
Certificate of compliance 2 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certificate-of-compliance-2.pdf
Statement FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Statement.pdf
| Parameter | P3-5.0-SH | P3-6.0-SH | P3-8.0-SH | P3-9.9-SH | P3-10.0-SH | P3-12.0-SH | P3-15.0-SH |
|---|---|---|---|---|---|---|---|
| PV INPUT | |||||||
| Max. PV Power (Wp) | 11000 | 14000 | 18000 | 20000 | 20000 | 24000 | 30000 |
| Max. Input Power (W) | 11000 | 13200 | 17600 | 18000 | 18000 | 22500 | 22500 |
| Max. Input Voltage (V) | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] |
| Nominal Input Voltage (V) | 620 | 620 | 620 | 620 | 620 | 620 | 620 |
| Max. MPPT Input Current (A) | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 |
| Max. MPPT Short-circuit Current (A) | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 |
| Max. MPPT Input Power (W) | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 |
| Min. PV Operating Voltage (V) | 90 [2] | 90 [2] | 90 [2] | 90 [2] | 90 [2] | 90 [2] | 90 [2] |
| MPPT Operating Voltage Range (V) | 120~950 | 120~950 | 120~950 | 120~950 | 120~950 | 120~950 | 120~950 |
| Startup Voltage (V) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Number of Independent MPPTs | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of Strings per MPPT | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 |
| BATTERY | |||||||
| Battery Type | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) |
| Battery Voltage Range (V) | 100~800 | 100~800 | 100~800 | 100~800 | 100~800 | 100~800 | 100~800 |
| Min. Battery Operating Voltage (V) | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Min. Battery Voltage at Full AC Load (V) | 108 | 125 | 160 | 210 | 210 | 250 | 310 |
| Max. Charge/Discharge Current (A) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Communication Interface | CAN | CAN | CAN | CAN | CAN | CAN | CAN |
| AC OUTPUT | |||||||
| Rated Output Power (W) | 5000 | 6000 | 8000 | 9900 | 10000 | 12000 | 15000 |
| Max. Apparent Power (VA) | 5500 | 6600 | 8800 | 9900 | 11000 [3] | 13200 | 16500 |
| Nominal Grid Voltage (AC voltage range) (V) | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE |
| Nominal Grid Frequency (Hz) | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 |
| Rated AC Current (A) (per phase) | 7,6 | 9,1 | 12,1 | 15,0 | 15,2 | 18,2 | 22,7 |
| Max. AC Current (A) (per phase) | 8,3 | 10,0 | 13,3 | 15,0 | 16,7 | 20,0 | 25,0 |
| Power Factor | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) |
| THDI (%) | <3 at rated power | <3 at rated power | <3 at rated power | <3 at rated power | <3 at rated power | <3 at rated power | <3 at rated power |
| AC INPUT | |||||||
| Max. AC Input Power (VA) | 6000 | 7200 | 9600 | 12000 | 12000 | 14400 | 16000 |
| Nominal AC Grid Voltage (V) | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE |
| Nominal AC Grid Frequency (Hz) | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 |
| Max. AC Current (A) (per phase) | 9,1 | 10,9 | 14,5 | 18,2 | 18,2 | 21,8 | 24,2 |
| EPS OUTPUT | |||||||
| Max. Apparent Power (VA) | 5000 | 6000 | 8000 | 10000 | 10000 | 12000 | 15000 |
| Peak Apparent Power (VA) (60s) | 6000 | 7200 | 9600 | 12000 | 12000 | 14400 | 15000 |
| Nominal EPS Voltage (V) | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE | 400/230 VAC; 380/220 VAC, 3L/N/PE |
| Nominal EPS Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. EPS Current (A) (per phase) | 7,2 | 8,7 | 11,6 | 14,5 | 14,5 | 17,4 | 21,7 |
| Power Factor | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) |
| Switching Time (ms) | <20 | <20 | <20 | <20 | <20 | <20 | <20 |
| THDV (%) | <3 @ linear load | <3 @ linear load | <3 @ linear load | <3 @ linear load | <3 @ linear load | <3 @ linear load | <3 @ linear load |
| EFFICIENCY | |||||||
| MPPT Efficiency (%) | 99,90 | 99,90 | 99,90 | 99,90 | 99,90 | 99,90 | 99,90 |
| Max. Efficiency (%) | 97,30 | 97,70 | 97,70 | 97,90 | 97,90 | 97,90 | 97,90 |
| European Efficiency (%) | 97,20 | 97,20 | 97,20 | 97,20 | 97,20 | 97,20 | 97,20 |
| PROTECTIONS | |||||||
| PV Reverse Polarity Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Battery Reverse Polarity Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Anti-Islanding Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Short-Circuit Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Residual Current Monitoring | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Insulation Resistance Monitoring | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Surge Category | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) |
| Reverse Polarity Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Overcurrent / Temperature Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| AC/DC Surge Protection | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) |
| AFCI Protection | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| DC Isolator | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| GENERAL DATA | |||||||
| Dimensions (W*H*D) (mm) | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 |
| Packaging Dimensions (W*H*D) (mm) | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 |
| Net Weight (kg) | 34 | 34 | 34 | 34 | 34 | 34 | 34 |
| Gross Weight (kg) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Installation | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted |
| Operating Temperature Range (°C) | -25~+60 (Limited above 45°C) | -25~+60 (Limited above 45°C) | -25~+60 (Limited above 45°C) | -25~+60 (Limited above 45°C) | -25~+60 (Limited above 45°C) | -25~+60 (Limited above 45°C) | -25~+60 (Limited above 45°C) |
| Storage Temperature (°C) | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 |
| Storage/Operating Relative Humidity (%) | 0~100 | 0~100 | 0~100 | 0~100 | 0~100 | 0~100 | 0~100 |
| Altitude (m) | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 |
| Protection Class | I | I | I | I | I | I | I |
| Protection Rating | IP65 (Outdoor use) | IP65 (Outdoor use) | IP65 (Outdoor use) | IP65 (Outdoor use) | IP65 (Outdoor use) | IP65 (Outdoor use) | IP65 (Outdoor use) |
| Power Consumption (W) | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 |
| Standby Mode | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Cooling | Natural | Natural | Natural | Natural | Natural | Fan cooling | Fan cooling |
| Noise Level (dB) | <40 | <40 | <40 | <40 | <40 | <55 | <55 |
| Inverter Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Communication | Ethernet, EMS (RS485), meter, WLAN (WiFi + LAN + Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi + LAN + Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi + LAN + Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi + LAN + Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi + LAN + Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi + LAN + Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi + LAN + Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready |
| Standard Warranty (Years) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Button | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons |
| Buzzer | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) |
Notes:
[1] For a 1000 V system the maximum PV operating voltage is 950 V.
[2] The inverter power start voltage is 90 V.
[3] Belgian safety regulations require an apparent power of 10000 W to be 10000 VA.
Version 1.0 | 2025/02/05
