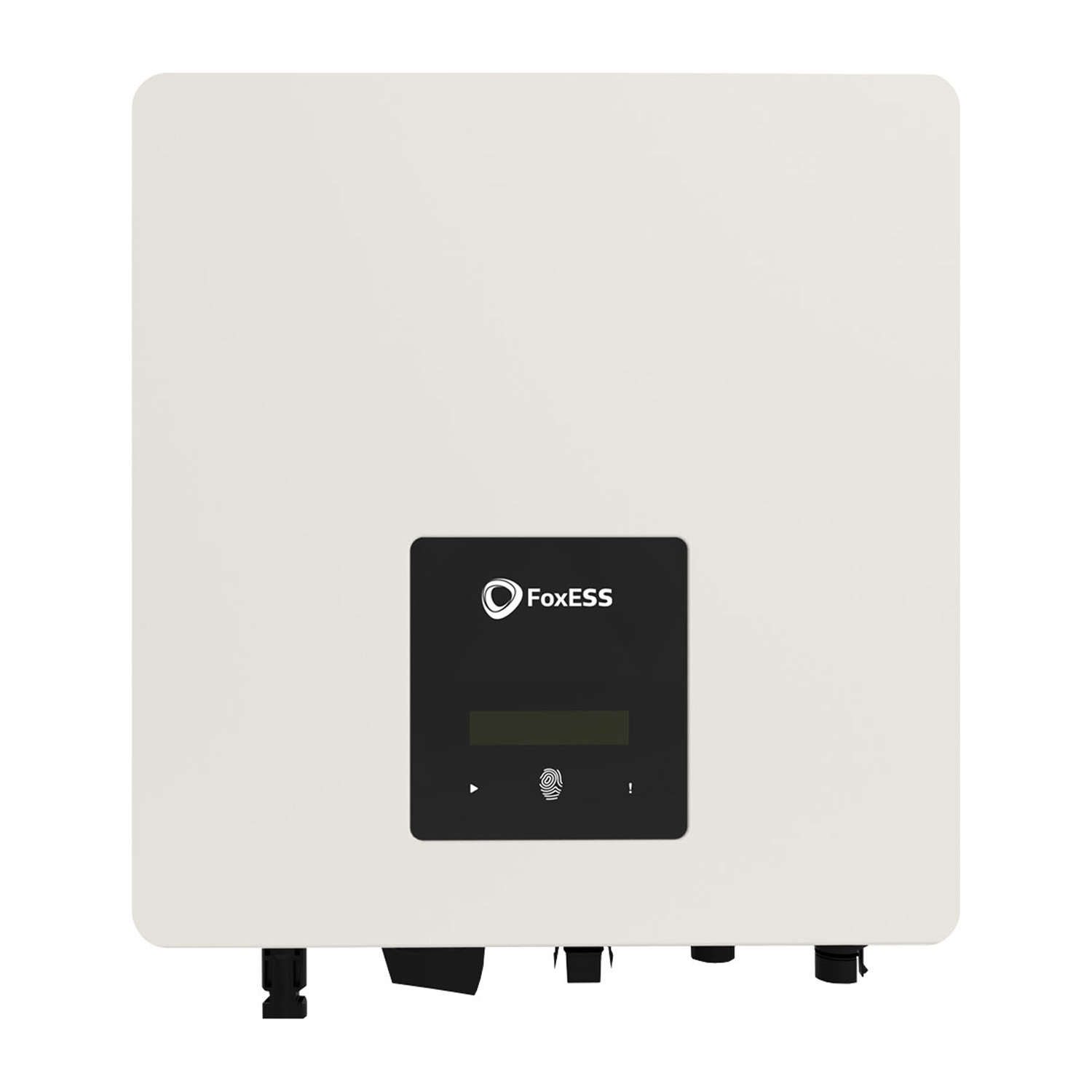

Inverter – FoxESS – S2500 – single-phase
SKU: F290022
EAN: 5905951582603
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 10,8 kg |
| CN | 85044085 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 10,8 kg |
| CN | 85044085 |

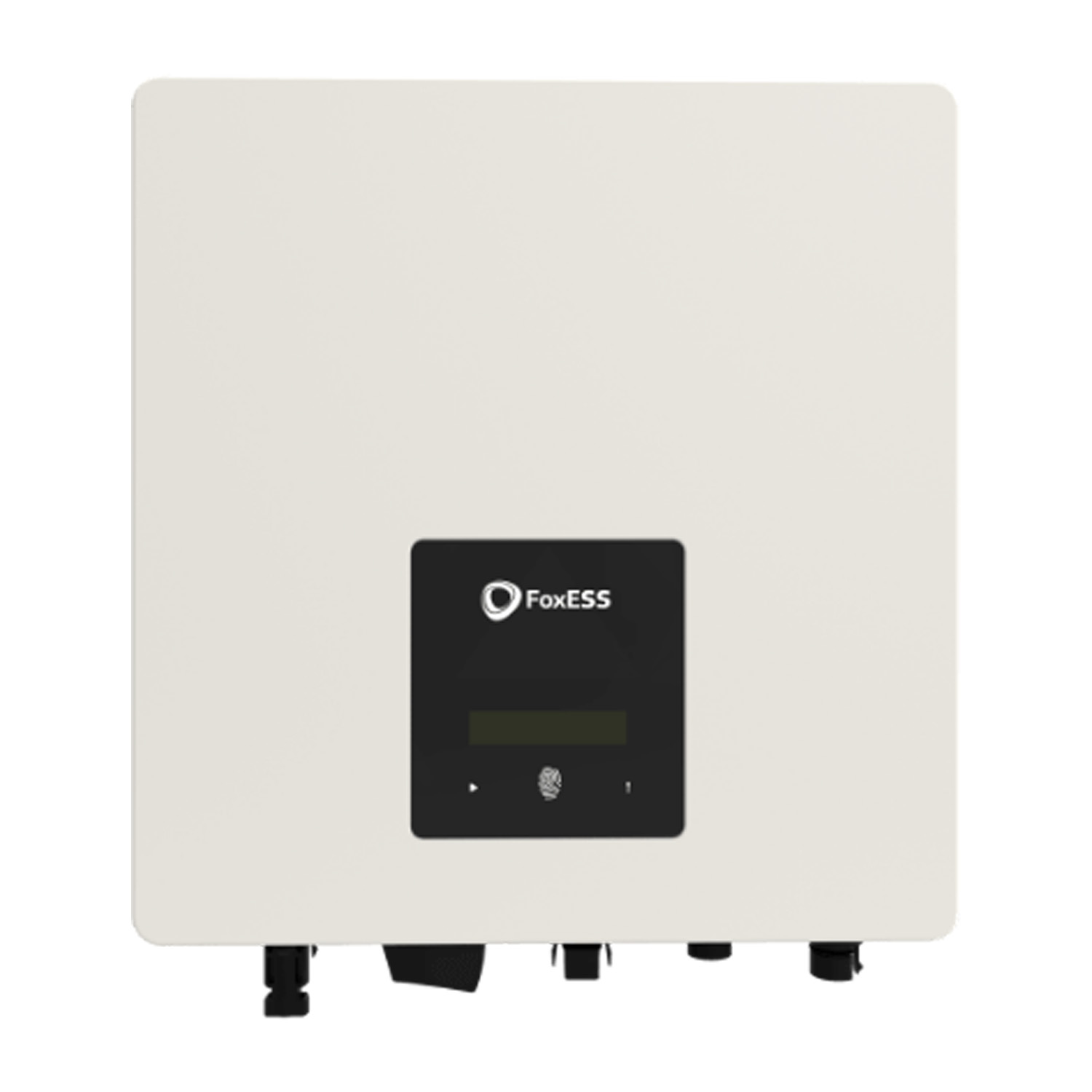

FoxESS Series S(G2) 700-3300 – Single-phase inverters with one MPPT
The FoxESS Series S(G2) inverters are refined, powerful, and flexible devices that deliver top performance in a compact design. With a single MPPT input and efficiency up to 97.4%, models in this series are ideal for small and medium photovoltaic installations. Thanks to a low startup voltage and IP65 protection, they perform well in a variety of environmental conditions, offering reliable performance and installation flexibility for both indoor and outdoor use.
Main product features
- High efficiency: Efficiency up to 97.4% with a wide MPPT voltage range and low startup voltage.
- Easy integration: Optimized to work with FoxESS energy storage systems (additional equipment required).
- IP65 protection: Weather-resistant, making the inverter suitable for outdoor installations.
- Remote monitoring: Monitor the system via a smartphone app or online portal.
- Compact design: Small size and lightweight construction simplify installation and transport.
Who is this a good choice for?
The FoxESS Series S(G2) 700-3300 is an excellent option for single-family homeowners and small commercial installations. With compact dimensions and high efficiency, these inverters are well suited to installations in limited spaces. Advanced monitoring features and installation flexibility make the product appropriate for both new PV systems and upgrades to existing systems.
Datasheet FoxESS G2 S700-S3300
FoxESS-G2-S700-S3300-Datasheet.pdf
| PV Input | |||||||
|---|---|---|---|---|---|---|---|
| Parameter | S700 G2 | S1000 G2 | S1500 G2 | S2000 G2 | S2500 G2 | S3000 G2 | S3300 G2 |
| Maximum recommended DC power [W] | 1050 | 1500 | 2250 | 3000 | 3750 | 4500 | 4950 |
| Maximum DC voltage [V] | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Nominal DC operating voltage [V] | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Maximum input current [A] | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum short-circuit current [A] | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| MPPT voltage range [V] | 50-480 | 50-480 | 50-480 | 50-480 | 50-480 | 50-480 | 50-480 |
| Start-up voltage [V] | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Number of MPP trackers | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Strings per MPP tracker | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| AC Output | |||||||
| Rated AC power [W] | 700 | 1000 | 1500 | 2000 | 2500 | 3000 | 3300 |
| Maximum AC apparent power [VA] | 800 | 1100 | 1650 | 2200 | 2750 | 3300 | 3300 |
| Nominal grid voltage [VAC] | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 |
| Nominal grid frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated AC current [A] | 3.0 | 4.3 | 6.5 | 8.7 | 10.9 | 13.0 | 14.3 |
| Maximum AC current [A] | 3.5 | 4.8 | 7.2 | 9.6 | 12.0 | 14.3 | 14.3 |
| Power factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) |
| THDi (at rated power) | <3% | <3% | <3% | <3% | <3% | <3% | |
| Efficiency | |||||||
| MPPT efficiency [%] | 99.00% | 99.00% | 99.00% | 99.00% | 99.00% | 99.00% | 99.00% |
| Euro efficiency [%] | 96.50% | 96.50% | 96.50% | 96.80% | 96.80% | 96.80% | 96.80% |
| Maximum efficiency [%] | 97.20% | 97.20% | 97.30% | 97.40% | 97.40% | 97.40% | 97.40% |
| Protections | |||||||
| DC reverse polarity protection | YES | YES | YES | YES | YES | YES | YES |
| Anti-islanding protection | YES | YES | YES | YES | YES | YES | YES |
| Insulation monitoring | YES | YES | YES | YES | YES | YES | YES |
| Residual current protection | YES | YES | YES | YES | YES | YES | YES |
| AC short-circuit protection | YES | YES | YES | YES | YES | YES | YES |
| AC output overcurrent protection | YES | YES | YES | YES | YES | YES | YES |
| AC output overvoltage protection | YES | YES | YES | YES | YES | YES | YES |
| Surge protection | YES | YES | YES | YES | YES | YES | YES |
| Overtemperature protection | YES | YES | YES | YES | YES | YES | YES |
| Built-in DC switch | YES | YES | YES | YES | YES | YES | YES |
| Standards | |||||||
| Safety | IEC 62109-1/2 | IEC 62109-1/2 | IEC 62109-1/2 | IEC 62109-1/2 | IEC 62109-1/2 | IEC 62109-1/2 | IEC 62109-1/2 |
| EMC | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Certification | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 |
| General Data | |||||||
| Dimensions (H*W*D) [mm] | 290*220*116 | 290*220*116 | 290*220*116 | 290*220*116 | 290*220*116 | 290*220*116 | 290*220*116 |
| Weight [kg] | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 |
| Cooling | Natural (Convection) | Natural (Convection) | Natural (Convection) | Natural (Convection) | Natural (Convection) | Natural (Convection) | Natural (Convection) |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Protection rating (according to IEC60529) | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Surge category | III (AC side), II (PV side) | III (AC side), II (PV side) | III (AC side), II (PV side) | III (AC side), II (PV side) | III (AC side), II (PV side) | III (AC side), II (PV side) | III (AC side), II (PV side) |
| Noise (typical) [dB] | <30 | <30 | <30 | <30 | <30 | <30 | <30 |
| Maximum operating altitude [m] | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Operating temperature range [°C] | -25 / +60 | -25 / +60 | -25 / +60 | -25 / +60 | -25 / +60 | -25 / +60 | -25 / +60 |
| Humidity | 0-100% (non-condensing) | 0-100% (non-condensing) | 0-100% (non-condensing) | 0-100% (non-condensing) | 0-100% (non-condensing) | 0-100% (non-condensing) | 0-100% (non-condensing) |
| Self-consumption (night) [W] | <3 | <3 | <3 | <3 | <3 | <3 | <3 |
| Monitoring module | WiFi (standard) / GPRS (optional) / LAN (optional) | WiFi (standard) / GPRS (optional) / LAN (optional) | WiFi (standard) / GPRS (optional) / LAN (optional) | WiFi (standard) / GPRS (optional) / LAN (optional) | WiFi (standard) / GPRS (optional) / LAN (optional) | WiFi (standard) / GPRS (optional) / LAN (optional) | WiFi (standard) / GPRS (optional) / LAN (optional) |
| Communication | RS485, meter, CT, ISO alarm | RS485, meter, CT, ISO alarm | RS485, meter, CT, ISO alarm | RS485, meter, CT, ISO alarm | RS485, meter, CT, ISO alarm | RS485, meter, CT, ISO alarm | RS485, meter, CT, ISO alarm |
| Display | LCD screen, Touch key, Mobile app, Web, Polish menu | LCD screen, Touch key, Mobile app, Web, Polish menu | LCD screen, Touch key, Mobile app, Web, Polish menu | LCD screen, Touch key, Mobile app, Web, Polish menu | LCD screen, Touch key, Mobile app, Web, Polish menu | LCD screen, Touch key, Mobile app, Web, Polish menu | LCD screen, Touch key, Mobile app, Web, Polish menu |
| Warranty | 12 years | 12 years | 12 years | 12 years | 12 years | 12 years | 12 years |
| Power optimizer support | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
