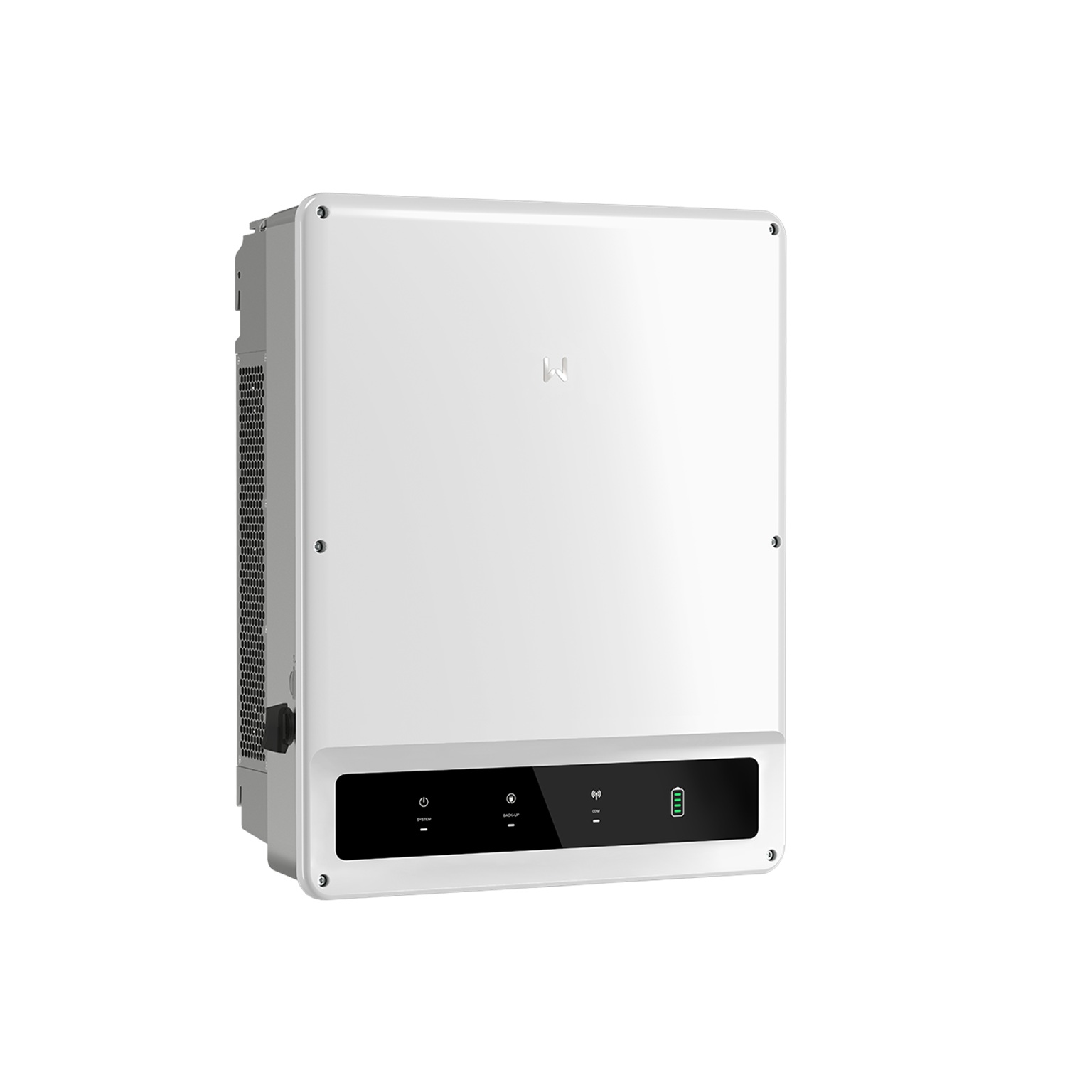

Inverter – GOODWE – GW29.9K-ET – hybrid – HV
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044086 |
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044086 |
GoodWe ET Series (15–30 kW)
The three-phase hybrid inverters from GoodWe’s ET series are designed for demanding, high-power rooftop photovoltaic installations. These devices provide high efficiency, energy independence and advanced energy management thanks to the peak-shaving feature. The series offers reliable backup power with standard UPS switching in under 10 ms and the ability to work with high-voltage energy storage systems, including GoodWe Lynx Home F models.
Key features of GoodWe ET Series (15–30 kW):
- High backup power capacity: Ensures continuity of operation for homes or businesses in case of grid outage with fast UPS switching (<10 ms).
- Wide range of power and configurations: Available in versions from 15 kW to 30 kW with 3 independent MPPT trackers, facilitating the design of large systems.
- Peak-shaving: Intelligent energy management reduces operating costs and optimizes self-consumption.
- High efficiency: Maximum inverter efficiency of up to 98.0% ensures effective conversion of solar energy.
- Safety and durability: IP66 protection rating, integrated comprehensive protections and optional arc-fault protection (AFCI).
Who is this a good choice for?
The GoodWe ET inverter series (15–30 kW) is an ideal solution for owners of large photovoltaic installations in residential buildings with high energy demand as well as commercial facilities. The device is suitable wherever reliable backup power, maximized self-consumption and flexible cooperation with three-phase high-voltage energy storage systems are critical.
| Parameter | GW15K-ET | GW20K-ET | GW25K-ET | GW29.9K-ET |
|---|---|---|---|---|
| Battery input parameters | ||||
| Battery type | Lithium-ion (Li-Ion) | Lithium-ion (Li-Ion) | Lithium-ion (Li-Ion) | Lithium-ion (Li-Ion) |
| Battery nominal voltage (V) | 500 | 500 | 500 | 500 |
| Battery voltage range (V) | 200-800 | 200-800 | 200-800 | 200-800 |
| Start-up voltage (V) | 180 | 180 | 180 | 180 |
| Number of battery inputs | 1 | 1 | 2 | 2 |
| Max. continuous charging current (A) | 50 | 50 | 50 × 2 | 50 × 2 |
| Max. continuous discharging current (A) | 50 | 50 | 50 × 2 | 50 × 2 |
| Max. charging power (W) | 15000 | 20000 | 25000 | 30000 |
| Max. discharging power (W) | 15000 | 20000 | 25000 | 30000 |
| PV string input parameters | ||||
| Max. input power (W) | 22500 | 30000 | 37500 | 45000 |
| Max. input voltage (V) | 1000 | 1000 | 1000 | 1000 |
| MPPT operating voltage range (V) | 200-850 | 200-850 | 200-850 | 200-850 |
| Start-up voltage (V) | 200 | 200 | 200 | 200 |
| Nominal input voltage (V) | 620 | 620 | 620 | 620 |
| Max. input current per MPPT (A) | 30 | 30 | 30 | 30 |
| Max. short-circuit current per MPPT (A) | 38 | 38 | 38 | 38 |
| Number of MPPTs | 2 | 2 | 3 | 3 |
| Number of PV strings per MPPT | 2/2 | 2/2 | 2/2/2 | 2/2/2 |
| AC output parameters (grid-connected) | ||||
| Rated output power (W) | 15000 | 20000 | 25000 | 29900 |
| Rated apparent power to the grid (VA) | 15000 | 20000 | 25000 | 29900 |
| Max. output apparent power to the grid (VA) | 16500 | 22000 | 27500 | 29900 |
| Max. apparent power from the grid (VA) | 15000 | 20000 | 25000 | 30000 |
| Rated output voltage (V) | 380 / 400, 3L/N/PE | 380 / 400, 3L/N/PE | 380 / 400, 3L/N/PE | 380 / 400, 3L/N/PE |
| Output voltage range (V) | 0-300 | 0-300 | 0-300 | 0-300 |
| Rated AC grid frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| AC grid frequency range (Hz) | 45-65 | 45-65 | 45-65 | 45-65 |
| Max. AC output current to the grid (A) | 23.9 | 31.9 | 39.9 | 43.3 |
| Max. AC current from the grid (A) | 21.7 | 29.0 | 36.2 | 43.3 |
| Power factor range | ~1 (adjustable from 0.8 lead to 0.8 lag) | ~1 (adjustable from 0.8 lead to 0.8 lag) | ~1 (adjustable from 0.8 lead to 0.8 lag) | ~1 (adjustable from 0.8 lead to 0.8 lag) |
| Total harmonic distortion (THD) | <3% | <3% | <3% | <3% |
| AC output parameters (backup circuit) | ||||
| Backup rated apparent power (VA) | 15000 | 20000 | 25000 | 29900 |
| Max. output apparent power without grid (VA) | 15000 (18000@60s, 24000@3s) | 20000 (24000@60s, 32000@3s) | 25000 (30000@60s) | 30000 (36000@60s) |
| Max. output apparent power with grid (VA) | 15000 | 20000 | 25000 | 29900 |
| Max. output current (A) | 22.7 (27.3@60s, 36.4@3s) | 30.3 (36.4@60s, 48.5@3s) | 37.9 (45.5@60s) | 45.5 (54.5@60s) |
| Rated output voltage (V) | 380 / 400 | 380 / 400 | 380 / 400 | 380 / 400 |
| Rated output frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| THDV distortion at the output (at linear load) | <3% | <3% | <3% | <3% |
| Efficiency | ||||
| Max. efficiency (%) | 98.0% | 98.0% | 98.0% | 98.0% |
| European efficiency (%) | 97.5% | 97.5% | 97.5% | 97.5% |
| Max. battery efficiency under load (%) | 97.5% | 97.5% | 97.5% | 97.5% |
| MPPT efficiency (%) | 99.9% | 99.9% | 99.9% | 99.9% |
| Protections | ||||
| PV string current monitoring | Integrated | Integrated | Integrated | Integrated |
| PV insulation resistance detection | Integrated | Integrated | Integrated | Integrated |
| Residual current monitoring | Integrated | Integrated | Integrated | Integrated |
| Reverse polarity protection in DC circuit | Integrated | Integrated | Integrated | Integrated |
| Reverse polarity protection in the energy storage power circuit | Integrated | Integrated | Integrated | Integrated |
| Anti-islanding protection | Integrated | Integrated | Integrated | Integrated |
| AC circuit overcurrent protection | Integrated | Integrated | Integrated | Integrated |
| AC circuit short-circuit protection | Integrated | Integrated | Integrated | Integrated |
| AC circuit surge protection | Integrated | Integrated | Integrated | Integrated |
| DC isolator switch | Integrated | Integrated | Integrated | Integrated |
| DC surge protector | Type II | Type II | Type II | Type II |
| AC surge protector | Type III | Type III | Type III | Type III |
| Arc-fault protection (AFCI) | Optional | Optional | Optional | Optional |
| Remote shutdown | Integrated | Integrated | Integrated | Integrated |
| General information | ||||
| Operating temperature range (°C) | -35 ~ +60 | -35 ~ +60 | -35 ~ +60 | -35 ~ +60 |
| Relative humidity (%) | 0-95% | 0-95% | 0-95% | 0-95% |
| Max. operating altitude (m) | 4000 | 4000 | 4000 | 4000 |
| Cooling method | Intelligent fan cooling | Intelligent fan cooling | Intelligent fan cooling | Intelligent fan cooling |
| Display | LED, WLAN + app | LED, WLAN + app | LED, WLAN + app | LED, WLAN + app |
| BMS communication | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN |
| Meter communication | RS485 | RS485 | RS485 | RS485 |
| Portal communication | WiFi / 4G | WiFi / 4G | WiFi / 4G | WiFi / 4G |
| Weight (kg) | 48 | 48 | 54 | 54 |
| Dimensions (W × H × D) (mm) | 520 × 660 × 220 | 520 × 660 × 220 | 520 × 660 × 220 | 520 × 660 × 220 |
| Noise emission (dB) | <45 | <45 | <45 | <60 |
| Topology | Non-isolated | Non-isolated | Non-isolated | Non-isolated |
| Night-time power consumption (W) | <15 | <15 | <15 | <15 |
| Protection rating | IP66 | IP66 | IP66 | IP66 |
| Mounting method | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted |
*1: Max. input power (W), non-continuous for 1.5 × nominal power.
*2: For a 1000V system the maximum operating voltage is 950V.
*3: In accordance with local grid regulations.
*4: Output voltage range (V): phase voltage.
*5: Can only be achieved when PV and battery power are sufficient.
*6: No backup output.
*7: For a 380V grid, the Max. AC output current to the grid is respectively: 25.0A for GW15K-ET, 33.3A for GW20K-ET, 41.7A for GW25K-ET, 49.8A for GW29.9K-ET.
*8: When the load is connected to the inverter’s backup port, the Max. apparent power from the grid can reach respectively 22.5kVA for GW15K-ET, 30kVA for GW20K-ET, 33kVA for GW25K-ET and 33kVA for GW29.9K-ET.
*9: When the load is connected to the inverter’s backup port, the Max. AC current from the grid can reach respectively 34A for GW15K-ET, 45A for GW20K-ET, 50A for GW25K-ET and 50A for GW29.9K-ET.
