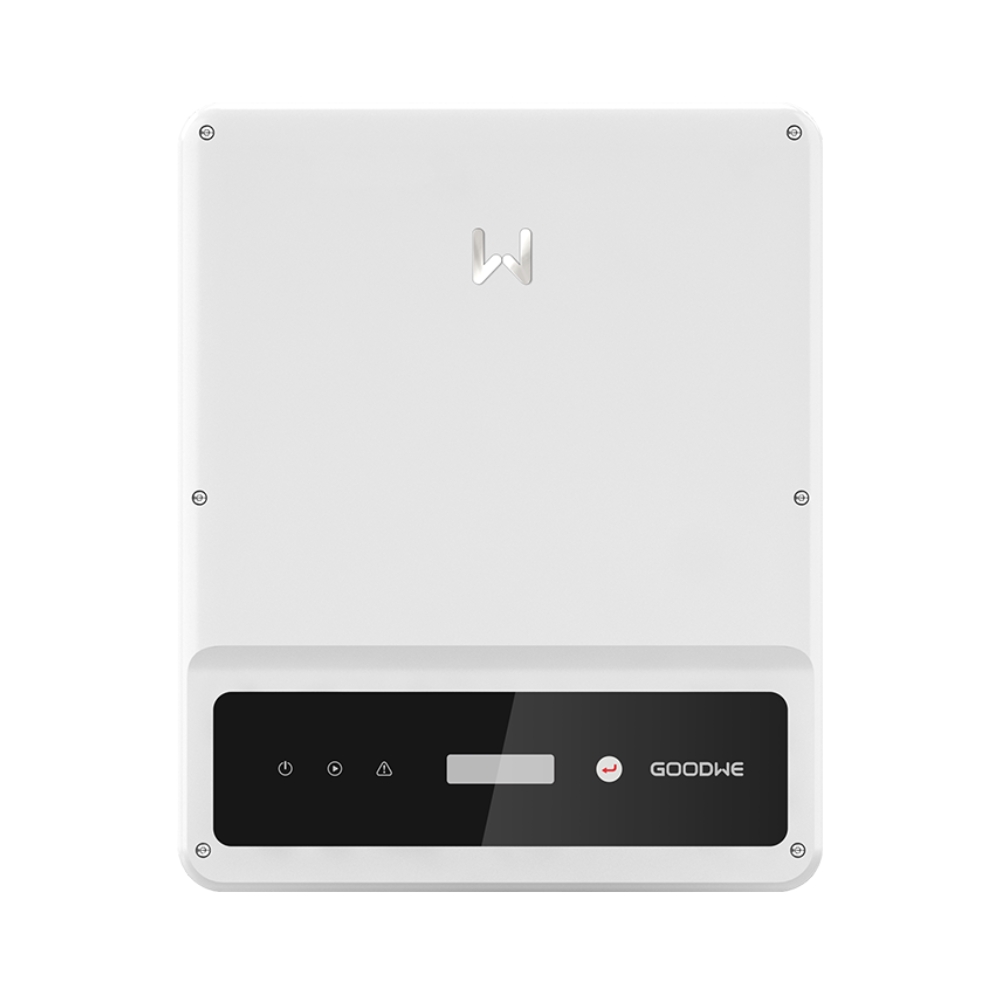

Inverter – GOODWE – GW4200D-NS – Single-phase – without WiFi
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| European efficiency | |
| CN | 85044086 |
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| European efficiency | |
| CN | 85044086 |
DNS
The DNS by GoodWe is a series of single-phase inverters for residential photovoltaic installations, with power from 3–6 kW and two MPPT trackers. A start-up voltage of 80 V and an MPPT operating range of 80–550 V provide flexibility in system configuration. The compact enclosure with IP65 protection rating allows installation indoors or outdoors.
Key advantages of DNS
- Power 3–6 kW depending on the model and two Maximum Power Point Tracking (MPPT) trackers.
- Start-up voltage 80 V and MPPT operating voltage range 80–550 V.
- Maximum efficiency 97.8% and European efficiency 97.5%.
- Protection rating IP65 enabling installation indoors and outdoors.
- Compact dimensions 354 × 433 × 147 mm, weight 13–13.5 kg depending on the model and cooling by natural convection, fanless.
- Grid feed-in control and operable via LED, LCD and WLAN interface with an app.
Who is this a good choice for?
DNS is a choice for homeowners looking for a single-phase inverter for a photovoltaic installation. The 3–6 kW power range allows selecting a model to match the installation, and the compact enclosure and IP65 rating simplify choosing the mounting location. Grid feed-in control and the app interface meet the needs of users who want to manage their home system’s operation.
| Parameter | GW3000D-NS | GW3600D-NS | GW4200D-NS | GW5000D-NS | GW6000D-NS | GW3000T-DS | GW3600T-DS | GW4200T-DS | GW5000T-DS | GW6000T-DS |
|---|---|---|---|---|---|---|---|---|---|---|
| DC Input Data | ||||||||||
| Maximum input voltage (V) | 600 | |||||||||
| MPPT operating voltage range (V) | 80 ~ 550 | |||||||||
| Start-up voltage (V) | 80 | |||||||||
| Rated input voltage (V) | 360 | |||||||||
| Max input current per MPPT (A) | 11 | 13 | ||||||||
| Max short-circuit current per MPPT (A) | 13,8 | 16,3 | ||||||||
| Number of MPPT trackers | 2 | |||||||||
| Number of strings per MPPT | 1 | |||||||||
| AC Output Data | ||||||||||
| Rated output power (W) | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 | 6000 |
| Rated output apparent power (VA) | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 | 6000 |
| Maximum active AC power (W) | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 | 6000 |
| Maximum apparent AC power (VA) | 3000 | 3680 | 4200 | 5000 | 6000 | 3000 | 3680 | 4200 | 5000 | 6000 |
| Rated output voltage (V) | 220 / 230 | |||||||||
| Rated AC grid frequency (Hz) | 50 / 60 | |||||||||
| Maximum output current (A) | 13,6 | 16,0 | 19,0 | 22,8 | 27,3 | 13,6 | 16,0 | 19,0 | 22,8 | 27,3 |
| Power factor | ~1 (adjustable from 0.8 leading to 0.8 lagging) | |||||||||
| Maximum total harmonic distortion (%) | <3% | |||||||||
| Efficiency | ||||||||||
| Maximum efficiency (%) | 97,8% | |||||||||
| European efficiency (%) | 97,5% | |||||||||
| Protections | ||||||||||
| PV string current monitoring | – | Integrated | ||||||||
| PV insulation resistance detection | Integrated | |||||||||
| Residual current monitoring | Integrated | |||||||||
| PV reverse polarity protection | Integrated | |||||||||
| Anti-islanding protection | Integrated | |||||||||
| AC overcurrent protection | Integrated | |||||||||
| AC short-circuit protection | Integrated | |||||||||
| AC overvoltage protection | Integrated | |||||||||
| DC switch | Optional | |||||||||
| DC surge protection | Type III | Type III (Type II Optional) | ||||||||
| AC surge protection | Type III | |||||||||
| Arc-fault protection AFCI | – | Optional | ||||||||
| Emergency power off | Optional | |||||||||
| Remote shutdown | Optional | |||||||||
| Operating Conditions | ||||||||||
| Operating temperature (°C) | -25 ~ +60 | |||||||||
| Relative humidity (%) | 0 ~ 100% | |||||||||
| Maximum operating altitude (m) | 4000 | |||||||||
| Cooling method | Natural convection | |||||||||
| Noise emission (dB) | <25 | <50 | <25 | <50 | ||||||
| Protection rating | IP65 | |||||||||
| Dimensions and Weight | ||||||||||
| Weight (kg) | 13,0 | 13,5 | 13,0 | 13,5 | ||||||
| Dimensions (W × H × D) (mm) | 354 × 433 × 147 | |||||||||
| General Data and Communication | ||||||||||
| User interface | LED, LCD, WLAN + APP | |||||||||
| Communication | WiFi, RS485 or 4G or 2G or LAN (optional) | |||||||||
| Topology | No galvanic isolation | |||||||||
| Night-time self-consumption (W) | <1 | |||||||||
| DC connector | MC4 | |||||||||
| AC connector | Plug-and-play connector | |||||||||
For CEI 0-21 the rated power of the 3000, 3600, 4200, 5000 and 6000 models of both series is respectively 2700, 3350, 3800, 4540 and 5450 W. In Australia and New Zealand the rated power of the GW5000D-NS is 4999 W, and the apparent power 4999 VA. In Australia the maximum operating altitude is 3000 m. In Chile the maximum active and apparent power of the GW3000T-DS, GW3600T-DS, GW4200T-DS, GW5000T-DS and GW6000T-DS models is respectively 3000, 3600, 4200, 5000 and 6000 W/VA. Empty values indicate lack of unambiguous data in OCR.
