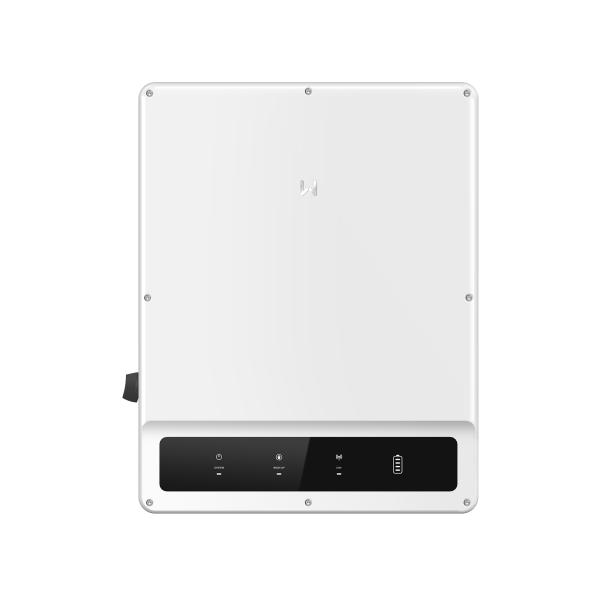

GOODWE GW50K-ET-10 Inverter / Outlet

SKU: F2C0A5O EAN: 2010000033500
GOODWE GW50K-ET-10 Inverter / Outlet
Manufacturer

Weight 74,8 kg
Price 3 669,04 €
Gross

3 669,04 €
Gross

In stock:

1 pcs
Login to place an order

Login to place an order

3 669,04 €
Gross

In stock:

1 pcs
Login to place an order

Karta katalogowa GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Karta-katalogowa.pdf Instrukcja montażu GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Instrukcja-montazu.pdf Gwarancja GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Gwarancja.pdf Certyfikat zgodności GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Certyfikat-zgodnosci.pdf

Product details

Manufacturer

Weight 74,8 kg

GoodWe ET50 Series Hybrid Inverter

The inverter is new; it was removed after 24 hours of operation. Fully functional. No outer packaging, includes a full set of accessories required for proper installation. Comes with the manufacturer’s warranty.

The ET50 hybrid inverters from GoodWe are efficient, compact solutions designed for commercial and industrial (C&I) energy storage systems. They offer optimized energy autonomy, modern design, and intelligent, efficient operation while meeting the highest safety standards. They are compatible with a wide range of battery capacities and use smart operating modes to optimize system performance.

Key features of the GoodWe ET50 Series:

  • Available power ratings: 40 kW and 50 kW.
  • Support for up to 4 MPPTs (depending on the model) provides flexibility in PV array configuration.
  • Parallel operation capability for seamless system expansion.
  • Integrated intelligent active cooling for optimal operating temperature.
  • High maximum efficiency up to 98.1% and European efficiency up to 97.7%.
  • Advanced protections, including AFCI protection, AC/DC surge protection (Type II), and remote shutdown capability.

Who is this a good choice for?

The ET50 series is an excellent choice for companies and businesses looking for advanced energy storage solutions. It is well suited for commercial and industrial applications, enabling optimization of self-consumption, peak shaving, use of time-of-use tariffs, and grid support. Integration with an STS box provides reliable UPS-level emergency power, and compatibility with the GoodWe Lynx C battery system allows creation of a comprehensive energy storage solution.

Karta katalogowa GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Karta-katalogowa.pdf Instrukcja montażu GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Instrukcja-montazu.pdf Gwarancja GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Gwarancja.pdf Certyfikat zgodności GOODWE GW40K-ET-10 - GW50K-ET-10 GOODWE-GW40K-ET-10-GW50K-ET-10-Certyfikat-zgodnosci.pdf

Parameter GW40K-ET-10 GW50K-ET-10
Battery input parameters
Battery type Li-Ion Li-Ion
Battery nominal voltage (V) 500 500
Battery voltage range (V) 200-800 200-800
Start-up voltage (V) 200 200
Number of battery inputs 1 1
Max. continuous charging current (A) 100 100
Max. continuous discharging current (A) 100 100
Max. charging power (W) 44000 55000
Max. discharging power (W) 44000 55000
PV string input parameters
Max. input power (W) 60000 75000
Max. input voltage (V) 1000 1000
MPPT operating voltage range (V) 165 – 850 165 – 850
Start-up voltage (V) 200 200
Rated input voltage (V) 620 620
Max. input current per MPPT (A) 42/32/42 55/42/55
Max. short-circuit current per MPPT (A) 55/42/55 42/32/42/32
Number of MPPTs 3 4
Number of PV module strings per MPPT 2 4
AC output parameters (grid-connected)
Rated output power (W) 40000 50000
Rated apparent power to grid (VA) 40000 50000
Max. apparent output power to grid (VA) 40000 50000
Max. apparent power from grid (VA) 40000 50000
Rated output voltage (V) 380/400, 3L/N/PE 380/400, 3L/N/PE
Output voltage range (V) 176-276 176-276
Rated AC grid frequency (Hz) 50/60 50/60
AC grid frequency range (Hz) 45-65 45-65
Max. AC output current to grid (A) 60.6 75.8
Max. AC current from grid (A) 60.6 75.8
Power factor adjustment range ~1 (adjustable from 0.8 lead to 0.8 lag) ~1 (adjustable from 0.8 lead to 0.8 lag)
Total harmonic distortion THD <3% <3%
AC output parameters (backup circuit)*
Backup rated apparent power (VA) 40000 50000
Max. apparent output power (VA) 44000 (48000 @ 60s, 60000 @ 10s) 55000 (60000 @60s, 75000 @ 10s)
Max. output current (A) 66.7 83.3
Rated output voltage (V) 380/400, 3L/N/PE 380/400, 3L/N/PE
Rated output frequency (Hz) 50/60 50/60
Output THD (at linear load) <3% <3%
Efficiency
Max. efficiency 98.1% 97.5%
European efficiency 97.7% 99.0%
Max. battery power under load 44000 55000
MPPT efficiency 55000 55000
Protections
Residual current monitoring Integrated. Integrated.
Reverse polarity protection for energy storage power circuit Integrated. Integrated.
Anti-islanding protection Integrated. Integrated.
AC overcurrent protection Integrated. Integrated.
AC short-circuit protection Integrated. Integrated.
AC surge protection Integrated. Integrated.
DC isolator Type II (Type I + II optional) Type II
DC surge arrester Type II Type II
AC surge arrester Optional Optional
Arc fault protection AFCI Integrated. Integrated.
Remote shutdown Integrated. Integrated.
General data
Operating temperature range (°C) -35 to +60 -35 to +60
Relative humidity 0-95% 0-95%
Maximum operating altitude (m above sea level) 4000 4000
Cooling method Intelligent active cooling Intelligent active cooling
Display LED, WLAN + APP LED, WLAN + APP
Communication with BMS CAN CAN
Communication with meter RS485 RS485
Communication with portal LAN/4G (Optional) LAN/4G (Optional)
Weight (kg) 62 65
Dimensions (W x H x D mm) 520 x 660 × 260 520 x 660 × 260
Topology Non-isolated Non-isolated
Night power consumption (W) <15 <15
IP rating IP66 IP66
Mounting method Wall-mounted Wall-mounted

*1: The backup function can only be implemented with an STS box (Static Transfer Switch). *2: Output voltage range: phase voltage.
