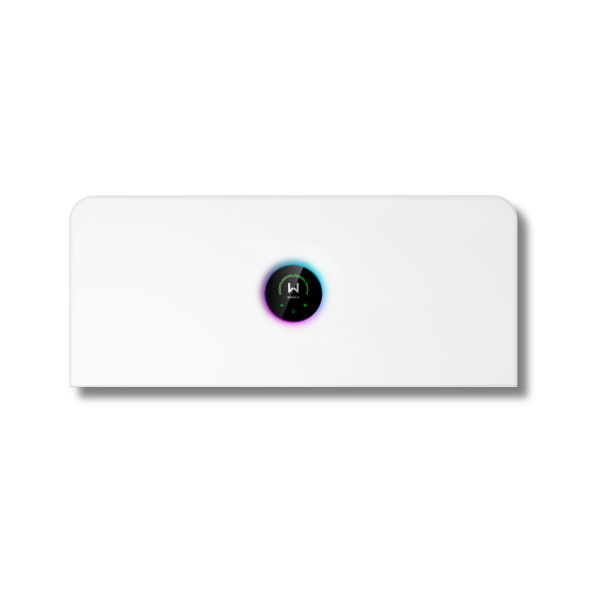

Inverter – GOODWE – GW5K-ETA-G20 – hybrid – HV
SKU: F2C0B
EAN: 2010000044186
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044086 |
Price
1 488,21 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044086 |
ESA
GoodWe’s ESA is a three-phase all-in-one energy storage system combining an inverter, an LFP (LiFePO₄) battery and intelligent energy management. The series covers a power range of 5–30 kW and storage capacities of 5–108 kWh, depending on configuration. The pre-wired, modular design simplifies configuration and speeds up system commissioning.
Key advantages of ESA
- Energy storage expansion: ability to connect up to 12 battery modules to a single inverter; in a single-column installation the limit is 6 modules.
- Flexible battery mixing: supports modules of different capacities and mixing older and new batteries.
- Whole-home backup power: dual-port design and transfer to backup power in under 4 ms.
- Intelligent energy management: ready to support an AI-based EMS system enabling optimization based on dynamic tariffs.
- System protection: six-layer safeguards, AI-based AFCI 3.0 protection, and IP66 ingress protection.
- On-grid and off-grid operation: supports parallel operation in both modes; the inverter — not the sum of battery module powers — limits the maximum charging and discharging power of the entire system.
Who is this a good choice for?
ESA is designed for households needing energy storage and whole-home backup power, as well as businesses using small commercial sites. The modular expansion allows tailoring storage capacity, and energy management based on dynamic tariffs helps optimize operation.
| Parameter | GW5K-ETA-G20 | GW6K-ETA-G20 | GW8K-ETA-G20 | GW10K-ETA-G20 | GW12K-ETA-G20 | GW15K-ETA-G20 | GW20K-ETA-G20 | GW25K-ETA-G20 | GW29.999K-ETA-G20 | GW5.1-BAT-D-G20 | GW8.3-BAT-D-G20 | GW6.0-BAT-D-G20 | GW9.0-BAT-D-G20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power module — battery input data | |||||||||||||
| Battery type | LFP (LiFePO₄) | ||||||||||||
| Nominal voltage (V) | 750 | ||||||||||||
| Voltage range (V) | 700 ~ 950 | ||||||||||||
| Start-up voltage (V) | 720 | ||||||||||||
| Number of battery inputs | 1 | ||||||||||||
| Power module — PV input data | |||||||||||||
| Maximum input power (kW) | 10 | 12 | 16 | 20 | 24 | 30 | 40 | 50 | 60 | ||||
| Maximum input voltage (V) | 1000 | ||||||||||||
| Power module — AC output data | |||||||||||||
| Inverter AC power (kW) | 5,0 | 6,0 | 8,0 | 10,0 | 12,0 | 15,0 | 20,0 | 25,0 | 30,0 | ||||
| Battery module — electrical data | |||||||||||||
| Battery type | LFP (LiFePO₄) | ||||||||||||
| Rated energy (kWh) | 5,12 | 8,32 | 6,0 | 9,0 | |||||||||
| Usable energy (kWh) | 5,0 | 8,0 | 5,8 | 8,7 | |||||||||
| Operating voltage range — single-phase system (V) | 350 ~ 550 | ||||||||||||
| Operating voltage range — three-phase system (V) | 700 ~ 950 | ||||||||||||
| Maximum system input current (A) | 12,0 | 19,0 | 7,1 | 10,7 | |||||||||
| Maximum system output current (A) | 13,2 | 21,0 | 7,9 | 11,8 | |||||||||
| Maximum system input power (kW) | 5,0 | 8,0 | 3,0 | 4,5 | |||||||||
| Maximum system output power (kW) | 5,0 | 8,0 | 3,0 | 4,5 | |||||||||
| Peak system output power (kW) | 7,5 for 10 s | 12 for 10 s | 4,5 for 10 s | 6,75 for 10 s | |||||||||
| Battery module — operating conditions | |||||||||||||
| Charging temperature range (°C) | -18 ~ +55 | -20 ~ +55 | |||||||||||
| Discharging temperature range (°C) | -20 ~ +55 | ||||||||||||
| Relative humidity (%) | 4 ~ 100 | ||||||||||||
| Maximum operating altitude (m) | 4000 | ||||||||||||
| Noise emission (dB) | ≤29 | ≤27 | |||||||||||
| Ingress protection rating (IP) | IP66 | ||||||||||||
| Cycle life (cycles) | ≥8000 | ≥10000 | |||||||||||
| Battery module — dimensions and weight | |||||||||||||
| Weight (kg) | 57,5 ± 1 | 79 ± 1 | 61 ± 1 | 77 ± 1 | |||||||||
| Dimensions — width × height × depth (mm) | 800 × 326 × 270 | ||||||||||||
| Battery module — features and installation | |||||||||||||
| Communication | CAN | CAN and 485 | |||||||||||
| Function configuration | Heating (integrated); aerosol extinguisher (integrated) | ||||||||||||
| Maximum number of modules (pcs.) | 12 | ||||||||||||
| Mounting method | Floor stacked on the floor / wall mounted | Floor stacked on the floor / grounded | |||||||||||
| Battery module — standards and certifications | |||||||||||||
| Safety | IEC62619, IEC60730, EN62477, IEC63056, IEC62040, CE, CEC, VDE2510 | IEC62619, IEC60730, EN62477, IEC63056, IEC62040, CE, CEC, Regulation 2023 / 1542, VDE2510-50 | |||||||||||
| Electromagnetic compatibility | CE, RCM | ||||||||||||
| System configuration — 5.12 kWh modules only | |||||||||||||
| Maximum charge/discharge power of the energy storage (kW) | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | ||||
| Number of modules (pcs.) | 1–12 | ||||||||||||
| Minimum nominal capacity (kWh) | 5,12 | ||||||||||||
| Minimum usable capacity (kWh) | 5,00 | ||||||||||||
| Maximum nominal capacity (kWh) | 61,44 | ||||||||||||
| Maximum usable capacity (kWh) | 60,00 | ||||||||||||
| System configuration — 8.32 kWh modules only | |||||||||||||
| Maximum charge/discharge power of the energy storage (kW) | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | ||||
| Number of modules (pcs.) | 1–12 | ||||||||||||
| Minimum nominal capacity (kWh) | 8,32 | ||||||||||||
| Minimum usable capacity (kWh) | 8,00 | ||||||||||||
| Maximum nominal capacity (kWh) | 99,84 | ||||||||||||
| Maximum usable capacity (kWh) | 96,00 | ||||||||||||
| System configuration — mixed 5.12 + 8.32 kWh modules | |||||||||||||
| Maximum charge/discharge power of the energy storage (kW) | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | ||||
| Number of modules (pcs.) | 2–12 | ||||||||||||
| Minimum nominal capacity (kWh) | 13,44 | ||||||||||||
| Minimum usable capacity (kWh) | 13,00 | ||||||||||||
| Maximum nominal capacity (kWh) | 96,64 | ||||||||||||
| Maximum usable capacity (kWh) | 93,00 | ||||||||||||
Usable energy of the modules: measured at 100% DOD and 25 ± 2°C, with charge/discharge at 0.2P for 5.12/8.32 kWh modules and 0.4P for 6.0/9.0 kWh modules. Module power is subject to reduction depending on temperature and SOC. In a single-column installation a maximum of 6 parallel units is allowed. Cycle life is specified under laboratory conditions.
