Inverter HUAWEI SUN 2000-15K-MB0 / Hybrid / OUTLET
SKU: F220P02O
EAN: 2010000034842
| Manufacturer | |
|---|---|
| Power supply | |
| Hybrid device | |
| MPPT | 2 |
| AFCI | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| Ethernet | Optional |
| WLAN | Optional |
| 4G | Optional |
| SPD Type II | |
| MPPT voltage range | |
| Weight | 24,35 kg |
| CN | 85044086 |
Price
2 266,51 €
Gross
Gross
Datasheet Huawei 12K-25K-MB0
Huawei-12K-25K-MB0-Datasheet-1.pdf
Warranty Huawei 12K-25K-MB0
Huawei-12K-25K-MB0-Warranty.pdf
Product details
| Manufacturer | |
|---|---|
| Power supply | |
| Hybrid device | |
| MPPT | 2 |
| AFCI | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| Ethernet | Optional |
| WLAN | Optional |
| 4G | Optional |
| SPD Type II | |
| MPPT voltage range | |
| Weight | 24,35 kg |
| CN | 85044086 |

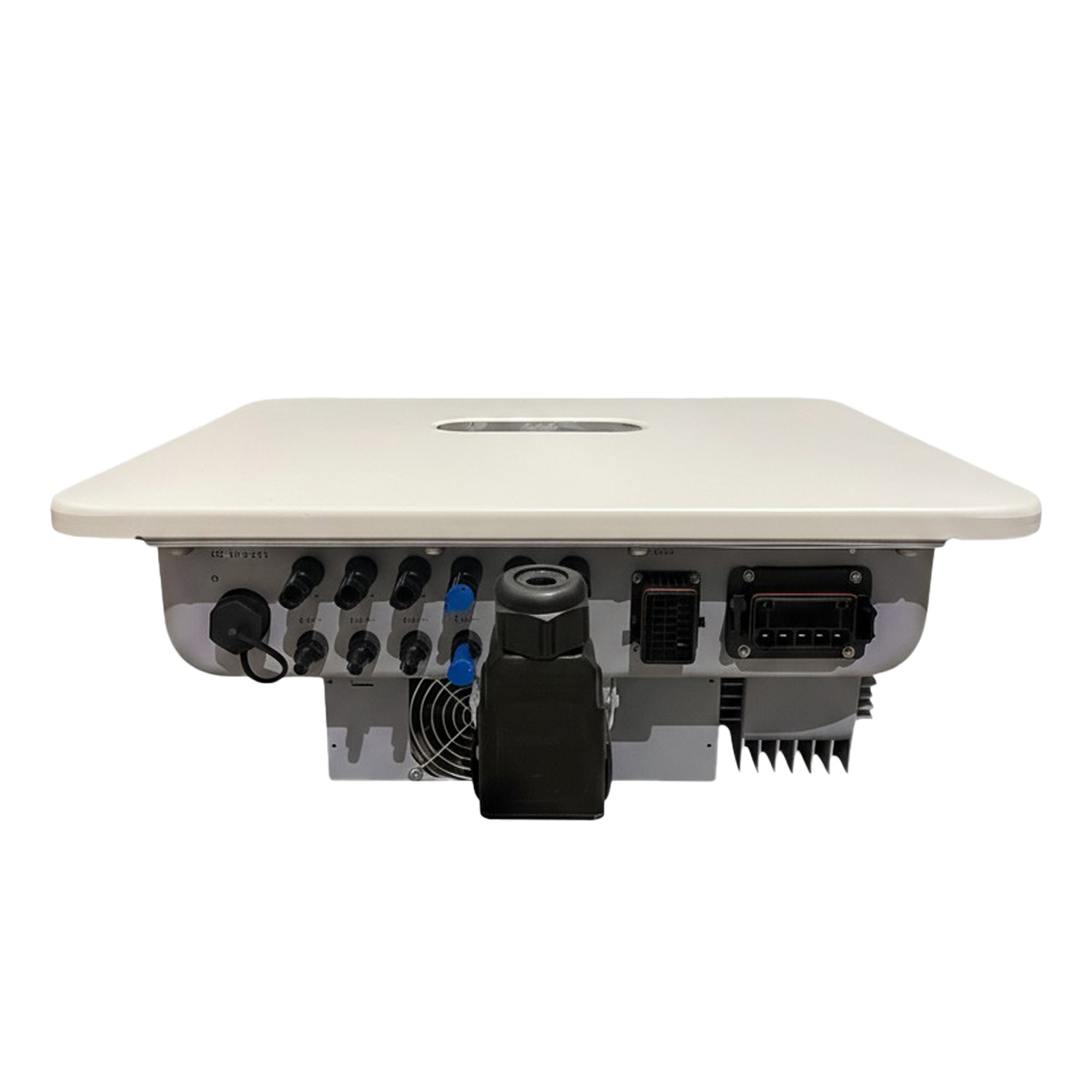

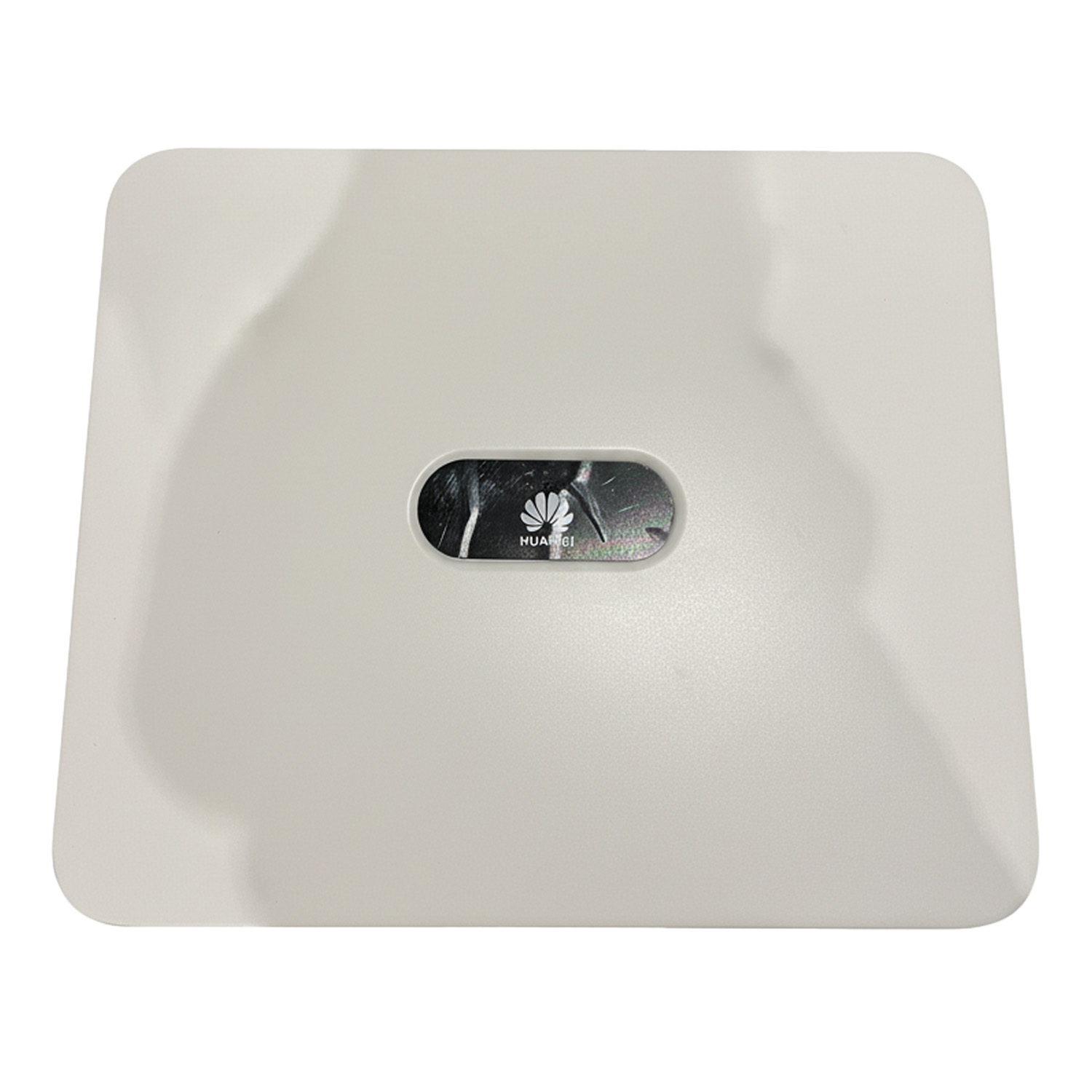

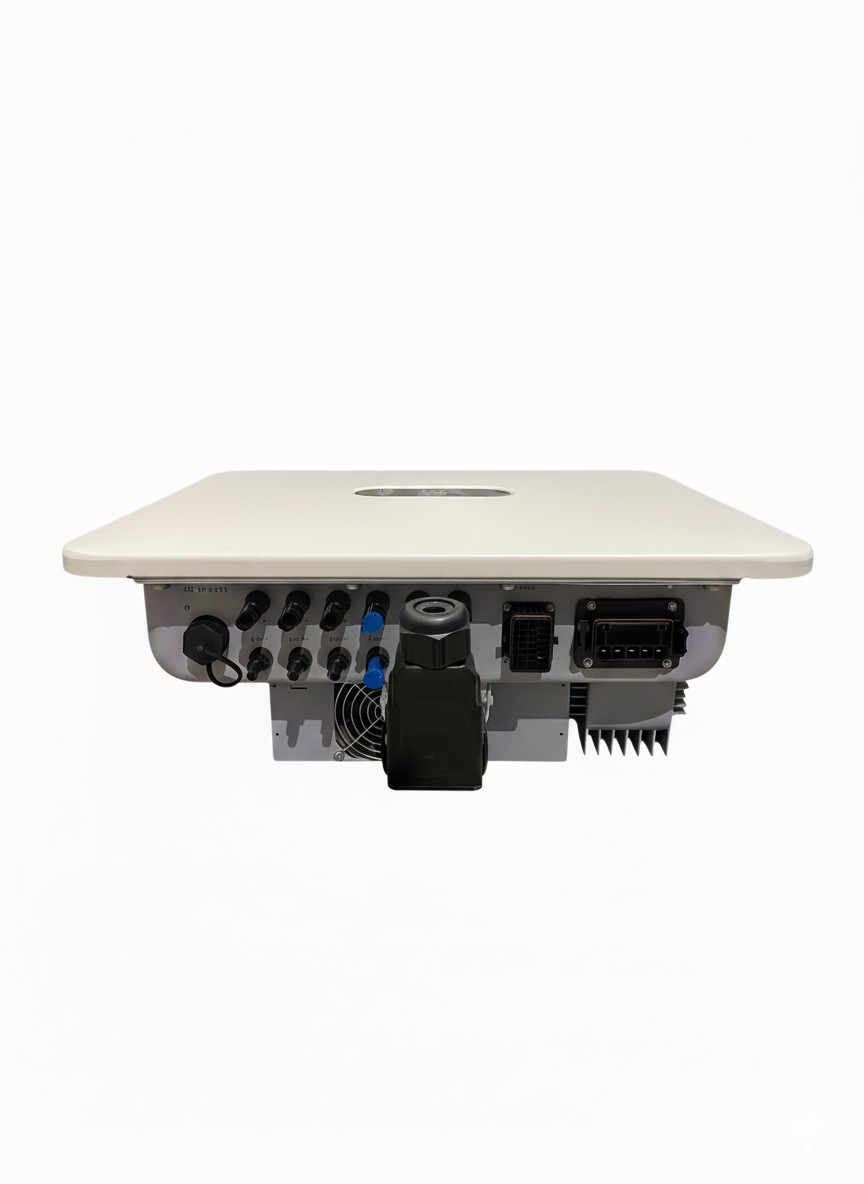

Inverter HUAWEI SUN 2000-15K-MB0 / Hybrid / OUTLET

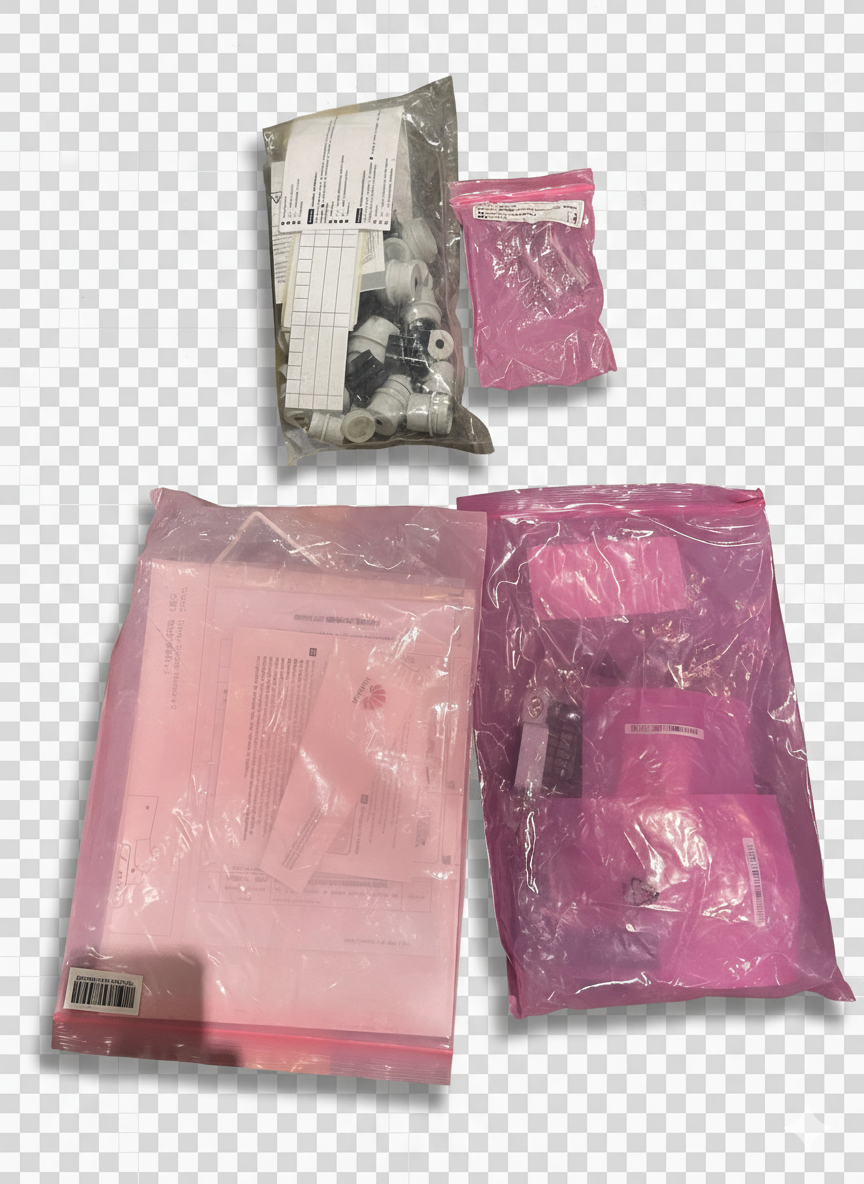

The unit is fully functional and comes with a warranty. The inverter was used for two weeks as a replacement. There are minimal signs of use from installation. All accessories are included; the original packaging is not available.
The inverters from the Huawei SUN2000-12/15/17/20/25K-MB0 series are advanced devices designed for maximum performance, safety, and flexibility. They are well suited for larger photovoltaic installations, both commercial and industrial.
Key features of the Huawei SUN2000-12/15/17/20/25K-MB0 inverters:
- Active safety – Arc-fault protection technology provides the highest level of user safety, reducing the risk of faults and damage.
- Higher energy yields – Optimized operation in combination with optimizers can increase energy yield by up to 30%.
- Battery-ready – The inverters are equipped with two battery terminals, allowing flexible connection of an energy storage system.
- High efficiency – The unit’s efficiency ensures minimal energy losses, maximizing system performance.
- Easy integration – Compact design and compatibility with various PV configurations make installation and operation straightforward.
Who is this a good choice for?
The Huawei SUN2000-12/15/17/20/25K-MB0 inverters are ideal for companies and enterprises seeking reliable, high-performance solutions for their photovoltaic installations. Their high efficiency, advanced safety features, and battery compatibility make them an excellent choice for demanding users.
Datasheet Huawei 12K-25K-MB0
Huawei-12K-25K-MB0-Datasheet-1.pdf
Warranty Huawei 12K-25K-MB0
Huawei-12K-25K-MB0-Warranty.pdf
| Model | SUN2000-12K-MB0 | SUN2000-15K-MB0 | SUN2000-17K-MB0 | SUN2000-20K-MB0 | SUN2000-25K-MB0 |
|---|---|---|---|---|---|
| Efficiency | |||||
| Maximum efficiency (%) | 98.4 | 98.4 | 98.4 | 98.4 | 98.4 |
| Weighted European efficiency (%) | 97.9 | 98.0 | 98.1 | 98.1 | 98.2 |
| DC Input | |||||
| Recommended maximum PV power (Wp) | 18,000 | 22,500 | 25,500 | 30,000 | 37,500 |
| Maximum input voltage (V) | 1,100 | 1,100 | 1,100 | 1,100 | 1,100 |
| Maximum current per MPPT (A) | 30 (two strings) / 20 (one string) | 30 (two strings) / 20 (one string) | 30 (two strings) / 20 (one string) | 30 (two strings) / 20 (one string) | 30 (two strings) / 20 (one string) |
| Maximum short-circuit current (A) | 40 | 40 | 40 | 40 | 40 |
| Start-up voltage (V) | 200 | 200 | 200 | 200 | 200 |
| MPPT operating voltage range (V) | 200 ~ 1,000 | 200 ~ 1,000 | 200 ~ 1,000 | 200 ~ 1,000 | 200 ~ 1,000 |
| MPPT full-load voltage range (V) | 370 ~ 800 | 410 ~ 800 | 440 ~ 800 | 480 ~ 800 | 530 ~ 800 |
| Rated input voltage (V) | 600 | 600 | 600 | 600 | 600 |
| Maximum number of inputs | 4 | 4 | 4 | 4 | 4 |
| Number of MPPTs | 2 | 2 | 2 | 2 | 2 |
| Smart String Energy Storage System Terminal | |||||
| Compatible Smart String ESS | LUNA2000-5/10/15-S0 | LUNA2000-5/10/15-S0 | LUNA2000-5/10/15-S0 | LUNA2000-5/10/15-S0 | LUNA2000-5/10/15-S0 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 |
| Maximum charging power (kW) | 21 (one string) / 25 (two strings) | 21 (one string) / 25 (two strings) | 21 (one string) / 25 (two strings) | 21 (one string) / 25 (two strings) | 21 (one string) / 25 (two strings) |
| Maximum discharging power (kW) | 13.2 | 16.5 | 18.7 | 22.0 | 25.0 |
| Maximum operating current (A) | 26.25 (per string) | 26.25 (per string) | 26.25 (per string) | 26.25 (per string) | 26.25 (per string) |
| Operating voltage range (V) | 600 ~ 980 | 600 ~ 980 | 600 ~ 980 | 600 ~ 980 | 600 ~ 980 |
| Output | |||||
| Rated output power (W) | 12,000 | 15,000 | 17,000 | 20,000 | 25,000 |
| Maximum apparent power (VA) | 13,200 | 16,500 | 18,700 | 22,000 | 27,500 |
| Maximum active power (cosφ=1) (W) | 13,200 | 16,500 | 18,700 | 22,000 | 27,500 |
| Rated output voltage (V AC) | 220 / 380, 230 / 400, 240 / 415; 3 / N + PE | 220 / 380, 230 / 400, 240 / 415; 3 / N + PE | 220 / 380, 230 / 400, 240 / 415; 3 / N + PE | 220 / 380, 230 / 400, 240 / 415; 3 / N + PE | 220 / 380, 230 / 400, 240 / 415; 3 / N + PE |
| Rated output current (A) | 18.2 / 380 | 22.8 / 380 | 25.8 / 380 | 30.4 / 380 | 38.0 / 380 |
| 17.3 / 400 | 21.7 / 400 | 24.5 / 400 | 28.9 / 400 | 36.1 / 400 | |
| 16.7 / 415 | 20.9 / 415 | 23.7 / 415 | 27.8 / 415 | 34.8 / 415 | |
| Maximum output current (A) | 20.2 / 380 | 25.2 / 380 | 28.6 / 380 | 33.6 / 380 | 42.0 / 380 |
| 19.1 / 400 | 23.9 / 400 | 27.1 / 400 | 31.9 / 400 | 39.9 / 400 | |
| 18.5 / 415 | 23.1 / 415 | 26.1 / 415 | 30.8 / 415 | 38.5 / 415 | |
| Rated AC grid frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Adjustable power factor | 0.8 lead … 0.8 lag | 0.8 lead … 0.8 lag | 0.8 lead … 0.8 lag | 0.8 lead … 0.8 lag | 0.8 lead … 0.8 lag |
| Maximum total harmonic distortion (%) | < 3 | < 3 | < 3 | < 3 | < 3 |
| Features and Protections | |||||
| PV / AC surge protection category | PV II / AC III | PV II / AC III | PV II / AC III | PV II / AC III | PV II / AC III |
| DC-side disconnection device | Yes | Yes | Yes | Yes | Yes |
| Anti-islanding protection | Yes | Yes | Yes | Yes | Yes |
| AC overcurrent protection | Yes | Yes | Yes | Yes | Yes |
| DC reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
| DC surge protector | Type II | Type II | Type II | Type II | Type II |
| AC surge protector | Yes, compliant with Class II protection according to EN/IEC 61643-11 | Yes, compliant with Class II protection according to EN/IEC 61643-11 | Yes, compliant with Class II protection according to EN/IEC 61643-11 | Yes, compliant with Class II protection according to EN/IEC 61643-11 | Yes, compliant with Class II protection according to EN/IEC 61643-11 |
| DC insulation resistance detection | Yes | Yes | Yes | Yes | Yes |
| Leakage current monitoring unit | Yes | Yes | Yes | Yes | Yes |
| Arc fault protection | Yes | Yes | Yes | Yes | Yes |
| Integrated PID recovery function | Yes | Yes | Yes | Yes | Yes |
| General | |||||
| Operating temperature range (°C) | -25 ~ +60 (-13 ~ 140) | -25 ~ +60 (-13 ~ 140) | -25 ~ +60 (-13 ~ 140) | -25 ~ +60 (-13 ~ 140) | -25 ~ +60 (-13 ~ 140) |
| Relative humidity (%) | 0 ~ 100 | 0 ~ 100 | 0 ~ 100 | 0 ~ 100 | 0 ~ 100 |
| Maximum operating altitude (m) | 4,000 (derates above 2,000) | 4,000 (derates above 2,000) | 4,000 (derates above 2,000) | 4,000 (derates above 2,000) | 4,000 (derates above 2,000) |
| Cooling | Smart air cooling | Smart air cooling | Smart air cooling | Smart air cooling | Smart air cooling |
| Display | LED indicators, integrated WLAN + FusionSolar app | LED indicators, integrated WLAN + FusionSolar app | LED indicators, integrated WLAN + FusionSolar app | LED indicators, integrated WLAN + FusionSolar app | LED indicators, integrated WLAN + FusionSolar app |
| Communication | RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional)
4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional; available from 30/11/2023) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional)
4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional; available from 30/11/2023) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional)
4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional; available from 30/11/2023) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional)
4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional; available from 30/11/2023) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional)
4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional; available from 30/11/2023) |
| Weight (kg) | 21 | 21 | 21 | 21 | 21 |
| Dimensions (W x H x D) (mm) | 546 x 460 x 228 | 546 x 460 x 228 | 546 x 460 x 228 | 546 x 460 x 228 | 546 x 460 x 228 |
| Protection rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Maximum number of parallel units (with Smart String ESS) | 3 | 3 | 3 | 3 | 3 |
| Compatible with optimizers | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P |
| Standards compliance | |||||
| Certificates | EN/IEC 62109-1, EN/IEC 62109-2 | EN/IEC 62109-1, EN/IEC 62109-2 | EN/IEC 62109-1, EN/IEC 62109-2 | EN/IEC 62109-1, EN/IEC 62109-2 | EN/IEC 62109-1, EN/IEC 62109-2 |
| Grid connection standards | IEC 61727, IEC 62116, IEC 61683, EN 50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN 50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC 61727, IEC 62116, IEC 61683, EN 50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN 50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC 61727, IEC 62116, IEC 61683, EN 50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN 50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC 61727, IEC 62116, IEC 61683, EN 50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN 50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC 61727, IEC 62116, IEC 61683, EN 50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN 50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 |
