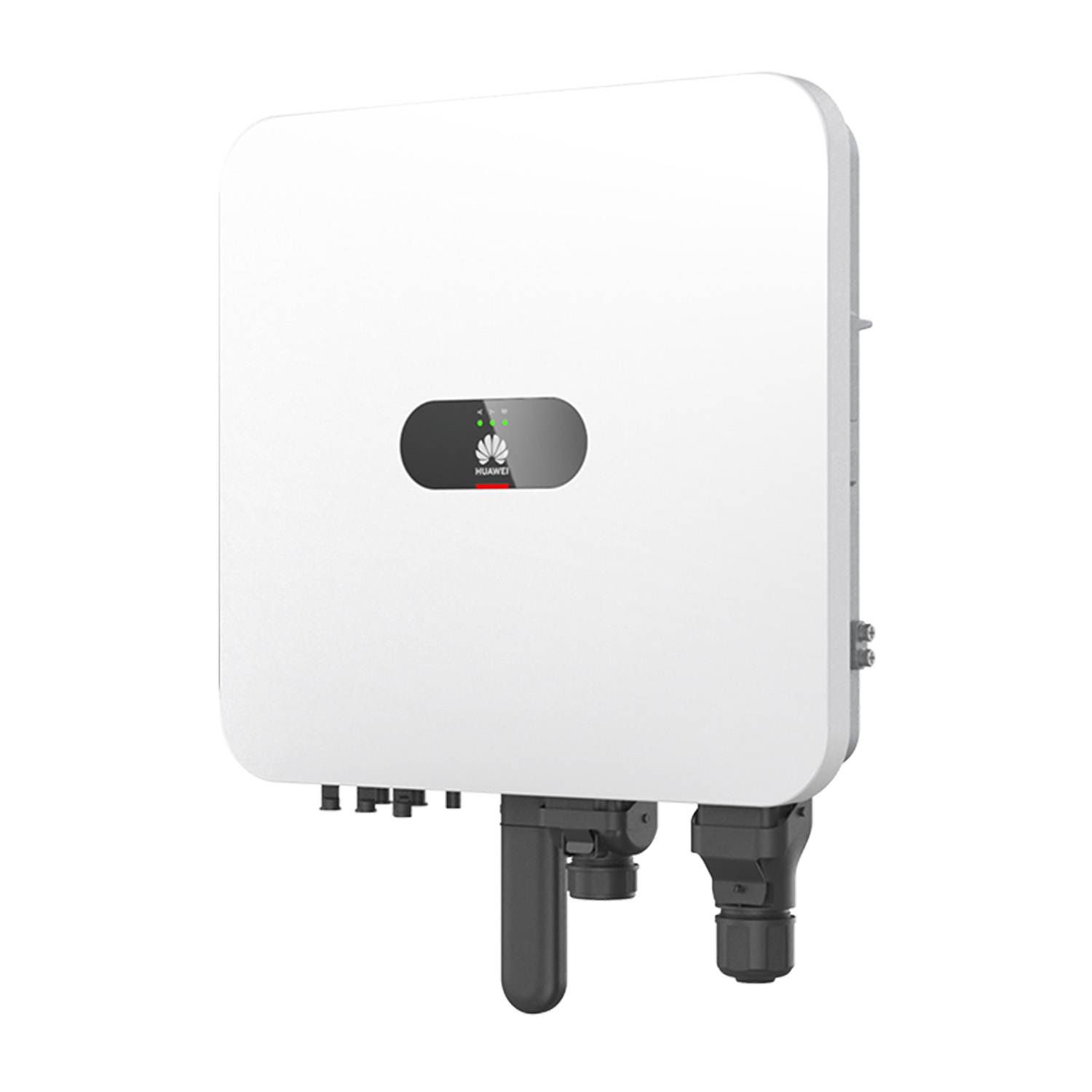

Inverter – HUAWEI – SUN 2000-8K-MAP0 – hybrid – HV
SKU: F220J2
EAN: 2010000035658
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| SPD Type II | |
| AFCI | Yes |
| MPPT voltage range | |
| Weight | 24,82 kg |
| CN | 85044086 |
Price
1 641,66 €
Gross
Gross
Datasheet Huawei 5K-MAP0-12K-MAP0
Huawei-5K-MAP0-12K-MAP0-Datasheet.pdf
Warranty Huawei 5K-MAP0-12K-MAP0
Huawei-5K-MAP0-12K-MAP0-Warranty.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| SPD Type II | |
| AFCI | Yes |
| MPPT voltage range | |
| Weight | 24,82 kg |
| CN | 85044086 |
HUAWEI SUN2000-5/6/8/10/12K-MAPO
The HUAWEI SUN2000-5/6/8/10/12K-MAPO hybrid inverter is an advanced solution for solar energy management and storage, offering high performance, flexibility, and safety. It provides triple asymmetric output and can work with LUNA2000 batteries, making it an ideal choice for modern photovoltaic installations.
Key features of the HUAWEI SUN2000-5/6/8/10/12K-MAPO:
- Maximum PV capacity from 9,000 Wp to 22,000 Wp, depending on the model.
- Support for LUNA2000 energy storage (S0/S1) with an operating voltage range of 600–980 V.
- Ability to overload up to 110% of rated power in on-grid mode and up to 200% in off-grid mode.
- Supports triple asymmetric output, providing flexibility in power delivery.
- Advanced safety features, including AFCI, junction temperature detection, and Type II surge protection.
- Low night-time power consumption (below 5.5 W) and quiet operation thanks to natural convection (below 29 dB).
Who is this a good choice for?
The HUAWEI SUN2000-5/6/8/10/12K-MAPO inverters are designed for residential and commercial users seeking an efficient and reliable energy management system. With support for energy storage and whole-home backup functionality (with SmartGuard), they are ideal for installations where maximizing solar energy use and ensuring continuous power during grid outages are critical.
Datasheet Huawei 5K-MAP0-12K-MAP0
Huawei-5K-MAP0-12K-MAP0-Datasheet.pdf
Warranty Huawei 5K-MAP0-12K-MAP0
Huawei-5K-MAP0-12K-MAP0-Warranty.pdf
| Parameter | SUN2000-5K-MAPO | SUN2000-6K-MAPO | SUN2000-8K-MAPO | SUN2000-10K-MAPO | SUN2000-12K-MAPO |
|---|---|---|---|---|---|
| Input (PV) | |||||
| Max. recommended PV power (Wp) | 9,000 Wp | 11,000 Wp | 14,600 Wp | 18,000 Wp | 22,000 Wp |
| Max. input voltage (V) | 1,100 V | 1,100 V | 1,100 V | 1,100 V | 1,100 V |
| Operating voltage range (V) | 160 – 1,000 V | 160 – 1,000 V | 160 – 1,000 V | 160 – 1,000 V | 160 – 1,000 V |
| Start-up voltage (V) | 160 V | 160 V | 160 V | 160 V | 160 V |
| Rated input voltage (V) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Max. input current per MPPT (A) | 16 A | 16 A | 16 A | 16 A | 16 A |
| Max. short-circuit current (A) | 22 A | 22 A | 22 A | 22 A | 22 A |
| Number of MPPT trackers | 2 | 2 | 2 | 2 | 2 |
| Max. inputs per MPPT | 1 | 1 | 1 | 1 | 1 |
| Input (DC Battery) | |||||
| Compatible battery | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 |
| Operating voltage range (V) | 600 – 980 V | 600 – 980 V | 600 – 980 V | 600 – 980 V | 600 – 980 V |
| Max. operating current (A) | 20 A | 20 A | 20 A | 20 A | 20 A |
| Max. charging power (W) | 12,000 W | 12,000 W | 12,000 W | 12,000 W | 12,000 W |
| Max. discharging power (W) | 5,500 W | 6,600 W | 8,800 W | 11,000 W | 12,000 W |
| Output (On-Grid) | |||||
| Grid connection | Three-phase | Three-phase | Three-phase | Three-phase | Three-phase |
| Rated output power (W) | 5,000 W | 6,000 W | 8,000 W | 10,000 W | 12,000 W |
| Max. apparent power (VA) | 5,500 VA | 6,600 VA | 8,800 VA | 11,000 VA | 13,200 VA |
| Rated output voltage (V) | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE |
| Overload capability | 110% | 110% | 110% | 110% | 110% |
| Rated AC grid frequency (Hz) | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz |
| Max. output current (A) | 8.3 A | 10.0 A | 13.3 A | 16.7 A | 20.2 A |
| Adjustable power factor | 0.8 leading – 0.8 lagging | 0.8 leading – 0.8 lagging | 0.8 leading – 0.8 lagging | 0.8 leading – 0.8 lagging | 0.8 leading – 0.8 lagging |
| Max. total harmonic distortion (%) | ≤ 3% | ≤ 3% | ≤ 3% | ≤ 3% | ≤ 3% |
| Compatible backup device | SmartGuard-63A-TO (3-phase) | SmartGuard-63A-TO (3-phase) | SmartGuard-63A-TO (3-phase) | SmartGuard-63A-TO (3-phase) | SmartGuard-63A-TO (3-phase) |
| Output (Off-Grid) | |||||
| Rated output power (W) | 5,000 W | 6,000 W | 8,000 W | 10,000 W | 12,000 W |
| Rated output voltage (V) | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE | 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE |
| 110% overload | Continuous | Continuous | Continuous | Continuous | Continuous |
| 150% overload | 5 min (3-phase) / 5 min (single-phase) | 5 min (3-phase) / 5 min (single-phase) | 5 min (3-phase) / 5 min (single-phase) | 1 min (3-phase) / 5 min (single-phase) | 1 min (3-phase) / 5 min (single-phase) |
| 200% overload | 10 s | 10 s | 10 s | 10 s | 10 s |
| Automatic transfer time (ms) | 20 ms (with SmartGuard-63A-TO) | 20 ms (with SmartGuard-63A-TO) | 20 ms (with SmartGuard-63A-TO) | 20 ms (with SmartGuard-63A-TO) | 20 ms (with SmartGuard-63A-TO) |
| Unbalanced load | Yes, supports 100% three-phase unbalanced load | Yes, supports 100% three-phase unbalanced load | Yes, supports 100% three-phase unbalanced load | Yes, supports 100% three-phase unbalanced load | Yes, supports 100% three-phase unbalanced load |
| Protection Features | |||||
| DC-side isolator | Yes | Yes | Yes | Yes | Yes |
| Anti-islanding protection | Yes | Yes | Yes | Yes | Yes |
| DC reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
| Insulation detection | Yes | Yes | Yes | Yes | Yes |
| DC surge protection | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 |
| AC surge protection | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 | Yes, compatible with TYPE II protection per EN/IEC 61643-11 |
| Residual current detection | Yes | Yes | Yes | Yes | Yes |
| AC overcurrent protection | Yes | Yes | Yes | Yes | Yes |
| AC short-circuit protection | Yes | Yes | Yes | Yes | Yes |
| AC overvoltage protection | Yes | Yes | Yes | Yes | Yes |
| Arc-fault protection | Yes | Yes | Yes | Yes | Yes |
| Junction temperature detection | Yes (PV and battery junctions) | Yes (PV and battery junctions) | Yes (PV and battery junctions) | Yes (PV and battery junctions) | Yes (PV and battery junctions) |
| Load control | Yes | Yes | Yes | Yes | Yes |
| Battery charging from grid | Yes | Yes | Yes | Yes | Yes |
| General Specifications | |||||
| Max. efficiency (%) | 98.4% | 98.6% | 98.6% | 98.6% | 98.6% |
| European weighted efficiency (%) | 97.5% | 97.7% | 98.0% | 98.1% | 98.2% |
| Operating temperature range (°C) | -25°C – +60°C (-13°F to +140°F) | -25°C – +60°C (-13°F to +140°F) | -25°C – +60°C (-13°F to +140°F) | -25°C – +60°C (-13°F to +140°F) | -25°C – +60°C (-13°F to +140°F) |
| Operating relative humidity (%) | 0% – 100% RH | 0% – 100% RH | 0% – 100% RH | 0% – 100% RH | 0% – 100% RH |
| Max. altitude above sea level (m) | 4,000 m | 4,000 m | 4,000 m | 4,000 m | 4,000 m |
| Cooling | Natural convection | Natural convection | Natural convection | Natural convection | Natural convection |
| Noise level (dB) | ≤ 29 dB | ≤ 29 dB | ≤ 29 dB | ≤ 29 dB | ≤ 29 dB |
| Display | LED indicators; Built-in WLAN + FusionSolar app | LED indicators; Built-in WLAN + FusionSolar app | LED indicators; Built-in WLAN + FusionSolar app | LED indicators; Built-in WLAN + FusionSolar app | LED indicators; Built-in WLAN + FusionSolar app |
| Communication | RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional); 4G/3G/2G via Smart Dongle-4G (optional); EMMA (optional) | RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional); 4G/3G/2G via Smart Dongle-4G (optional); EMMA (optional) | RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional); 4G/3G/2G via Smart Dongle-4G (optional); EMMA (optional) | RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional); 4G/3G/2G via Smart Dongle-4G (optional); EMMA (optional) | RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (optional); 4G/3G/2G via Smart Dongle-4G (optional); EMMA (optional) |
| Weight (with mounting brackets) (kg) | 21 kg | 21 kg | 21 kg | 21 kg | 21 kg |
| Dimensions (with mounting brackets) (mm) | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm |
| Ingress protection rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Night power (W) | < 5.5 W | < 5.5 W | < 5.5 W | < 5.5 W | < 5.5 W |
| Optimizer Compatibility | |||||
| Optimized compatibility | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P |
| Grid Connection Standards | |||||
| Standards | EN/IEC62109-1, EN/IEC62109-2 IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | EN/IEC62109-1, EN/IEC62109-2 IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | EN/IEC62109-1, EN/IEC62109-2 IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | EN/IEC62109-1, EN/IEC62109-2 IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | EN/IEC62109-1, EN/IEC62109-2 IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 |
*1 Maximum input voltage is the upper limit of DC voltage. Higher DC voltage may damage the inverter. *2 DC input voltage outside the operating range may cause inverter malfunction.
