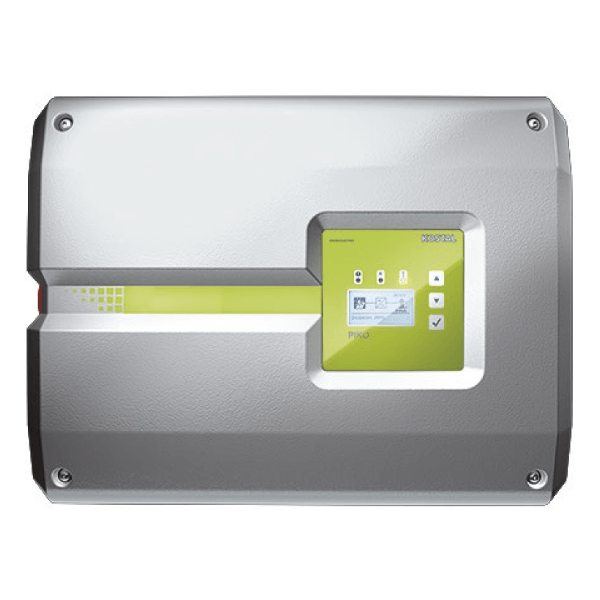

PIKO 10-20
The PIKO 10-20 from KOSTAL is a series of transformerless photovoltaic inverters with power ratings of 10–20 kW and three-phase supply. Up to 3 MPP trackers and a wide input voltage range enable flexible string design. The standard communication package simplifies system monitoring, and the self-learning shading management adapts to the installation location.
Key advantages of PIKO 10-20
- Flexible system design: up to 3 MPP trackers and an input voltage range of 160–1000 V.
- Maximum efficiency 97.7–98.0% depending on the model.
- Monitoring as standard: integrated data logger, system monitoring function and web server, plus the free KOSTAL Solar portal and app.
- Self-learning shading management: quick adaptation to the installation site.
- Power control and consumption measurement: dynamic active power control and energy consumption measurement with the optional KOSTAL Smart Energy Meter.
- Simplified commissioning and installation: configuration wizard, integrated electronic DC isolator and tool-free AC and DC connector installation.
Who is this a good choice for?
PIKO 10-20 is a choice for photovoltaic system owners who need a three-phase inverter with 10–20 kW power. The KOSTAL Solar portal and app let users track system performance, and those interested in energy consumption measurement and dynamic active power control can use the optional KOSTAL Smart Energy Meter. Shading management is an important feature for systems where shading occurs.
| Parameter | PIKO 10 | PIKO 12 | PIKO 15 | PIKO 17 | PIKO 20 |
|---|---|---|---|---|---|
| DC input data | |||||
| Maximum PV power at cos φ = 1 (kWp) | 15 | 18 | 22,5 | 25,5 | 30 |
| Nominal DC power (kW) | 10,8 | 12,3 | 15,3 | 17,4 | 20,4 |
| Rated input voltage (V) | 680 | ||||
| Start input voltage (V) | 180 | ||||
| Input voltage range (V) | 160…1000 | ||||
| MPP range at rated power in single-tracker mode (V) | 527…80 | ||||
| Minimum MPP voltage according to efficiency curve (V) | 290 | 345 | 390 | 440 | 515 |
| Maximum MPP voltage according to efficiency curve (V) | 800 | ||||
| Efficiency | |||||
| Maximum efficiency (%) | 97,7 | 98,0 | |||
| Electrical connections | |||||
| AC conductor diameter (mm) | 9…17 | ||||
| AC conductor cross-section (mm²) | 4…6 | 6…16 | |||
| DC conductor cross-section (mm²) | 4…6 | ||||
| DC-side connectors | SUNCLIX plugs | ||||
| AC-side connectors | Spring clamp terminal | ||||
| Protection and safety | |||||
| Topology | No galvanic isolation — transformerless system | ||||
| Enclosure / fan protection rating according to IEC 60529 | IP 65 / IP 55 | ||||
| Protection class according to IEC 62103 | I | ||||
| DC input surge category according to IEC 60664-1 | II | ||||
| AC output surge category according to IEC 60664-1 | III | ||||
| Pollution degree | 4 | ||||
| Maximum output-side protection | B25/C25 | B32/C32 | B40/C40 | ||
| Internal protection of persons according to PN-EN 62109-2 | Type B RCCB | ||||
| Automatic disconnector according to VDE 0126-1-1 | ✔ | ||||
| Dimensions and weight | |||||
| Height / width / depth (mm) | 445/580/248 | 540/700/265 | |||
| Weight (kg) | 37,5 (82,67) | 48,5 (106,9) | |||
| Cooling and noise | |||||
| Fan-controlled cooling | ✔ | ||||
| Maximum air flow (m³/h) | 2 x 48 | 2 x 84 | |||
| Maximum noise emission (dBA) | 44 | 56 | |||
| Operating conditions | |||||
| Ambient temperature (°C) | -20…60 (-4…140) | ||||
| Maximum altitude above sea level (m) | 2000 | ||||
| Relative humidity (%) | 4…100 | ||||
| Outdoor installation | ✔ | ||||
| Indoor installation | ✔ | ||||
| UV resistance | ✔ | ||||
| Communication | |||||
| Number of Ethernet LAN (RJ45) / RS485 / S0 interfaces | 2 / 1 / 1 | ||||
| Number of analog inputs | 1 | ||||
| Web server with user interface | ✔ | ||||
The MPP range row in single-tracker mode was truncated by OCR; the entry “527…80” for PIKO 10 was retained. Note 2 concerning the maximum PV power is not available. The KOSTAL Smart AC Switch row was omitted due to ambiguous assignment of values to models.
