Inverter – SAJ – HS2 – 10K – T2-X-EU – hybrid – HV
SKU: F21U01
EAN: 2010000042335
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| Weight | 44,65 kg |
| CN | 85044086 |
Price
1 345,15 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| Weight | 44,65 kg |
| CN | 85044086 |

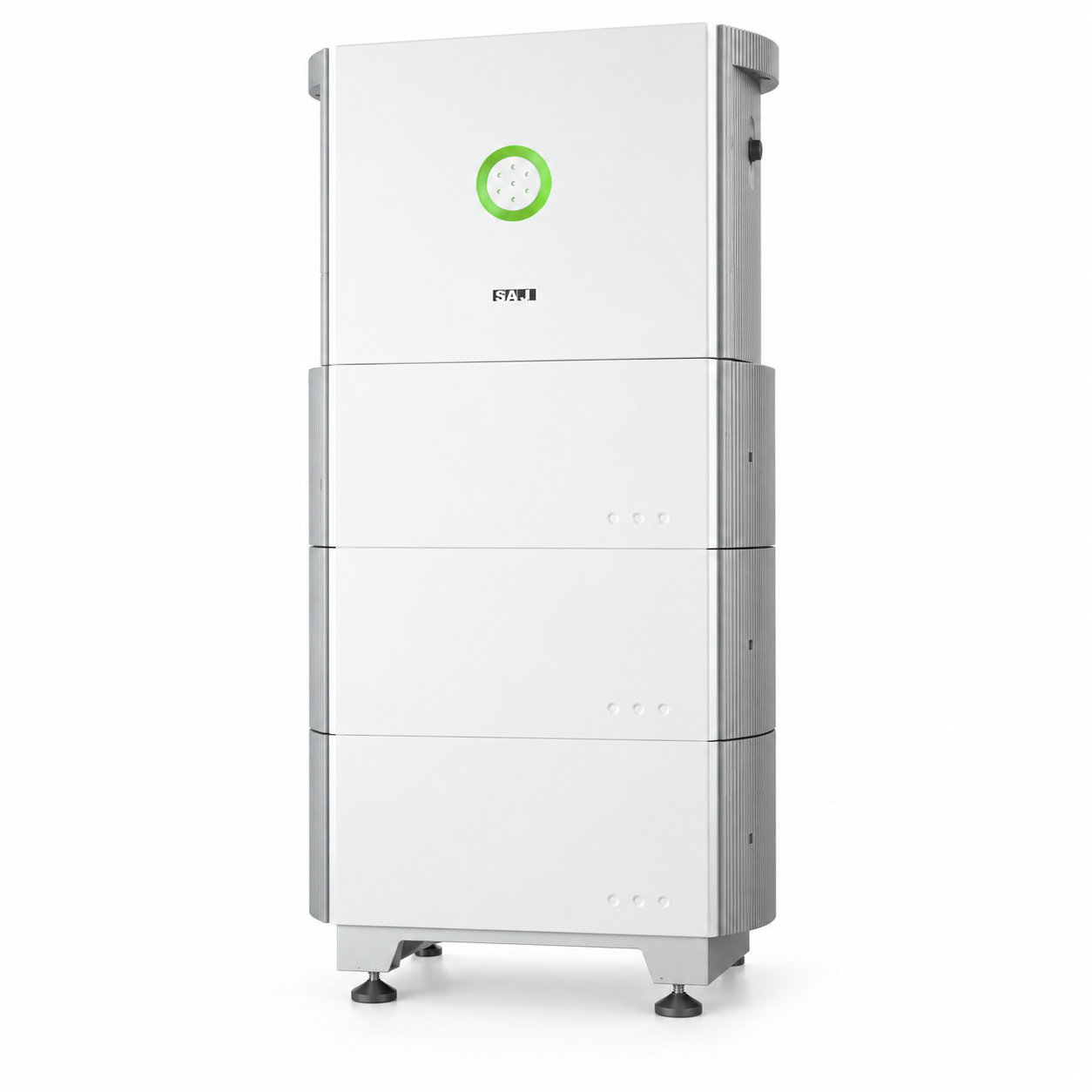

SAJ HS2
The SAJ All-in-One three-phase solution is the first comprehensive home energy storage system, combining an integrated hybrid inverter (PCS), a battery management module (BMS) and an energy storage unit. This series features a modular design, IP65 ingress protection rating and no external wiring, ensuring extremely simple and fast installation. The devices offer power from 5 to 10 kW, 2 MPPT trackers and full support for three-phase unbalanced loads.
Key features of SAJ HS2:
- All-in-One and modular design: Integrated inverter, BMS and battery with the ability to expand battery capacity up to 25 kWh (using BU2-5.0-HV1/5 modules).
- High performance and compatibility: Support for DC input current up to 16 A per MPPT, providing excellent matching with modern high-power photovoltaic panels.
- UPS emergency power: Reliable switching function with a time below 10 ms ensures continuity of power in case of grid loss.
- Three-phase unbalanced load: Full support for three-phase unbalanced loads and maximum efficiency up to 98.0%.
- Weather resistance: IP65 ingress protection rating and cooling by natural convection allow flexible installation locations.
- Safety and flexibility: Provides comprehensive electrical protections, AC retrofit function and quiet operation below 35 dBA.
Who is this a good choice for?
The SAJ HS2 series is an ideal solution for single-family homeowners seeking a modern, aesthetic and fully integrated photovoltaic system with energy storage. With a wide power range from 5 to 10 kW, three-phase supply and UPS function, the system is suitable wherever energy security, independence from the grid and ease of future system expansion are key.
| Parameter | HS2-5K-T2-X | HS2-6K-T2-X | HS2-8K-T2-X | HS2-10K-T2-X | HS2-10K-T2-B-X |
|---|---|---|---|---|---|
| DC Input (from PV) | |||||
| Max. PV power (Wp) @ STC | 7500 | 9000 | 12000 | 15000 | 15000 |
| Max. DC input voltage (V) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Nominal DC input voltage (V) | 600 | 600 | 600 | 600 | 600 |
| MPPT voltage range (V) | 180~900 | 180~900 | 180~900 | 180~900 | 180~900 |
| Start-up voltage (V) | 180 | 180 | 180 | 180 | 180 |
| Max. input current per MPPT (A) | 16 / 16 | 16 / 16 | 16 / 16 | 16 / 16 | 16 / 16 |
| Max. short-circuit current (A) | 19.2 / 19.2 | 19.2 / 19.2 | 19.2 / 19.2 | 19.2 / 19.2 | 19.2 / 19.2 |
| Number of MPPT trackers | 2 | 2 | 2 | 2 | 2 |
| Battery parameters | |||||
| Cell type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Operating voltage range (V) | 180~600 | 180~600 | 180~600 | 180~600 | 180~600 |
| Max. charge/discharge current (A) | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 |
| Scalability | BU2-5.0-HV1/5 (up to 5 battery modules) | BU2-5.0-HV1/5 (up to 5 battery modules) | BU2-5.0-HV1/5 (up to 5 battery modules) | BU2-5.0-HV1/5 (up to 5 battery modules) | BU2-5.0-HV1/5 (up to 5 battery modules) |
| AC Output (On-grid) | |||||
| Rated AC power (W) | 5000 | 6000 | 8000 | 10000 | 10000 |
| Max. apparent power (VA) | 5500 | 6600 | 8800 | 11000 | 10000 |
| Rated output current (A) @ 230 V AC | 7.2 | 8.7 | 11.6 | 14.5 | 14.5 |
| Max. output current (A) | 8.3 | 10.0 | 13.3 | 16.7 | 15.2 |
| Max. AC inrush current (A) | 52.0 | 52.0 | 52.0 | 52.0 | 52.0 |
| Max. AC short-circuit current (A) | 45.0 | 45.0 | 45.0 | 45.0 | 45.0 |
| Max. AC overcurrent protection (A) | 20.8 | 25.0 | 33.3 | 41.8 | 41.8 |
| Rated AC voltage / range (V) | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 |
| Rated AC frequency / range (Hz) | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 |
| Power factor (cos φ) | 0.8 leading ~ 0.8 lagging | 0.8 leading ~ 0.8 lagging | 0.8 leading ~ 0.8 lagging | 0.8 leading ~ 0.8 lagging | 0.8 leading ~ 0.8 lagging |
| Total harmonic distortion (THDi) | < 3% | < 3% | < 3% | < 3% | < 3% |
| AC Input (On-grid) | |||||
| Rated AC voltage / range (V) | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 |
| Rated input frequency (Hz) | 50, 60 | 50, 60 | 50, 60 | 50, 60 | 50, 60 |
| Max. input current (A) @ 230 V AC | 14.5 | 17.4 | 23.2 | 29.0 | 29.0 |
| AC Output (Back-up) | |||||
| Max. output power (VA) | 5000 | 6000 | 8000 | 10000 | 10000 |
| Max. output current (A) | 8.0 | 9.6 | 12.8 | 15.9 | 15.9 |
| Peak output apparent power (VA) | 10000, 60 s | 12000, 60 s | 16000, 60 s | 16500, 60 s | 16500, 60 s |
| Rated AC voltage / range (V) | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 | 3L+N+PE, 220/380, 230/400, 240/415; 180~280/312~485 |
| Rated frequency / range (Hz) | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 | 50, 60 / 45~55, 55~65 |
| Voltage harmonic distortion (THDv) | < 3% | < 3% | < 3% | < 3% | < 3% |
| Efficiency | |||||
| Max. efficiency (%) | 98.0% | 98.0% | 98.0% | 98.0% | 98.0% |
| European efficiency (%) | 97.6% | 97.6% | 97.6% | 97.6% | 97.6% |
| Protections | |||||
| DC reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
| Overload protection | Yes | Yes | Yes | Yes | Yes |
| AC short-circuit protection | Yes | Yes | Yes | Yes | Yes |
| DC surge protection | Yes | Yes | Yes | Yes | Yes |
| AC surge protection | Yes | Yes | Yes | Yes | Yes |
| Anti-islanding protection | Yes | Yes | Yes | Yes | Yes |
| AFCI | Optional | Optional | Optional | Optional | Optional |
| RSD | Optional | Optional | Optional | Optional | Optional |
| Connections & communication | |||||
| DC connector type | MC4 / D4 | MC4 / D4 | MC4 / D4 | MC4 / D4 | MC4 / D4 |
| AC connector type | Plug-in connector | Plug-in connector | Plug-in connector | Plug-in connector | Plug-in connector |
| Energy storage connection | Quick connector | Quick connector | Quick connector | Quick connector | Quick connector |
| Display | LED + App | LED + App | LED + App | LED + App | LED + App |
| Communication | Wi-Fi / Ethernet / 4G (Optional) | Wi-Fi / Ethernet / 4G (Optional) | Wi-Fi / Ethernet / 4G (Optional) | Wi-Fi / Ethernet / 4G (Optional) | Wi-Fi / Ethernet / 4G (Optional) |
| General technical data | |||||
| Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Operating ambient temperature range (°C) | -10 to +50 (power derating > 45°C) | -10 to +50 (power derating > 45°C) | -10 to +50 (power derating > 45°C) | -10 to +50 (power derating > 45°C) | -10 to +50 (power derating > 45°C) |
| Cooling method | Natural convection | Natural convection | Natural convection | Natural convection | Natural convection |
| Relative humidity range (%) | 0–100 (non-condensing) | 0–100 (non-condensing) | 0–100 (non-condensing) | 0–100 (non-condensing) | 0–100 (non-condensing) |
| Max. operating altitude (m) | 4000 (power derating > 3000) | 4000 (power derating > 3000) | 4000 (power derating > 3000) | 4000 (power derating > 3000) | 4000 (power derating > 3000) |
| Noise level (dBA) | < 35 | < 35 | < 35 | < 35 | < 35 |
| Protection rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Dimensions (H × W × D) (mm) | 450 × 626 × 365 | 450 × 626 × 365 | 450 × 626 × 365 | 450 × 626 × 365 | 450 × 626 × 365 |
| Weight (kg) | 32 | 32 | 32 | 32 | 32 |
| Warranty (years) | 10 | 10 | 10 | 10 | 10 |
| Compliance & standards | |||||
| Standards and certifications | EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI 0-21, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1 | EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI 0-21, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1 | EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI 0-21, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1 | EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI 0-21, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1 | EN 62109-1/2, EN 61000-6-2/4, EN 50438, EN 50549, C10/11, IEC 62116, IEC 61727, RD 1699, RD 413, UNE 206006, UNE 206007, NTS, CEI 0-16, CEI 0-21, AS 4777.2, NBR 16149, NBR 16150, VDE-AR-N 4105, VDE 0126-1-1 |
Products are continuously updated, and the provided specifications are for informational purposes only.
