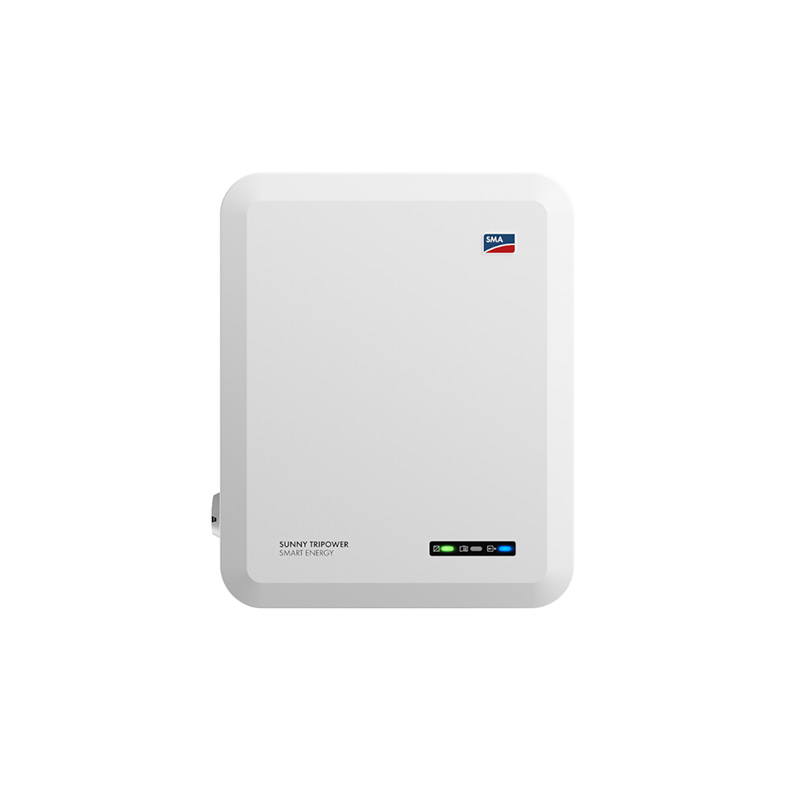

Inverter – SMA – STP 5.0 SMART ENERGY – hybrid – HV
SKU: F2B0F2
EAN: 2010000043288
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044086 |
Price
707,19 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044086 |
Sunny Tripower Smart Energy
Sunny Tripower Smart Energy is a series of three-phase photovoltaic inverters with the possibility of connecting a lithium-ion battery and a backup power output. Rated power is 5–10 kW depending on the model. Integrated SMA ShadeFix software optimizes energy yield even in shading, and the SMA Smart Connected service enables free monitoring of the inverter operation via Sunny Portal.
Key advantages of Sunny Tripower Smart Energy
- Rated power 5–10 kW and maximum PV generator power 7.5–15 kWp, depending on the model.
- Supports lithium-ion batteries with voltage 150–600 V, with one independent battery input.
- Backup power with three-phase rated power 5–10 kW in island mode and adjustable switchover time to this mode from 30 ms to 10 s.
- Maximum efficiency 98.1–98.2%, depending on the model.
- Integrated SMA ShadeFix optimizes the energy yield of the PV system even in case of shading.
- SMA Smart Connected monitoring provides early fault detection and proactive notification to the system owner and installer about inverter faults.
Who is this a good choice for?
Sunny Tripower Smart Energy is an option for PV system owners who want to connect a lithium-ion battery and use backup power. The series also meets the needs of system owners exposed to shading and those who expect inverter monitoring and fault notifications.
| Parameter | Sunny Tripower 5.0 Smart Energy | Sunny Tripower 6.0 Smart Energy | Sunny Tripower 8.0 Smart Energy | Sunny Tripower 10.0 Smart Energy |
|---|---|---|---|---|
| DC input data | ||||
| Maximum PV generator power (Wp) | 7500 | 9000 | 12000 | 15000 |
| Maximum usable input power on input A / B (W) | 4500 / 4500 | 5400 / 5400 | 7200 / 7200 | 6000 / 12000 |
| Maximum input voltage (V) | 1000 | |||
| MPP voltage range (V) | from 210 V to 800 V | from 250 V to 800 V | from 330 V to 800 V | from 280 V to 800 V |
| Nominal input voltage (V) | 600 V | |||
| Minimum input voltage / start-up voltage (V) | 150 / 180 | |||
| Maximum input current on input A / B (A) | 12,5 / 12,5 | 12,5 / 25 | ||
| Maximum short-circuit current on input A / B (A) | 20 / 20 | 20 / 40 | ||
| Number of independent MPP inputs / strings per MPP input | 2 / A:1; B:1 | 2 / A:1; B:2 | ||
| Battery connection | ||||
| Battery type | Lithium-ion battery 1) | |||
| Battery voltage range (V) | 150–600 | |||
| Maximum charge/discharge current (A) | 30 / 30 | |||
| Number of independent battery inputs | 1 | |||
| Maximum charging/discharging power (W) | 7500 / 6000 | 9000 / 7200 | 10600 / 10600 | |
| AC output data | ||||
| Rated power at 230 V, 50 Hz (W) | 5000 | 6000 | 8000 | 10000 |
| Maximum AC apparent power (VA) | 5000 | 6000 | 8000 | 10000 |
| AC connection configuration | 3/N/PE | |||
| Nominal AC voltage (V) | 3/N/PE; 230 V / 400 V | |||
| AC voltage range (V) | from 156 V to 277 V | |||
| AC frequency (Hz) | 50 Hz | |||
| AC frequency range (Hz) | 45–55 | |||
| Nominal grid frequency (Hz) | 50 | |||
| Nominal grid voltage (V) | 230 | |||
| Rated output current (A) | 3 × 7,3 A | 3 × 8,7 A | 3 × 11,6 A | 3 × 14,5 A |
| Maximum output current (A) | 3 × 7,6 | 3 × 9,1 | 3 × 12,1 | 3 × 15,2 |
| Power factor at rated power | 1 | |||
| Power factor adjustment range | 0.8 (overexcited) to 0.8 (underexcited) | |||
| Number of supply/connected phases | 3 / 3 | |||
| Efficiency | ||||
| Maximum efficiency (%) | 98,2 | 98,1 | ||
| European efficiency (%) | 97,3 | 97,5 | 97,8 | 97,5 |
| AC backup power output in grid-tied mode | ||||
| Maximum power of connected backup consumers (W) | 13800 | |||
| Maximum output current for backup consumers (A) | 3 × 20 | |||
| AC backup power output in island mode | ||||
| Rated single-phase / three-phase power at 230 V, 50 Hz (W) | 1660 / 5000 | 2000 / 6000 | 2660 / 8000 | 3330 / 10 000 |
| Maximum AC apparent power (VA) | 5000 | 6000 | 8000 | 10 000 |
| Output power for < 5 min (W) | 6000 | 7200 | 12 000 | |
| Apparent output power for < 5 min (VA) | 6000 | 7200 | 12 000 | |
| Output power for < 10 min (W) | 10 000 | 12 000 | ||
| Apparent output power for < 10 min (VA) | 10 000 | 12 000 | ||
| AC connection configuration | 3/N/PE | |||
| Nominal AC voltage (V) | 3/N/PE; 230 V / 400 V | |||
| AC frequency (Hz) | 50 Hz | |||
| Switchover time to backup power (ms / s) | 30 ms to 10 s (adjustable) | |||
| Protections | ||||
| DC isolator on PV side | ● | |||
| Arc detection / grid monitoring | ● / ● | |||
| DC reverse polarity protection / AC short-circuit protection / galvanic isolation | ● / ● / — | |||
| Universal residual current device | ● | |||
| Protection class according to IEC 61140 | I | |||
| Overvoltage category grid / battery / PV according to IEC 60664-1 | III / II / II | |||
| Surge arrester | DC type II / AC type II | |||
| Dimensions and weight | ||||
| Dimensions width / height / depth (mm) | 500 × 598 × 173 | |||
| Weight (kg) | 30 kg (66 lb) | |||
| Operating conditions | ||||
| Operating temperature range (°C) | -25 to +60 | |||
| Typical noise emission level (dB(A)) | 30 dB(A) | |||
| Night-time power consumption (W) | 44 | |||
| Topology / cooling method | Transformerless / convection | |||
| Protection degree according to IEC 60529 | IP65 | |||
| Climatic class according to IEC 60721-3-4 | 4K26 | |||
| Maximum relative humidity without condensation (%) | 100 | |||
| Equipment and communication | ||||
| PV connector / battery connector | SUNCLIX / MC4, battery cable MC4 3 m | |||
| AC terminals and conductor cross-section (mm²) | AC plug (5 × 1.5 to 10) | |||
| Display on smartphone, tablet and laptop | ● | |||
| Number of WLAN / Ethernet / BAT-CAN connectors | 1 / 2 / 1 | |||
| Number of digital inputs / outputs | 5 / 1 | |||
| Communication protocols | Modbus (SMA, Sunspec), Speedwire/Webconnect | |||
| Integrated SMA ShadeFix shading management | ● | |||
| Warranty | ||||
| Product warranty (years) | 5 / 10 | |||
| Certificates | ||||
| Certificates and approvals | CE, CEI0-21 int./ext., C10/11 int./ext., EN50549-1, G98/G99, IEC 62109-1/2, NA/EEA-NE7, NRS 097-2-1, RD1699/413, TOR manufacturer type A, VDE126-1-1, VDE AR-E2510-2, VDE-AR-N4105 | |||
