SolarEdge SE100K Inverter – RW00IBNM4 + 3 Auxiliary SESUK Units – RW00INNN4 Synergy Technology (with RSD)
SKU: F240M01
EAN: 5905951582511
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 113,32 kg |
| CN | 85044086 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maksymalny prąd wejściowy na MPPT [A] | |
| Maksymalna moc wejściowa [W] | |
| Sprawność europejska | |
| Weight | 113,32 kg |
| CN | 85044086 |
SolarEdge three-phase inverter with Synergy technology (SE50K-SE120K)
The SolarEdge three-phase inverter series with Synergy technology is an innovative solution designed for large commercial and industrial installations. Thanks to its unique modular design, made up of several smaller Synergy units, the inverter combines high power capacity with easy installation and maintenance. This advanced device delivers maximum efficiency, uncompromising safety, and full system visibility at the module level.
Key features of SolarEdge inverters with Synergy technology:

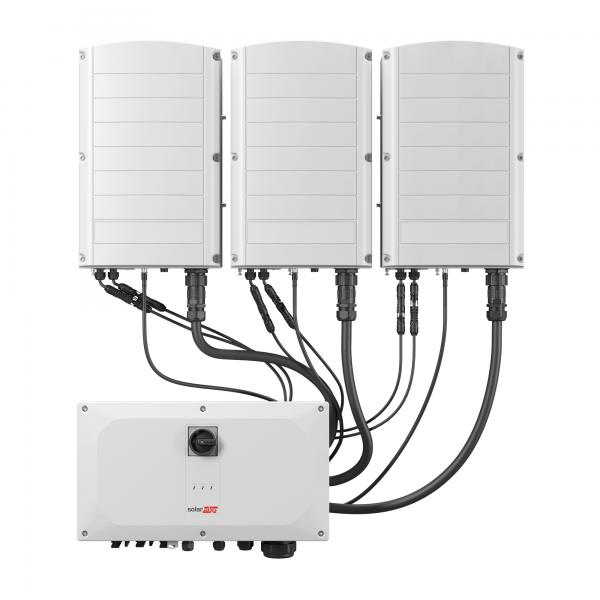

- Modular design and easy installation: The inverter consists of 2 or 3 lighter Synergy units and a single management unit, allowing simple installation by two people without the need for heavy equipment.
- Increased availability and easy servicing: Each Synergy unit operates independently, extending the system’s uptime. If one unit fails, the others continue to operate, and servicing is simpler and faster.
- Advanced safety features: Built-in arc-fault protection, temperature sensors that detect wiring faults, and optional rapid shutdown provide the highest level of safety for the installation and personnel.
- Integrated monitoring and protection: The unit offers module-level monitoring with communication via Ethernet or cellular networks, built-in PID mitigation, and field-replaceable surge protection devices (SPDs).
- Fast commissioning: A dedicated pre-commissioning process enables automatic validation of system components and wiring during installation, before grid connection.
Who is this a good choice for?
This is an ideal solution for investors and installers executing large commercial and industrial photovoltaic projects. The modular design significantly simplifies logistics and installation on large roofs or solar farms. Advanced safety features, high efficiency, and detailed module-level monitoring make these inverters an excellent choice for projects where maximizing energy yield, reliability, and low operation & maintenance (O&M) costs over the system’s lifecycle are critical.
Datasheet SolarEdge SE50K-120K
SolarEdge-SE50K-120K-Datasheet.pdf
| Parameter | SE50K(1) | SE66.6K | SE90K | SE100K | SE120K |
|---|---|---|---|---|---|
| OUTPUT | |||||
| Rated AC active output power (W) | 50000(2) | 66600 | 90000 | 100000 | 120000 |
| Maximum AC apparent output power (VA) | 50000(2) | 66600 | 90000 | 100000 | 120000 |
| AC output voltage – phase-to-phase/phase-to-neutral (nominal) (Vac) | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 480 / 277 |
| AC output voltage range – phase-to-phase/phase-to-neutral (Vac) | 304 – 437 / 176 – 253; 320 – 460 / 184 – 264.5 | 304 – 437 / 176 – 253; 320 – 460 / 184 – 264.5 | 304 – 437 / 176 – 253; 320 – 460 / 184 – 264.5 | 304 – 437 / 176 – 253; 320 – 460 / 184 – 264.5 | 432 – 529 / 249 – 305 |
| AC frequency (Hz) | 50/60 ± 5% | 50/60 ± 5% | 50/60 ± 5% | 50/60 ± 5% | 50/60 ± 5% |
| Maximum continuous output current (per phase) (Aac) | 72.5 | 96.5 | 130.5 | 145 | 145 |
| AC output line connections | 3W + PE, 4W + PE | 3W + PE, 4W + PE | 3W + PE, 4W + PE | 3W + PE, 4W + PE | 3W + PE, 4W + PE |
| Supported networks | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT |
| Maximum residual current (mA) (3) | 200 | 200 | 300 | 300 | 300 |
| Grid monitoring, islanding protection, configurable power factor | Yes | Yes | Yes | Yes | Yes |
| Total harmonic distortion (%) | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 |
| Power factor range | +/- from 0.8 to 1 | +/- from 0.8 to 1 | +/- from 0.8 to 1 | +/- from 0.8 to 1 | +/- from 0.8 to 1 |
| INPUT | |||||
| Maximum DC power (STC module) inverter / synergy unit (W) | 75000 / 37500 | 100000 / 50000 | 135000 / 45000 | 150000 / 50000 | 180000 / 60000 |
| Transformerless, ungrounded | Yes | Yes | Yes | Yes | Yes |
| Maximum DC input voltage DC+ to DC- (VDC) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rated DC input voltage DC+ to DC- (VDC) | 750 | 750 | 750 | 750 | 850 |
| Maximum input current (DC) | 2 x 36.25 A | 2 x 48.25 A | 3 x 43.5 A | 3 x 48.25 A | 3 x 48.25 A |
| Reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
| Ground fault detection | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) |
| Maximum inverter efficiency (%) | 98.3 | 98.3 | 98.3 | 98.3 | 98.1 |
| European (weighted) efficiency (%) | 98 | 98 | 98 | 98 | |
| Nighttime power consumption (W) | < 8 | < 8 | < 12 | < 12 | < 12 |
| OTHER FEATURES | |||||
| Supported communication interfaces(5) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) |
| Smart energy management | Export limitation | Export limitation | Export limitation | Export limitation | Export limitation |
| Inverter commissioning | SetApp mobile app | SetApp mobile app | SetApp mobile app | SetApp mobile app | SetApp mobile app |
| Arc fault disturbance protection | Built‑in, configurable (according to UL1699B) | Built‑in, configurable (according to UL1699B) | Built‑in, configurable (according to UL1699B) | Built‑in, configurable (according to UL1699B) | Built‑in, configurable (according to UL1699B) |
| Rapid shutdown | Optional (automatic when disconnected from AC grid) | Optional (automatic when disconnected from AC grid) | Optional (automatic when disconnected from AC grid) | Optional (automatic when disconnected from AC grid) | Optional (automatic when disconnected from AC grid) |
| PID controller | Night‑time, built‑in | Night‑time, built‑in | Night‑time, built‑in | Night‑time, built‑in | Night‑time, built‑in |
| RS485 surge protection (ports 1+2) | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated |
| DC surge protection | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated | Type II, field‑replaceable, integrated |
| AC surge protection | Type II, field‑replaceable, optional | Type II, field‑replaceable, optional | Type II, field‑replaceable, optional | Type II, field‑replaceable, optional | Type II, field‑replaceable, optional |
| DC fuses (single‑pole) | 25 A, optional | 25 A, optional | 25 A, optional | 25 A, optional | 25 A, optional |
| DC switch | Optional | Optional | Optional | Optional | Optional |
| INSTALLATION PARAMETERS | |||||
| Number of synergy units per inverter | 2 | 2 | 3 | 3 | 3 |
| AC cable cross‑section and outer diameter (mm²) | Cross‑section up to 120 / 70; outer diameter 30‑50 / 12‑20 | Cross‑section up to 120 / 70; outer diameter 30‑50 / 12‑20 | Cross‑section up to 120 / 70; outer diameter 30‑50 / 12‑20 | Cross‑section up to 120 / 70; outer diameter 30‑50 / 12‑20 | Cross‑section up to 120 / 70; outer diameter 30‑50 / 12‑20 |
| DC input: inverter/synergy unit | 8/4 pairs MC4 | 8/4 pairs MC4 | 12/4 pairs MC4 | 12/4 pairs MC4 | 12/4 pairs MC4 |
| Dimensions (H x W x D) (mm) | Synergy unit: 558 x 328 x 273
Synergy management device: 360 x 560 x 295 |
Synergy unit: 558 x 328 x 273
Synergy management device: 360 x 560 x 295 |
Synergy unit: 558 x 328 x 273
Synergy management device: 360 x 560 x 295 |
Synergy unit: 558 x 328 x 273
Synergy management device: 360 x 560 x 295 |
Synergy unit: 558 x 328 x 273
Synergy management device: 360 x 560 x 295 |
| Weight (kg) | Synergy unit: 32
Synergy management device: 18 |
Synergy unit: 32
Synergy management device: 18 |
Synergy unit: 32
Synergy management device: 18 |
Synergy unit: 32
Synergy management device: 18 |
Synergy unit: 32
Synergy management device: 18 |
| Operating temperature range (°C) | from -40 to +60(9) | from -40 to +60(9) | from -40 to +60(9) | from -40 to +60(9) | from -40 to +60(9) |
| Cooling | Fan (replaceable) | Fan (replaceable) | Fan (replaceable) | Fan (replaceable) | Fan (replaceable) |
| Noise emission (dBA) | < 67 | < 67 | < 67 | < 67 | < 67 |
| Ingress protection | IP65 – outdoor and indoor | IP65 – outdoor and indoor | IP65 – outdoor and indoor | IP65 – outdoor and indoor | IP65 – outdoor and indoor |
| Mounting | Included bracket | Included bracket | Included bracket | Included bracket | Included bracket |
