SolarEdge Three-Phase Inverters with Synergy Technology (Europe)

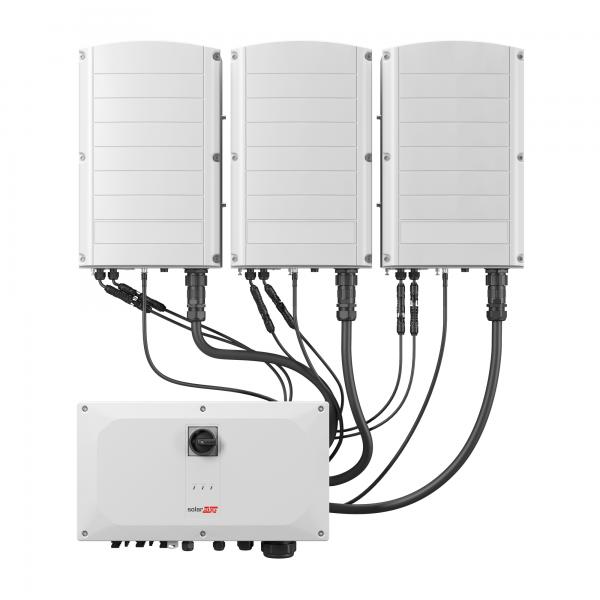

SolarEdge three-phase inverters with Synergy technology (models SE50K, SE66.6K, SE90K, SE100K, SE120K) are advanced solutions for large photovoltaic installations, designed for fast installation and maximum performance. Thanks to a modular design—consisting of 2 or 3 Synergy units and one Synergy Manager—installation is straightforward and can be carried out by two people. These inverters come with long warranty periods (12–20 years) and a range of built-in safety and monitoring features.
Key features of SolarEdge Three-Phase Inverters with Synergy Technology:
- Fast installation and commissioning: A special pre-commissioning process enables automatic validation of components and wiring before grid connection, while the lightweight, modular design simplifies mounting.
- High reliability and easy maintenance: Independent operation of each Synergy unit extends overall system uptime and simplifies servicing.
- Advanced safety: Built-in temperature sensors detect wiring faults, integrated arc-fault protection, optional rapid shutdown, and monitored, replaceable surge protection devices (DC SPD Type 2, optionally AC SPD Type 2).
- Maximum system performance: Built-in PID mitigation and a peak inverter efficiency of up to 98.3%.
- Comprehensive monitoring: Module-level monitoring with communication via Ethernet or cellular (optional Wi‑Fi), providing full visibility into system performance.
- Wide power range: Available models with nominal AC output power from 50 kW to 120 kW, suitable for large commercial and industrial projects.
Who is this a good choice for?
SolarEdge three-phase inverters with Synergy technology are ideal for large commercial and industrial photovoltaic installations across the European market. Their modular design, advanced safety features, high efficiency, and comprehensive monitoring capabilities make them an excellent option for investors and developers seeking reliable, easy-to-install and operate, and cost-effective solutions. The long warranty further confirms their high quality and durability.
| Parameter | SE50K(1) | SE66.6K | SE90K | SE100K | SE120K |
|---|---|---|---|---|---|
| OUTPUT | SEXXK-RWX0IXXXX | SEXXK-RWX0IXXXX | SEXXK-RWX0IXXXX | SEXXK-RWX0IXXXX | SExxK-xxx8lxxxx |
| Rated AC active output power (W) | 50000(2) | 66600 | 90000 | 100000 | 120000 |
| Maximum AC apparent output power (VA) | 50000(2) | 66600 | 90000 | 100000 | 120000 |
| AC output voltage – line-to-line/line-to-neutral (nominal) (Vac) | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 480/277 |
| AC output voltage – range line-to-line/range line-to-neutral (Vac) | 304-437/176-253; 320-460/184-264,5 | 304-437/176-253; 320-460/184-264,5 | 304-437/176-253; 320-460/184-264,5 | 304-437/176-253; 320-460/184-264,5 | 432-529 / 249-305 |
| AC frequency (Hz) | 50/60 ± 5% | 50/60 ± 5% | 50/60 ± 5% | 50/60 ± 5% | 50/60 ± 5% |
| Maximum continuous output current (per phase) (Aac) | 72.5 | 96.5 | 130.5 | 145 | 145 |
| AC output line connections | 3W + PE, 4W + PE | 3W + PE, 4W + PE | 3W + PE, 4W + PE | 3W + PE, 4W + PE | 3W + PE, 4W + PE |
| Supported grids | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT | WYE: TN-C, TN-S, TN-C-S, TT, IT; Delta: IT |
| Maximum residual current(3) (mA) | 200 | 200 | 300 | 300 | 300 |
| Grid monitoring, anti-islanding protection, configurable power factor, country-configurable thresholds | Yes | Yes | Yes | Yes | Yes |
| Total harmonic distortion (%) | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 |
| Power factor range | +/- from 0.8 to 1 | +/- from 0.8 to 1 | +/- from 0.8 to 1 | +/- from 0.8 to 1 | +/- from 0.8 to 1 |
| INPUT | |||||
| Maximum DC power (module STC) inverter / synergy unit (W) | 75000 / 37500 | 100000 / 50000 | 135000 / 45000 | 150000 / 50000 | 180000 / 60000 |
| Transformerless, ungrounded | Yes | Yes | Yes | Yes | Yes |
| Maximum DC input voltage DC+ to DC- (VDC) | 1000 | 1000 | 1000 | 1000 | 850 |
| Rated DC input voltage DC+ to DC- (VDC) | 750 | 750 | 750 | 750 | 750 |
| Maximum input current (ADC) | 2 x 36.25 | 2 x 48.25 | 3 x 43.5 | 3 x 48.25 | 3 x 48.25 |
| Reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
| Ground fault detection | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) | Sensitivity 167 kΩ per synergy unit(4) |
| Maximum inverter efficiency (%) | 98.3 | 98.3 | 98.3 | 98.3 | 98.1 |
| European (weighted) efficiency (%) | 98 | 98 | 98 | 98 | 98 |
| Night power consumption (W) | < 8 | < 8 | < 12 | < 12 | < 12 |
| OTHER FEATURES | |||||
| Supported communication interfaces(5) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) | 2 x RS485, Ethernet, Wi‑Fi (optional), cellular network (optional) |
| Smart energy management | Export limitation | Export limitation | Export limitation | Export limitation | Export limitation |
| Inverter commissioning | SetApp mobile app using the built-in Wi‑Fi access point for a local connection | SetApp mobile app using the built-in Wi‑Fi access point for a local connection | SetApp mobile app using the built-in Wi‑Fi access point for a local connection | SetApp mobile app using the built-in Wi‑Fi access point for a local connection | SetApp mobile app using the built-in Wi‑Fi access point for a local connection |
| Protection against arc faults | Built-in, user-configurable (according to UL1699B) | Built-in, user-configurable (according to UL1699B) | Built-in, user-configurable (according to UL1699B) | Built-in, user-configurable (according to UL1699B) | Built-in, user-configurable (according to UL1699B) |
| Rapid shutdown | Optional (automatic after disconnection from the AC grid) | Optional (automatic after disconnection from the AC grid) | Optional (automatic after disconnection from the AC grid) | Optional (automatic after disconnection from the AC grid) | Optional (automatic after disconnection from the AC grid) |
| PID controller | Night-time, built-in | Night-time, built-in | Night-time, built-in | Night-time, built-in | Night-time, built-in |
| RS485 surge protection (ports 1+2) | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated |
| DC surge protection | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated | Type II, replaceable on-site, integrated |
| AC surge protection | Type II, replaceable on-site, optional | Type II, replaceable on-site, optional | Type II, replaceable on-site, optional | Type II, replaceable on-site, optional | Type II, replaceable on-site, optional |
| DC fuses (single pole) | 25 A, optional | 25 A, optional | 25 A, optional | 25 A, optional | 25 A, optional |
| DC isolator | Optional | Optional | Optional | Optional | Optional |
| COMPLIANCE | |||||
| Safety | IEC-62109-1, IEC-62109-2, AS3100 | IEC-62109-1, IEC-62109-2, AS3100 | IEC-62109-1, IEC-62109-2, AS3100 | IEC-62109-1, IEC-62109-2, AS3100 | IEC-62109-1, IEC-62109-2, AS3100 |
| Grid connection standards(6) | EN50549-1, EN50549-2, VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0126-1-1, CEI 0-21, CEI 0-16, TOR Erzeuger Typ A+B, G99 Type A+B, G99 (NI) Type A, VFR 2019 | EN50549-1, EN50549-2, VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0126-1-1, CEI 0-21, CEI 0-16, TOR Erzeuger Typ A+B, G99 Type A+B, G99 (NI) Type A, VFR 2019 | EN50549-1, EN50549-2, VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0126-1-1, CEI 0-21, CEI 0-16, TOR Erzeuger Typ A+B, G99 Type A+B, G99 (NI) Type A, VFR 2019 | EN50549-1, EN50549-2, VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0126-1-1, CEI 0-21, CEI 0-16, TOR Erzeuger Typ A+B, G99 Type A+B, G99 (NI) Type A, VFR 2019 | EN50549-1, EN50549-2, VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0126-1-1, CEI 0-21, CEI 0-16, TOR Erzeuger Typ A+B, G99 Type A+B, G99 (NI) Type A, VFR 2019 |
| EMC | IEC61000-6-2, IEC61000-6-3 class A, IEC61000-3-11, IEC61000-3-12 | IEC61000-6-2, IEC61000-6-3 class A, IEC61000-3-11, IEC61000-3-12 | IEC61000-6-2, IEC61000-6-3 class A, IEC61000-3-11, IEC61000-3-12 | IEC61000-6-2, IEC61000-6-3 class A, IEC61000-3-11, IEC61000-3-12 | IEC61000-6-2, IEC61000-6-3 class A, IEC61000-3-11, IEC61000-3-12 |
| RoHS | Yes | Yes | Yes | Yes | Yes |
| INSTALLATION PARAMETERS | |||||
| Number of synergy units per inverter | 2 | 2 | 3 | 3 | 3 |
| AC cable cross-section and outer diameter: line/PE (aluminum or copper) (mm²/mm) | Cross-section up to 120 / 70 mm²; outer diameter 30-50 / 12-20 mm | Cross-section up to 120 / 70 mm²; outer diameter 30-50 / 12-20 mm | Cross-section up to 120 / 70 mm²; outer diameter 30-50 / 12-20 mm | Cross-section up to 120 / 70 mm²; outer diameter 30-50 / 12-20 mm | Cross-section up to 120 / 70 mm²; outer diameter 30-50 / 12-20 mm |
| DC input: inverter/synergy unit(7)(8) | 8/4 pairs MC4 | 8/4 pairs MC4 | Gland, 2 pairs / 1 pair, cross-section up to 50 mm², aluminum or copper, cable outer diameter 12-20 mm | Gland, 2 pairs / 1 pair, cross-section up to 50 mm², aluminum or copper, cable outer diameter 12-20 mm | 12/4 pairs MC4, Gland, 3 pairs / 1 pair, cross-section up to 50 mm² aluminum or copper, cable outer diameter 12-20 mm |
| Dimensions (H x W x D) (mm) – Synergy unit | 558 x 328 x 273 | 558 x 328 x 273 | 558 x 328 x 273 | 558 x 328 x 273 | 558 x 328 x 273 |
| Dimensions (H x W x D) (mm) – Synergy management unit | 360 x 560 x 295 | 360 x 560 x 295 | 360 x 560 x 295 | 360 x 560 x 295 | 360 x 560 x 295 |
| Weight (kg) – Synergy unit | 32 | 32 | 32 | 32 | 32 |
| Weight (kg) – Synergy management unit | 18 | 18 | 18 | 18 | 18 |
| Operating temperature range (°C) | from -40 to +60(9) | from -40 to +60(9) | from -40 to +60(9) | from -40 to +60(9) | from -40 to +60(9) |
| Cooling | Fan (replaceable) | Fan (replaceable) | Fan (replaceable) | Fan (replaceable) | Fan (replaceable) |
| Noise emission (dBA) | < 67 | < 67 | < 67 | < 67 | < 67 |
| Protection rating | IP65 – outdoor and indoor | IP65 – outdoor and indoor | IP65 – outdoor and indoor | IP65 – outdoor and indoor | IP65 – outdoor and indoor |
| Mounting | Included bracket | Included bracket | Included bracket | Included bracket | Included bracket |
(1) Option available in certain countries. For more information: https://www.solaredge.com/sites/default/files/se_inverters_supported_countries.pdf
(2) 49990 in the United Kingdom
(3) If an external RCD is required, its trip value must be ≥ 200 mA for SE50K/SE66.6K; ≥ 300 mA for SE90K, SE100K
(4) Where permitted by local regulations
(5) For specifications of additional communication options, visit https://www.solaredge.com/products/communication or the Resource Library page: https://www.solaredge.com/downloads# to download the relevant datasheet
(6) All standards and certificates are available for download in the “Certificates” section on the Resource Library page: https://www.solaredge.com/downloads#/
(7) DC input is available with MC4 connectors or glands under the inverter part number. For more information, contact SolarEdge
(8) Only MC4 connectors manufactured by Staubli are approved for use
(9) Power derating – for specifications, see https://www.solaredge.com/sites/default/files/se-temperature-derating-note.pdf
