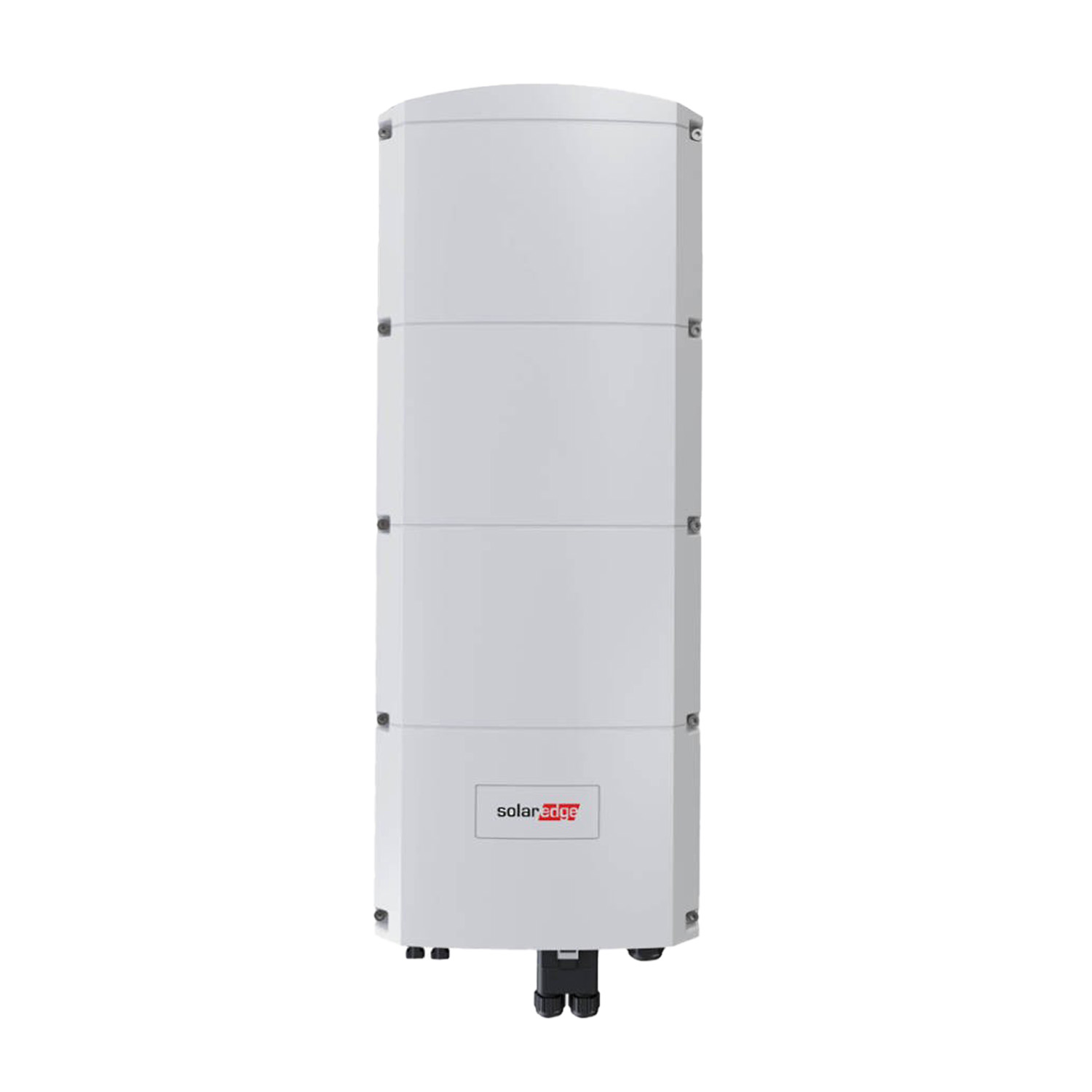

Inverter SOLAR EDGE SE5K – RWB48BFN4
SKU: F240R11
EAN: 5905951580654
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| RS485 | Yes |
| AFCI | Yes |
| MPPT voltage range | |
| Weight | 37 kg |
| CN | 85044085 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| RS485 | Yes |
| AFCI | Yes |
| MPPT voltage range | |
| Weight | 37 kg |
| CN | 85044085 |
SolarEdge Home Hub inverter
The SolarEdge Home Hub inverter is an advanced three-phase solution for energy storage and backup power, designed to maximize the use of solar energy. It enables simple installation and management of PV production, energy storage, and whole-home backup power. Thanks to a DC-side battery architecture, the inverter delivers increased stored energy with lower losses.
Key features of the SolarEdge Home Hub:
- DC-side battery architecture for increased usable energy and reduced losses.
- Simple “single-inverter” installation to manage PV production, storage, and backup power.
- Quick and easy setup using the SolarEdge SetApp smartphone app.
- Designed with safety in mind, eliminating high voltages during installation and maintenance.
- Monitoring at module level, battery status, PV production, and self-consumption.
- Supports connection of SolarEdge and third-party energy storage systems for greater flexibility.
Who is this a good choice for?
The SolarEdge Home Hub inverter is an ideal solution for homeowners looking for an integrated energy management system that provides reliable backup power and maximizes solar energy use. It is especially well suited to installations where safety, ease of operation, and the option to expand energy storage in the future are priorities.
Datasheet SolarEdge SE5K-SE10K RWB48
SolarEdge-SE5K-SE10K-RWB48-Datasheet.pdf
| Parameter | SE5K-RWB48 | SE8K-RWB48 | SE10K-RWB48 |
|---|---|---|---|
| OUTPUT – AC, GRID CONNECTION | |||
| Rated output power (VA) | 5000 | 8000 | 10000 |
| Maximum output power (VA) | 5000 | 8000 | 10000 |
| AC output voltage – phase to phase / phase to neutral (nominal voltage) (Vac) | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 |
| AC output voltage range – phase to neutral (Vac) | 184-264.5 | 184-264.5 | 184-264.5 |
| AC frequency (Hz) | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 |
| Maximum continuous output current (per phase) (A) | 8 | 13 | 16 |
| Residual current detector / stepped residual current detector (mA) | 300/30 | 300/30 | 300/30 |
| Supported networks – three-phase | 3/N/PE (neutral-point grounded star network with neutral conductor) | 3/N/PE (neutral-point grounded star network with neutral conductor) | 3/N/PE (neutral-point grounded star network with neutral conductor) |
| Grid features | Grid monitoring, anti-islanding protection, configurable power factor, country-configurable thresholds | Grid monitoring, anti-islanding protection, configurable power factor, country-configurable thresholds | Grid monitoring, anti-islanding protection, configurable power factor, country-configurable thresholds |
| OUTPUT – AC, BACKUP POWER | |||
| Maximum output power (VA) | 4500 | 7200 | 9000 |
| AC output voltage – phase to phase / phase to neutral (nominal voltage) (Vac) | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 |
| AC output voltage range – phase to neutral (Vac) | 184-264.5 | 184-264.5 | 184-264.5 |
| AC frequency (Hz) | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 |
| Maximum continuous output current (per phase) (A) | 7.2 | 11.7 | 14.4 |
| Residual current detector / stepped residual current detector (mA) | 300/30 | 300/30 | 300/30 |
| Supported networks – three-phase | 3/N/PE (neutral-point grounded star network with neutral conductor) | 3/N/PE (neutral-point grounded star network with neutral conductor) | 3/N/PE (neutral-point grounded star network with neutral conductor) |
| Topology | Transformerless, ungrounded | Transformerless, ungrounded | Transformerless, ungrounded |
| Backup power features | Grid monitoring, ensures safe disconnection from the grid in backup mode, configurable power factor, country-configurable thresholds | Grid monitoring, ensures safe disconnection from the grid in backup mode, configurable power factor, country-configurable thresholds | Grid monitoring, ensures safe disconnection from the grid in backup mode, configurable power factor, country-configurable thresholds |
| Automatic transfer time (s) | <10 | <10 | <10 |
| Max. allowed difference between phases (s) | 1.66 | 2.66 | 3 |
| PV INPUT PARAMETERS | |||
| Maximum DC power (module STC) (kW) | 10000 | 13000 | 15000 |
| Maximum input voltage (V DC) | 900 | 900 | 900 |
| Nominal input voltage (V DC) | 750 | 750 | 750 |
| Maximum input current (A DC) | 13.3 | 17.3 | 20 |
| Reverse polarity protection | Yes | Yes | Yes |
| Ground fault detection | Yes (sensitivity 700 kΩ) | Yes (sensitivity 700 kΩ) | Yes (sensitivity 700 kΩ) |
| Maximum inverter efficiency (%) | 98 | 98 | 98 |
| European (weighted) efficiency (%) | 97.3 | 97.6 | 97.6 |
| INPUT/OUTPUT – ENERGY STORAGE | |||
| Supported storage types¹ | SolarEdge Home BAT-05K48 energy storage (1-5 battery modules). Firmware support coming soon for the following LG Chem batteries: RESU3.3, RESU6.5, RESU10, RESU12, RESU13. Firmware support coming soon for the following batteries: BYD Battery-Box Premium LVS 4.0, 8.0, 12.0, 16.0, 20.0, 24.0 | SolarEdge Home BAT-05K48 energy storage (1-5 battery modules). Firmware support coming soon for the following LG Chem batteries: RESU3.3, RESU6.5, RESU10, RESU12, RESU13. Firmware support coming soon for the following batteries: BYD Battery-Box Premium LVS 4.0, 8.0, 12.0, 16.0, 20.0, 24.0 | SolarEdge Home BAT-05K48 energy storage (1-5 battery modules). Firmware support coming soon for the following LG Chem batteries: RESU3.3, RESU6.5, RESU10, RESU12, RESU13. Firmware support coming soon for the following batteries: BYD Battery-Box Premium LVS 4.0, 8.0, 12.0, 16.0, 20.0, 24.0 |
| Maximum charge/discharge power (W) | 5000 | 5000 | 5000 |
| Input voltage range (V DC) | 40-62 | 40-62 | 40-62 |
| Maximum continuous input/output current (A DC) | 125 | 125 | 125 |
| Maximum storage discharge efficiency to the grid (%) | 96.1 | 96.1 | 96.1 |
| Storage-to-inverter communication | CAN | CAN | CAN |
| OTHER FEATURES | |||
| Supported communication interfaces | Built-in: 2 x RS485, Ethernet, SolarEdge Home mesh network with antenna | Built-in: 2 x RS485, Ethernet, SolarEdge Home mesh network with antenna | Built-in: 2 x RS485, Ethernet, SolarEdge Home mesh network with antenna |
| STANDARDS COMPLIANCE | |||
| Safety | IEC62109 | IEC62109 | IEC62109 |
| Grid connection standards² | VDE-AR-N 4105, Tor Erzeuger Typ A, EN 50499-1, CEI 0-21, G98 Typ A, G98 NI Typ A, RD1699/ RD413 / NTS, VDE-V 0126-1-1, VFR 2019, C10/11, EN 50438 | VDE-AR-N 4105, Tor Erzeuger Typ A, EN 50499-1, CEI 0-21, G98 Typ A, G98 NI Typ A, RD1699/ RD413 / NTS, VDE-V 0126-1-1, VFR 2019, C10/11, EN 50438 | VDE-AR-N 4105, Tor Erzeuger Typ A, EN 50499-1, CEI 0-21, G98 Typ A, G98 NI Typ A, RD1699/ RD413 / NTS, VDE-V 0126-1-1, VFR 2019, C10/11, EN 50438 |
| EMC | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, EN55011 | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, EN55011 | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, EN55011 |
| RoHS | Yes | Yes | Yes |
| INSTALLATION PARAMETERS | |||
| AC output – cable gland diameter (mm) | 15-21 | 15-21 | 15-21 |
| Storage – cable gland outer diameter (mm) | 2 x 11-16.5 | 2 x 11-16.5 | 2 x 11-16.5 |
| DC PV input (mm) | 2 pairs MC4 | 2 pairs MC4 | 2 pairs MC4 |
| Dimensions (H x W x D) (mm) | 907 x 317 x 192 | 907 x 317 x 192 | 907 x 317 x 192 |
| Weight (kg) | 37 | 37 | 37 |
| Operating temperature range (°C) | -40 to +60 | -40 to +60 | -40 to +60 |
| Cooling | Internal and external fans | Internal and external fans | Internal and external fans |
| Noise emission (dBA) | < 50 | < 50 | < 50 |
| Degree of protection | IP65 for outdoor and indoor use | IP65 for outdoor and indoor use | IP65 for outdoor and indoor use |
| Mounting | Included bracket | Included bracket | Included bracket |
| SUPPORTED COMMUNICATION INTERFACES — ACCESSORIES (AVAILABLE SEPARATELY) | |||
| Wi-Fi (wireless gateway required) | Yes | Yes | Yes |
| Cellular | Yes | Yes | Yes |
Support for energy storage systems other than SolarEdge Home BAT-05K48 and for some LG Chem and BYD battery types requires a firmware update for the inverter, which will be available soon.
