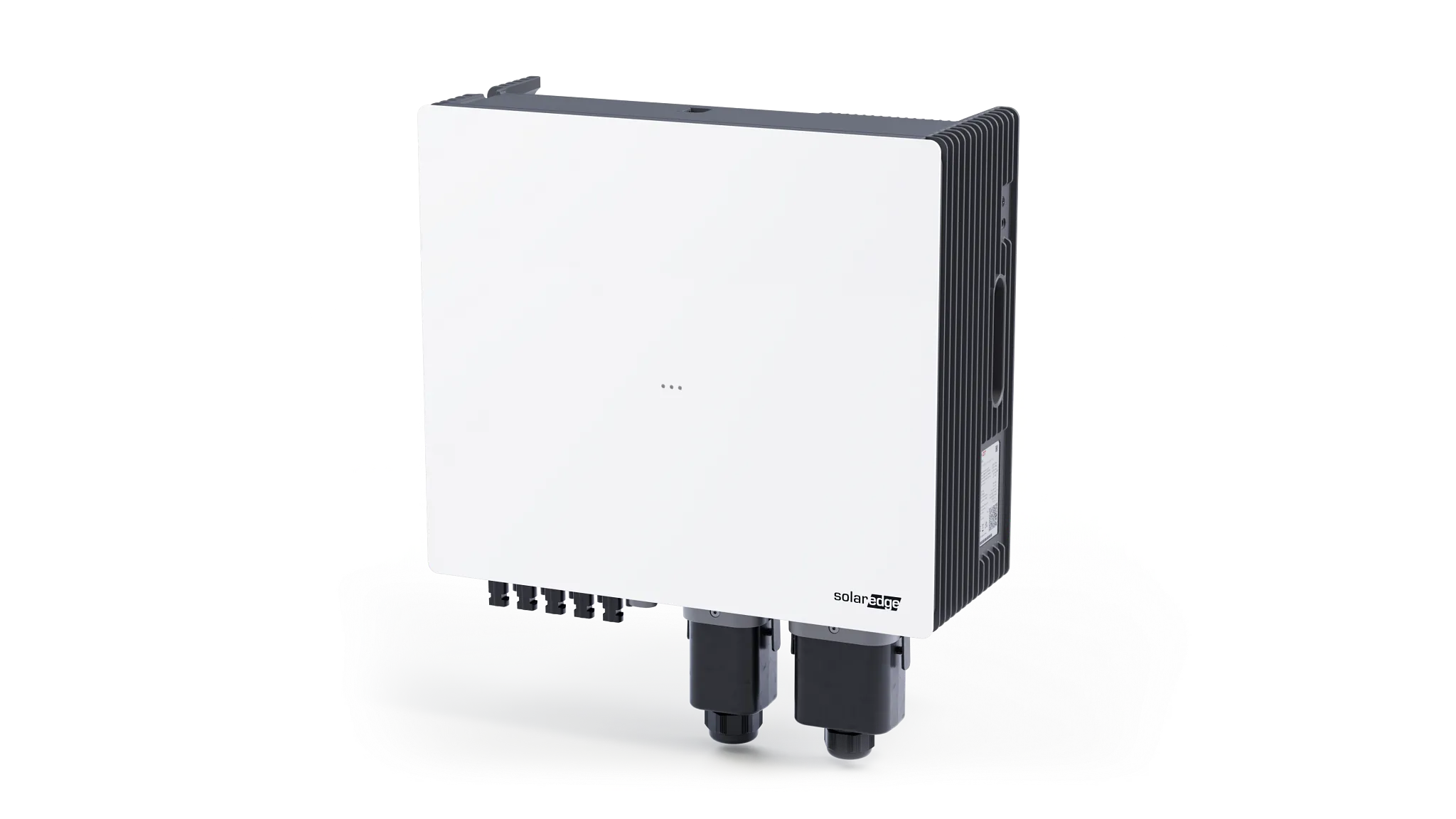

Inverter – SOLAREDGE – Nexis NX20K – RW000CYN4 – hybrid – HV
SKU: F240X
EAN: 2010000044223
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| Warranty | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| AFCI | |
| Maximum input power [W] | |
| CN | 85044086 |
Price
1 571,94 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| Warranty | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| AFCI | |
| Maximum input power [W] | |
| CN | 85044086 |
Nexis
Nexis is a three‑phase, transformerless SolarEdge inverter designed for residential photovoltaic installations, supporting energy storage and backup power. The built‑in Energy Management System (EMS) enables energy management within the installation. Integrated communication interfaces include, among others, LAN, Wi‑Fi and the SolarEdge Home mesh network.
Key advantages of Nexis
- Series power range: rated AC output power is 8–20 kVA, and the maximum DC power of PV modules under STC is 16–40 kW, depending on the model.
- Efficiency: maximum inverter efficiency is 99,0%, and weighted European efficiency ranges from 98,4–98,75%, depending on the model.
- Energy storage support: maximum DC charging power is 28 kW, and discharge power for backup supply is 20 kW.
- Backup power: maximum AC output power at 230/400 V is 20 kVA. Transfer time to backup power is ≤ 50 ms, and automatic transfer time with the backup power interface is ≤ 3 s.
- Integrated protections: DC Type 2 surge protection with alert in the monitoring platform, reverse polarity protection, ground fault detection and arc fault detection (AFCI).
- Warranty: the product datasheet specifies a 10‑year warranty period.
Who is this a good choice for?
Nexis is intended for homeowners with PV installations who need a three‑phase inverter with built‑in energy management. Support for energy storage and backup power mode also meets the needs of households planning energy storage and off‑grid backup supply.
| Parameter | NX8K | NX10K | NX13K | NX15K | NX17K | NX20K |
|---|---|---|---|---|---|---|
| AC output data – grid | ||||||
| Rated AC output power (VA) | 8000 | 10,000 | 12,990 | 15,000 | 17,000 | 20,000 |
| Maximum AC output power per phase (VA) | 2667 | 3333 | 4330 | 5000 | 5667 | 6667 |
| Rated AC output voltage between phases (V) | 380 / 400 / 480 | |||||
| Rated AC output voltage phase–neutral (V) | 220 / 230 / 277 | |||||
| AC output voltage range phase–neutral (V) | 184 – 305 | |||||
| AC frequency (Hz) | 51,5 | |||||
| Maximum continuous output current per phase (A) | 29,0 | |||||
| Power factor range (cos φ) | ± 0,1 to 1 | |||||
| Residual current detection threshold / residual current step threshold (mA) | 300 / 30 | |||||
| Maximum short‑circuit current per phase (A) | 14,8 | 18,5 | 24 | 29 | 31 | 35 |
| Supported networks | 3 / N / PE (WYE with neutral), TT, TNS, TN‑C‑S | |||||
| Grid monitoring, anti‑islanding protection and settings bank | Yes | |||||
| Surge category | II | |||||
| AC output data – off‑grid backup | ||||||
| Maximum AC output power at 230 / 400 V (VA) | 20,000 | |||||
| Maximum AC output power at 277 / 480 V (VA) | 24,000 | |||||
| Maximum AC output power per phase at 230 V (VA) | 6667 | |||||
| Rated AC output voltage between phases / phase–neutral (V) | 380 / 220, 400 / 230, 480 / 277 | |||||
| AC output voltage range phase–neutral (V) | 184 – 305 | |||||
| AC frequency (Hz) | 51,5 | |||||
| Maximum continuous output current per phase (A) | 29,0 | |||||
| Residual current detection threshold / residual current step threshold (mA) | 300 / 30 | |||||
| Supported networks | 3 / N / PE (WYE with neutral), TT, TNS, TN‑C‑S | |||||
| Transfer time to backup power (ms) | ≤ 50 | |||||
| Automatic transfer time for backup power with backup power interface (s) | ≤ 3 | |||||
| DC input data – PV | ||||||
| Maximum DC power of modules under STC (W) | 16,000 | 20,000 | 26,000 | 30,000 | 34,000 | 40,000 |
| Transformerless, ungrounded design | Yes | |||||
| DC input voltage range (V) | 715 – 950 | |||||
| Rated DC input voltage (V) | 750 | |||||
| Maximum input current per inverter / DC port (A) | 22,4 / 40 | 28 / 40 | 36,3 / 40 | 41,9 / 40 | 47,5 / 40 | 55,9 / 40 |
| Reverse polarity protection | Yes | |||||
| DC surge protection | Integrated, Type 2 according to IEC/EN 61643-31, with alert in the Monitoring Platform | |||||
| Ground fault detection sensitivity (kΩ) | 167 | |||||
| Surge category | II | |||||
| Efficiency | ||||||
| Maximum inverter efficiency (%) | 99,0 | |||||
| Weighted European efficiency (%) | 98,4 | 98,6 | 98,65 | 98,7 | 98,75 | |
| Energy storage input data | ||||||
| Supported batteries | SolarEdge Nexis Battery | |||||
| Maximum number of battery stacks per inverter | 4 | |||||
| Maximum number of battery modules per stack | 4 | |||||
| Maximum number of battery modules per inverter | 16 | |||||
| Maximum DC charging power (W) | 28,000 | |||||
| Maximum discharge power for grid / backup (W) | 8000 / 20,000 | 10,000 / 20,000 | 12,990 / 20,000 | 15,000 / 20,000 | 17,000 / 20,000 | 20,000 / 20,000 |
| DC input voltage range (V) | 715 – 950 | |||||
| Rated DC voltage (V) | 750 | |||||
| Maximum continuous current on DC port (A) | 40 | |||||
| Energy storage communication | CAN | |||||
| Compatibility | ||||||
| Supported power optimizers | Only SolarEdge S and P series power optimizers (1:1 optimizers only) | |||||
| Maximum number of power optimizers per string | 50 | |||||
| Supported meters | SE_MTR-3Y-400V-B (firmware version 0,79 or higher) MTR-240-3PC1-D-A-MW (firmware version 1,0.105 or higher; wired communication up to 10/26) Internal meter for emergency power interface BI-EU3P (firmware version 1,062 or higher) | |||||
| Communication | ||||||
| Integrated communication interfaces | 1 x RS485 Modbus, 1 x RS485/CAN (selective, SunSpec for OSD control), 1 x CAN, LAN, Wi‑Fi, SolarEdge Home mesh network in a shared antenna integrated with the inverter | |||||
| Optional communication interfaces | LTE modem | |||||
| Warranty | ||||||
| Product warranty (years) | 10 | |||||
| Certifications and standards compliance | ||||||
| Safety | IEC 62109 | |||||
| DC arc fault detection and interruption (AFCI) | IEC 63027 | |||||
| Grid connection standards | VDE‑AR‑N 4105:2018‑11, TOR Stromerzeugungsanlagen Typ A Version 1,3, NA/EEA‑NE7 – CH 2020, EN 50549-1 | |||||
The rated power and nameplate are determined during commissioning. Support for the maximum number of battery stacks requires the expected release of compatible firmware. The list of connection standards is incomplete due to truncated OCR text.
