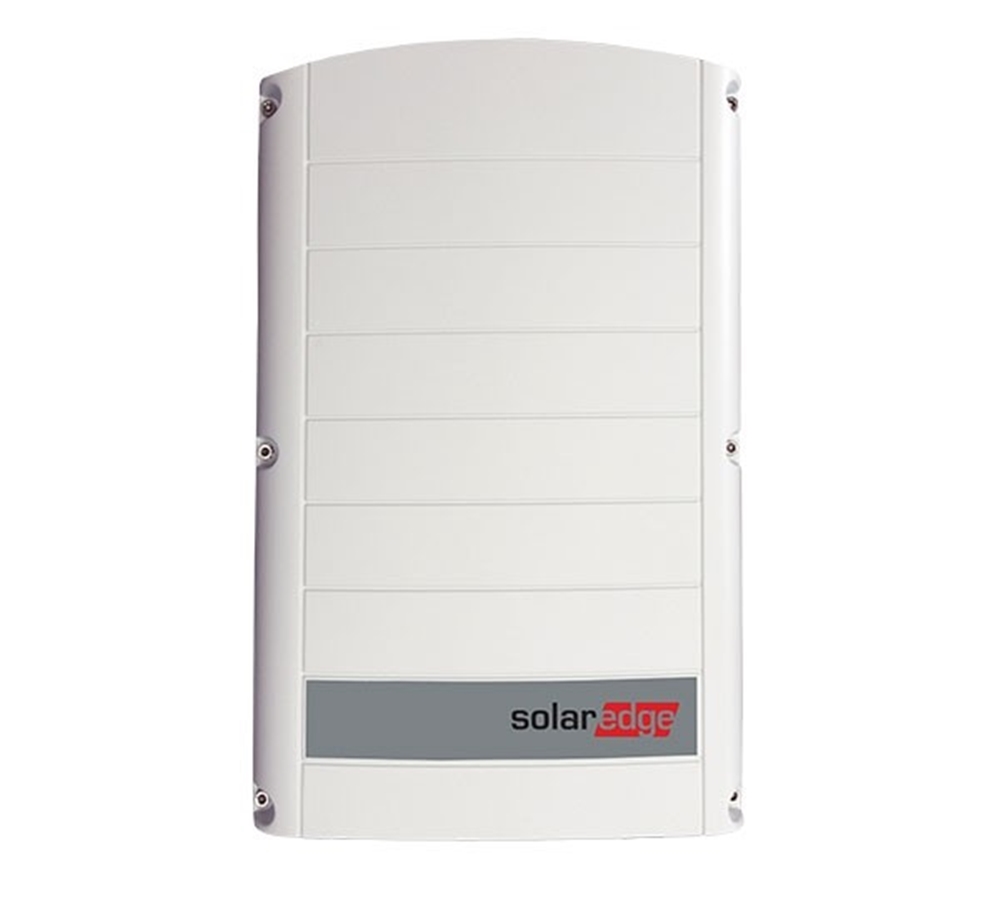

Inverter – SOLAREDGE – SE4K – RW0TEBEN4
SKU: F24061
EAN: 2010000044056
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| AFCI | |
| MPPT voltage range | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044085 |
Price
145,28 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| SPD Type I | |
| SPD Type II | |
| SPD Type III | |
| SPD Type I+II | |
| SPD – Free slot | |
| AFCI | |
| MPPT voltage range | |
| Maximum input power [W] | |
| European efficiency | |
| CN | 85044085 |
Three-phase inverter SE3K-SE10K
The SolarEdge three-phase inverter is an advanced device combining high efficiency with precise monitoring at the individual module level. This series is designed to maximize energy yields in photovoltaic installations while offering quiet operation without an external fan and exceptionally simple configuration via smartphone. Thanks to a robust construction with an IP65 protection rating, the device can be mounted both indoors and outdoors.
Key features of the Three-phase inverter SE3K-SE10K:
- Exceptional efficiency: The inverter’s maximum efficiency reaches 98%, ensuring effective energy conversion.
- Integrated monitoring: Precise tracking of performance at the level of each photovoltaic module.
- Fast commissioning: Easy and quick setup directly from a smartphone using the SolarEdge SetApp mobile application.
- Flexible communication: Connection to the internet via Ethernet or wirelessly using Wi-Fi, a ZigBee gateway, or a cellular network.
- Weather resistance: IP65 protection enables safe installation outdoors or in buildings across temperatures from -40 to +60°C.
- Longer strings: Ability to design longer panel strings thanks to the inverter’s fixed voltage.
Who is it a good choice for?
The SolarEdge three-phase inverter from the SE3K-SE10K series is an ideal choice for homeowners and investors seeking a reliable, quiet, and efficient inverter for photovoltaic installations. It performs excellently in modern residential systems where safety, intelligent energy management, and full control over the yield from each panel are crucial.
| Parameter | SE3K | SE4K | SE5K | SE6K | SE7K | SE8K | SE9K | SE10K |
|---|---|---|---|---|---|---|---|---|
| Output | ||||||||
| Rated AC power (VA) | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
| Maximum AC power (VA) | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
| AC output voltage – phase to phase / phase to neutral (nominal voltage) (Vac) | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 | 380/220; 400/230 |
| AC – output voltage range – phase to neutral (Vac) | 184-264,5 | 184-264,5 | 184-264,5 | 184-264,5 | 184-264,5 | 184-264,5 | 184-264,5 | 184-264,5 |
| AC frequency (Hz) | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 | 50/60 ± 5 |
| Maximum continuous output current (per phase) (A) | 5 | 6,5 | 8 | 10 | 11,5 | 13 | 14,5 | 16 |
| Supported networks – three-phase | 3/N/PE (star network with neutral grounded) | 3/N/PE (star network with neutral grounded) | 3/N/PE (star network with neutral grounded) | 3/N/PE (star network with neutral grounded) | 3/N/PE (star network with neutral grounded) | 3/N/PE (star network with neutral grounded) | 3/N/PE (star network with neutral grounded) | 3/N/PE (star network with neutral grounded) |
| Network monitoring, anti-islanding protection, configurable power factor, configurable threshold values | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Input | ||||||||
| Maximum DC power (module STC) (W) | 4050 | 5400 | 6750 | 8100 | 9450 | 10800 | 12150 | 13500 |
| Transformerless, ungrounded | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum DC input voltage (Vdc) | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Rated DC input voltage (Vdc) | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 |
| Maximum input current (Adc) | 5 | 7 | 8,5 | 10 | 12 | 13,5 | 15 | 16,5 |
| Reverse polarity protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Ground fault detection | Sensitivity 700 kΩ | Sensitivity 700 kΩ | Sensitivity 700 kΩ | Sensitivity 700 kΩ | Sensitivity 700 kΩ | Sensitivity 700 kΩ | Sensitivity 700 kΩ | Sensitivity 700 kΩ |
| Maximum inverter efficiency (%) | 98 | 98 | 98 | 98 | 98 | 98 | 98 | 98 |
| European efficiency (weighted) (%) | 96,7 | 97,3 | 97,3 | 97,3 | 97,4 | 97,6 | 97,5 | 97,6 |
| Nighttime energy consumption (W) | < 2,5 | < 2,5 | < 2,5 | < 2,5 | < 2,5 | < 2,5 | < 2,5 | < 2,5 |
| Other features | ||||||||
| Supported communication interfaces | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) | RS485, Ethernet, Zigbee (optional), Wi-Fi (requires antenna), GSM (optional) |
| Smart energy management | Power limiting, Home Energy Management (device control) | Power limiting, Home Energy Management (device control) | Power limiting, Home Energy Management (device control) | Power limiting, Home Energy Management (device control) | Power limiting, Home Energy Management (device control) | Power limiting, Home Energy Management (device control) | Power limiting, Home Energy Management (device control) | Power limiting, Home Energy Management (device control) |
| Inverter commissioning | Via the SetApp mobile application with a built-in Wi-Fi access point | Via the SetApp mobile application with a built-in Wi-Fi access point | Via the SetApp mobile application with a built-in Wi-Fi access point | Via the SetApp mobile application with a built-in Wi-Fi access point | Via the SetApp mobile application with a built-in Wi-Fi access point | Via the SetApp mobile application with a built-in Wi-Fi access point | Via the SetApp mobile application with a built-in Wi-Fi access point | Via the SetApp mobile application with a built-in Wi-Fi access point |
| Compliance with standards | ||||||||
| Safety | IEC-62103 (EN50178), IEC-62109 | IEC-62103 (EN50178), IEC-62109 | IEC-62103 (EN50178), IEC-62109 | IEC-62103 (EN50178), IEC-62109 | IEC-62103 (EN50178), IEC-62109 | IEC-62103 (EN50178), IEC-62109 | IEC-62103 (EN50178), IEC-62109 | IEC-62103 (EN50178), IEC-62109 |
| Grid connection | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 | VDE 0126-1-1, VDE-AR-N-4105, AS-4777, G83/G59 |
| EMC | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC part 15 class B |
| RoHS | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Mechanical specification | ||||||||
| AC output | Cable gland (diameter 15-21 mm) | Cable gland (diameter 15-21 mm) | Cable gland (diameter 15-21 mm) | Cable gland (diameter 15-21 mm) | Cable gland (diameter 15-21 mm) | Cable gland (diameter 15-21 mm) | Cable gland (diameter 15-21 mm) | Cable gland (diameter 15-21 mm) |
| DC input | 2 pairs MC4 | 2 pairs MC4 | 2 pairs MC4 | 2 pairs MC4 | 2 pairs MC4 | 2 pairs MC4 | 2 pairs MC4 | 2 pairs MC4 |
| Dimensions (H × W × D) (mm) | 540 × 315 × 191 | 540 × 315 × 191 | 540 × 315 × 191 | 540 × 315 × 191 | 540 × 315 × 191 | 540 × 315 × 191 | 540 × 315 × 191 | 540 × 315 × 191 |
| Weight (kg) | 16,4 | 16,4 | 16,4 | 16,4 | 16,4 | 16,4 | 16,4 | 16,4 |
| Operating temperature range (°C) | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 | -40 to +60 |
| Cooling type | Internal fan | Internal fan | Internal fan | Internal fan | Internal fan | Internal fan | Internal fan | Internal fan |
| Noise emission (dBA) | < 40 | < 40 | < 40 | < 40 | < 40 | < 40 | < 40 | < 40 |
| Protection rating | IP65 – outdoors or in buildings | IP65 – outdoors or in buildings | IP65 – outdoors or in buildings | IP65 – outdoors or in buildings | IP65 – outdoors or in buildings | IP65 – outdoors or in buildings | IP65 – outdoors or in buildings | IP65 – outdoors or in buildings |
| Mounting | Bracket included | Bracket included | Bracket included | Bracket included | Bracket included | Bracket included | Bracket included | Bracket included |
The maximum allowable DC input power for the SE3K model in the dedicated version (SE3K-RW010BNN4 for 10 optimizers) is 3700W.
