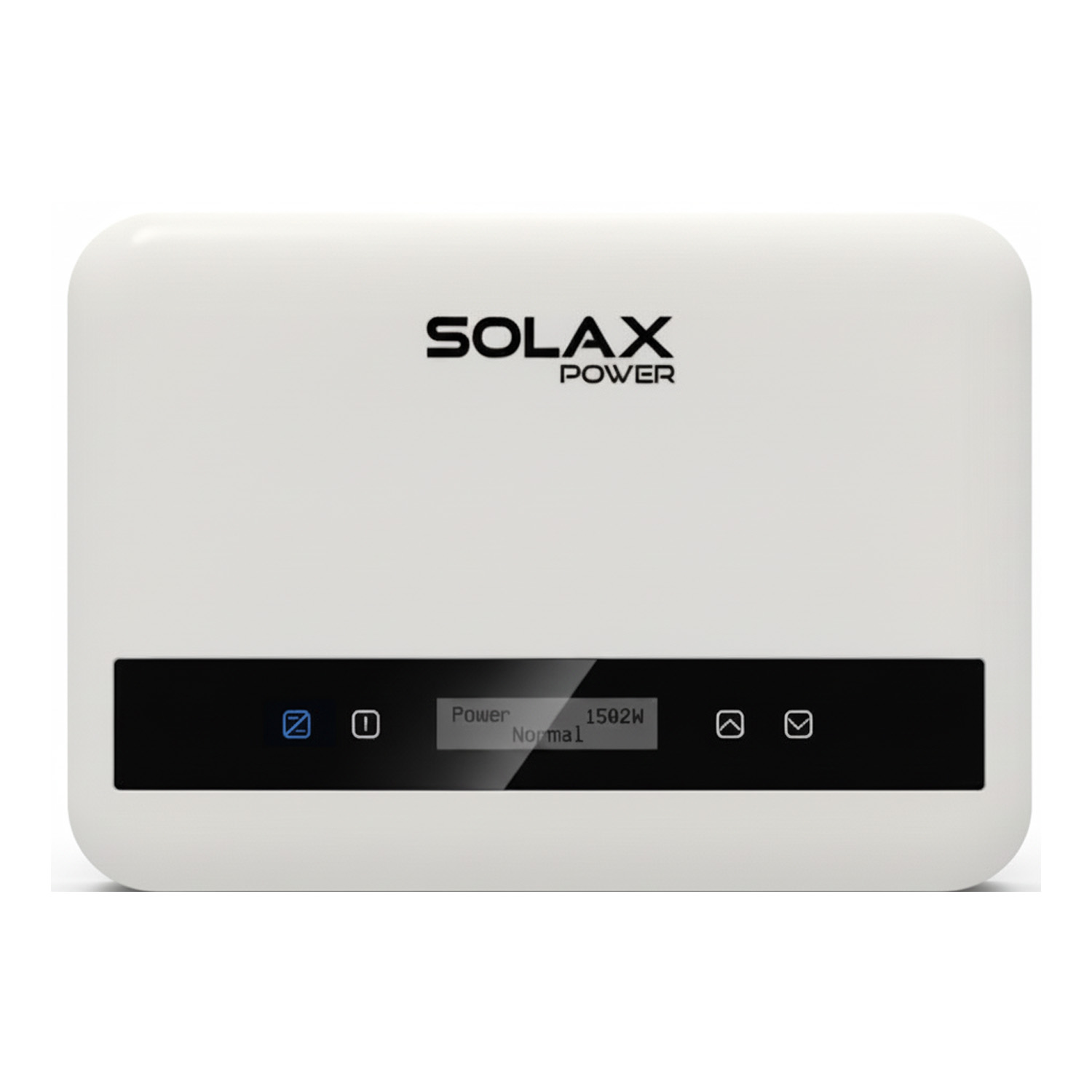

Inverter – SOLAX – X1-MINI-3K-G4 WiFi + LAN – single-phase

SKU: F20R0 EAN: 2010000035481
Inverter - SOLAX - X1-MINI-3K-G4 WiFi + LAN - single-phase
Manufacturer

Rated power

Power supply

Hybrid device

MPPT

1
Warranty

RS485

Yes
SPD Type II

AFCI

Optional
Weight 7,44 kg
CN 85044085
Price 423,22 €
Gross

423,22 €
Gross

In stock:

5 pcs
Login to place an order

Login to place an order

423,22 €
Gross

In stock:

5 pcs
Login to place an order

Datasheet Solax X1-MINI-0.6-G4 - X1-MINI-3.6-G4 Solax-X1-MINI-0.6-G4-X1-MINI-3.6-G4-Datasheet.pdf Manual Solax X1-MINI-0.6-G4 - X1-MINI-3.6-G4 Solax-X1-MINI-0.6-G4-X1-MINI-3.6-G4-Manual.pdf

Product details

Manufacturer

Rated power

Power supply

Hybrid device

MPPT

1
Warranty

RS485

Yes
SPD Type II

AFCI

Optional
Weight 7,44 kg
CN 85044085

Solax X1-MINI Inverter

The Solax X1-MINI is a single-phase, single-direction on-grid inverter ideal for photovoltaic installations with power from 0.6 to 3.6 kW. It features a compact design, high efficiency, and a wide MPPT voltage range to ensure optimal use of solar energy.

Key features of the Solax X1-MINI:

  • Small size and compact construction make installation easier.
  • 150% oversizing and 110% overload capability for greater flexibility and performance.
  • Maximum DC input current of 14 A per string, allowing use with various panels.
  • Low start-up voltage and a wide MPPT range (from 45 V) ensure efficiency even in low-light conditions.
  • Integrated SPD (surge protection) on both AC and DC sides for increased safety.
  • Supports remote updates and system maintenance.

Who is this a good choice for?

The Solax X1-MINI is an excellent choice for owners of single-family homes and small commercial installations looking for a reliable and efficient solution to convert solar energy. Its compact design, high efficiency (up to 98%), and advanced protection features make it a practical and safe investment in renewable energy.

Datasheet Solax X1-MINI-0.6-G4 - X1-MINI-3.6-G4 Solax-X1-MINI-0.6-G4-X1-MINI-3.6-G4-Datasheet.pdf Manual Solax X1-MINI-0.6-G4 - X1-MINI-3.6-G4 Solax-X1-MINI-0.6-G4-X1-MINI-3.6-G4-Manual.pdf

Parameter X1-0.6-S-D(L)

X1-0.6-S-N(L)

 X1-0.7-S-D(L)

X1-0.7-S-N(L)

 X1-1.1-S-D(L)

X1-1.1-S-N(L)

 X1-1.5-S-D(L)

X1-1.5-S-N(L)

 X1-2.0-S-D(L)

X1-2.0-S-N(L)

 X1-2.5K-S-D(L)

X1-2.5K-S-N(L)

 X1-3K-S-D(L)

X1-3K-S-N(L)

 X1-3.3K-S-D(L)

X1-3.3K-S-N(L)

 X1-3.6K-S-D(L)

X1-3.6K-S-N(L)
DC INPUT
Max. PV input power (W) 900 1050 1650 2250 3000 3750 4500 4950 5400
Max. PV input voltage (V) 450 450 450 450 450 550 550 550 550
Start voltage (V) 50 50 50 50 50 70 70 70 70
Nominal input voltage (V) 360 360 360 360 360 360 360 360 360
MPPT voltage range (V) 45-430 45-430 45-430 50-430 50-430 55-530 55-530 55-530 55-530
Number of MPPTs/chains per MPPT 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1
Max. PV input current (A) 14 14 14 14 14 14 14 14 14
PV short-circuit current ISC (A) 18 18 18 18 18 18 18 18 18
AC OUTPUT
Rated AC output power (W) 600 700 1100 1500 2000 2500 3000 3300 3680
Rated AC output current (A) 2.61 3.04 4.78 6.52 8.7 10.8 13.04 14.3 16
Max. AC apparent power (VA) 660 (600 for VDE4105) 770 1210 1650 2200 2750 3300 3300 3680
Max. AC output current (A) 2.9 3.3 5.3 7.2 9.6 11.9 14.3 14.3 16
Nominal AC voltage/AC voltage range (V) 220/230/240; 180-280 220/230/240; 180-280 220/230/240; 180-280 220/230/240; 180-280 220/230/240; 180-280 220/230/240; 180-280 220/230/240; 180-280 220/230/240; 180-280 220/230/240; 180-280
Nominal AC frequency/AC frequency range (Hz) 50/60; +5 50/60; +5 50/60; +5 50/60; +5 50/60; +5 50/60; +5 50/60; +5 50/60; +5 50/60; +5
Power factor range Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8 Leading 0.8 ~ Lagging 0.8
THDi (rated power) (%) <3 <3 <3 <3 <3 <3 <3 <3
SYSTEM DATA
Max. efficiency (%) 98 98 98 98 98 98 98 98 98
European efficiency (%) 95.00 95.00 95.50 96.00 96.50 96.50 96.50 96.50 96.50
Standby power consumption (W) at night 0 0 0 0 0 0 0 0 0
Protection rating IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66
Operating ambient temperature range (°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C) -25~+60 (derating of rated parameters above 45°C)
Max. operating altitude above sea level (m) <2000 <2000 <2000 <2000 <2000 <2000 <2000 <2000
Humidity (%) 0-100 (condensation) 0-100 (condensation) 0-100 (condensation) 0-100 (condensation) 0-100 (condensation) 0-100 (condensation) 0-100 (condensation) 0-100 (condensation) 0-100 (condensation)
Typical noise emission (dB) 30 30 30 30 30 30 30 30 30
Storage temperature (°C) -30~+70 -30~+70 -30~+70 -30~+70 -30~+70 -30~+70 -30~+70 -30~+70 -30~+70
Dimensions (W x H x D) (mm) 267 x 328 x 126 267 x 328 x 126 267 x 328 x 126 267 x 328 x 126 267 x 328 x 126 267 x 328 x 126 267 x 328 x 126 267 x 328 x 126 267 x 328 x 126
Net weight (kg) 8.3 8.3 8.3 8.3 8.3 8.3 8.3 8.3 8.3
Cooling method Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling Natural cooling
Communication interfaces RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter RS485/DRM/USB, optional: current transformer/meter
Optional monitoring hardware key Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G Pocket WiFi/LAN/4G
Display 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app 2 LED indicators + LCD (16 x 2)/app
PROTECTIONS
Grid Yes Yes Yes Yes Yes Yes Yes Yes Yes
Over/under voltage protection Yes Yes Yes Yes Yes Yes Yes Yes Yes
Overcurrent protection Yes Yes Yes Yes Yes Yes Yes Yes Yes
DC isolation protection Yes Yes Yes Yes Yes Yes Yes Yes Yes
Ground-fault protection monitoring Yes Yes Yes Yes Yes Yes Yes Yes Yes
Grid monitoring Yes Yes Yes Yes Yes Yes Yes Yes Yes
DC pulse monitoring Yes Yes Yes Yes Yes Yes Yes Yes Yes
Reverse current monitoring Yes Yes Yes Yes Yes Yes Yes Yes Yes
Residual current detection Yes Yes Yes Yes Yes Yes Yes Yes Yes
Anti-islanding protection Yes Yes Yes Yes Yes Yes Yes Yes Yes
Overtemperature protection Yes Yes Yes Yes Yes Yes Yes Yes Yes
SPD Yes Yes Yes Yes Yes Yes Yes Yes Yes
STANDARDS
Safety EN/IEC 62109-1/-2 EN/IEC 62109-1/-2 EN/IEC 62109-1/-2 EN/IEC 62109-1/-2 EN/IEC 62109-1/-2 EN/IEC 62109-1/-2 EN/IEC 62109-1/-2 EN/IEC 62109-1/-2 EN/IEC 62109-1/-2
EMC EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12
Certifications IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR IEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, RD1699, UNE 206007-1, VFR

* AC voltage and frequency range may vary according to different national regulations.
