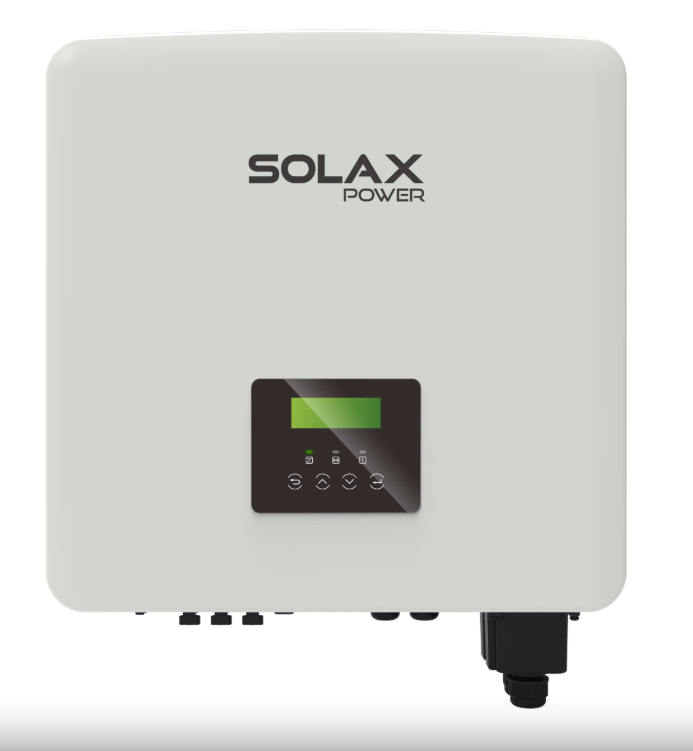

Inverter SOLAX X3-Hybrid-10.0-D WiFi + LAN
SKU: F20S12
EAN: 2010000031896
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| SPD Type II | |
| AFCI | Optional |
| MPPT voltage range | |
| Weight | 35,15 kg |
| CN | 85044086 |
Price
1 931,74 €
Gross
Gross
Datasheet Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Datasheet.pdf
Manual Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Manual.pdf
Warranty Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Warranty.pdf
Certificate of compliance 1 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-1.pdf
Certificate of compliance 2 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-2.pdf
Certificate of compliance 3 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-3.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| SPD Type II | |
| AFCI | Optional |
| MPPT voltage range | |
| Weight | 35,15 kg |
| CN | 85044086 |
Three-Phase Hybrid Inverter SolaX Power X3-HYBRID G4 (5.0–15 kW)
The three-phase hybrid inverter SolaX Power X3-HYBRID G4 is a technologically advanced device designed to maximize the use of solar energy in homes and small businesses. It offers a wide power range from 5.0 kW to 15 kW, VPP capability, a high IP65 protection rating, and support for parallel operation. With fast battery charging/discharging, support for unbalanced output, and UPS functionality, it provides reliable and efficient energy management.
Key features of the SolaX Power X3-HYBRID G4 Hybrid Inverter:
- Wide power range and high efficiency: Models from 5.0 kW to 15.0 kW with maximum efficiency up to 98.0% (Euro 97.70%) and DC oversizing capability up to 150%.
- Advanced battery features: Compatible with lithium-ion batteries (voltage range 180–650 V), fast charging/discharging (up to 30 A), and high charge/discharge efficiency (98.5%/97.0%).
- Reliable backup power (EPS/UPS): Automatic switch to off-grid mode in under 10 ms, with peak power delivery up to 16,500 VA (depending on model).
- Intelligent management and flexibility: VPP function, shade management, support for unbalanced output, parallel operation (up to 10 units), and a wide operating temperature range (-35°C to 60°C).
- Easy installation and operation: Fast installation (about 30 minutes with matbox), IP65 protection rating, and a variety of communication interfaces (Meter/WIFI (optional)/DRM/USB/Alarm ISO/RTU485/NTC/BMS/LCD/RS485).
Who is this a good choice for?
The SolaX Power X3-HYBRID G4 inverter is an excellent choice for owners of single-family homes and small to medium-sized businesses looking for an efficient, reliable, and flexible solution to manage energy from a photovoltaic system and energy storage. Its advanced features—such as fast switching to backup power, parallel operation capability, and intelligent shade management—make it ideal for maximizing self-consumption, ensuring energy security, and optimizing energy costs. High efficiency and a wide power range allow it to be tailored to individual user needs.
Datasheet Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Datasheet.pdf
Manual Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Manual.pdf
Warranty Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Warranty.pdf
Certificate of compliance 1 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-1.pdf
Certificate of compliance 2 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-2.pdf
Certificate of compliance 3 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D
Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-3.pdf
<td;<3
| Parameter | X3-Hybrid-5.0-D
X3-Hybrid-5.0-M |
X3-Hybrid-6.0-D
X3-Hybrid-6.0-M |
X3-Hybrid-8.0-D
X3-Hybrid-8.0-M |
X3-Hybrid-10.0-D
X3-Hybrid-10.0-M |
X3-Hybrid-12.0-D
X3-Hybrid-12.0-M |
X3-Hybrid-15.0-D
X3-Hybrid-15.0-M |
|---|---|---|---|---|---|---|
| DC INPUT | ||||||
| Max PV string input power (Wp) | 8000 | 10000 | 12000 | 15000 | 18000 | 18000 |
| Max PV input voltage (V) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Start-up voltage (V) | 160 | 160 | 160 | 160 | 160 | 160 |
| Nominal input voltage (V) | 630 | 630 | 630 | 630 | 630 | 630 |
| MPPT voltage range (V) | 180~950 | 180~950 | 180~950 | 180~950 | 180~950 | 180~950 |
| Number of MPPTs / strings per MPPT | 2(1/1) | 2(1/1) | 2(2/1) | 2(2/1) | 2(2/1) | 2(2/1) |
| Max input current (input A/input B) (A) | 14/14 | 14/14 | 26/14 | 26/14 | 26/14 | 26/14 |
| Max short-circuit current (input A/input B) (A) | 16/16 | 16/16 | 30/16 | 30/16 | 30/16 | 30/16 |
| AC INPUT & OUTPUT | ||||||
| Rated AC output power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 |
| Rated AC output current (A) | 7,2 | 8,7 | 11,6 | 14,5 | 17,5 | 21,8 |
| Max apparent power at AC output (VA) | 5500 | 6600 | 8800 | 11000 | 13200 | 15000 |
| Max AC output current (A) | 8,1 | 9,7 | 12,9 | 16,1 | 19,3 | 24,1 |
| Max apparent power at AC input (VA) | 10000 | 12000 | 16000 | 20000 | 20000 | 20000 |
| Max AC input current (A) | 16,1 | 19,3 | 25,8 | 32,0 | 32,0 | 32,0 |
| Nominal AC voltage (V) | 415/240; 400/230; 380/220 | 415/240; 400/230; 380/220 | 415/240; 400/230; 380/220 | 415/240; 400/230; 380/220 | 415/240; 400/230; 380/220 | 415/240; 400/230; 380/220 |
| Nominal grid frequency / grid frequency range (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Displacement power factor | 0,8 lead ~ 0,8 lag | 0,8 lead ~ 0,8 lag | 0,8 lead ~ 0,8 lag | 0,8 lead ~ 0,8 lag | 0,8 lead ~ 0,8 lag | 0,8 lead ~ 0,8 lag |
| THDi (rated power) (%) | <3 | <3 | <3 | <3 | <3 | |
| BATTERY DATA | ||||||
| Battery type | Lithium-ion battery | Lithium-ion battery | Lithium-ion battery | Lithium-ion battery | Lithium-ion battery | Lithium-ion battery |
| Battery voltage range (V) | 180~650 | 180~650 | 180~650 | 180~650 | 180~650 | 180~650 |
| Max continuous charge/discharge current (A) | 30 | 30 | 30 | 30 | 30 | 30 |
| EPS OUTPUT FROM BATTERY (OFF-GRID OR BACK-UP) | ||||||
| Rated output power (W)*1 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 |
| Peak apparent power (VA)*1 | 7500, 60s | 9000, 60s | 12000, 60s | 15000, 60s | 15000, 60s | 16500, 60s |
| Max continuous current (A) | 7,2 | 8,7 | 11,6 | 14,5 | 17,5 | 21,8 |
| Rated voltage (V)/Frequency (Hz) | 400/230; 380/220; 50/60 | 400/230; 380/220; 50/60 | 400/230; 380/220; 50/60 | 400/230; 380/220; 50/60 | 400/230; 380/220; 50/60 | 400/230; 380/220; 50/60 |
| THDv (Linear Load) (%) | <3 | <3 | <3 | <3 | <3 | <3 |
| Switching time to off-grid mode (ms) | <10 | <10 | <10 | <10 | <10 | <10 |
| Parallel operation | YES, 10 | YES, 10 | YES, 10 | YES, 10 | YES, 10 | YES, 10 |
| SYSTEM DATA | ||||||
| Max efficiency (%) | 98,00 | 98,00 | 98,00 | 98,00 | 98,00 | 98,00 |
| Euro. efficiency (%) | 97,70 | 97,70 | 97,70 | 97,70 | 97,70 | 97,70 |
| Battery charge/discharge efficiency (%) | 98,5/97,00 | 98,5/97,00 | 98,5/97,00 | 98,5/97,00 | 98,5/97,00 | 98,5/97,00 |
| Standby power consumption @Night (W) | < 40W for hot standby mode, < 5W for cold standby mode | < 40W for hot standby mode, < 5W for cold standby mode | < 40W for hot standby mode, < 5W for cold standby mode | < 40W for hot standby mode, < 5W for cold standby mode | < 40W for hot standby mode, < 5W for cold standby mode | < 40W for hot standby mode, < 5W for cold standby mode |
| Protection rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating temperature range (°C) | -35~60 (derating above +45°C, reduced charging above +35°C) | -35~60 (derating above +45°C, reduced charging above +35°C) | -35~60 (derating above +45°C, reduced charging above +35°C) | -35~60 (derating above +45°C, reduced charging above +35°C) | -35~60 (derating above +45°C, reduced charging above +35°C) | -35~60 (derating above +45°C, reduced charging above +35°C) |
| Max operating altitude (m) | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 |
| Humidity (%) | 0~100 (condensation) | 0~100 (condensation) | 0~100 (condensation) | 0~100 (condensation) | 0~100 (condensation) | 0~100 (condensation) |
| Typical noise emission (dB) | <35 | <35 | <35 | <35 | <45 | <45 |
| Storage temperature (°C) | -40~65 | -40~65 | -40~65 | -40~65 | -40~65 | -40~65 |
| Dimensions (W x H x D) (mm) | 503*503*199 | 503*503*199 | 503*503*199 | 503*503*199 | 503*503*199 | 503*503*199 |
| Weight (kg) | 30 | 30 | 30 | 30 | 30 | 30 |
| Cooling concept | Natural cooling | Natural cooling | Smart cooling | Smart cooling | Smart cooling | Smart cooling |
| Communication interfaces | Meter/WIFI (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 | Meter/WIFI (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 | Meter/WIFI (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 | Meter/WIFI (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 | Meter/WIFI (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 | Meter/WIFI (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 |
| STANDARDS & CERTIFICATIONS | ||||||
| Safety | EN/IEC62109-1/-2 | EN/IEC62109-1/-2 | EN/IEC62109-1/-2 | EN/IEC62109-1/-2 | EN/IEC62109-1/-2 | EN/IEC62109-1/-2 |
| EMC | EN61000-6-1/2/3/4;EN61000-3-2/3/11/12 | EN61000-6-1/2/3/4;EN61000-3-2/3/11/12 | EN61000-6-1/2/3/4;EN61000-3-2/3/11/12 | EN61000-6-1/2/3/4;EN61000-3-2/3/11/12 | EN61000-6-1/2/3/4;EN61000-3-2/3/11/12 | EN61000-6-1/2/3/4;EN61000-3-2/3/11/12 |
| Certifications | VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/VDE 0124 etc. | VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/VDE 0124 etc. | VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/VDE 0124 etc. | VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/VDE 0124 etc. | VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/VDE 0124 etc. | VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/VDE 0124 etc. |
Notes:
*1: Test conditions may affect actual values.
D: Should be used without matebox.
M: Should be used without matebox.
