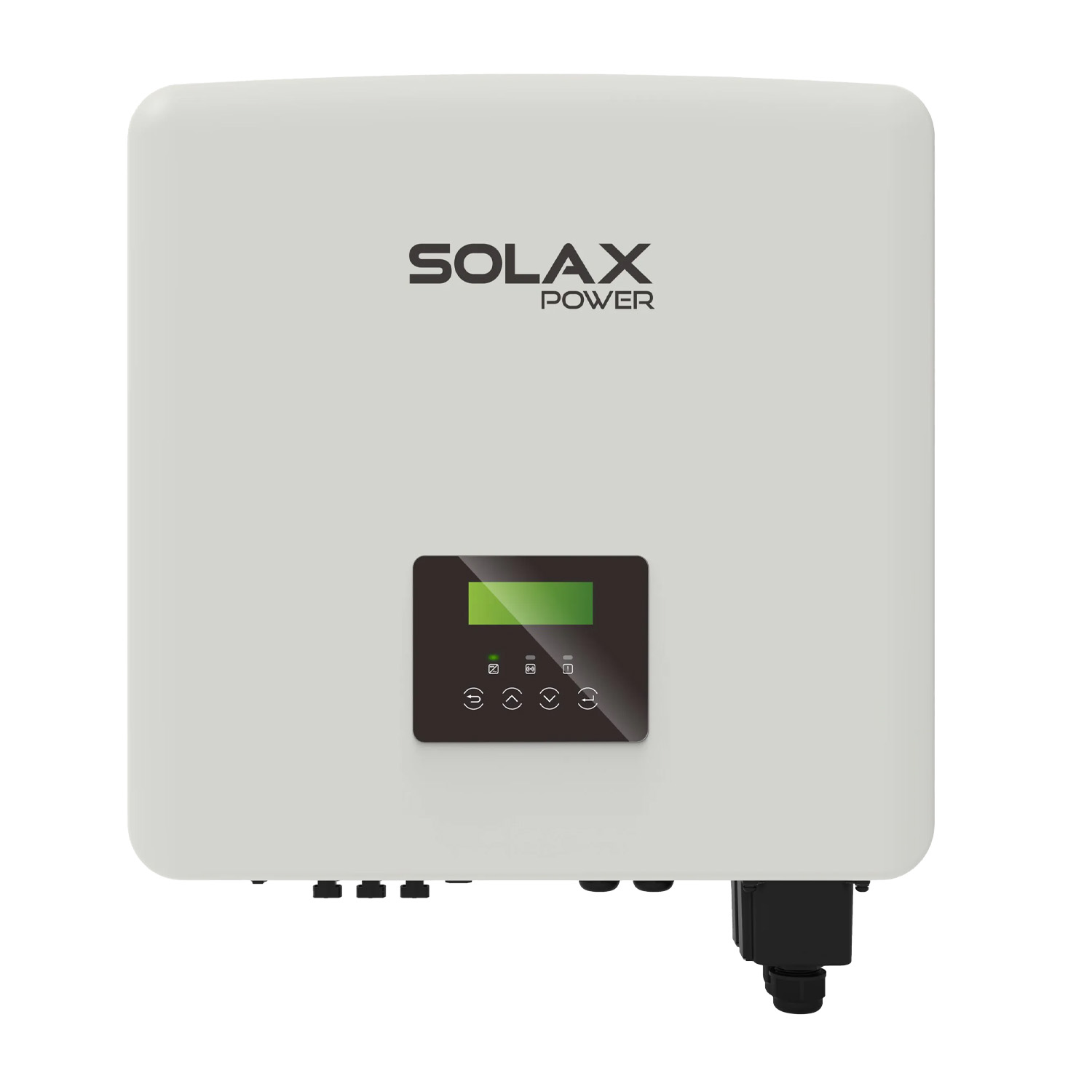

Inverter SOLAX X3-Hybrid-6.0-D WiFi + LAN

SKU: F20S012 EAN: 2010000034903
Inverter SOLAX X3-Hybrid-6.0-D WiFi + LAN
Manufacturer

Rated power

Power supply

Hybrid device

Off-grid mode

MPPT

2
Warranty

Net width

Net depth

Net height

RS485

Yes
SPD Type II

AFCI

Optional
MPPT voltage range

Weight 34,9 kg
CN 85044085
Price 1 641,98 €
Gross

1 641,98 €
Gross

In stock:

5 pcs
Login to place an order

Login to place an order

1 641,98 €
Gross

In stock:

5 pcs
Login to place an order

Datasheet Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Datasheet.pdf Manual Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Manual.pdf Warranty Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Warranty.pdf Certificate of compliance 1 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-1.pdf Certificate of compliance 2 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-2.pdf Certificate of compliance 3 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-3.pdf

Product details

Manufacturer

Rated power

Power supply

Hybrid device

Off-grid mode

MPPT

2
Warranty

Net width

Net depth

Net height

RS485

Yes
SPD Type II

AFCI

Optional
MPPT voltage range

Weight 34,9 kg
CN 85044085

Solax X3-HYBRID G4

The Solax X3-HYBRID G4 is a three-phase hybrid inverter designed for energy storage. It offers a wide power range from 5.0 to 15 kW, features high efficiency and an IP65 protection rating, ensuring reliable operation in a variety of conditions.

Key features of the X3-HYBRID G4:

  • Capability for parallel grid-tied and off-grid operation (expandable).
  • PV input power up to 150% of the inverter’s rated power.
  • Fast battery charging and discharging with UPS-level performance.
  • IP65 protection rating allows installation in harsh conditions.
  • Wide operating temperature range from -35°C to 60°C.
  • Shade management feature to optimize energy production.

Who is this a good choice for?

The Solax X3-HYBRID G4 inverter is an ideal solution for residential and commercial users seeking an efficient energy storage system with backup operation capability. Its versatility, high peak power and resistance to environmental conditions make it well suited for applications that require reliability and optimized electricity use.

Datasheet Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Datasheet.pdf Manual Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Manual.pdf Warranty Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Warranty.pdf Certificate of compliance 1 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-1.pdf Certificate of compliance 2 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-2.pdf Certificate of compliance 3 Solax X3-Hybrid-5.0-D - X3-Hybrid-15.0-D Solax-X3-Hybrid-5.0-D-X3-Hybrid-15.0-D-Certificate-of-compliance-3.pdf

Parameter X3-Hybrid-5.0-D X3-Hybrid-6.0-D X3-Hybrid-8.0-D X3-Hybrid-10.0-D X3-Hybrid-12.0-D X3-Hybrid-15.0-D X3-Hybrid-5.0-M X3-Hybrid-6.0-M X3-Hybrid-8.0-M X3-Hybrid-10.0-M X3-Hybrid-12.0-M X3-Hybrid-15.0-M
DC INPUT
Max. PV string input power (W) 8000 10000 12000 15000 18000 18000 8000 10000 12000 15000 18000 18000
Max. PV input voltage (V) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
Start-up voltage (V) 160 160 160 160 160 160 160 160 160 160 160 160
Nominal input voltage (V) 630 630 630 630 630 630 630 630 630 630 630 630
MPPT voltage range (V) 180-950 180-950 180-950 180-950 180-950 180-950 180-950 180-950 180-950 180-950 180-950 180-950
Number of MPPT trackers/strings per MPPT 2(1/1) 2(1/1) 2(2/1) 2(2/1) 2(2/1) 2(2/1) 2(1/1) 2(1/1) 2(2/1) 2(2/1) 2(2/1) 2(2/1)
Max. input current (Input A/Input B) (A) 14/14 14/14 26/14 26/14 26/14 26/14 14/14 14/14 26/14 26/14 26/14 26/14
Max. short-circuit current (Input A/Input B) (A) 16/16 16/16 30/16 30/16 30/16 30/16 16/16 16/16 30/16 30/16 30/16 30/16
AC INPUT & OUTPUT
Nominal AC output power (W) 5000 6000 8000 10000 12000 15000 5000 6000 8000 10000 12000 15000
Nominal AC output current (A) 7.2 8.7 11.6 14.5 17.5 21.8 7.2 8.7 11.6 14.5 17.5 21.8
Max. apparent power on AC output (VA) 5500 6600 8800 11000 13200 15000 5500 6600 8800 11000 13200 15000
Max. AC output current (A) 8.1 9.7 12.9 16.1 19.3 24.1 8.1 9.7 12.9 16.1 19.3 24.1
Max. apparent power on AC input (VA) 10000 12000 16000 20000 20000 20000 10000 12000 16000 20000 20000 20000
Max. AC input current (A) 16.1 19.3 25.8 32.0 32.0 32.0 16.1 19.3 25.8 32.0 32.0 32.0
Nominal AC voltage (V) 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220 415/240; 400/230; 380/220
Nominal grid frequency / grid frequency range (Hz) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Displacement power factor 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging 0.8 leading, 0.8 lagging
THDi (rated) (%) <3 <3 <3 <3 <3 <3 <3 <3 <3 <3 <3
BATTERY DATA
Battery type Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery Lithium-ion battery
Battery voltage range (V) 180-650 180-650 180-650 180-650 180-650 180-650 180-650 180-650 180-650 180-650 180-650 180-650
Max. continuous charge/discharge current (A) 30 30 30 30 30 30 30 30 30 30 30 30
EPS OUTPUT WITH BATTERY (OFF-GRID / BACK-UP)
Nominal output power (W)1 5000 6000 8000 10000 12000 15000 5000 6000 8000 10000 12000 15000
Peak apparent power (VA)1 7500, 60s 9000, 60s 12000, 60s 15000, 60s 15000, 60s 16500, 60s 7500, 60s 9000, 60s 12000, 60s 15000, 60s 15000, 60s 16500, 60s
Max. continuous current (A) 7.2 8.7 11.6 14.5 17.5 21.8 7.2 8.7 11.6 14.5 17.5 21.8
Nominal voltage (V) / Frequency (Hz) 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60 400/230; 380/220; 50/60
THDV (Linear Load) (%) <3 <3 <3 <3 <3 <3 <3 <3 <3 <3 <3 <3
Switching time to off-grid mode (ms) <10 <10 <10 <10 <10 <10 <10 <10 <10 <10 <10 <10
Parallel operation Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10 Yes, 10
SYSTEM DATA
Max. efficiency (%) 98.00 98.00 98.00 98.00 98.00 98.00 98.00 98.00 98.00 98.00 98.00 98.00
European grid efficiency (%) 97.70 97.70 97.70 97.70 97.70 97.70 97.70 97.70 97.70 97.70 97.70 97.70
Battery charge/discharge efficiency (%) 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00 98.5/97.00
Standby power consumption (W) @Night <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby <40W for hot standby, <5W for cold standby
Protection rating IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
Operating temperature range (°C) -35~60 -35~60 -35~60 -35~60 -35~60 -35~60 -35~60 -35~60 -35~60 -35~60 -35~60 -35~60
Max. operating altitude (m) ≤3000 ≤3000 ≤3000 ≤3000 ≤3000 ≤3000 ≤3000 ≤3000 ≤3000 ≤3000 ≤3000 ≤3000
Humidity (%) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing) 0~100 (condensing)
Typical noise emission (dB) <35 <35 <35 <35 <45 <45 <35 <35 <35 <45 <45
Storage temperature (°C) -40~65 -40~65 -40~65 -40~65 -40~65 -40~65 -40~65 -40~65 -40~65 -40~65 -40~65 -40~65
Dimensions (W x H x D) (mm) 503503199 503503199 503503199 503503199 503503199 503503199 503503199 503503199 503503199 503503199 503503199 503503199
Weight (kg) 30 30 30 30 30 30 30 30 30 30 30 30
Cooling
Cooling concept Natural cooling Natural cooling Natural cooling Natural cooling Smart cooling Smart cooling Natural cooling Natural cooling Natural cooling Natural cooling Smart cooling Smart cooling
Communication interfaces
Communication interfaces Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485 Meter/Wi-Fi (optional)/DRM/USB/ISO Alarm/RTU485/NTC/BMS/LCD/RS485
Certification
Safety EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2 EN/IEC62109-1/-2
EMC EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12 EN61000-6-1/2/3/4; EN61000-3-2/3/11/12
Certifications VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc. VDE4105/G99/G98/AS4777 / EN50549/ CEI 0-21/IEC61727/VDE 0124 etc.
