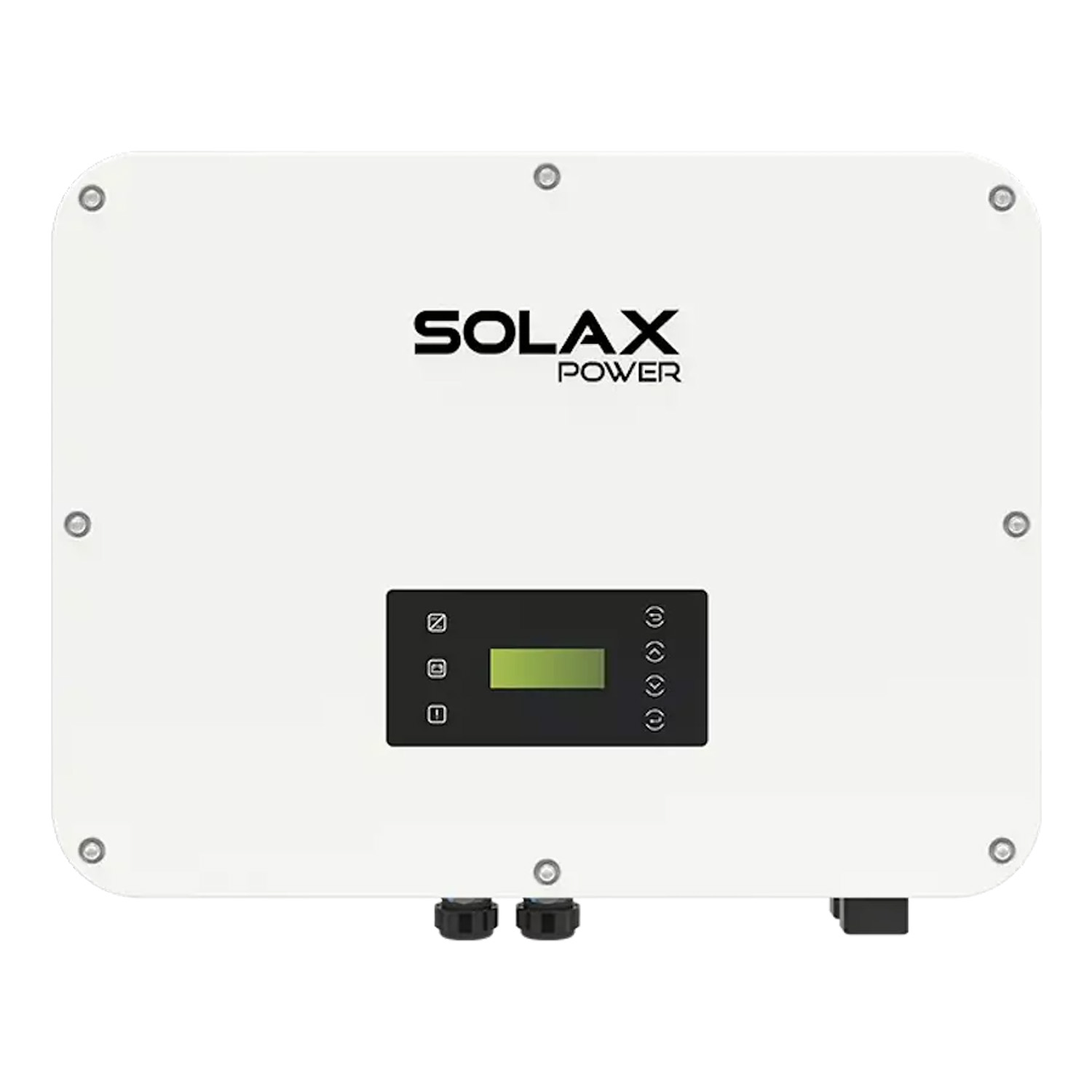

Inverter – SOLAX – X3-ULT-20KP – Hybrid – High Voltage
SKU: F20S127
EAN: 2010000034965
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| Weight | 55,98 kg |
| CN | 85044086 |
Price
2 794,77 €
Gross
Gross
Datasheet Solax X3-ULT-15KP - X3-ULT-30KP
Solax-X3-ULT-15KP-X3-ULT-30KP-Datasheet.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| Weight | 55,98 kg |
| CN | 85044086 |
Solax X3-Ultra Inverters (Three-Phase)
The Solax X3-Ultra inverters are advanced three-phase on-grid solutions designed for maximum performance and reliability. With an innovative design and high conversion efficiency, they ensure optimal use of energy from photovoltaic panels.
Key features of the Solax X3-Ultra:
- Maximum PV capacity up to 60,000 Wp.
- High DC input voltage up to 1000 V.
- Supports connection of up to 3 MPP trackers with a 2/2/2 string configuration.
- AC apparent power ranging from 16,500 VA to 30,000 VA, depending on the model.
- Compatible with lithium‑ion batteries with a voltage range of 180–800 V.
- EPS peak power up to 30,000 VA with a switching time below 10 ms.
- IP66 protection rating and a wide operating temperature range from -35°C to 60°C.
- Advanced protection features, including AFCI.
Who is this a good choice for?
The Solax X3-Ultra inverters are an ideal choice for higher-capacity photovoltaic installations, suitable for both commercial applications and large residential properties. Their versatility, high efficiency, ability to integrate with energy storage, and advanced safety features make them an excellent solution for users seeking efficient and reliable systems.
Datasheet Solax X3-ULT-15KP - X3-ULT-30KP
Solax-X3-ULT-15KP-X3-ULT-30KP-Datasheet.pdf
| Parameter | X3-ULT-15KP | X3-ULT-15K | X3-ULT-20KP | X3-ULT-20K | X3-ULT-25K | X3-ULT-30K |
| PV INPUT | ||||||
| Maximum recommended panel power [Wp] | 30000 | 30000 | 40000 | 40000 | 50000 | 60000 |
| Maximum DC input power [W] | 30000 | 30000 | 40000 | 40000 | 50000 | 60000 |
| Max. DC voltage [V] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Nominal DC operating voltage [V] | 600 | 600 | 600 | 600 | 600 | 600 |
| Number of MPP trackers / strings per MPP | 3 (2/2/2) | 2 (2/2) | 3 (2/2/2) | 2 (2/2) | 3 (2/2/2) | 3 (2/2/2) |
| Max. current (PV1 input / PV2 input / PV3 input) [A] | PV1: 36 / PV2: 36 / PV3: 36 | PV1: 36 / PV2: 36 | PV1: 36 / PV2: 36 / PV3: 36 | PV1: 45 / PV2: 45 | PV1: 36 / PV2: 36 / PV3: 36 | PV1: 36 / PV2: 36 / PV3: 36 |
| Max. short-circuit current (PV1 input / PV2 input / PV3 input) [A] | PV1: 45 / PV2: 45 / PV3: 45 | PV1: 45 / PV2: 45 | PV1: 45 / PV2: 45 / PV3: 45 | PV1: 45 / PV2: 45 | PV1: 45 / PV2: 45 / PV3: 45 | PV1: 45 / PV2: 45 / PV3: 45 |
| MPPT voltage range [V] | 160-950 | 160-950 | 160-950 | 160-950 | 160-950 | 160-950 |
| Start-up output voltage [V] | 200 | 200 | 200 | 200 | 200 | 200 |
| AC OUTPUT (ON-GRID) | ||||||
| Rated AC apparent power [VA] | 15000 (AS 477714999) | 15000 (AS 477714999) | 20000 | 20000 | 25000 | 30000 (AS 4777 29999) |
| Max. AC apparent power [VA] | 16500 (AS 477714999) | 16500 (AS 477714999) | 22000 | 22000 | 27500 | 30000 (AS 4777 29999) |
| Rated grid voltage (AC voltage range) [V] | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 |
| Rated grid frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated AC current [A] | 21.8 | 21.8 | 29.0 | 29.0 | 36.3 | 43.5 |
| Max. AC current [A] | 24.0 | 24.0 | 31.9 | 31.9 | 39.9 | 43.5 |
| Power factor | 1 (-0.8~0.8) | 1 (-0.8~0.8) | 1 (-0.8~0.8) | 1 (-0.8~0.8) | 1 (-0.8~0.8) | 1 (-0.8~0.8) |
| Total harmonic distortion (THDi, %) | <3 | <3 | <3 | <3 | <3 | <3 |
| AC INPUT | ||||||
| Rated AC apparent power [VA] | 15000 | 15000 | 20000 | 20000 | 25000 | 30000 |
| Rated AC current [A] | 21.8 | 21.8 | 29.0 | 29.0 | 36.3 | 43.5 |
| Rated grid voltage (AC voltage range) [V] | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 | 3P4W, 400/230 |
| Rated grid frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| BATTERY | ||||||
| Battery type | Lithium-ion | Lithium-ion | Lithium-ion | Lithium-ion | Lithium-ion | Lithium-ion |
| Battery voltage range [V] | 180-800 | 180-800 | 180-800 | 180-800 | 180-800 | 180-800 |
| Max. charging / discharging current [A] | 60 (30 x 2) | 60 (30 x 2) | 60 (30 x 2) | 60 (30 x 2) | 60 (30 x 2) | 60 (30 x 2) |
| EPS OUTPUT (WITH BATTERY) | ||||||
| EPS peak power [VA] | 15000 | 15000 | 20000 | 20000 | 25000 | 30000 |
| Rated EPS power [VA] | 15000 | 15000 | 20000 | 20000 | 25000 | 30000 |
| EPS rated voltage [V], frequency [Hz] | 400/230; 50/60 | 400/230; 50/60 | 400/230; 50/60 | 400/230; 50/60 | 400/230; 50/60 | 400/230; 50/60 |
| EPS rated current [A] | 21.8 | 21.8 | 29.0 | 29.0 | 36.3 | 43.5 |
| Transfer time [ms] | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 |
| Total harmonic distortion (THDV, linear load) [%] | <3 | <3 | <3 | <3 | <3 | <3 |
| POWER CONSUMPTION | ||||||
| Self-consumption (night) [W] | < 5 | < 5 | < 5 | < 5 | < 5 | < 5 |
| PROTECTION | ||||||
| Anti-islanding protection | YES | YES | YES | YES | YES | YES |
| Protection against reverse DC polarity | YES | YES | YES | YES | YES | YES |
| Insulation monitoring | YES | YES | YES | YES | YES | YES |
| Residual current monitoring | YES | YES | YES | YES | YES | YES |
| AC overcurrent protection | YES | YES | YES | YES | YES | YES |
| AC short-circuit protection | YES | YES | YES | YES | YES | YES |
| AC surge protection | YES | YES | YES | YES | YES | YES |
| Overheat protection | YES | YES | YES | YES | YES | YES |
| Reverse battery charging from the grid | YES | YES | YES | YES | YES | YES |
| Surge protection | Type II, DC and AC | Type II, DC and AC | Type II, DC and AC | Type II, DC and AC | Type II, DC and AC | Type II, DC and AC |
| AFCI | OPT | OPT | OPT | OPT | OPT | OPT |
| EFFICIENCY | ||||||
| Max. efficiency / EURO efficiency | 98.0% / 97.7% | 98.5% / 97.0% | 98.0% / 97.7% | 98.5% / 97.0% | 98.0% / 97.7% | 98.0% / 97.7% |
| Rated charging efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| MPPT tracking efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| STANDARD | ||||||
| Safety | EN / IEC62109-1/-2 | EN / IEC62109-1/-2 | EN / IEC62109-1/-2 | EN / IEC62109-1/-2 | EN / IEC62109-1/-2 | EN / IEC62109-1/-2 |
| EMC | EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 | EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 | EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 | EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 | EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 | EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 |
| Certification | VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR | VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR | VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR | VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR | VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR | VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR |
| GENERAL DATA | ||||||
| Protection class | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Operating temperature range [°C] | -35~60 (Derating above +45) | -35~60 (Derating above +45) | -35~60 (Derating above +45) | -35~60 (Derating above +45) | -35~60 (Derating above +45) | -35~60 (Derating above +45) |
| Relative humidity [%] | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
| Altitude [m] | < 3000 | < 3000 | < 3000 | < 3000 | < 3000 | < 3000 |
| Storage temperature [°C] | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 |
| Dimensions (W x H x D) [mm] | 696 x 526 x 240 | 696 x 526 x 240 | 696 x 526 x 240 | 696 x 526 x 240 | 696 x 526 x 240 | 696 x 526 x 240 |
| Weight (kg) | 47 | 47 | 47 | 47 | 47 | 47 |
| Cooling concept | Smart cooling | Smart cooling | Smart cooling | Smart cooling | Smart cooling | Smart cooling |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Communication | Modbus (RS485), Meter (RS485), DI × 5, DO × 2 | Modbus (RS485), Meter (RS485), DI × 5, DO × 2 | Modbus (RS485), Meter (RS485), DI × 5, DO × 2 | Modbus (RS485), Meter (RS485), DI × 5, DO × 2 | Modbus (RS485), Meter (RS485), DI × 5, DO × 2 | Modbus (RS485), Meter (RS485), DI × 5, DO × 2 |
Note: PV3 input is available only for 15KP, 25K and 30K models.
