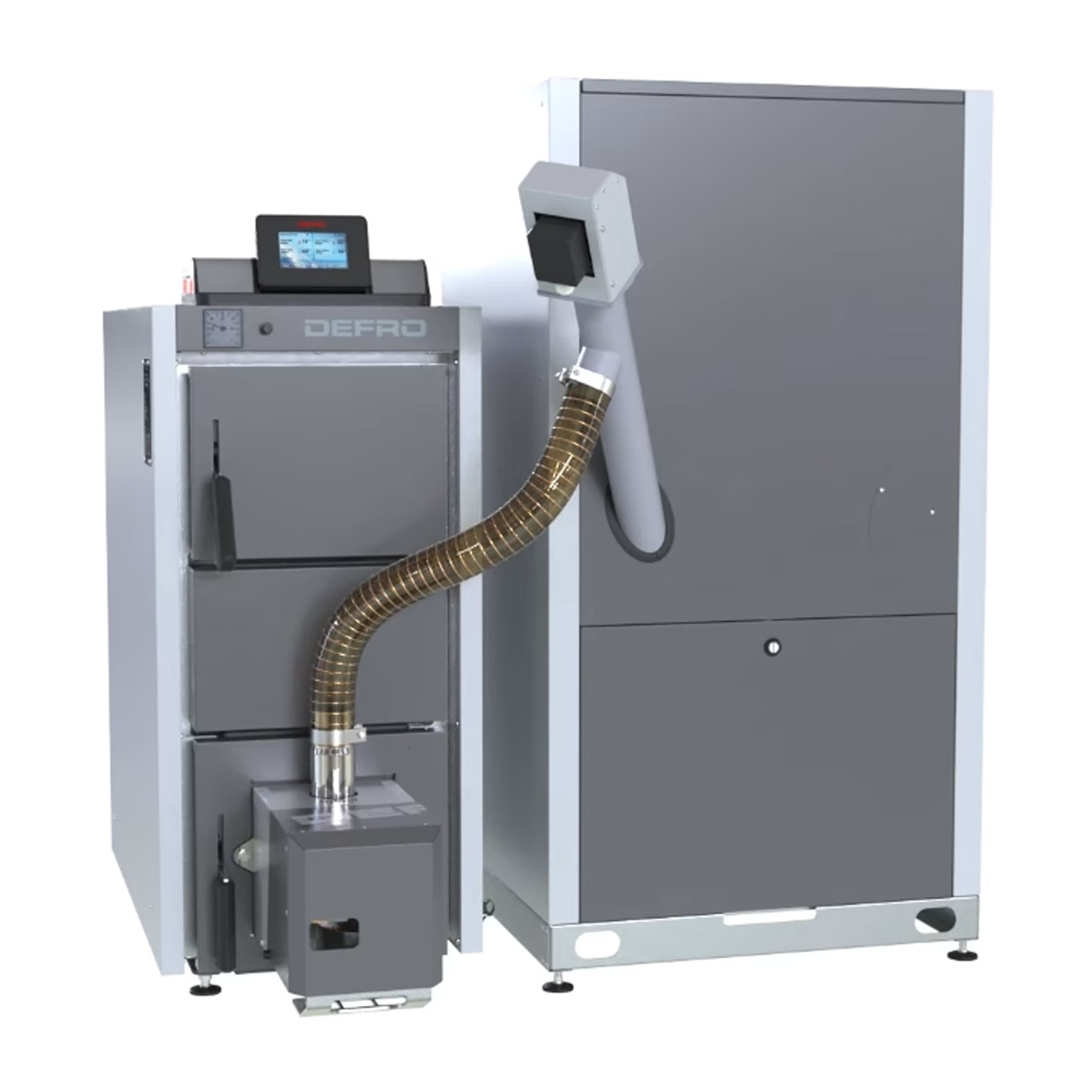

DEFRO DELTA EkoPELL 30 kW boiler Left/Right
SKU: F1708
EAN: 2010000030011
Product details
| Manufacturer |
|---|
Defro DELTA EKOPELL Pellet Boilers
The Defro DELTA EKOPELL pellet boilers are modern, automatic heating units designed for efficient and environmentally friendly wood pellet combustion. Complying with the strict Ecodesign requirements (Commission Regulation (EU) 2015/1189), they provide high user comfort and reliable heating for a variety of buildings, meeting A+ energy class standards.
- Product intended for the Polish market
- Warranty for the Polish market.
Key features of Defro DELTA EKOPELL boilers:
- Automatic pellet combustion: The boiler is configured for comfortable and efficient automatic wood pellet burning, minimizing the need for user intervention.
- High energy efficiency: The units hold an A+ energy class and offer high seasonal space heating efficiency (up to 80%), ensuring economical fuel consumption.
- Eco-friendly and standards-compliant: The boilers meet Ecodesign requirements (Commission Regulation (EU) 2015/1189), featuring low emissions of particulate matter (PM), carbon monoxide (CO), organic gaseous compounds (OGC) and nitrogen oxides (NOx).
- Wide power range: The series includes models with nominal outputs of 10, 15, 20, 25 and 30 kW, allowing precise selection to match a building’s heat demand.
- Optimal operation with a buffer: For the most stable and efficient heating system performance, it is recommended to operate the boiler together with a suitably sized buffer tank for domestic hot water (minimum capacity 200–600 L depending on the model).
Who is this a good choice for?
Defro DELTA EKOPELL boilers are an excellent option for owners of single-family homes and smaller utility or commercial buildings who are looking for a modern, efficient, eco-friendly and largely low-maintenance heat source. Thanks to Ecodesign compliance and a high energy class, they are ideal for both new constructions and renovated buildings where heating efficiency and environmental care are priorities.
Technical specification – DEFRO DELTA EKOPELL boilers (10-30 kW)
| Parameter | DELTA EKOPELL 10 | DELTA EKOPELL 15 | DELTA EKOPELL 20 | DELTA EKOPELL 25 | DELTA EKOPELL 30 |
|---|---|---|---|---|---|
| Device parameters | |||||
| Model identifier | DELTA EKOPELL 10 | DELTA EKOPELL 15 | DELTA EKOPELL 20 | DELTA EKOPELL 25 | DELTA EKOPELL 30 |
| Fuel feeding method | Automatic fuel feeding: operation of the boiler is recommended with a domestic hot water tank of at least 200 l | Automatic fuel feeding: operation of the boiler is recommended with a domestic hot water tank of at least 300 l | Automatic fuel feeding: operation of the boiler is recommended with a domestic hot water tank of at least 400 l | Automatic fuel feeding: operation of the boiler is recommended with a domestic hot water tank of at least 500 l | Automatic fuel feeding: operation of the boiler is recommended with a domestic hot water tank of at least 600 l |
| Condensing boiler | no | no | no | no | no |
| Solid fuel cogeneration boiler | no | no | no | no | no |
| Multifunctional boiler | no | no | no | no | no |
| Parameters according to Regulation 2015/1187 | |||||
| Energy efficiency class | A+ | A+ | A+ | A+ | A+ |
| Rated thermal output (kW) | 10 | 15 | 20 | 25 | 30 |
| Energy efficiency index (EEI) | 116 | 118 | 118 | 118 | 118 |
| Seasonal space heating efficiency (ηs) (%) | 78 | 80 | 80 | 80 | 80 |
| Fuel and emissions for seasonal space heating | |||||
| Fuel | (recommended / other suitable) | ||||
| Logs, moisture ≤ 25% | no / no | no / no | no / no | no / no | no / no |
| Wood chips, moisture 15-35% | no / no | no / no | no / no | no / no | no / no |
| Wood chips, moisture > 35% | no / no | no / no | no / no | no / no | no / no |
| Compressed wood in the form of pellets or briquettes | yes / no | yes / no | yes / no | yes / no | yes / no |
| Sawdust, moisture ≤ 50% | no / no | no / no | no / no | no / no | no / no |
| Other woody biomass | no / no | no / no | no / no | no / no | no / no |
| Non-woody biomass | no / no | no / no | no / no | no / no | no / no |
| Hard coal | no / no | no / no | no / no | no / no | no / no |
| Lignite (including briquettes) | no / no | no / no | no / no | no / no | no / no |
| Coke | no / no | no / no | no / no | no / no | no / no |
| Anthracite | no / no | no / no | no / no | no / no | no / no |
| Briquettes from mixed fossil fuel | no / no | no / no | no / no | no / no | no / no |
| Other fossil fuel | no / no | no / no | no / no | no / no | no / no |
| Briquettes from a mix (30-70%) of biomass and fossil fuel | no / no | no / no | no / no | no / no | no / no |
| Other mixture of biomass and fossil fuel | no / no | no / no | no / no | no / no | no / no |
| PM emissions (mg/m³) – Recommended fuel | 19 | 15 | 16 | 15 | 16 |
| OGC emissions (mg/m³) – Recommended fuel | 14 | 8 | 16 | 16 | 15 |
| CO emissions (mg/m³) – Recommended fuel | 334 | 301 | 388 | 352 | 339 |
| NOₓ emissions (mg/m³) – Recommended fuel | 104 | 111 | 107 | 96 | 90 |
| Properties when operated using only the recommended fuel | |||||
| Generated useful heat | |||||
| at nominal thermal output (Pn) (kW) | 10.0 | 14.5 | 19.8 | 24.9 | 29.4 |
| at 30% of nominal thermal output (Pp) (kW) | 2.8 | 3.9 | 5.4 | 6.7 | 8.8 |
| Useful efficiency | |||||
| at nominal thermal output (ηn) (%) | 85.1 | 84.6 | 84.6 | 84.6 | 84.7 |
| at 30% of nominal thermal output (ηp) (%) | 83.4 | 84.4 | 84.0 | 84.3 | 84.3 |
| for solid fuel cogeneration boilers: electrical efficiency | |||||
| at nominal thermal output (ηel,n) (%) | n/a | n/a | n/a | n/a | n/a |
| Electricity consumption for internal use | |||||
| at nominal thermal output (elmax) (kW) | 0.074 | 0.078 | 0.099 | 0.116 | 0.126 |
| at 30% of nominal thermal output (elmin) (kW) | 0.025 | 0.026 | 0.030 | 0.034 | 0.036 |
| secondary emission reduction devices, where applicable | n/a | n/a | n/a | n/a | n/a |
| in standby mode (PSB) (kW) | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
