Structures – K2 – 2003144 – CrossHook 4S – RGZ-K2
SKU: F600W
EAN: 2010000044315
| Weight | 0,63 kg |
|---|---|
| CN | 76109090 |
Price
12,30 €
Incl. VAT
Incl. VAT
Product details
| Weight | 0,63 kg |
|---|---|
| CN | 76109090 |

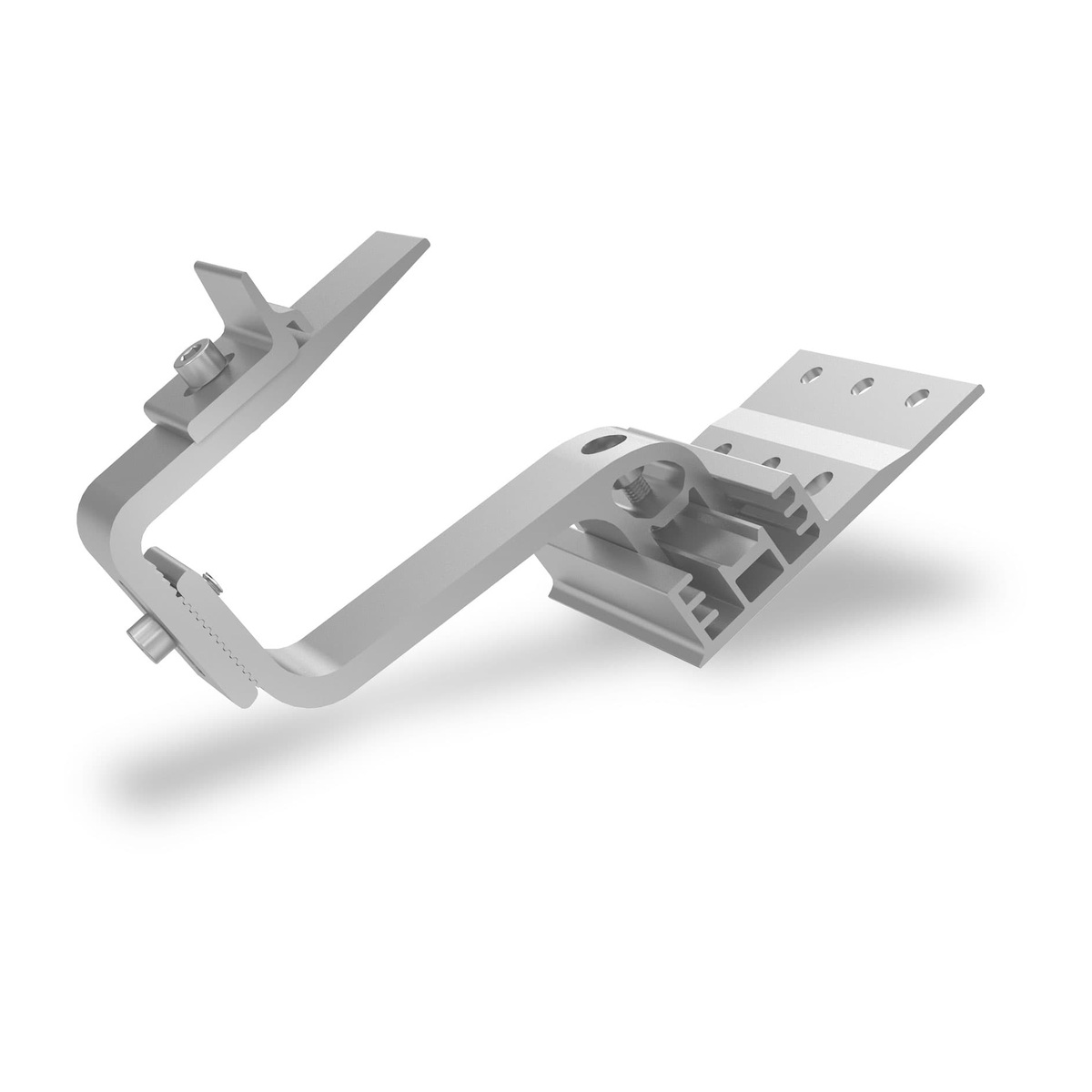

K2 2003144 – SingleHook 4S (formerly CrossHook 4S)
K2 SingleHook 4S 2003144, previously offered under the name CrossHook 4S, is an adjustable roof hook designed for mounting K2 SingleRail and CrossRail rails on pitched roofs covered with tiles.
Three-step adjustment of the base plate and an adjustable arm make it easier to adapt the mount to the roof geometry. The hook is made of aluminium EN AW-6063 T66 and stainless steel A2. The product is supplied with K2 Climber 36/50 and an Allen (hex) screw.
Key features
- for pitched roofs covered with tiles,
- compatible with K2 SingleRail and CrossRail rails,
- three base plate positions: 40, 47 or 54 mm,
- arm adjustment range 30 mm,
- total height range 120,5–165,1 mm,
- includes K2 Climber 36/50 and Allen screw.
Technical data
| Manufacturer | K2 Systems |
|---|---|
| Current name | SingleHook 4S |
| Previous name | CrossHook 4S |
| Product number | 2003144 |
| GTIN / EAN | 4251786213030 |
| Application | Pitched roofs covered with tiles |
| Compatible rails | K2 SingleRail and CrossRail |
| Base plate adjustment | 40 / 47 / 54 mm |
| Arm adjustment | 30 mm |
| Total height range | 120,5–165,1 mm |
| Base plate dimensions | 100 × 124 × 3,5/6 mm |
| Arm dimensions | 35 × 8,5 mm |
| Minimum rafter width | 48 mm; from 36 mm when using an M6 structural screw |
| Material | Aluminium EN AW-6063 T66, stainless steel A2 |
| Equipment | K2 Climber 36/50 and Allen screw |
| Weight | 0,632 kg |
| Sales unit | 30 pcs. |
| Bulk packaging | 30 pcs./carton; 720 pcs./pallet |
