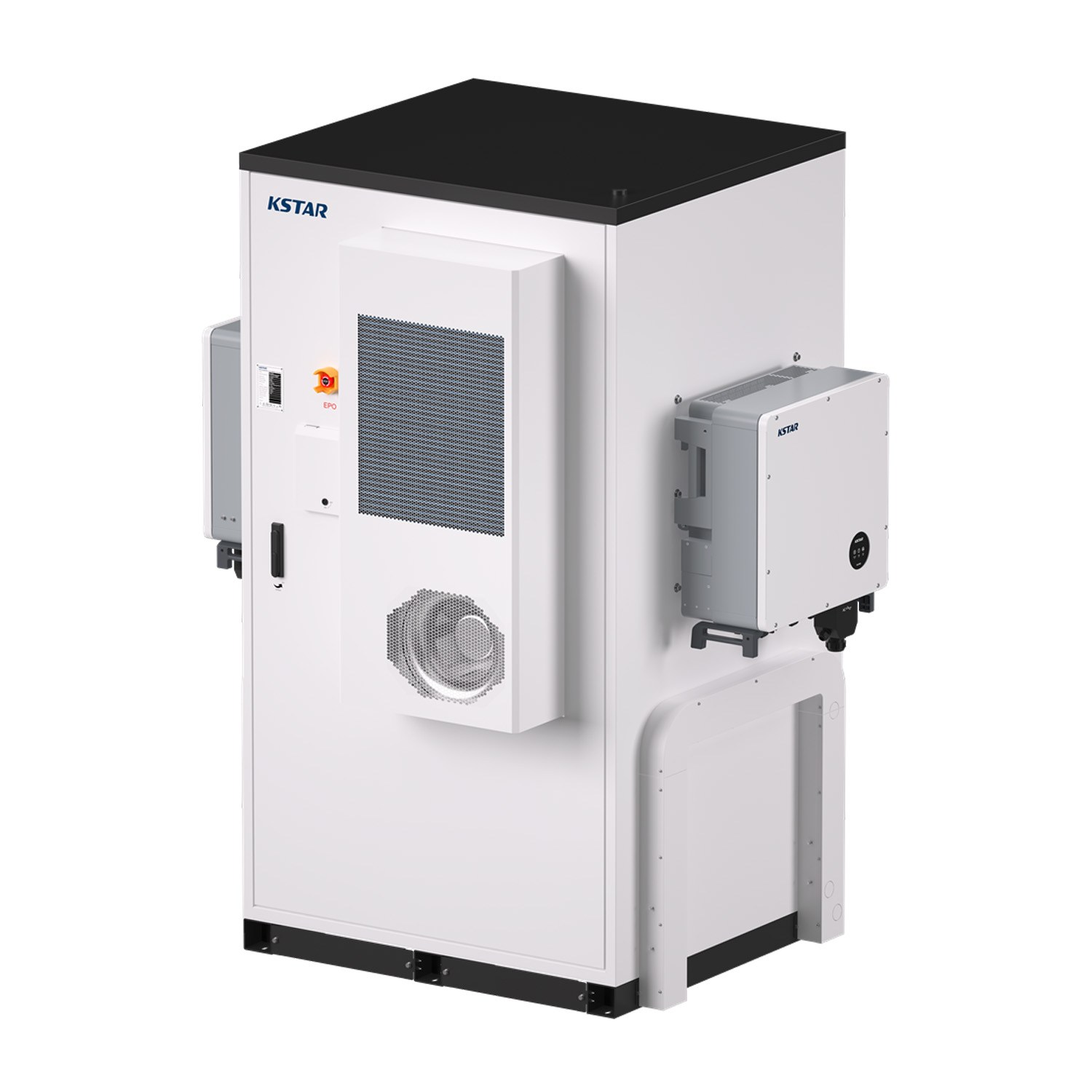

KSTAR All-in-One Commercial & Industrial Energy Storage System 100 kW / 197 kWh
SKU: F2300-2
EAN: 2010000030950
| Manufacturer | |
|---|---|
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Warranty | |
| Rated power | |
| Ethernet | |
| CAN |
Price
52 918,08 €
Gross
Gross
Datasheet KSTAR KAC50DP-BC197DE
KSTAR-KAC50DP-BC197DE-Datasheet.pdf
Warranty KSTAR ALL IN ONE C&I ESS
KSTAR-ALL-IN-ONE-CI-ESS-Warranty.pdf
Product details
| Manufacturer | |
|---|---|
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Warranty | |
| Rated power | |
| Ethernet | |
| CAN |
Order lead time is 60/90 days
KSTAR BluePulse Series Energy Storage System for C&I
The new KSTAR BluePulse Series is an advanced energy storage system (ESS) designed specifically for commercial and industrial (C&I) applications. It combines safety, reliability, cost-effectiveness and high performance with simple, user-friendly operation. The system consists of modular battery cabinets (BC100DE, BC197DE) and a hybrid inverter (KAC50DP), allowing flexible configurations to suit different needs, e.g. 50kW/100kWh, 50kW/200kWh or 100kW/197kWh.
Key features of the KSTAR BluePulse Series Energy Storage System:
- Safety and reliability: The battery cabinets use CATL LFP cells, include advanced battery management systems (BMS) and are equipped with air conditioning. The KAC50DP inverter provides multiple electrical protections.
- Modularity and scalability: The system can be configured with different power and capacity levels by combining battery cabinets (e.g. BC100DE with 102.4 kWh or BC197DE with 197 kWh) with KAC50DP inverters (50 kW). The maximum number of inverters that can be connected in parallel is 20.
- High efficiency: The KAC50DP hybrid inverter features a peak efficiency of 97.5% and has 3 MPPT trackers to optimize yield from the PV installation.
- Resistance to outdoor conditions: The battery cabinets are designed for outdoor installation (IP54, corrosion class C4, operating temperature -30°C to +50°C). The inverter has an IP65 protection rating and operates between -25°C and +60°C.
- Easy operation and intelligent management: Integrated EMS, Ethernet and CAN communication ports, and CAN and TCP protocols enable straightforward management and monitoring of the system.
- On-grid and off-grid operation: The system provides a rated output power of 50 kW (max. 55 kVA) both when connected to the grid and in backup power mode. For off-grid applications, additional STS cabinets are required.
Who is this a good choice for?
The KSTAR BluePulse Series energy storage system is an ideal solution for businesses, commercial facilities and industrial sites looking for a reliable, efficient and scalable ESS. It is well suited for reducing energy costs, increasing self-consumption from PV systems, providing backup power and stabilizing the grid. Thanks to its modular design and ability to operate in harsh outdoor conditions, this system offers flexibility and long-term value for a wide range of C&I applications.
Datasheet KSTAR KAC50DP-BC197DE
KSTAR-KAC50DP-BC197DE-Datasheet.pdf
Warranty KSTAR ALL IN ONE C&I ESS
KSTAR-ALL-IN-ONE-CI-ESS-Warranty.pdf
| Parameter | KAC50DP (Hybrid inverter) | BC100DE (Battery cabinet) | BC197DE (Battery cabinet) |
|---|---|---|---|
| External battery cabinet parameters | |||
| Technical parameters of the battery cabinet | |||
| Battery type | LFP | LFP | |
| Manufacturer | CATL | CATL | |
| Cell type (Ah) | 100 | 280 | |
| Module capacity (kWh) | 5.12 | 17.92 | |
| Number of modules | 20 | 11 | |
| Total capacity (kWh) | 102.4 | 197 | |
| Nominal voltage (V) | 512 | 704 | |
| Voltage range (V) | 456 V ~ 576 V | 616 V ~ 792 V | |
| Battery charge/discharge rate | 0.5C | 0.5C | |
| DoD (%) | 90% | 90% | |
| Main parameters of the battery cabinet | |||
| Dimensions (W x H x D) (mm) | 1100 x 2380 x 1100 | 1300 x 2380 x 1200 | |
| Weight (T) | < 1.5 | < 2.5 | |
| Installation location | Outdoor | Outdoor | |
| IP rating | IP54 | IP54 | |
| Corrosion protection class | C4 | C4 | |
| Humidity range (%) | 5% ~ 95% (No condensation) | 5% ~ 95% (No condensation) | |
| Temperature range (°C) | -30°C ~ +50°C | -30°C ~ +50°C | |
| Max. altitude (m) | 4000 m ( > 3000 m power derating ) | 4000 m ( > 3000 m power derating ) | |
| Communication ports | Ethernet; CAN | Ethernet; CAN | |
| Communication protocols | CAN; TCP | CAN; TCP | |
| Cooling | Air conditioner | Air conditioner | |
| Battery cabinet certifications | IEC 62619-2017; UN 38.3; IEC 61000-6-2/4 | IEC 62619-2017; UN 38.3; IEC 61000-6-2/4 | |
| Technical parameters of the hybrid inverter (KAC50DP) | |||
| PV side (KAC50DP) | |||
| Max. MPPT voltage (V) | 1000 | ||
| MPPT voltage range (V) | 350 V ~800 V | ||
| Max. current per MPPT (A) | 36 | ||
| Number of MPPTs | 3 | ||
| Number of inputs per MPPT | 2 | ||
| Battery side (KAC50DP) | |||
| Max. input voltage (V) | 750 | ||
| Min. input voltage (V) | 350 | ||
| DC nominal voltage (V) | 500 V ~ 750 V | ||
| Max. DC current (A) | 55 A*2 | ||
| Max. DC power (kW) | 55 | ||
| Number of DC inputs | 2 | ||
| AC side (utility grid) (KAC50DP) | |||
| Rated AC power (kW) | 50 | ||
| Max. AC output power (kVA) | 55 | ||
| Max. AC current (A) | 80 | ||
| Rated voltage (V) | 400 | ||
| Voltage range (V) | 340 V ~ 440 V | ||
| Rated frequency / range (Hz) | 50/60 Hz ±5Hz | ||
| THDv (%) | < 3% (100% Load) | ||
| Power factor adjustment range | -1 (Inductive) ~ 1 (Capacitive) | ||
| AC side (Mode: Off Grid)¹) (KAC50DP) | |||
| Rated voltage (V) | 230/400 V ±3%; 3L+N+PE | ||
| THDv (%) | < 3% (linear load) | ||
| Frequency (Hz) | 50/60 Hz | ||
| Rated AC power (kW) | 50 | ||
| Max. AC output power (kVA) | 55 | ||
| Efficiency (KAC50DP) | |||
| Max. efficiency (%) | 97.5% | ||
| Protection (KAC50DP) | |||
| Protection against reverse DC connection | Yes | ||
| DC switch | Yes | ||
| Temperature protection | Yes | ||
| Grid monitoring / ground monitoring | Yes | ||
| Insulation resistance monitoring | Yes | ||
| Surge protection DC / AC | DC Type II; AC Type III | ||
| General inverter parameters (KAC50DP) | |||
| Dimensions (WxHxD) (mm) | 650 x 715 x 325 | ||
| Weight (kg) | 75 | ||
| Topology | Transformerless | ||
| IP rating | IP65 | ||
| Operating temperature range (°C) | -25 ~ 60°C ( > 45°C power derating ) | ||
| Humidity range (%) | 0 ~ 100% (No condensation) | ||
| Cooling type | Air cooling | ||
| Max. altitude (m) | 3000 | ||
| Communication ports | RS-485 / CAN | ||
| Inverter certifications | IEC 62477; IEC 61000; CE; GB/T; IEC 62109; IEC 61683; IEC 60068; IEC 61727; IEC 62116; EN 50549; VDE 4105; G 99 | ||
¹) For OFF-GRID applications, STS100D or STS250D cabinets are required.
The maximum number of inverters connected in parallel is 20 units.
