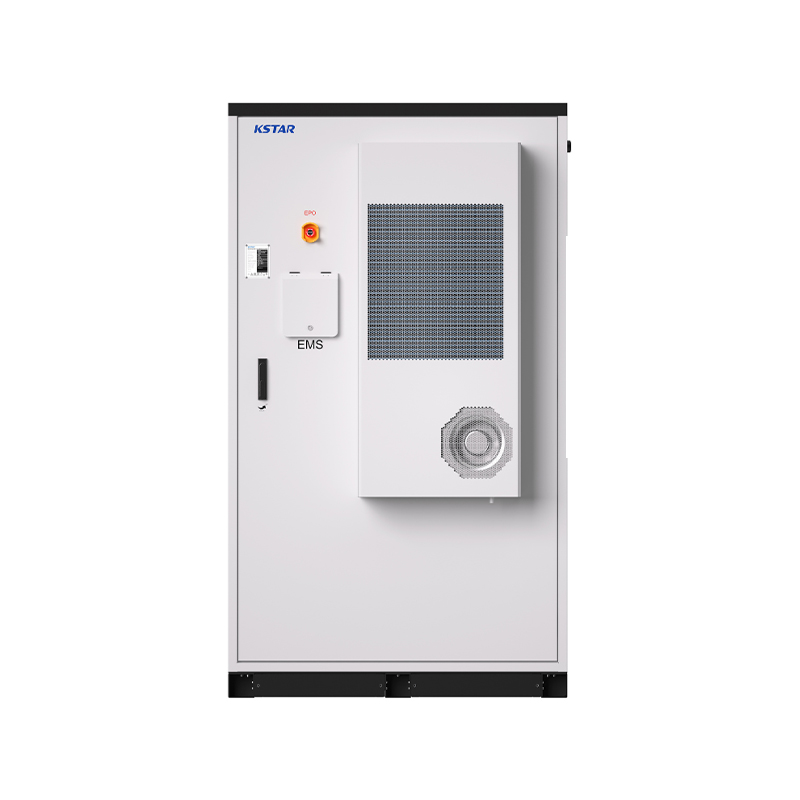

Energy storage system – KSTAR – BC215DE2

BluePulse

BluePulse is a series of KSTAR energy storage systems with LFP batteries and hybrid inverters, designed to work with DC- or AC-coupled photovoltaic systems. It supports self-consumption, shifting energy use to off-peak hours, time-of-use tariff management, and backup power. Integrated BMS and EMS systems and cloud-based control enable energy management and round-the-clock monitoring.

Key benefits of BluePulse

• Battery capacity 197.12–215.04 kWh depending on the model, LFP technology and a depth of discharge (DoD) of 95%.
• Rated AC output power 20–50 kW in grid-connected and backup power modes, depending on the inverter model.
• Switching between grid-connected and off-grid operation within 10 ms thanks to the integrated STS; this parameter applies to the operation of a single PCS converter with a purely resistive load.
• Parallel operation of up to 20 PCS converters in grid-connected mode or up to 10 in grid-connected and off-grid configurations.
• Battery cabinet equipment supporting safety: carbon monoxide detection, audible and visual alarm, exhaust fan, explosion relief window, inlet valve and connection for supplying firefighting water.
• Battery cabinet for outdoor installation with an IP54 protection rating and C4 corrosion resistance class, equipped with air conditioning.

Who is this a good choice for?

BluePulse is designed for owners and operators of factories, hotels and farms who want to combine photovoltaics with energy storage. Self-consumption and time-of-use tariff management features meet the needs of users planning their energy consumption, while backup power and round-the-clock monitoring support system oversight and access to energy during off-grid operation.
