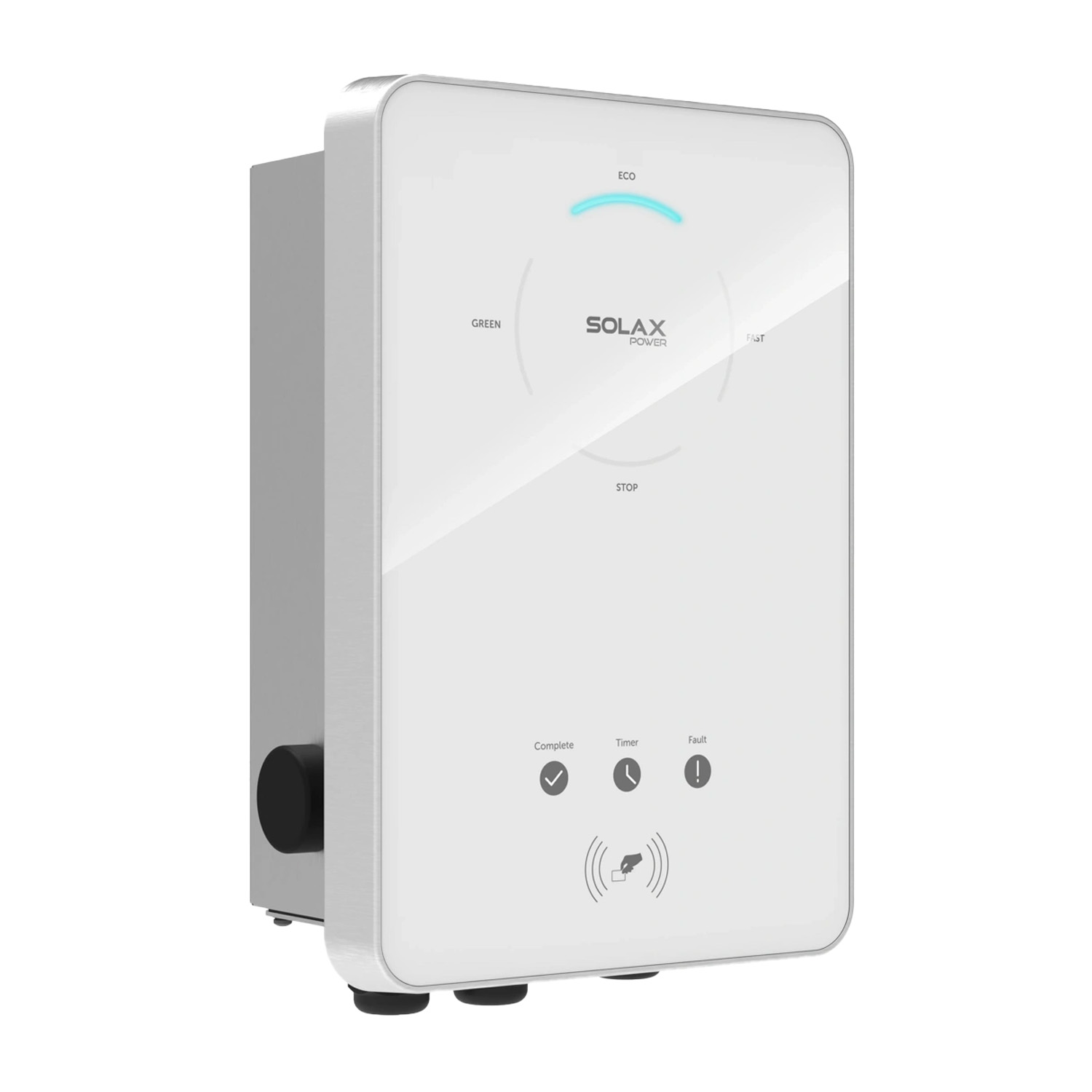

Charger – SOLAX – X3-EVC-11K
SKU: F130720
EAN: 2010000035498
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Power | |
| Cable length | |
| OCPP | |
| Wi-Fi | |
| RS485 | |
| Ethernet | |
| Weight | 10,82 kg |
Price
610,79 €
Gross
Gross
Datasheet Solax X1-EVC-7.2K - X3-EVC-22K
Solax-X1-EVC-7.2K-X3-EVC-22K-Datasheet.pdf
Manual Solax X1-EVC-7.2K - X3-EVC-22K
Solax-X1-EVC-7.2K-X3-EVC-22K-Manual.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Power | |
| Cable length | |
| OCPP | |
| Wi-Fi | |
| RS485 | |
| Ethernet | |
| Weight | 10,82 kg |
Solax Smart EV Charger X1-EVC / X3-EVC
The Solax Smart EV Charger is an advanced electric vehicle charging solution designed to maximize the use of renewable energy. It delivers high efficiency and safety through modern energy management technologies.
Key features of the Solax Smart EV Charger X1-EVC / X3-EVC:
- Ability to charge using up to 100% renewable energy, maximizing the use of surplus from a photovoltaic (PV) system.
- Smart features including RFID access control and remote management via a mobile app.
- Advanced safety protections such as leakage protection (30 mA AC and 6 mA DC) and dynamic load balancing.
- Flexible installation options with a choice of plug or socket and suitability for both indoor and outdoor mounting.
- Available in single-phase (7.2 kW) and three-phase (11 kW or 22 kW) versions to suit different needs.
- Durable construction with IP65 protection rating and IK10 impact resistance for reliable operation in all conditions.
Who is it good for?
The Solax Smart EV Charger is an ideal choice for homeowners and businesses with solar PV systems who want to fully leverage their solar production for EV charging. It is well suited for both residential and commercial applications, offering efficient, safe, and intelligent energy management.
Datasheet Solax X1-EVC-7.2K - X3-EVC-22K
Solax-X1-EVC-7.2K-X3-EVC-22K-Datasheet.pdf
Manual Solax X1-EVC-7.2K - X3-EVC-22K
Solax-X1-EVC-7.2K-X3-EVC-22K-Manual.pdf
| Parameter | X1-EVC-7.2K | X3-EVC-11K | X3-EVC-22K |
|---|---|---|---|
| NOMINAL AC INPUT | |||
| Phases/lines | Single-phase | Three-phase | Three-phase |
| Voltage | 1/N/PE, 230 V | 3/N/PE, 230 / 400 V | 3/N/PE, 230/400 V |
| Frequency | 50 ± 5 Hz / 60 ± 5 Hz | 50 ± 5 Hz / 60 ± 5 Hz | 50 ± 5 Hz / 60 ± 5 Hz |
| NOMINAL AC OUTPUT | |||
| Voltage | 1/N/PE, 230 V | 3/N/PE, 230 / 400 V | 3/N/PE, 230/400 V |
| Current | 32 A | 16 A | 32 A |
| Power | 7.2 kW | 11 kW | 22 kW |
| INTERFACE | |||
| Wireless module | Wi-Fi 2.4 GHz | Wi-Fi 2.4 GHz | Wi-Fi 2.4 GHz |
| Ethernet | Yes | Yes | Yes |
| RS485 | Yes | Yes | Yes |
| RFID | Yes | Yes | Yes |
| OCPP 1.6 (JSON) | Yes | Yes | Yes |
| LCD screen | Optional | Optional | Optional |
| CT terminals | X1 | X3 | X3 |
| GENERAL | |||
| Enclosure material | Plastic/metal | Plastic/metal | Plastic/metal |
| Installation method | Wall mount / pedestal (optional) | Wall mount / pedestal (optional) | Wall mount / pedestal (optional) |
| Wall mounting bracket | Yes | Yes | Yes |
| Charging outlet | Type P (charging cable with plug) / Type S (socket-outlet) | Type P (charging cable with plug) / Type S (socket-outlet) | Type P (charging cable with plug) / Type S (socket-outlet) |
| Cable length | 6.5 m (Type P) | 6.5 m (Type P) | 6.5 m (Type P) |
| Operating temperature | -30 to 50°C | -30 to 50°C | -30 to 50°C |
| Operating humidity | 5–95% RH (non-condensing) | 5–95% RH (non-condensing) | 5–95% RH (non-condensing) |
| Operating altitude | < 2000 m | < 2000 m | < 2000 m |
| Protection rating | IP65 | IP65 | IP65 |
| Impact resistance | IK10 (enclosure) / IK08 (LCD screen) | IK10 (enclosure) / IK08 (LCD screen) | IK10 (enclosure) / IK08 (LCD screen) |
| Installation location | Indoor and outdoor | Indoor and outdoor | Indoor and outdoor |
| Cooling concept | Natural cooling | Natural cooling | Natural cooling |
| Dimensions (W × H × D) | 249 × 370 × 155 mm (Type S) / 265 × 370 × 155 mm (Type P) | 249 × 370 × 155 mm (Type S) / 265 × 370 × 155 mm (Type P) | 249 × 370 × 155 mm (Type S) / 265 × 370 × 155 mm (Type P) |
| Net weight | 7 kg (Type S) / 10.5 kg (Type P) | 7 kg (Type S) / 10.5 kg (Type P) | 7 kg (Type S) / 10.5 kg (Type P) |
| PROTECTION | |||
| Multiple protections | Overvoltage/undervoltage protection, overload protection, short-circuit protection, leakage current protection, grounding protection, surge protection, overheating protection | Overvoltage/undervoltage protection, overload protection, short-circuit protection, leakage current protection, grounding protection, surge protection, overheating protection | Overvoltage/undervoltage protection, overload protection, short-circuit protection, leakage current protection, grounding protection, surge protection, overheating protection |
| Integrated earth leakage protection | Integrated ground fault monitoring (30 mA AC and 6 mA DC) | Integrated ground fault monitoring (30 mA AC and 6 mA DC) | Integrated ground fault monitoring (30 mA AC and 6 mA DC) |
| Built-in PEN® fault technology | In accordance with BS 7671:2018 requirements | In accordance with BS 7671:2018 requirements | In accordance with BS 7671:2018 requirements |
| Safety standard | IEC 61851-1:2017, IEC 62196-2:2016 | IEC 61851-1:2017, IEC 62196-2:2016 | IEC 61851-1:2017, IEC 62196-2:2016 |
| Encrypted communication | TLS | TLS | TLS |
| Certification | CE, UKCA, LVD, EMC, RED | CE, UKCA, LVD, EMC, RED | CE, UKCA, LVD, EMC, RED |
Note: CE, UKCA, LVD, EMC, RED certification applies to chargers sold in the United Kingdom region.
