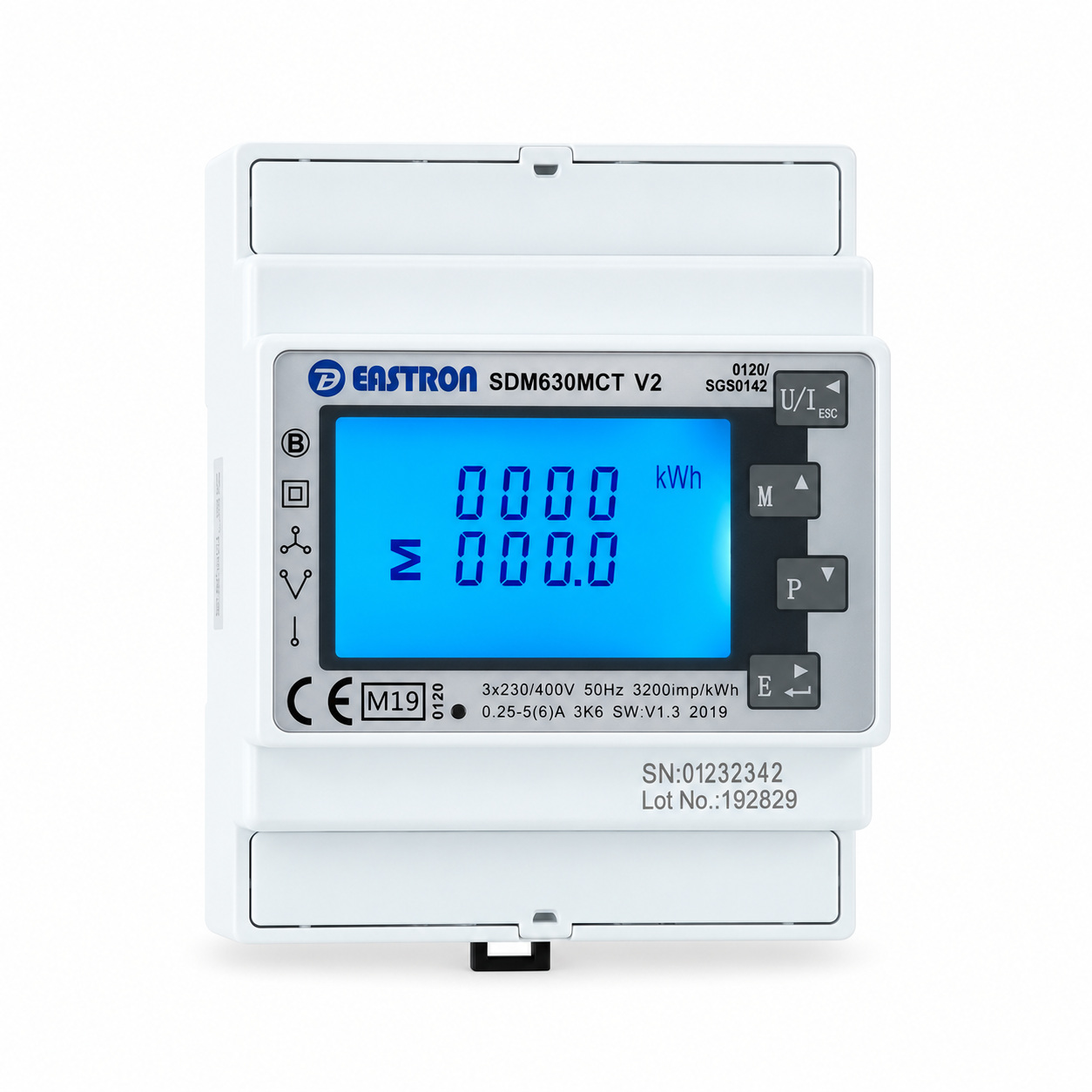

Energy meter – EASTRON – SDM630MCT – dedicated to SOLPLANET inverters – 3-phase
SKU: F280Z31
EAN: 2010000044704
Price
167,03 €
Incl. VAT
Incl. VAT
Product details
SDM630MCT Series
Advanced, multifunctional three-phase electricity meter for DIN-rail mounting, designed to work with current transformers (CT 1A/5A or optionally 333 mV). The device offers bidirectional measurement of energy and network parameters, a high level of accuracy and MID B+D certification. With flexible communication options, it is ideal for modern energy consumption monitoring systems in single- and three-phase installations.
Key features of the SDM630MCT Series:
- Versatile measurement: Supports single-phase (2-wire) and three-phase (3- and 4-wire) installations with bidirectional measurement of active and reactive energy.
- MID B+D certification: Compliance with the EU directive 2014/32/EU (SGS certificate) ensuring the legality of billing.
- High accuracy: Available accuracy class 1.0 for active energy (standard) or optional class 0.5 in selected models.
- Flexible communication: Built-in pulse outputs and optional RS485 Modbus RTU or M-Bus ports for remote data reading.
- Multi-parameter and multi-tariff: Measurement of parameters such as voltage, current, active, reactive and apparent power, frequency, power factor and support for multiple tariffs (in selected versions).
- Easy installation and operation: Compact DIN-rail enclosure 72 mm wide, IP51 protection rating and a clear backlit LCD display.
Who is this a good choice for?
The SDM630MCT Series is an excellent choice for building managers, energy auditors and installers of home and industrial automation systems who need a reliable and precise tool for submetering and monitoring electricity consumption. Thanks to MID certification, a wide range of communication interfaces and easy DIN-rail mounting, the device performs perfectly in commercial, residential and industrial applications requiring remote collection of measurement data.
| Parameter | SDM630MCT-Modbus | SDM630MCT-MODBUS-0.5 | SDM630MCT-Mbus | SDM630MCT-2T | SDM630MCT-MV |
|---|---|---|---|---|---|
| Electrical parameters | |||||
| Rated voltage Un (V AC) | 3×230/400 | 3×230/400 | 3×230/400 | 3×230/400 | 3×230/400 |
| Operating voltage range | 80% – 120% Un | 80% – 120% Un | 80% – 120% Un | 80% – 120% Un | 80% – 120% Un |
| Current input type / rated current (Ib) | CT 1 A / 5 A | CT 1 A / 5 A | CT 1 A / 5 A | CT 1 A / 5 A | 333 mV input |
| Operating current range | 0.4% Ib – Imax | 0.4% Ib – Imax | 0.4% Ib – Imax | 0.4% Ib – Imax | 0.4% Ib – Imax |
| Current overload withstand | 20 Imax for 0.01 s | 20 Imax for 0.01 s | 20 Imax for 0.01 s | 20 Imax for 0.01 s | 20 Imax for 0.01 s |
| Rated frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| AC withstand voltage (kV) | 4 (for 1 min) | 4 (for 1 min) | 4 (for 1 min) | 4 (for 1 min) | 4 (for 1 min) |
| Impulse withstand voltage (kV) | 6 (1.2 µs) | 6 (1.2 µs) | 6 (1.2 µs) | 6 (1.2 µs) | 6 (1.2 µs) |
| Power consumption per phase | ≤ 2 W / 10 VA | ≤ 2 W / 10 VA | ≤ 2 W / 10 VA | ≤ 2 W / 10 VA | ≤ 2 W / 10 VA |
| Measurement accuracy | |||||
| Accuracy class (active energy) | Class 1.0 / Class B | Class 0.5 | Class 1.0 / Class B | Class 1.0 / Class B | Class 1.0 / Class B |
| Voltage and current | ±0.5% of full scale | ±0.5% of full scale | ±0.5% of full scale | ±0.5% of full scale | ±0.5% of full scale |
| Frequency | 0.2% of nominal frequency | 0.2% of nominal frequency | 0.2% of nominal frequency | 0.2% of nominal frequency | 0.2% of nominal frequency |
| Power factor | 1% of unity (0.01) | 1% of unity (0.01) | 1% of unity (0.01) | 1% of unity (0.01) | 1% of unity (0.01) |
| Active and apparent power | ±1% of full scale | ±1% of full scale | ±1% of full scale | ±1% of full scale | ±1% of full scale |
| Reactive power | ±1% of full scale | ±1% of full scale | ±1% of full scale | ±1% of full scale | ±1% of full scale |
| Reactive energy | Class 2 | Class 2 | Class 2 | Class 2 | Class 2 |
| Communication and interfaces | |||||
| Interface / bus protocol | RS485 / Modbus RTU | RS485 / Modbus RTU | M-Bus / EN13757-3 | RS485 / Modbus RTU | RS485 / Modbus RTU |
| Communication speed (bps) | 2400 / 4800 / 9600 / 19200 / 38400 | 2400 / 4800 / 9600 / 19200 / 38400 | 300 / 600 / 1200 / 2400 / 4800 / 9600 | 2400 / 4800 / 9600 / 19200 / 38400 | 2400 / 4800 / 9600 / 19200 / 38400 |
| Number of supported tariffs | 1 tariff | 1 tariff | 1 tariff | 2 tariffs | 1 tariff |
| Pulse output 1 | Configurable | Configurable | Configurable | Configurable | Configurable |
| Pulse output 2 | 3200 imp/kWh | 3200 imp/kWh | 3200 imp/kWh | 3200 imp/kWh | 3200 imp/kWh |
| Display and user parameters | |||||
| Display type | Backlit LCD | Backlit LCD | Backlit LCD | Backlit LCD | Backlit LCD |
| Maximum reading | 9999999.9 kWh / kVarh | 9999999.9 kWh / kVarh | 9999999.9 kWh / kVarh | 9999999.9 kWh / kVarh | 9999999.9 kWh / kVarh |
| Environmental conditions and construction | |||||
| Operating temperature (°C) | -25 to +55 | -25 to +55 | -25 to +55 | -25 to +55 | -25 to +55 |
| Storage temperature (°C) | -40 to +70 | -40 to +70 | -40 to +70 | -40 to +70 | -40 to +70 |
| Operating humidity (%) | ≤ 90 | ≤ 90 | ≤ 90 | ≤ 90 | ≤ 90 |
| Storage humidity (%) | ≤ 95 | ≤ 95 | ≤ 95 | ≤ 95 | ≤ 95 |
| Protection rating | IP51 (indoor use) | IP51 (indoor use) | IP51 (indoor use) | IP51 (indoor use) | IP51 (indoor use) |
| Protection class | II | II | II | II | II |
| Pollution degree | 2 | 2 | 2 | 2 | 2 |
| Installation category | CAT III | CAT III | CAT III | CAT III | CAT III |
| Mounting | DIN rail | DIN rail | DIN rail | DIN rail | DIN rail |
| Dimensions (W × H × D) (mm) | 72 × 94.5 × 65 | 72 × 94.5 × 65 | 72 × 94.5 × 65 | 72 × 94.5 × 65 | 72 × 94.5 × 65 |
