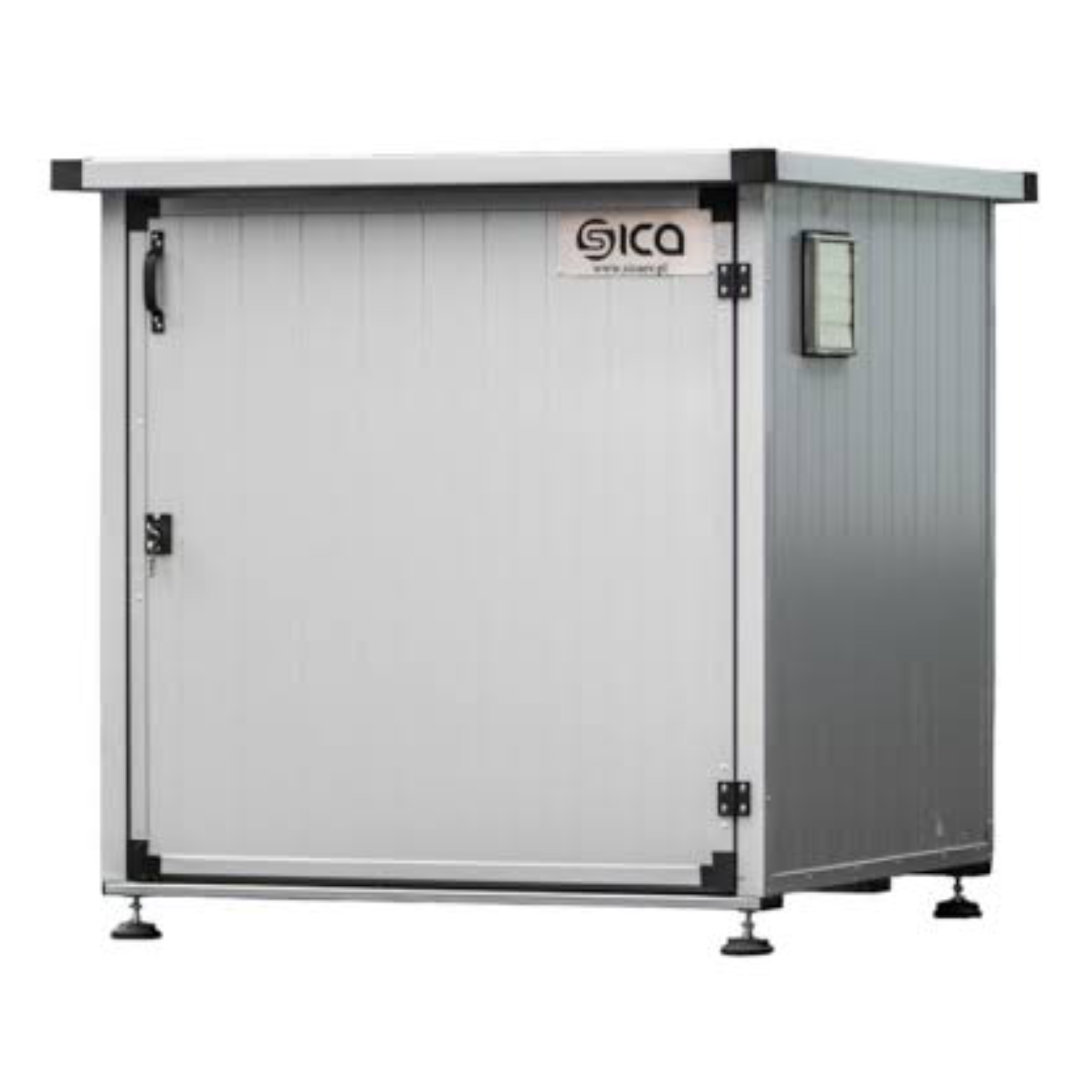

Energy storage – SICA – Energy storage enclosure – HEATBOX H2
Gross
Product details
Outdoor Enclosure for Sica Energy Storage with Heating
The Sica outdoor enclosure for energy storage is designed to protect and optimize the operation of energy storage systems. Equipped with an advanced heating system and a fan, it maintains an optimal operating temperature, which improves the storage unit’s performance and lifespan. The IP65 protection rating ensures defense against dust and water jets, allowing for outdoor installation.
Key features of the Sica outdoor enclosure for energy storage:
- Protection class IP65 – excellent resistance to outdoor conditions.
- Integrated fan and heating mat for optimal temperature control.
- Operating voltage AC 230V, heating power 45W.
- Temperature control range from 10°C to 50°C with 0.1°C accuracy.
- Designed for outdoor installation.
- 2-year warranty.
Who is this a good choice for?
The Sica enclosure is an ideal solution for installers and users of energy storage systems who need reliable external protection. It works well in residential and commercial installations where maintaining stable operating conditions for the energy storage is crucial regardless of weather — a capability supported by its IP65 rating and built-in heating and ventilation features.
| Parameter | Value |
|---|---|
| AC operating voltage | 230V |
| Power | 45W |
| Temperature resolution | 0.1°C |
| Minimum heating temperature | 10°C |
| Maximum heating temperature | 50°C |
| Ingress protection rating | IP65 |
| Installation location | Outdoor |
| Weight | – kg |
| Dimensions [mm] | 950x900x1000 |
| Enclosure height (external/internal) | 1080/1000 |
| Enclosure width (external/internal) | 1090/950 |
| Enclosure depth (external/internal) | 1000/900 |
No detailed information available regarding the fan and heating mat.
