Microinverter ENVERTECH EVT1000B
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |

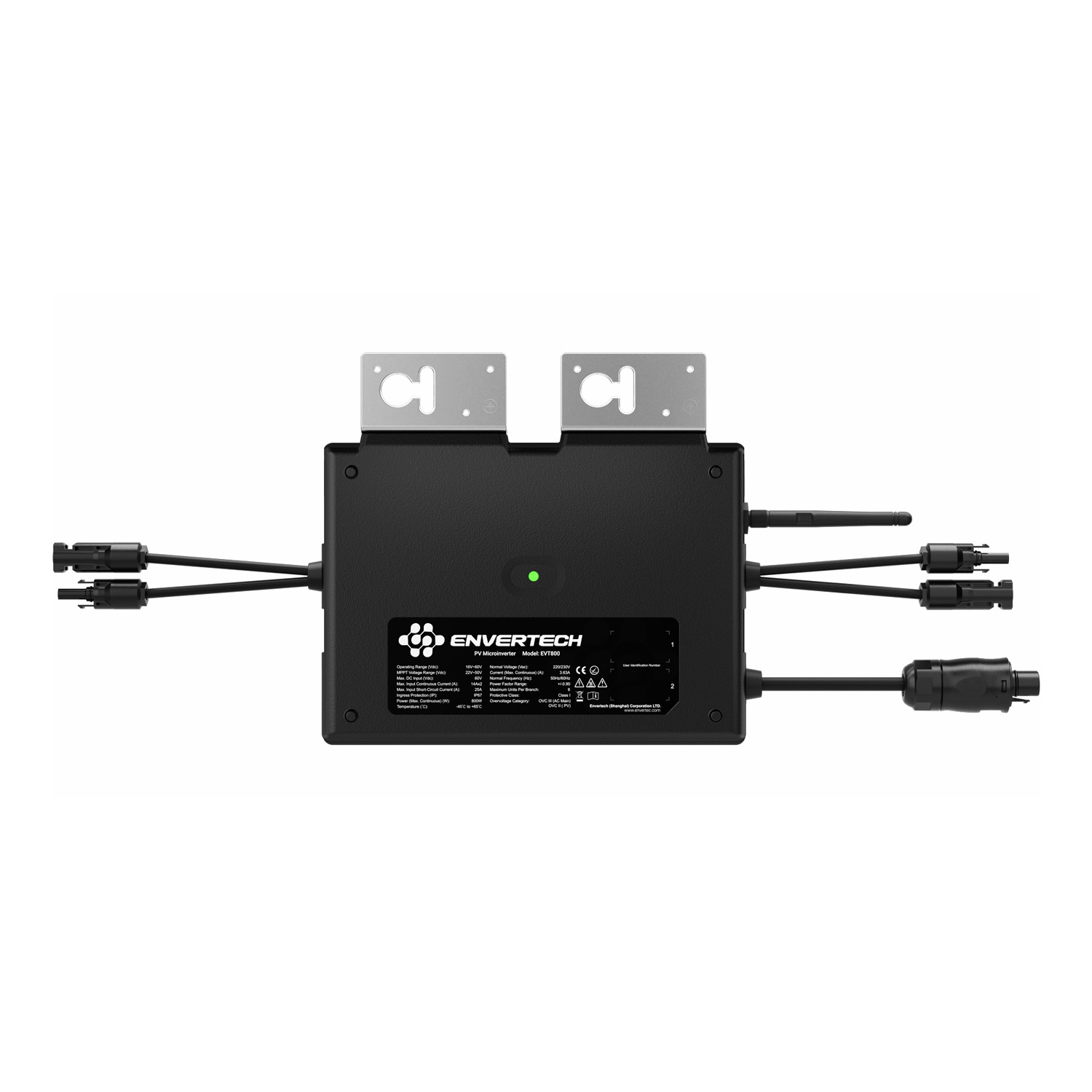

Envertech EVT1000 Micro-Inverter (Type B)
The Envertech EVT1000 Micro-Inverter (Type B) is a modern device designed to optimize the operation of photovoltaic installations, allowing the connection of two panels. It features high flexibility, safety with operation at low DC voltage, and easy Plug & Play installation. It provides module-level monitoring and optimization, making it an ideal solution for smaller systems, including popular balcony installations.
Key Features of the Envertech EVT1000 Micro-Inverter (Type B):
- Optimization for Two Panels: Allows the connection of two photovoltaic panels (each recommended power from 250W to 650W+) and ensures individual optimization and monitoring of their performance.
- High Efficiency and Safety: Achieves a maximum efficiency of 96.8% and MPPT efficiency of 96.9%, operating at a safe low input DC voltage (up to 60V) and has an IP67 protection rating.
- Plug & Play Installation: Simple mounting without the need for additional caps, making it an ideal solution for balcony, garden, and small-scale systems.
- Advanced Monitoring: Offers intelligent management and monitoring capabilities at the module level via PLCC communication or built-in Wi-Fi (an optional monitoring device may be required and subject to additional fees).
- Long Lifespan and Warranty: Designed for a lifespan of 25 years, standardly covered by a 15-year warranty with the option to extend to 20 years.
- Output Power: Maximum continuous output power of 1000W, optimized for handling two panels.
Who is it a Good Choice For?
The Envertech EVT1000 Micro-Inverter (Type B) is an excellent choice for individual users looking for a flexible, safe, and easy-to-install solution to optimize energy yield from two photovoltaic panels. It is particularly recommended for small systems, such as balcony or garden installations, where connecting multiple micro-inverters in long AC chains is not planned. It will also perform well on roofs with complex geometry or those exposed to partial shading, where module-level optimization provides the greatest benefits, and detailed monitoring is an added advantage.
| Parameter | EVT1000 (Type B) |
|---|---|
| Input Data (DC) | |
| Recommended input power range (STC) (W) | (250W-650W+)*2 |
| Maximum DC input voltage (V) | 60V |
| Isc PV (absolute max) (A) | 25A |
| Operating voltage range (V) | 16V-60V |
| Maximum input current (A) | 18A*2 |
| MPPT voltage range (V) | 22V-50V |
| Output Data (AC) | |
| Normal voltage (Vac) | 220V/230V |
| Voltage range (Vac) | 189-260V |
| Current (maximum continuous) (A) | 4.55A |
| Frequency (Hz) | 50Hz/60Hz |
| Frequency range (Hz) | 47.5-52.5Hz/57.5-62.5Hz |
| Power (maximum continuous) (W) | 1000W |
| Power factor/nominated power (default) | +/-0.90 |
| Total harmonic distortion (%) | <3% |
| Maximum number of units per branch (12AWG cable) | N/A |
| Efficiency | |
| Maximum efficiency (%) | 96.8% |
| MPPT efficiency (%) | 96.9% |
| Night power consumption (mW) | <100mW |
| Features | |
| Communication | PLCC (communication via power lines) / WiFi |
| Compliance | VDE-AR-N 4105, IEC/EN61000, IEC/EN62109-1/2, EN50549-1/2019, TOR 2019, C10/11:2019, CEI 0-21 UTE C15-712-1:2013, VFR 2019 |
| Warranty (years) | 15 years (optional 20 years) |
| Others | |
| Protection class (IP) | IP 67 |
| Protective class | Class 1 |
| Temperature (°C) | -40 °C to +65 °C |
| Relative humidity (%) | 0% – 98% |
| Surge category | OVC III (AC Main), OVC II (PV) |
| Inverter insulation | High frequency insulation |
| Weight (kg) | 3.7kg |
| Dimensions (w*h*d) (mm) | 264mm*194mm*35.5mm |
Monitoring device*: Monitoring devices are optional and require an additional fee.
Monitoring allows users to manage systems intelligently in a digital manner via PLCC or built-in Wi-Fi.
Note: The EVT1000 (Type B) model differs from the standard EVT1000 by lacking information on the maximum number of units per branch (N/A).
