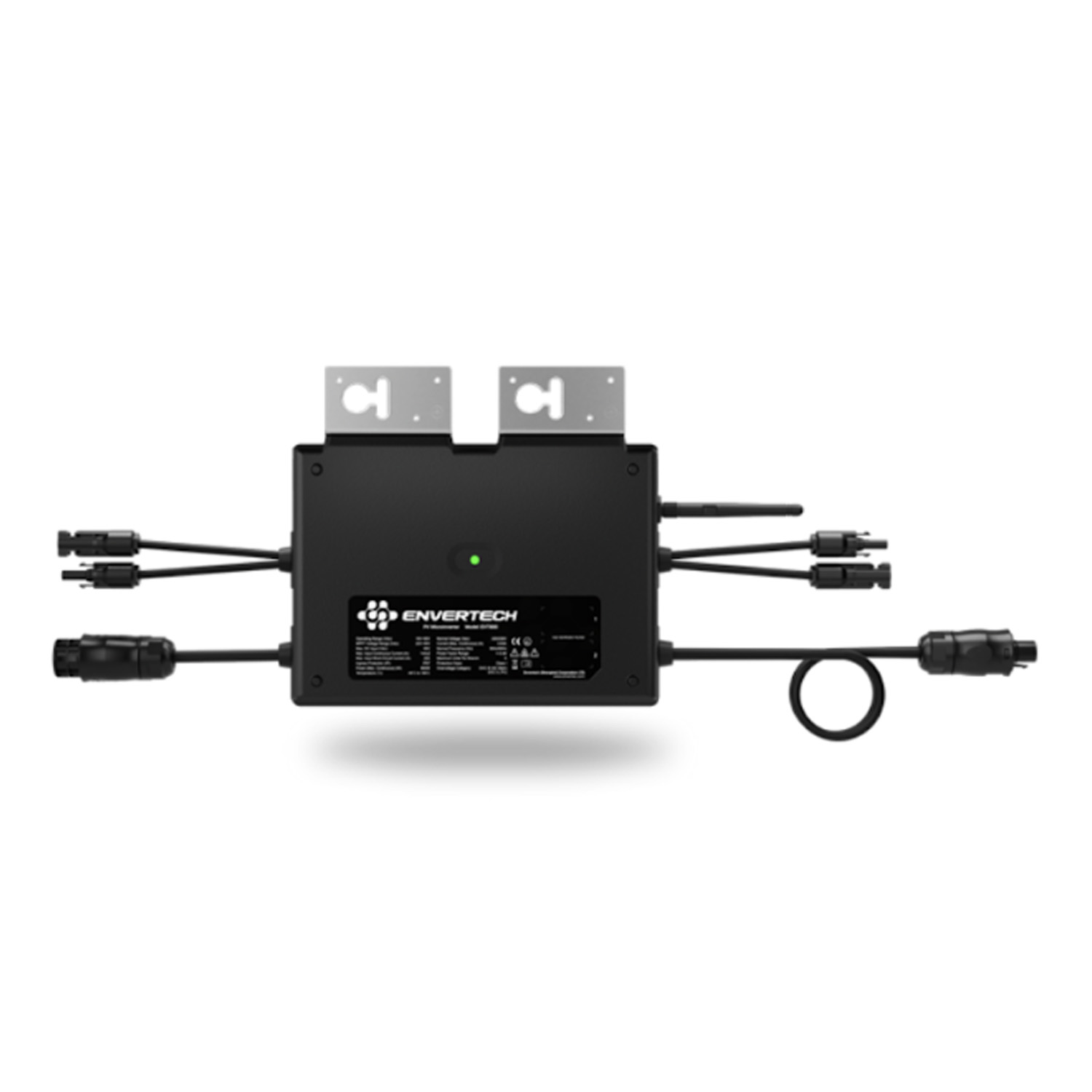

Microinverter ENVERTECH EVT1000R
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |
Envertech EVT1000 Microinverter
The Envertech EVT1000 Microinverter is a modern device designed to optimize the performance of photovoltaic systems, allowing for the connection of two panels. It is characterized by high flexibility, safety through operation at low DC voltage, and ease of installation with a Plug & Play design. It provides monitoring and optimization at the module level, making it an ideal solution for a variety of systems, including balcony installations.
Key Features of the Envertech EVT1000 Microinverter:
- Optimization for Two Panels: Allows for the connection of two photovoltaic panels (each recommended to have a power rating from 250W to 650W+) and ensures individual optimization and monitoring of their performance.
- High Efficiency and Safety: Achieves a maximum efficiency of 96.8% and an MPPT efficiency of 96.9%, operating at a safe, low DC input voltage (up to 60V) and having an IP67 protection rating.
- Plug & Play Installation: Simple installation without the need for additional caps, making it an ideal solution for balcony, garden, and any size system installations.
- Advanced Monitoring: Offers the ability for smart management and module-level monitoring through PLCC communication or built-in Wi-Fi (an optional monitoring device may be required and subject to an additional fee).
- Long Lifespan and Warranty: Designed for a lifespan of 25 years, it comes standard with a 15-year warranty, with the option to extend to 20 years.
Who Is This a Good Choice For?
The Envertech EVT1000 Microinverter is an excellent choice for individual users and small commercial installations looking for a flexible, safe, and easy-to-install solution to optimize energy yield from photovoltaic panels. It is particularly recommended for smaller systems, balcony and garden installations, as well as on roofs with complex geometry or prone to partial shading, where optimization at each module level brings the greatest benefits. It is also an ideal solution for those who value the ability to closely monitor the performance of their photovoltaic system.
| Parameter | EVT1000 |
|---|---|
| Input Data (DC) | |
| Recommended input power range (STC) (W) | (250W-650W+)*2 |
| Maximum DC input voltage (V) | 60V |
| Isc PV (absolute max) (A) | 25A |
| Operating range (V) | 16V-60V |
| Maximum input current (A) | 18A*2 |
| MPPT voltage range (V) | 22V-50V |
| Output Data (AC) | |
| Nominal voltage (Vac) | 220V/230V |
| Voltage range (Vac) | 189-260V |
| Current (max continuous) (A) | 4.55A |
| Frequency (Hz) | 50Hz/60Hz |
| Frequency range (Hz) | 47.5-52.5Hz/57.5-62.5Hz |
| Power (max continuous) (W) | 1000W |
| Power factor/rating (default) | +/-0.90 |
| Total harmonic distortion (%) | <3% |
| Maximum number of units per branch (12AWG wire) | 5 Units |
| Efficiency | |
| Maximum efficiency (%) | 96.8% |
| MPPT efficiency (%) | 96.9% |
| Night power consumption (mW) | <100mW |
| Features | |
| Communication | PLCC (power line communication) / WiFi |
| Compliance | VDE-AR-N 4105, IEC/EN61000, IEC/EN62109-1/2, EN50549-1/2019, TOR 2019, C10/11:2019, CEI 0-21 UTE C15-712-1:2013, VFR 2019 |
| Warranty (years) | 15 years (optional 20 years) |
| Others | |
| Protection degree (IP) | IP 67 |
| Protection class | Class 1 |
| Temperature (°C) | -40 °C to +65 °C |
| Relative humidity (%) | 0% – 98% |
| Surge protection category | OVC III (AC Main), OVC II (PV) |
| Inverter insulation | High-frequency insulation |
| Weight (kg) | 4.1kg |
| Dimensions (width*height*depth) (mm) | 264mm*194mm*35.5mm |
Monitoring device*: Monitoring devices are optional and require an additional fee.
Monitoring allows users to manage systems intelligently and digitally via PLCC or built-in Wi-Fi.
