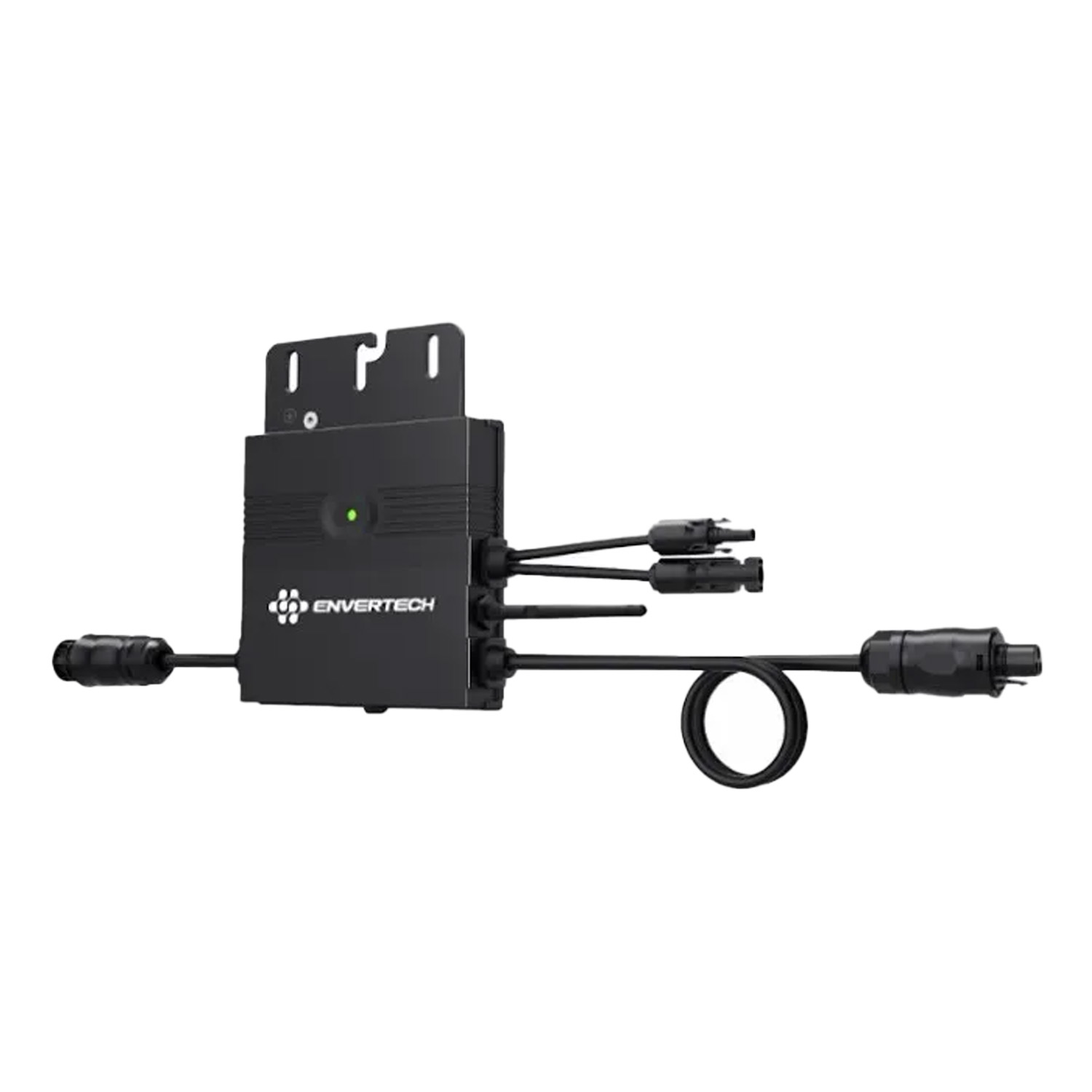

Microinverter ENVERTECH EVT500R
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |
Envertech EVT500 Microinverter
The Envertech EVT500 microinverter is a modern device designed to optimize the performance of a single photovoltaic panel. It features high flexibility, safety due to its operation at low DC voltage, and ease of installation with a Plug & Play design. It provides monitoring and optimization at the module level, making it an ideal solution for small systems, including popular balcony and garden installations.
Key Features of the Envertech EVT500 Microinverter:
- Optimization for a Single Panel: Allows for the connection of one photovoltaic panel (recommended power from 250W to 650W+) and provides individual optimization and performance monitoring.
- High Efficiency and Safety: Achieves a maximum efficiency of 96.5% and MPPT efficiency of 96.9%, operating at a safe low input DC voltage (up to 60V) and with an IP67 protection rating.
- Plug & Play Installation: Simple assembly without the need for additional caps, making it ideal for installations on balconies or in gardens.
- Advanced Module-Level Monitoring: Offers the possibility of intelligent management and system monitoring via PLCC communication or built-in Wi-Fi (an optional monitoring device may be required and subject to an additional fee).
- Long Lifespan and Warranty: Designed with a lifespan of 25 years, it comes standard with a 15-year warranty, with the option to extend it to 20 years.
Who is this the right choice for?
The Envertech EVT500 microinverter is an excellent choice for individual users looking for a compact, safe, and easy-to-install solution to optimize energy yield from a single photovoltaic panel. It is particularly recommended for the smallest systems, such as balcony installations, garden setups, small off-grid systems, and as an addition to existing installations with an independently working module. It is the perfect solution for those who value the ability to monitor their installation’s performance in detail.
| Parameter | EVT500 |
|---|---|
| Input Data (DC) | |
| Recommended input power range (STC) (W) | 250W-650W+ |
| Maximum DC input voltage (V) | 60V |
| Isc PV (absolute max) (A) | 25A |
| Operating range (V) | 16V-60V |
| Maximum input current (A) | 18A |
| MPPT voltage range (V) | 22V-50V |
| Output Data (AC) | |
| Standard voltage (Vac) | 220V/230V |
| Voltage range (Vac) | 189-260V |
| Current (maximum continuous) (A) | 2.27A |
| Frequency (Hz) | 50Hz/60Hz |
| Frequency range (Hz) | 47.5-52.5Hz/57.5-62.5Hz |
| Power (maximum continuous) (W) | 500W |
| Power factor/rated power (default) | +/-0.90 |
| Total harmonic distortion (%) | <3% |
| Maximum number of units per branch (12AWG cable) | 10 Units |
| Efficiency | |
| Maximum efficiency (%) | 96.5% |
| MPPT efficiency (%) | 96.9% |
| Night power consumption (mW) | <100mW |
| Features | |
| Communication | PLCC (communication via power lines) / WiFi |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU, RED 2014/53/EU, ROHS, WEEE, REACH, EN 50549-1/10, IEC 62116&IEC 61727, VDE-AR-N 4105, VFR 2019, UTE C15-712-1, DIN VDE V 0126-1-1, C10/11, TOR, NC-RfG, NA/EEA-NE7 – CH 2020, NTS |
| Warranty (years) | 15 years (optional 20 years) |
| Others | |
| Degree of protection (IP) | IP 67 |
| Protection class | Class 1 |
| Temperature (°C) | -40 °C to +65 °C |
| Relative humidity (%) | 0% – 98% |
| Surge category | OVC III (AC Main), OVC II (PV) |
| Inverter insulation | High-frequency insulation |
| Weight (kg) | 2.1kg |
| Dimensions (w*h*d) (mm) | 163.3mm*163.7mm*35.5mm |
Monitoring device*: Monitoring devices are optional and may require an additional fee.
Monitoring allows users to manage systems smartly and digitally through PLCC or built-in Wi-Fi.
