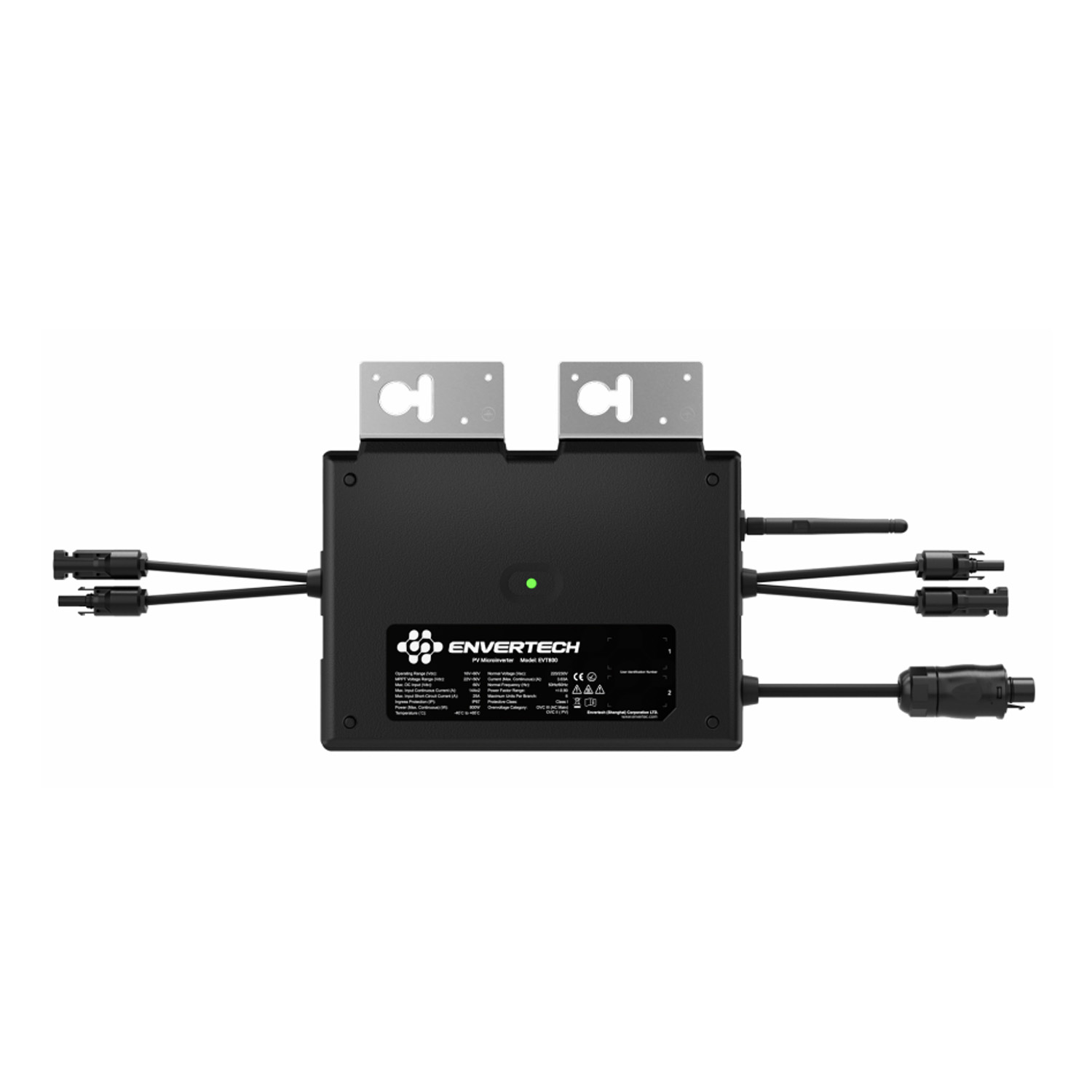

Microinverter ENVERTECH EVT800B
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | 2 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Wi-Fi | Yes |
| PLCC | Yes |
| CN | 85004095 |
Envertech EVT800 Microinverter
The Envertech EVT800 microinverter is a modern device designed to optimize the performance of individual photovoltaic panels. It features high flexibility, safety with low DC voltage, and ease of installation with a Plug & Play system. It provides monitoring and optimization at the module level, which results in higher efficiency for the entire photovoltaic system. This is an ideal solution for installations of any size, including those on balconies or in gardens.
Key Features of the Envertech EVT800 Microinverter:
- Module-level optimization: Enables individual monitoring and maximization of the performance of each connected photovoltaic panel (recommended power range 180W-550W+ per input).
- Safety and high quality: Low DC voltage on the panel side and components from world-class brands guarantee safe and reliable operation.
- Flexibility and ease of installation: The Plug & Play system does not require a blank cover, making installation easier, especially in small setups. It adapts to systems of any size, optimizing space utilization.
- Long lifespan and warranty: The expected lifespan is 25 years, with a standard warranty of 15 years, and an optional extension to 20 years.
- Advanced monitoring: Capability for intelligent system management digitally via PLCC communication or built-in Wi-Fi (monitoring devices are optional).
- High efficiency: Maximum efficiency of 96.8% and MPPT efficiency of 96.9%, with low power consumption at night (<100mW).
Who is this a good choice for?
The Envertech EVT800 microinverter is an excellent choice for those looking for a flexible and efficient solution to optimize the performance of photovoltaic installations, regardless of their size. It is particularly well-suited for complicated roofs, partial shading, or the need for future system expansion. It is also a great option for small installations, such as those on balconies or in gardens, where ease of installation and safety are important. The ability to monitor at the module level will be appreciated by users who want full control over their energy production.
| Parameter | EVT800 (Type B) |
|---|---|
| Input Data (DC) | |
| Recommended input power range (STC) (W) | (180W-550W+)*2 |
| Maximum input voltage DC (V) | 60V |
| Isc PV (maximum absolute) (A) | 25A |
| Operating range (V) | 16V-60V |
| Maximum input current (A) | 14A*2 |
| MPPT voltage range (V) | 22V-50V |
| Output Data (AC) | |
| Nominal voltage (Vac) | 220V-230V |
| Voltage range (Vac) | 189-260V |
| Current (maximum continuous) (A) | 3.63A |
| Frequency (Hz) | 50Hz/60Hz |
| Frequency range (Hz) | 47.5-52.5Hz/57.5-62.5Hz |
| Power (maximum continuous) (W) | 800W |
| Power factor/rated power (default) | +/-0.90 |
| Total harmonic distortion (%) | <3% |
| Maximum number of units on a branch (12AWG cable) | N/A |
| Efficiency | |
| Maximum efficiency (%) | 96.8% |
| MPPT efficiency (%) | 96.9% |
| Power consumption at night (mW) | <100mW |
| Features | |
| Communication | PLCC (communication via power lines) / WiFi |
| Compliance | VDE-AR-N 4105, IEC/EN61000, IEC/EN62109-1/2, EN50549-1/2019, TOR 2019, C10/11:2019, CEI 0-21 UTE C15-712-1:2013, VFR 2019 |
| Warranty (years) | 15 years (optional 20 years) |
| Others | |
| Protection class (IP) | IP 67 |
| Protection class | Class 1 |
| Temperature (°C) | -40 °C to +65 °C |
| Relative humidity (%) | 0% – 98% |
| Surge category | OVC III (AC Main), OVC II (PV) |
| Inverter insulation | High-frequency insulation |
| Weight (kg) | 3.7kg |
| Dimensions (W*H*D) (mm) | 264mm*194mm*35.5mm |
Monitoring device*: Monitoring devices are optional and require an additional fee.
Monitoring allows users to intelligently manage systems digitally via PLCC or built-in Wi-Fi.
Note: The EVT800 (Type B) model differs from the standard EVT800 in that it does not provide information on the maximum number of units per branch (N/A).
