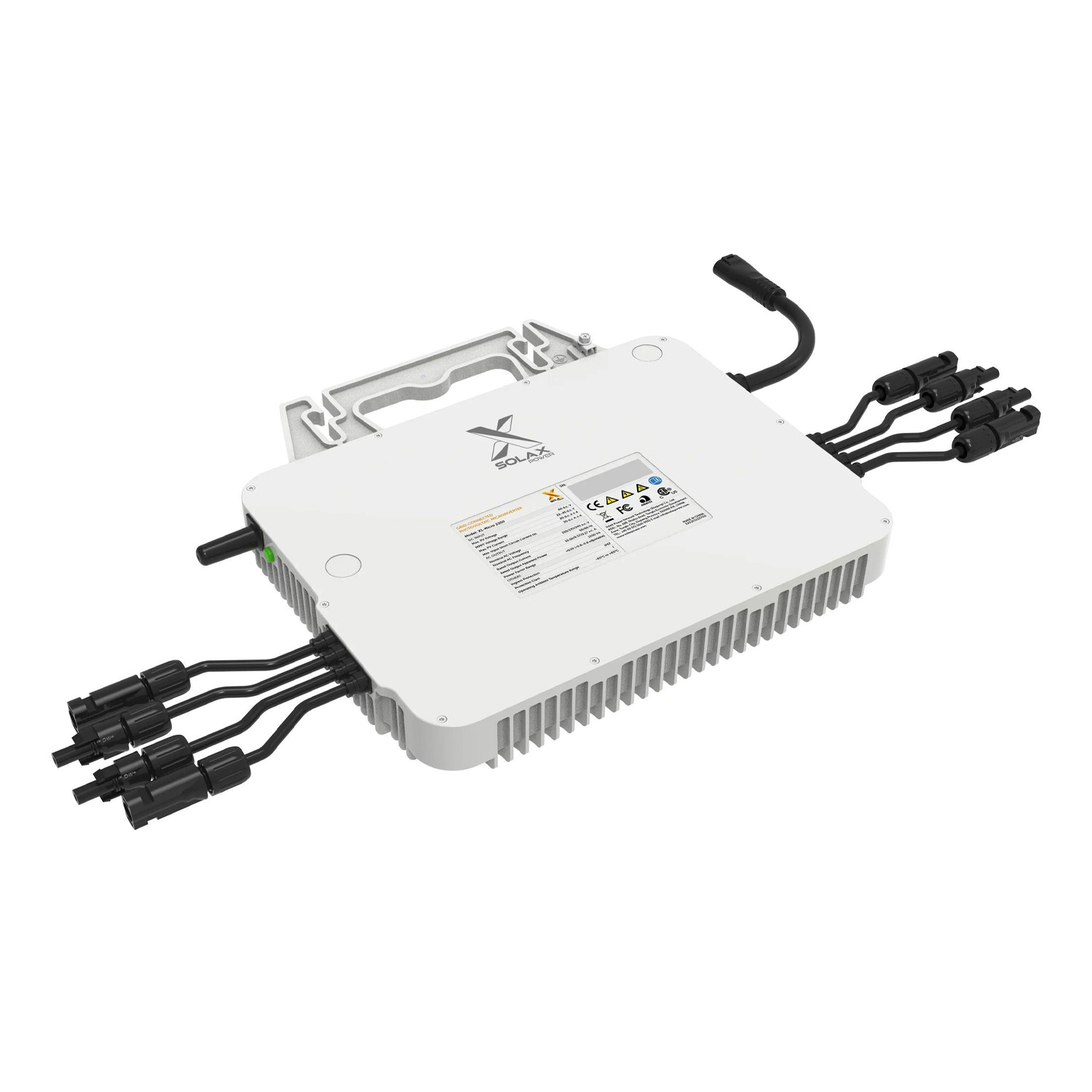

Microinverter – SOLAX – X1-MICRO-2000
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | |
| Maximum efficiency | |
| Wi-Fi | |
| Weight | 6,7 kg |
| CN | 85044085 |
Gross
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Hybrid device | |
| MPPT | |
| Maximum efficiency | |
| Wi-Fi | |
| Weight | 6,7 kg |
| CN | 85044085 |
Solax X1-Micro 4 in 1
The Solax X1-Micro 4 in 1 microinverter series offers an efficient and safe solution for converting solar energy. With four independent MPPT channels and a maximum AC output power of up to 2400 VA, these units ensure optimal use of photovoltaic panels in flexible configurations.
Key features of the Solax X1-Micro 4 in 1:
- Maximum AC output power up to 2400 VA.
- Four independent MPPT channels to optimize energy production.
- Integrated rapid shutdown (Rapid Shutdown) and a safety relay.
- IP67 ingress protection for durability in outdoor conditions.
- Built-in Wi-Fi module for intelligent monitoring and system management via SolaXCloud.
- Allows flexible system expansion and integration with three-phase grids.
Who is this a good choice for?
The Solax X1-Micro 4 in 1 microinverters are an ideal choice for homeowners and installers looking for an efficient, safe, and easy-to-install solar power solution. They are particularly well suited to photovoltaic installations that require high efficiency, configuration flexibility, and remote system monitoring.
| Parameter | X1-Micro 1300 | X1-Micro 1500 | X1-Micro 1600 | X1-Micro 1800 | X1-Micro 2000 | X1-Micro 2200 | X1-Micro 2400 |
|---|---|---|---|---|---|---|---|
| PV Input | |||||||
| PV module power per input (min~max+) | 300~505 W | 320~540 W | 360~600 W | 400~600+ W | 400~670+ W | 450~700+ W | 500~750+ W |
| Max. PV input voltage | 60 V | ||||||
| MPPT voltage range | 22~60 V | ||||||
| Start-up voltage | 20 V | ||||||
| Max. PV input current | 4 x 12 A | 4 x 14 A | 4 x 15 A | 4 x 16 A | 4 x 18 A | 4× 19.5 A | |
| Max. input short-circuit current | 4 x 20 A | 4 x 25 A | |||||
| Number of MPPT trackers | 4 | ||||||
| Strings per MPPT tracker | 1 | ||||||
| AC Output | |||||||
| Rated AC output power | 1300 VA | 1500 VA | 1600 VA | 1800 VA | 2000 VA | 2200 VA | 2400 VA |
| Max. continuous output power | 1300 VA | 1500 VA | 1600 VA | 1800 VA | 2000 VA | 2200 VA | 2400 VA |
| Max. continuous output current | 5.91 A @220 V
5.66 A @230 V 5.42 A @240 V |
6.82 A @220 V
6.53 A @230 V 6.25 A @240 V |
7.28 A @220 V
6.96 A @230 V 6.67 A @240 V |
8.19 A @220 V
7.83 A @230 V 7.50 A @240 V |
9.10 A @220 V
8.70 A @230 V 8.34 A @240 V |
10.00 A @220 V
9.57 A @230 V 9.17 A @240 V |
10.91 A @220 V
10.43 A @230 V 10.00 A @240 V |
| Rated grid voltage | 220/230/240 V | ||||||
| AC rated voltage range | 180~264 V | ||||||
| AC rated frequency | 50 Hz / 60 Hz | ||||||
| AC frequency range | 50 ± 5 Hz / 60 ± 5 Hz | ||||||
| Max. units per branch 10AWG* | 4@220 V
4@230 V 5@240 V |
4@220 V
4@230 V 4@240 V |
4@220 V
4@230 V 4@240 V |
3@220 V
3@230 V 3@240 V |
3@220 V
3@230 V 3@240 V |
3@220 V
3@230 V 3@240 V |
2@220 V
2@230 V 3@240 V |
| Max. units per branch 12AWG* | 3@220 V
3@230 V 4@240 V |
3@220 V
3@230 V 3@240 V |
3@220 V
3@230 V 3@240 V |
2@220 V
2@230 V 3@240 V |
2@220 V
2@230 V 2@240 V |
2@220 V
2@230 V 2@240 V |
2@220 V
2@230 V 2@240 V |
| Power factor range | ~1 (0.8 leading…0.8 lagging) | ||||||
| THDi (rated power) | <3% | ||||||
| Efficiency | |||||||
| Max. efficiency | 96.50% | ||||||
| MPPT efficiency | 99.90% | ||||||
| Power consumption (night) | <40 mW | ||||||
| Safety | |||||||
| EMC | IEC 61000, EN 62920, EN 301489, EN 55011 | ||||||
| Certifications | IEC 61727, IEC 62116, EN 50549, VDE 4105, UNE217001, UNE217002, RD244/647, NTS Version 2.1 TYPE A, INMETRO, PEA/MEA | ||||||
| Ingress protection | IP67 | ||||||
| Environmental limits | |||||||
| Operating temperature range | -40~75°C | ||||||
| Relative humidity | 100% RH (condensing) | ||||||
| Storage temperature | -40~75°C | ||||||
| General | |||||||
| Dimensions (W x H x D) | 322 × 242 x 48.5 mm | ||||||
| Weight | 6.2 kg | ||||||
| Cooling method | Natural cooling | ||||||
| Communication | Built-in WiFi | ||||||
| Monitoring | SolaXCloud | ||||||
* Check local requirements for the exact number of microinverters per branch.
