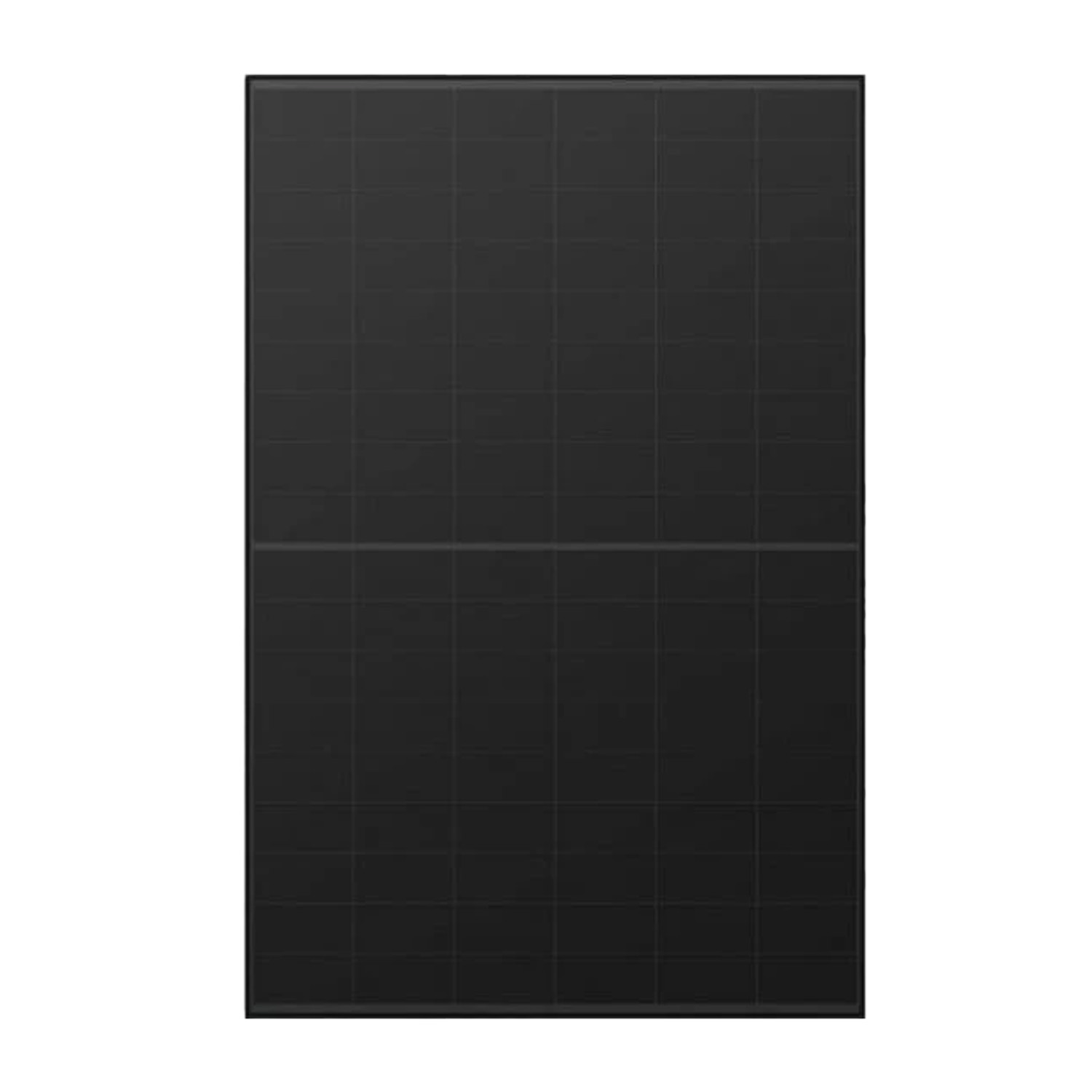

AIKO-A435-MAH54Mb Module Full black
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | Yes |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | N-type ABC |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | 1200 mm |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 20,5 kg |
| CN | 85414300 |
Gross
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | Yes |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | N-type ABC |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | 1200 mm |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 20,5 kg |
| CN | 85414300 |
AIKO Neostar 1S ABC N-Type Solar Panels
The AIKO Neostar 1S solar panels are a series of high-performance N-type modules (ABC N-Type) utilizing mono-glass technology, featuring power outputs ranging from 430W to 450W and efficiency levels reaching 23.0%. They stand out with an elegant, completely black design (Full Black) without visible grid lines on the front. These panels offer higher energy production, low degradation, and optimized system costs (BOS), making them an excellent choice for demanding installations.
Key Features of AIKO Neostar 1S ABC N-Type Solar Panels:
- High Power and Efficiency: Output power in the range of 430W-450W and module efficiency reaching 23.0% thanks to advanced ABC N-Type technology.
- Elegant Full Black Design: A completely black appearance without visible front grid lines, ensuring excellent aesthetics and multiple design awards (e.g., Reddot winner 2023).
- Low Degradation and Excellent Temperature Coefficient: Power degradation in the first year ≤1.0%, linear degradation ≤0.35% annually (years 2-30), and a favorable Pmax temperature coefficient of -0.26%/°C.
- Extended Warranties: 15-year product warranty and 30-year linear performance warranty (maintaining 88.85% power output after 30 years).
- Optimized Balance of System (BOS): Significant savings on mounting structure, cabling, and labor costs, resulting in a lower total installation cost.
- Proven Quality and Certifications: Winner of the Intersolar Award 2023, with a complete set of quality management system certifications (IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001).
Who is this a good choice for?
The AIKO Neostar 1S panels are an ideal choice for customers seeking the highest quality, aesthetics, and efficiency in their photovoltaic installations, both for residential and commercial applications. With advanced ABC N-Type technology, excellent operational parameters including low temperature coefficients and minimal degradation, along with long warranties, they provide maximum energy yield and long-term reliability. Additionally, the elegant Full Black design adds to their appeal.
| Parameter | AIKO-A430-MAH54Mb | AIKO-A435-MAH54Mb | AIKO-A440-MAH54Mb | AIKO-A445-MAH54Mb | AIKO-A450-MAH54Mb |
|---|---|---|---|---|---|
| Electrical Characteristics (STC: AM1.5 1000W/m² 25°C; NOCT: AM1.5 800W/m² 20°C 1m/s) | |||||
| Testing Conditions STC | |||||
| Maximum Power (Pmax) (W) | 430 | 435 | 440 | 445 | 450 |
| Open Circuit Voltage (Voc) (V) | 40.29 | 40.39 | 40.49 | 40.59 | 40.69 |
| Voltage at Maximum Power (Vmp) (V) | 33.30 | 33.40 | 33.50 | 33.60 | 33.70 |
| Short Circuit Current (Isc) (A) | 13.69 | 13.80 | 13.91 | 14.02 | 14.12 |
| Current at Maximum Power (Imp) (A) | 12.92 | 13.03 | 13.14 | 13.25 | 13.36 |
| Testing Conditions NOCT | |||||
| Maximum Power (Pmax) (W) | 324 | 327 | 331 | 335 | 339 |
| Open Circuit Voltage (Voc) (V) | 38.05 | 38.14 | 38.24 | 38.33 | 38.43 |
| Voltage at Maximum Power (Vmp) (V) | 31.45 | 31.55 | 31.64 | 31.73 | 31.83 |
| Short Circuit Current (Isc) (A) | 11.07 | 11.16 | 11.25 | 11.33 | 11.42 |
| Current at Maximum Power (Imp) (A) | 10.31 | 10.40 | 10.49 | 10.57 | 10.66 |
| Module Efficiency (%) | 22.0% | 22.3% | 22.5% | 22.8% | 23.0% |
| Power Tolerance (%) | 0~ +3% | ||||
| Mechanical Specification | |||||
| Cell Type | N-Type ABC | ||||
| Front Cover | 3.2 mm Tempered Glass | ||||
| Frame | Black Anodized Aluminum | ||||
| Cable (mm²/AWG, length mm) | 4mm²(IEC) 12AWG(UL) 1200mm | ||||
| Number of Cells | 108 (6*18) | ||||
| Junction Box (IP) | IP68, 3 bypass diodes | ||||
| Connector | MC4-Evo2 | ||||
| Weight (kg) | 20.5 | ||||
| Dimensions (mm) | 1722*1134*30 | ||||
| Packaging Details | 36 pcs/palette / 216 pcs/20’GP / 936 pcs/40’HC | ||||
| Temperature Coefficients (STC) | |||||
| Temperature Coefficient Isc (%/°C) | +0.05 | ||||
| Temperature Coefficient Voc (%/°C) | -0.22 | ||||
| Temperature Coefficient Pmax (%/°C) | -0.26 | ||||
| Installation Guidelines | |||||
| Operating Temperature (°C) | -40°C – +85°C | ||||
| Maximum Current Rating of Series Fuse (A) | 25 | ||||
| Protection Class | Class II | ||||
| Tolerance Voc and Isc (%) | ±3% | ||||
| Maximum System Voltage (V) | DC1500V | ||||
| Maximum Static Load (Pa) | Front 5400Pa / Back 2400Pa | ||||
| Hail Test | Hail with a diameter of 25 mm at a speed of 23 m/s | ||||
| Flammability Class | IEC Class C | ||||
| Warranty | |||||
| Product Warranty (years) | 15 | ||||
| Performance Warranty (years) | 30 | ||||
| First Year Degradation (%) | ≤1.0% | ||||
| Linear Degradation from Year 2-30 (%/year) | ≤0.35% | ||||
| Guaranteed Performance after 1 Year (%) | ≥99% | ||||
| Guaranteed Performance after 30 Years (%) | ≥88.85% (ABC Mono-glass) / ≥85% (PERC Mono-glass) | ||||
| Certificates | |||||
| Quality Management Systems | IEC 61730 (2016), IEC 61215 (2021), ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 | ||||
*AIKO Energy reserves the right to update specifications without notice. AEBHS_EN V5.4
